Hood Lock Control: Installation

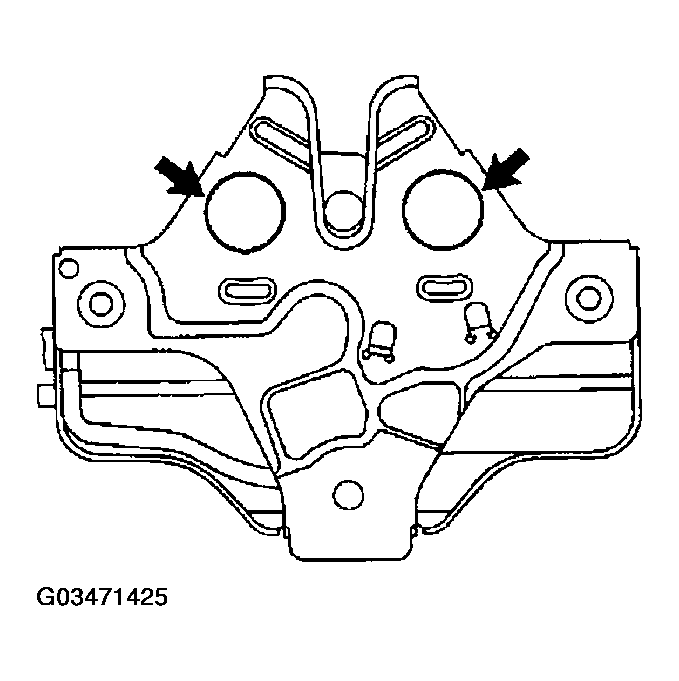

Apply MP grease to the sliding surface of the lock.

Fig 1: Applying MP Grease To Sliding Surface Of Lock

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

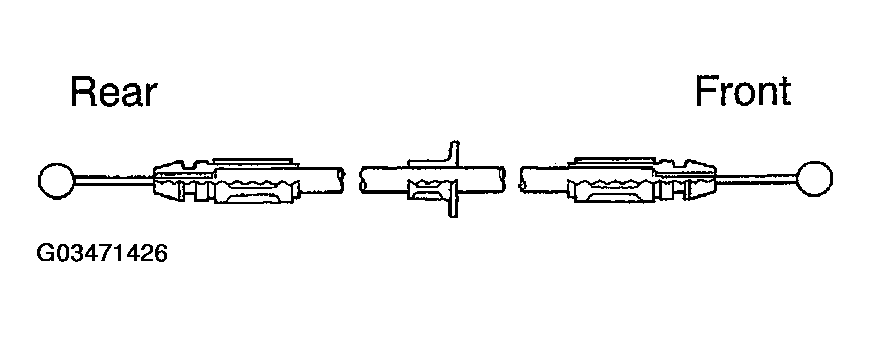

1. Push the rear side cable through the grommet.
2. Using a screwdriver, push the cable stopper into the grommet.

   HINT:

   • tape the screwdriver tip before use.
   • Do not damage the grommet with the screwdriver.
3. Pass the front side cable through the upper radiator support.
4. Install the cable with clamps.

After checking for proper operation, tighten the 3 bolts to install the lock.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
