Parts Location

The vehicle shown in this illustration is "GS430".

All components of "GS300" other than the ones used for engine are same as "GS430".

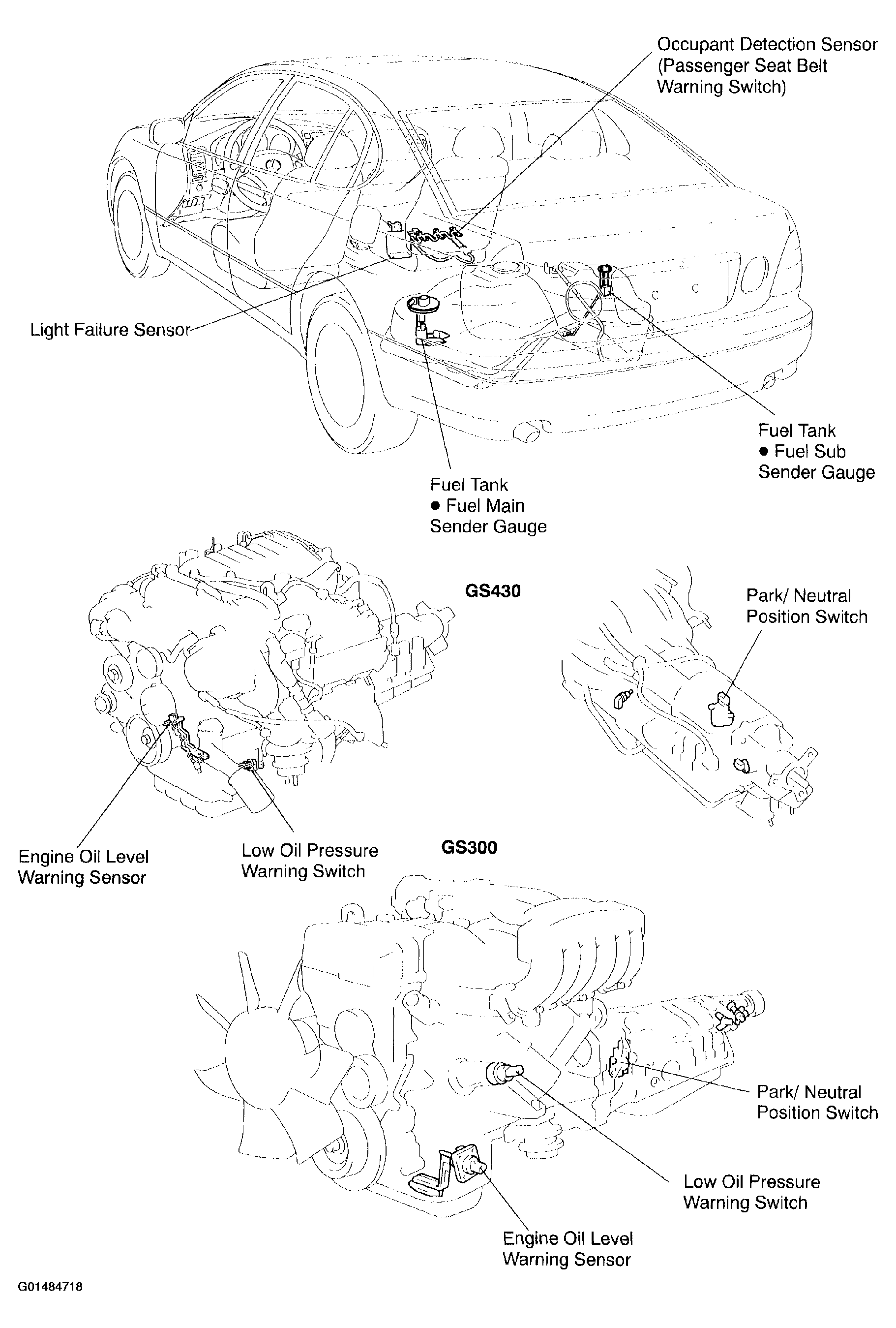

Fig 1: Identifying Parts Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

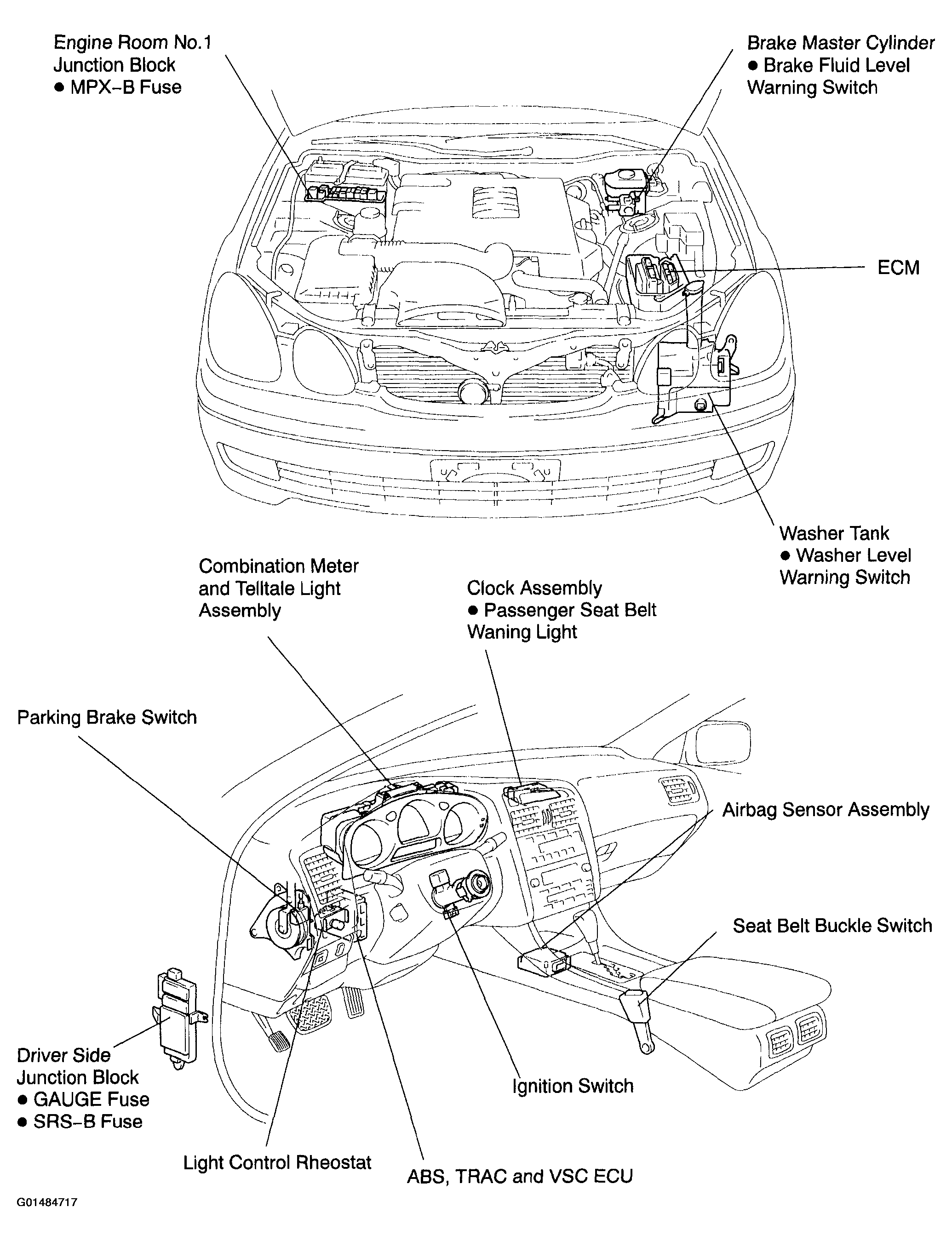

Fig 2: Identifying Parts Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
