Combination Meter System
>>
Problem Symptoms Table
>>
Indicator Light And Warning Light:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Indicator Light And Warning Light:

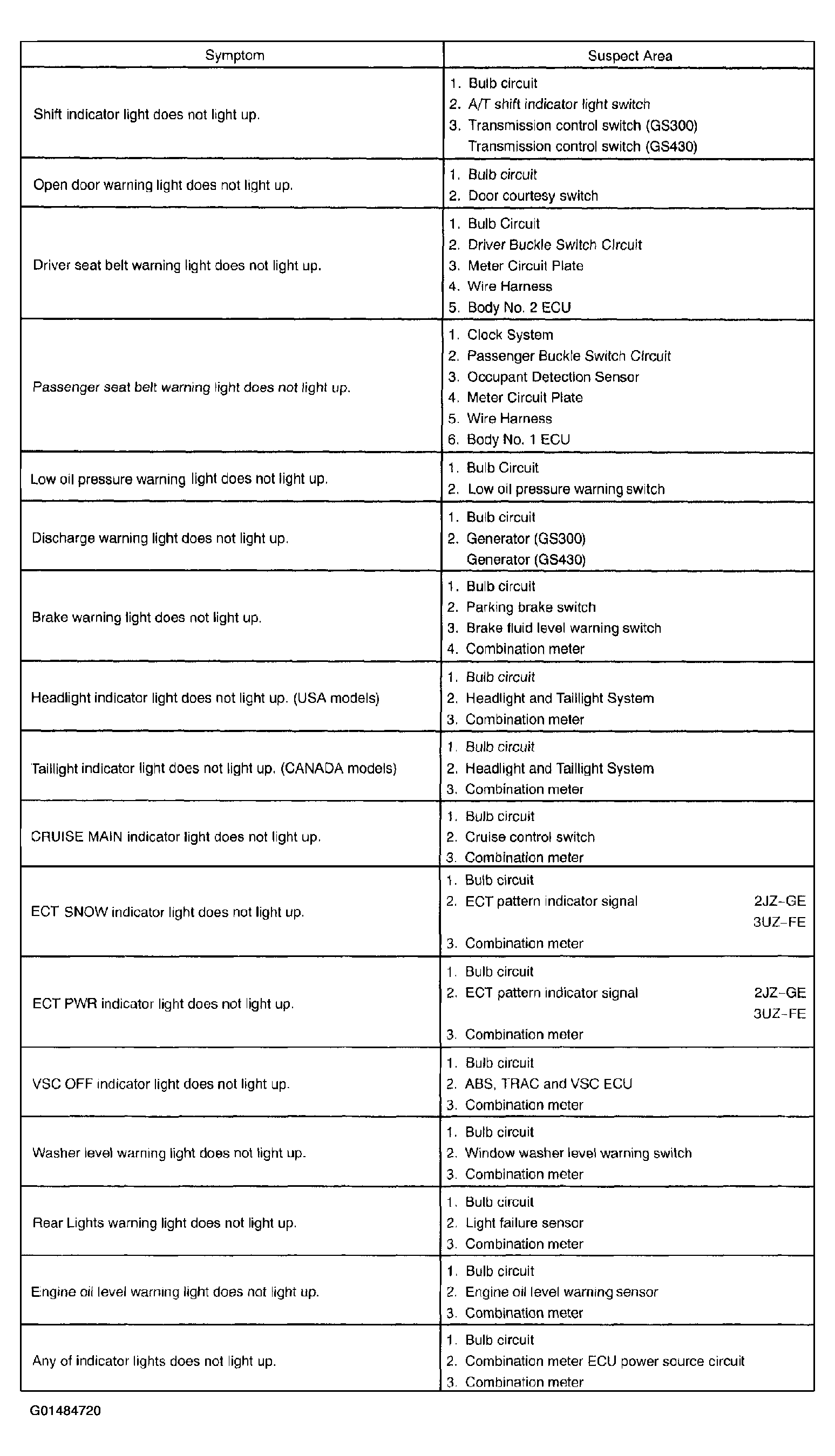

Fig 1: Symptom Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
