Instrument Panel: Components

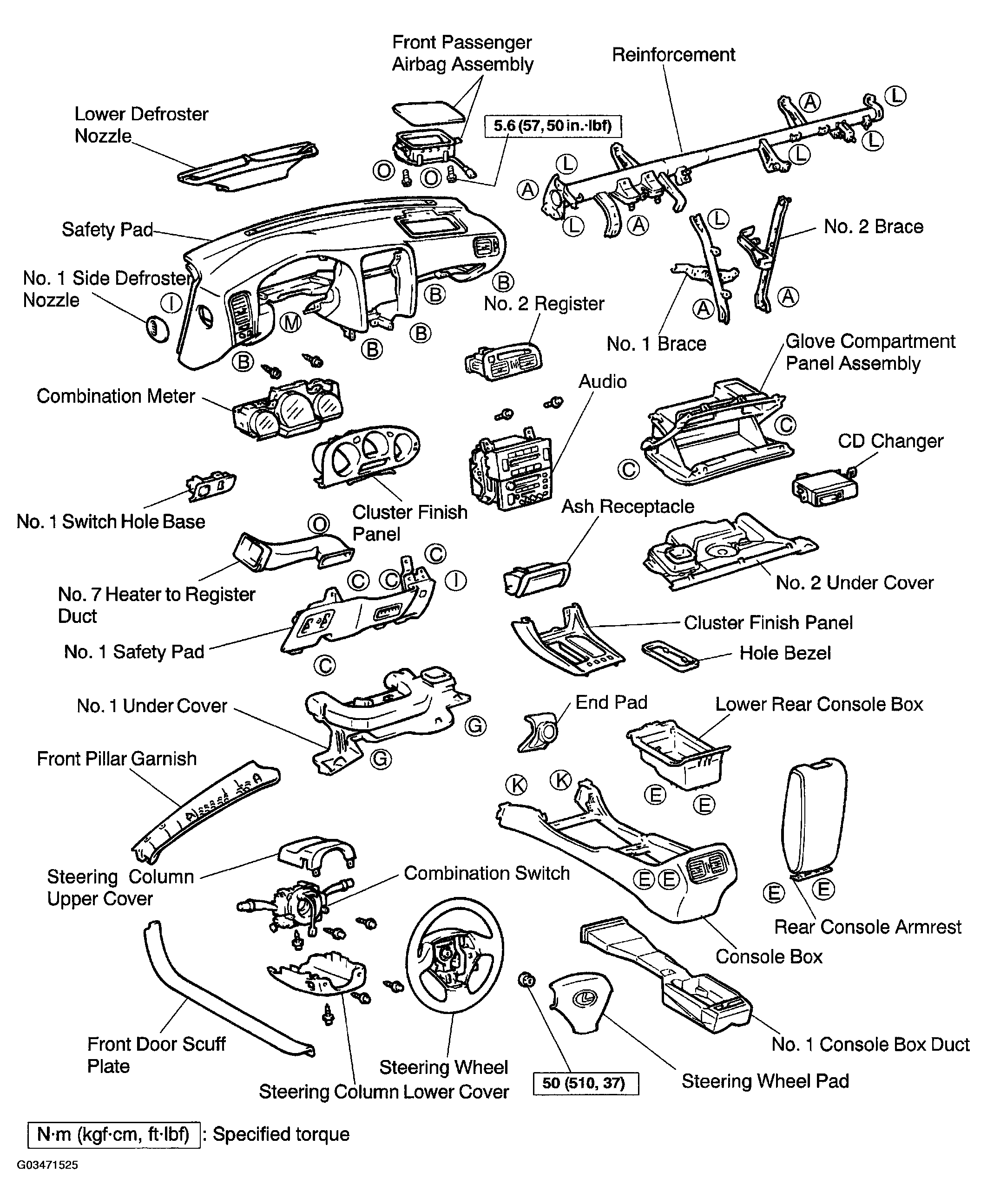

Fig 1: Identifying Instrument Panel Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

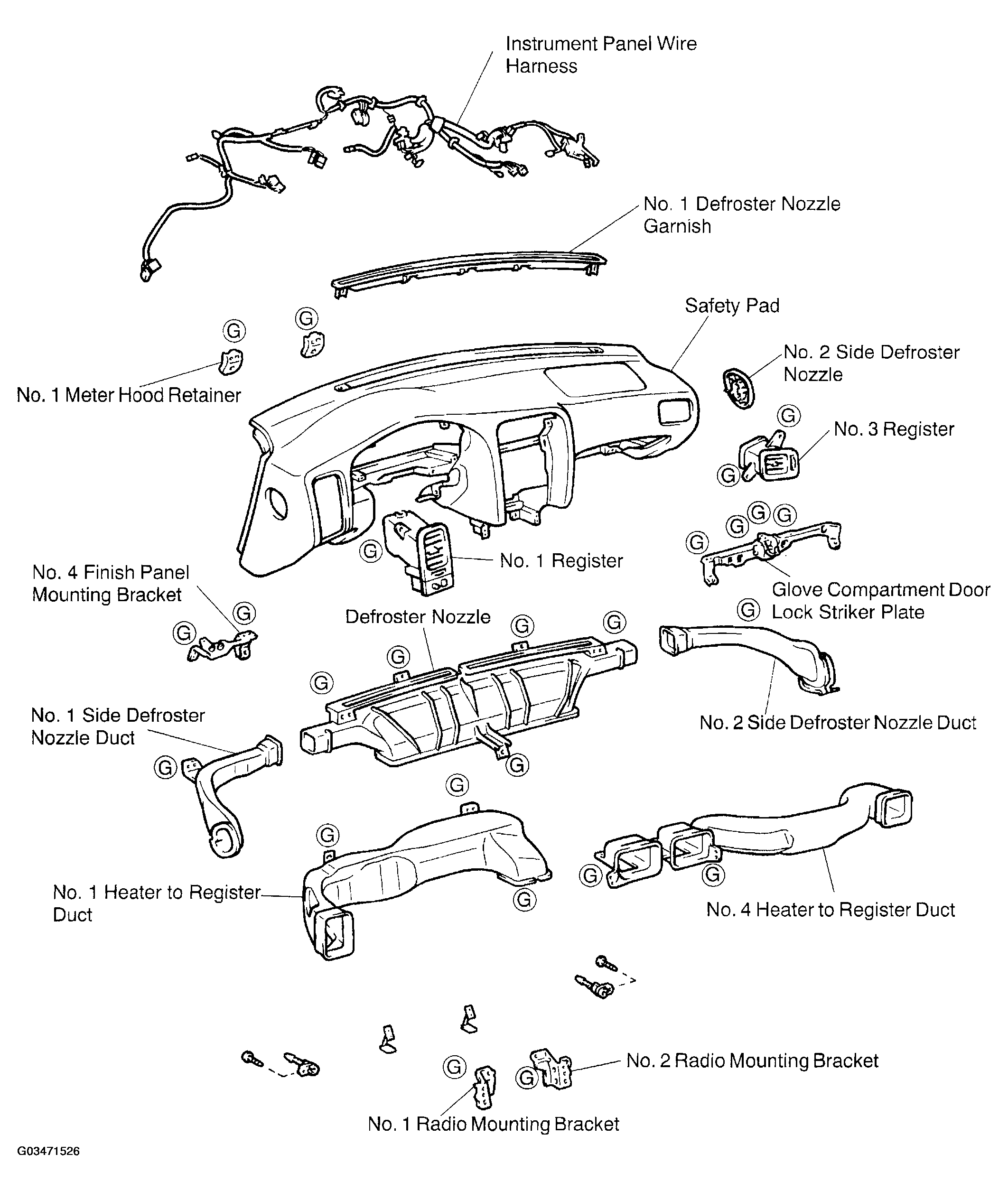

Fig 2: Identifying Instrument Panel Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Screw shapes and size are indicated in the table below. The codes ("A"-"O") correspond to those indicated on the previous pages.

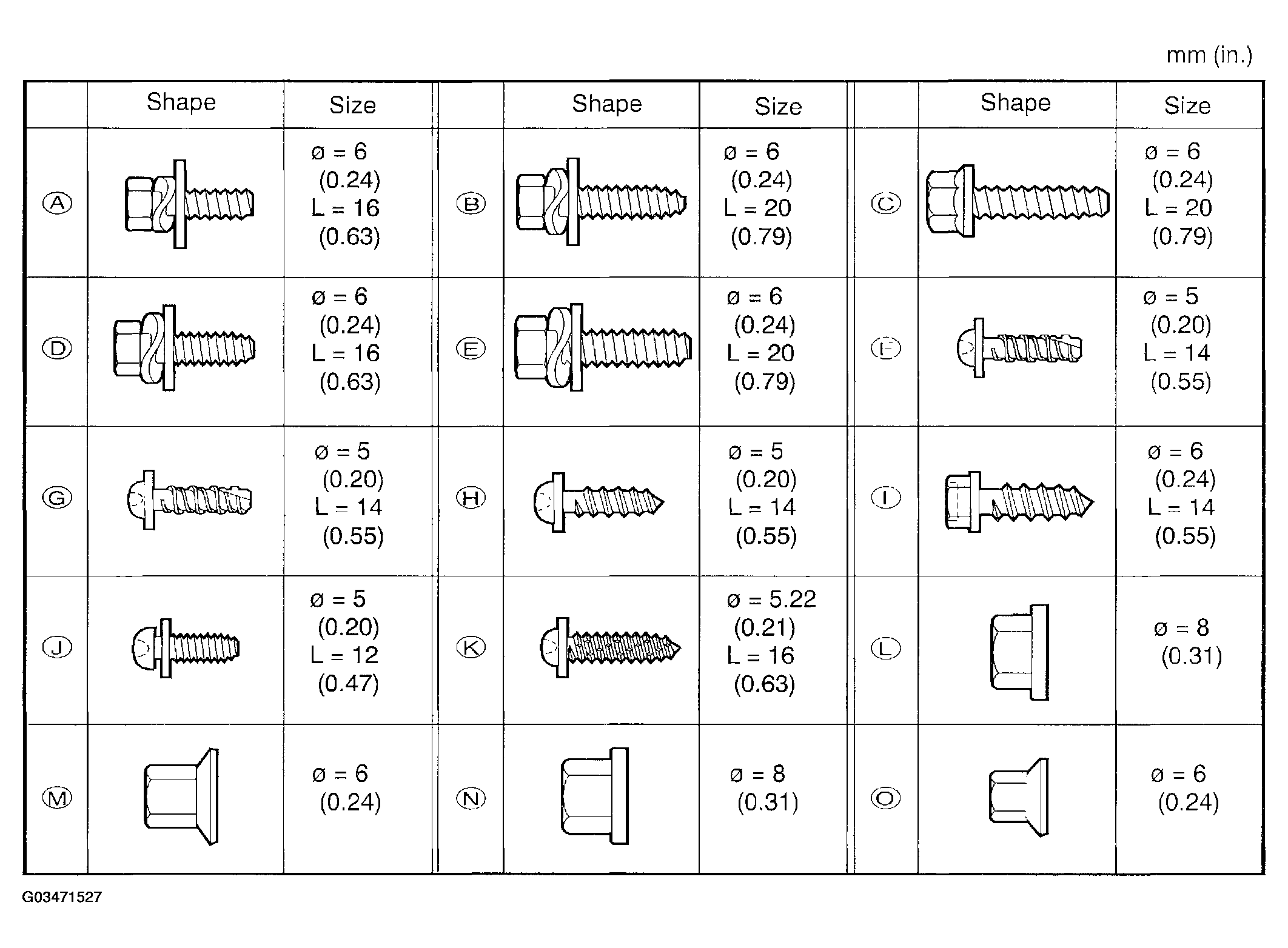

Fig 3: Identifying Screw Sizes

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
