Inspection Procedure

  1. Connect hand-held tester, and check operation of fuel pump (See  ON-VEHICLE INSPECTION  ).
    1. OK: Go to step   7 .
    2. NG: Go to next step
  2. Check voltage of fuel pump ECU power source.

    PREPARATION:

    1. Remove the luggage compartment trim cover (See ENGINE CONTROL MODULE (ECM) ).
    2. Disconnect the fuel pump ECU connector.
    3. Turn the ignition switch ON.

    CHECK:

    Measure the voltage between terminal 10 of the fuel pump ECU connector and body ground.

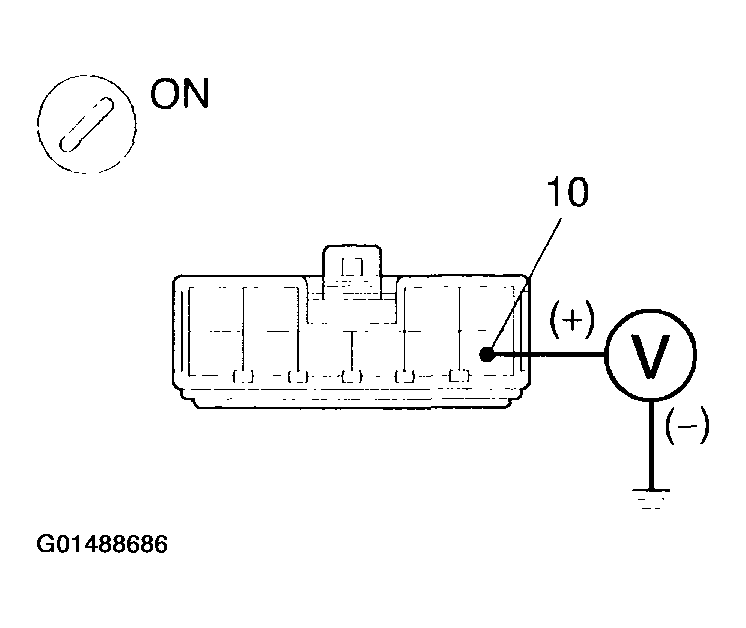

    Fig 1: Checking Voltage Between Terminal 10 Of Fuel Pump ECU Connector & Body Ground
    G01488686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    Voltage: 9 to 14 V

    1. NG: Check for open and short in harness and connector between EFI main relay (Marking: EFI) and fuel pump ECU (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
    2. OK: Go to next step
  3. Check voltage between terminals 5 and 8 of fuel pump ECU connector.

    PREPARATION:

    1. Remove the luggage compartment trim cover (See ENGINE CONTROL MODULE (ECM) ).
    2. Disconnect the fuel pump ECU connector.

    CHECK:

    Measure the voltage between terminals 5 and 8 of the fuel pump ECU connector when the ignition switch is turned to the START position.

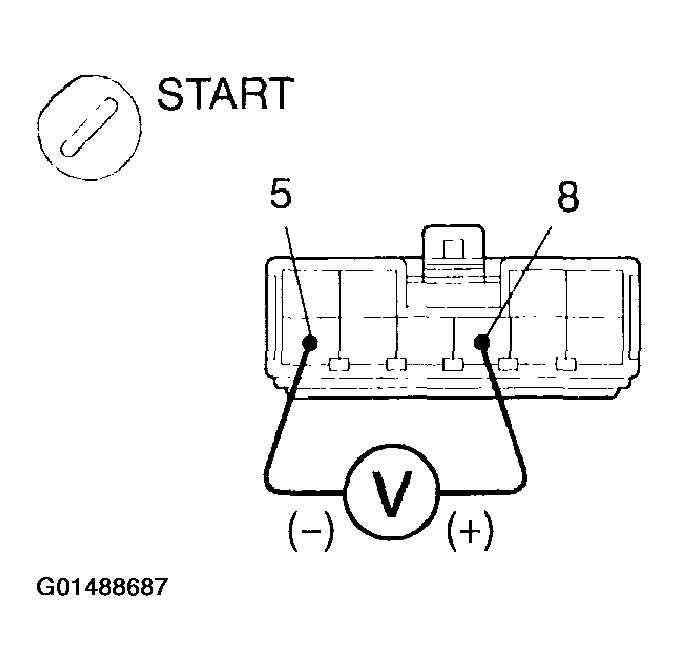

    Fig 2: Checking Voltage Between Terminals 5 & 8 Of Fuel Pump ECU Connector
    G01488687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    Voltage: 3.3 to 4.3 V

    1. OK: Go to step   5 .
    2. NG: Go to next step
  4. Check for open and short in harness and connector between terminal FPC of ECM and terminal 8 of fuel pump ECU, and terminal 5 of fuel pump ECU and body ground (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
    1. NG: Repair or replace harness or connector.
    2. OK: Go to next step

      Replace ECM (See  ENGINE CONTROL MODULE (ECM)  ).

  5. Check fuel pump (See  ON-VEHICLE INSPECTION  ).
    1. NG: Repair or replace fuel pump.
    2. OK: Go to next step
  6. Check for open and short in harness and connector between terminal 7 of fuel pump ECU and fuel pump, and terminal 6 of fuel pump ECU and fuel pump (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
    1. NG: Repair or replace harness or connector.
    2. OK: Go to next step

      Replace fuel pump ECU.

  7. Check for open and short in harness and connector between terminal DI of ECM and terminal 9 of fuel pump ECU (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
    1. NG: Repair or replace harness or connector.
    2. OK: Go to next step

      Replace ECM (See  ENGINE CONTROL MODULE (ECM)  ).
