How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure.

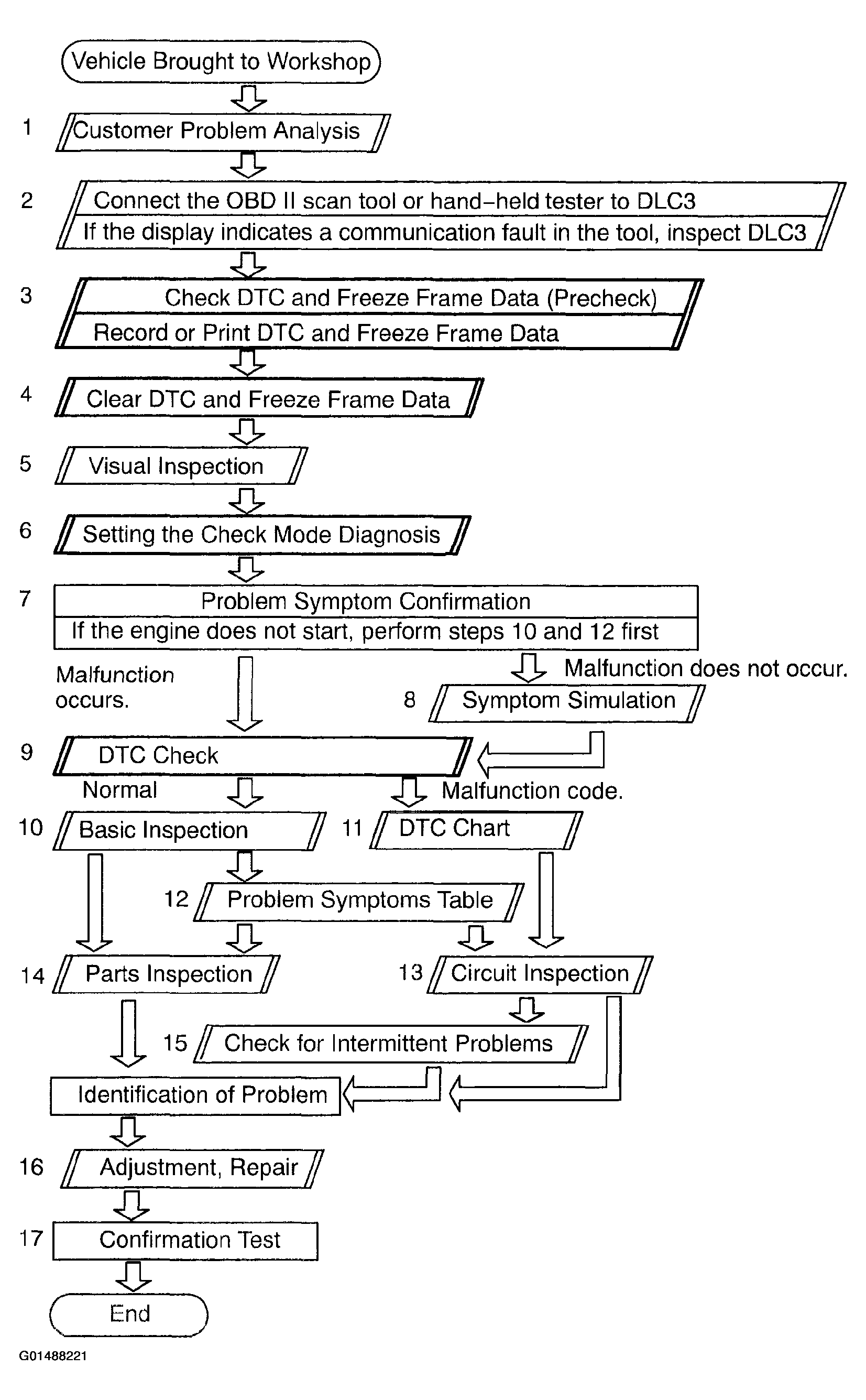

Fig 1: Troubleshooting Procedure Chart
G01488221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
