Terminals Of ECM

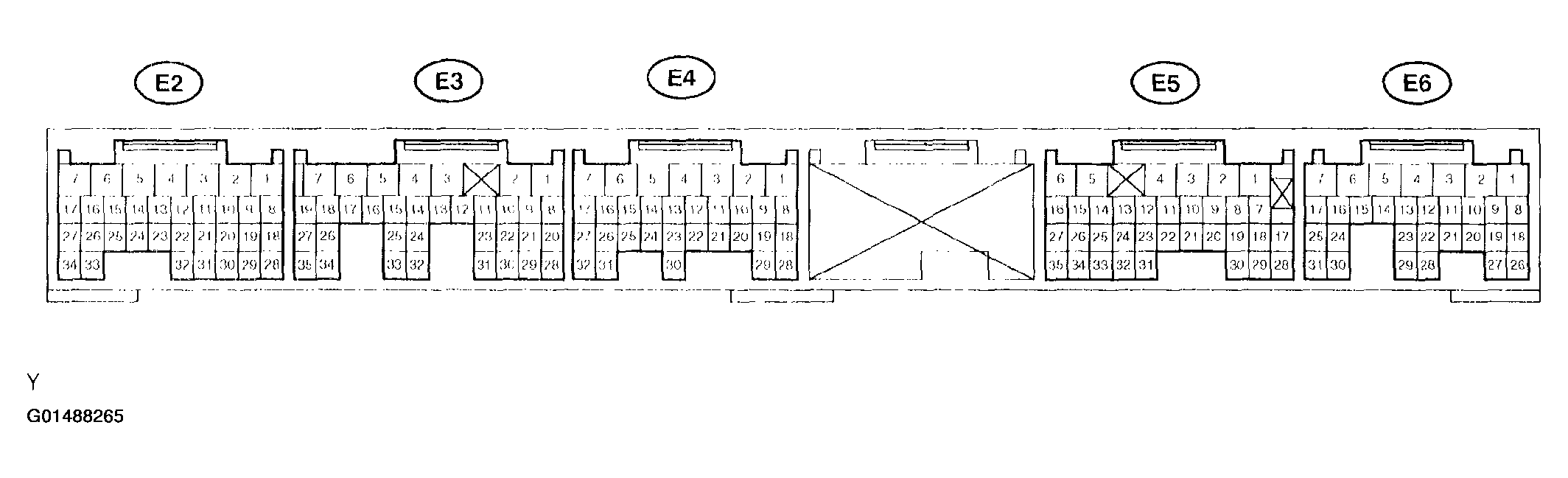

Fig 1: Identifying Terminals Of ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Each ECM terminal's standard voltage is shown in the table below. In the table, first follow the information under "Condition".

Look under "Symbols (Terminals No.)" for the terminals to be inspected.

The standard voltage between the terminals is shown under "STD Voltage".

Use the illustration above as a reference for the ECM terminals.

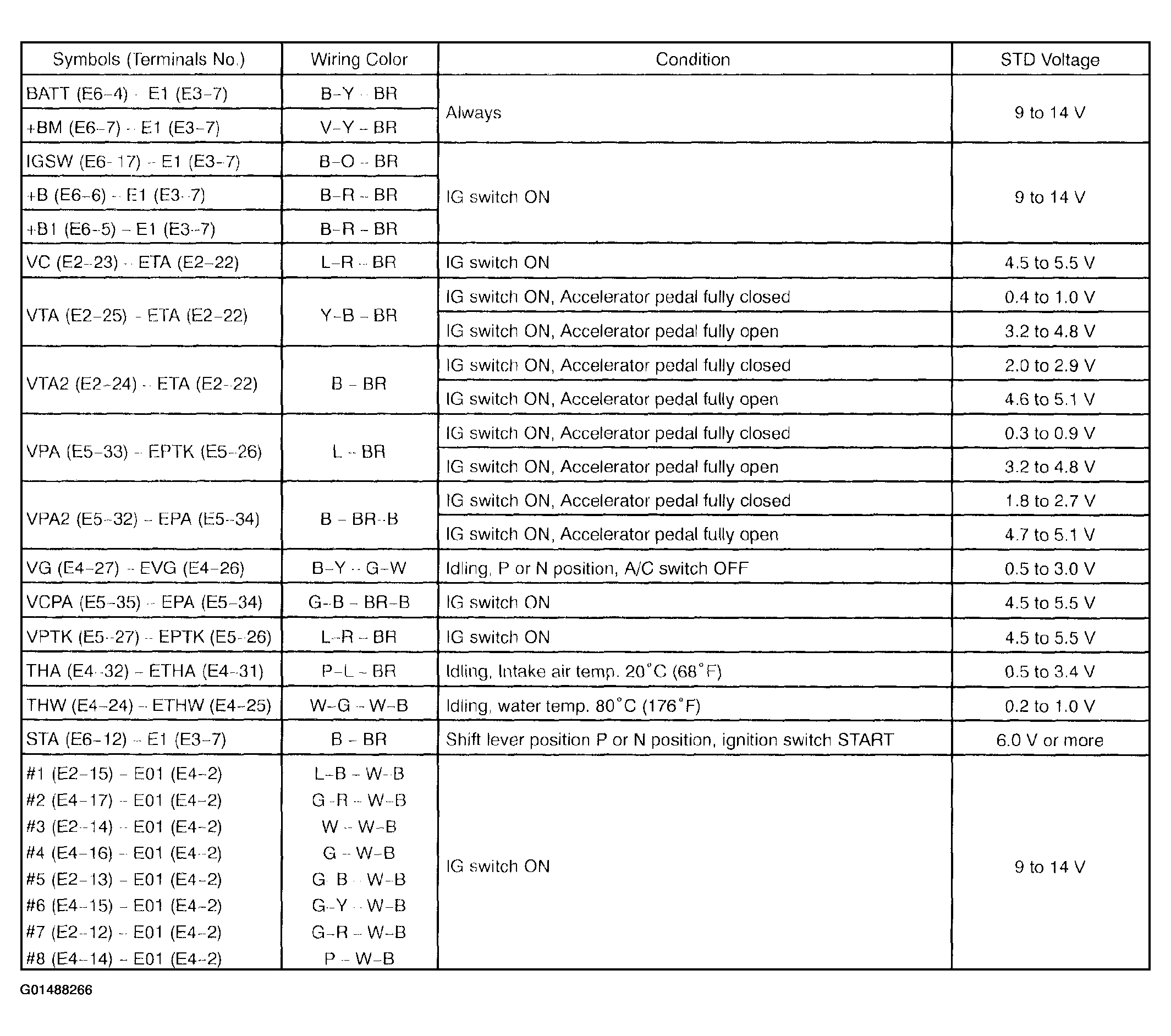

Fig 2: ECM Terminals Reference Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

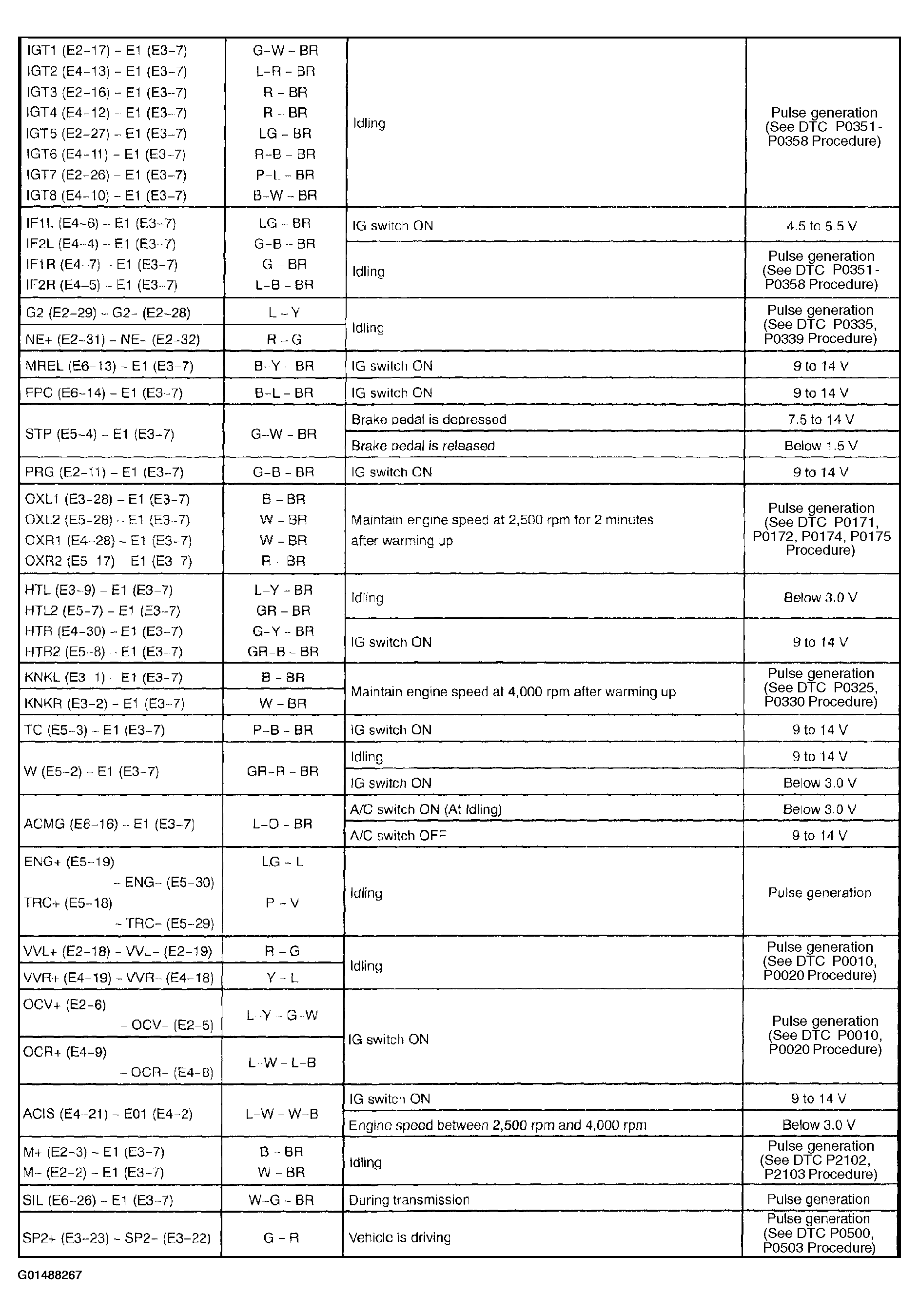

Fig 3: ECM Terminals Reference Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
