Front Differential Assembly

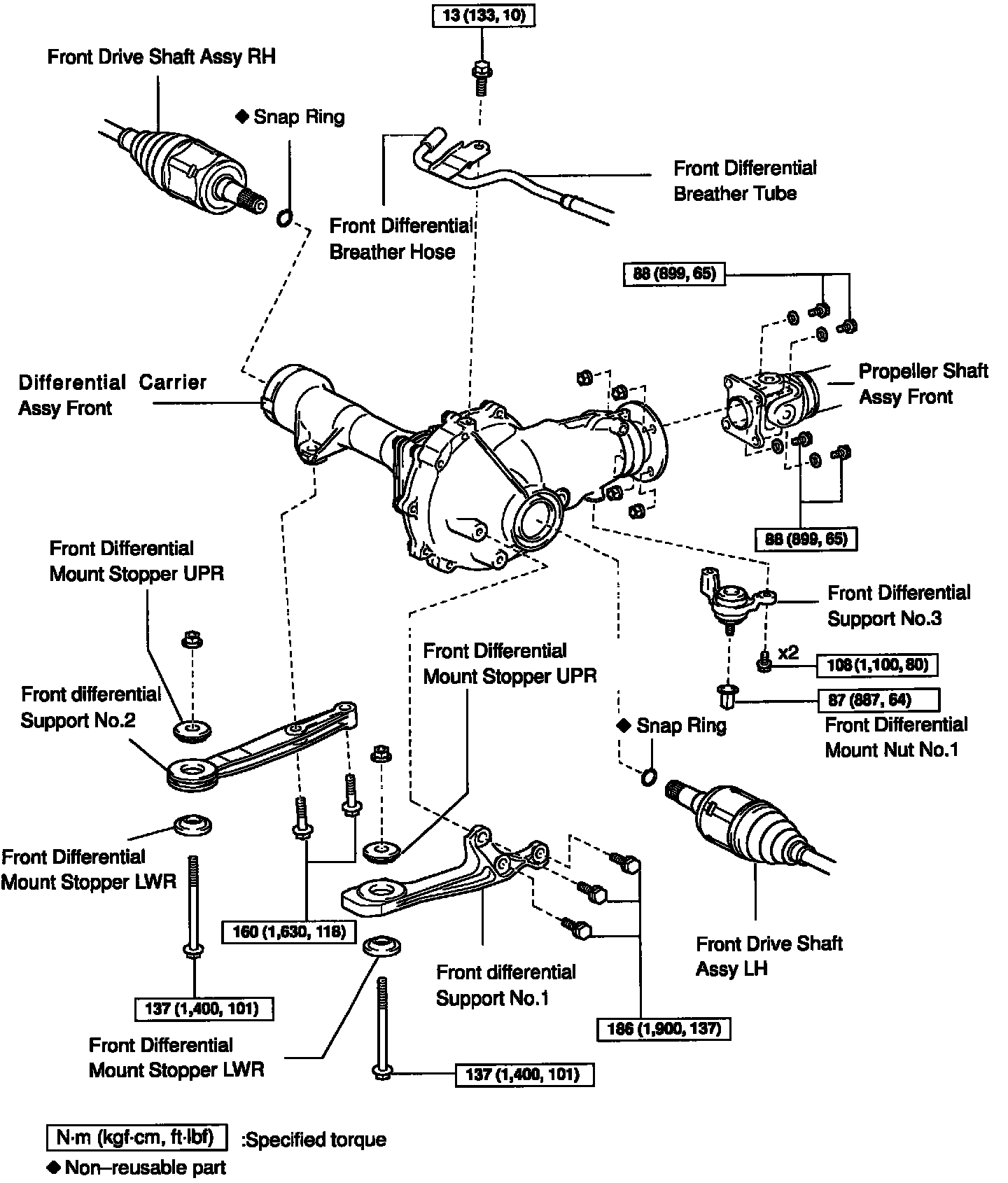

Part 1 Of 2:

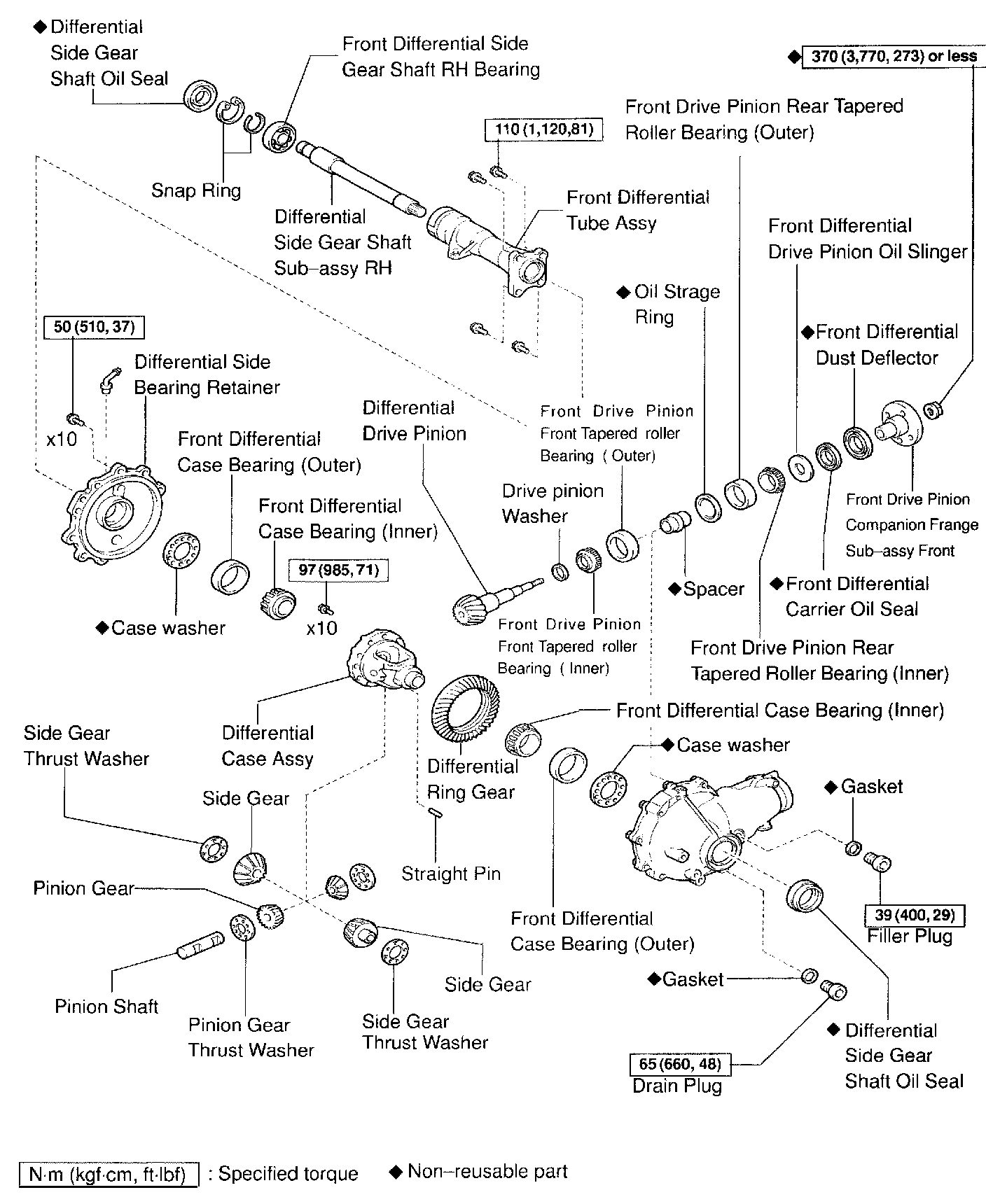

Part 2 Of 2:





DIFFERENTIAL CARRIER ASSY FRONT OVERHAUL W/ RELATED COMPONENTS
