Wiper Control Module: Service and Repair

REPLACEMENT

1. REMOVE FRONT DOOR SCUFF PLATE RH
2. REMOVE COWL SIDE TRIM BOARD RH
3. REMOVE INSTRUMENT PANEL UNDER COVER NO.2
4. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSY
5. REMOVE INSTRUMENT PANEL ORNAMENT
6. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO.2
7. REMOVE DISC PLAYER CHANGER W/ BRACKET (W/ CD CHANGER)

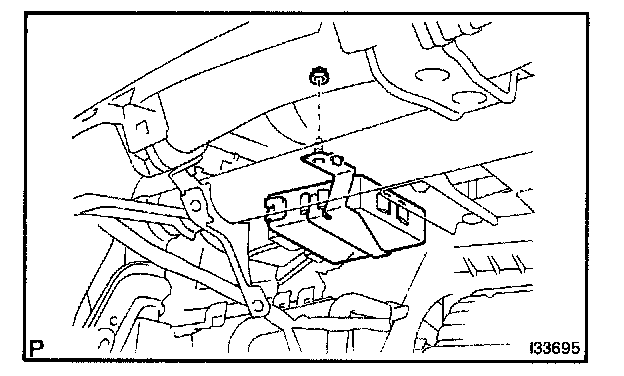

8. REMOVE WINDSHIELD WIPER ECU
a. Disconnect the connector.
b. Remove the nut and the windshield wiper ECU.

9. INSTALL DISC PLAYER CHANGER W/BRACKET (W/ CD CHANGER)
