Cruise Control Main Switch: Replacement

  1. DISCONNECT BATTERY NEGATIVE TERMINAL (See  AIR BAG SAFETY PRECAUTIONS  )
  2. REMOVE STEERING WHEEL COVER LOWER NO.2
  3. REMOVE STEERING WHEEL COVER LOWER NO.3
  4. REMOVE HORN BUTTON ASSY (See  REMOVAL & INSTALLATION  )
  5. REMOVE CRUISE CONTROL MAIN SWITCH
    1. Disconnect the connectors.
    2. Remove the 2 screws and cruise control main switch.

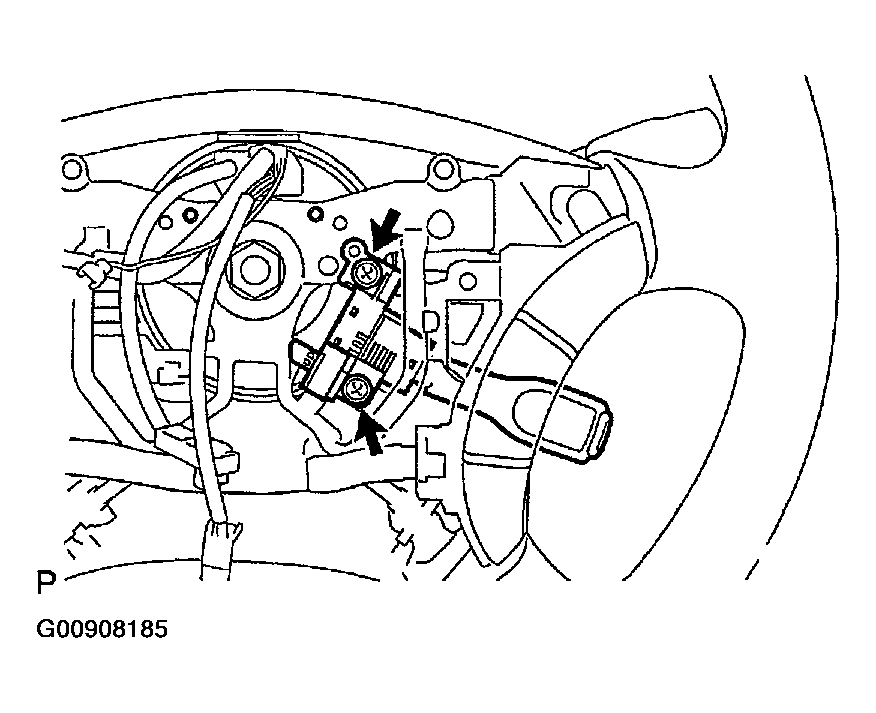

    Fig 1: Removing Cruise Control Main Switch
    G00908185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

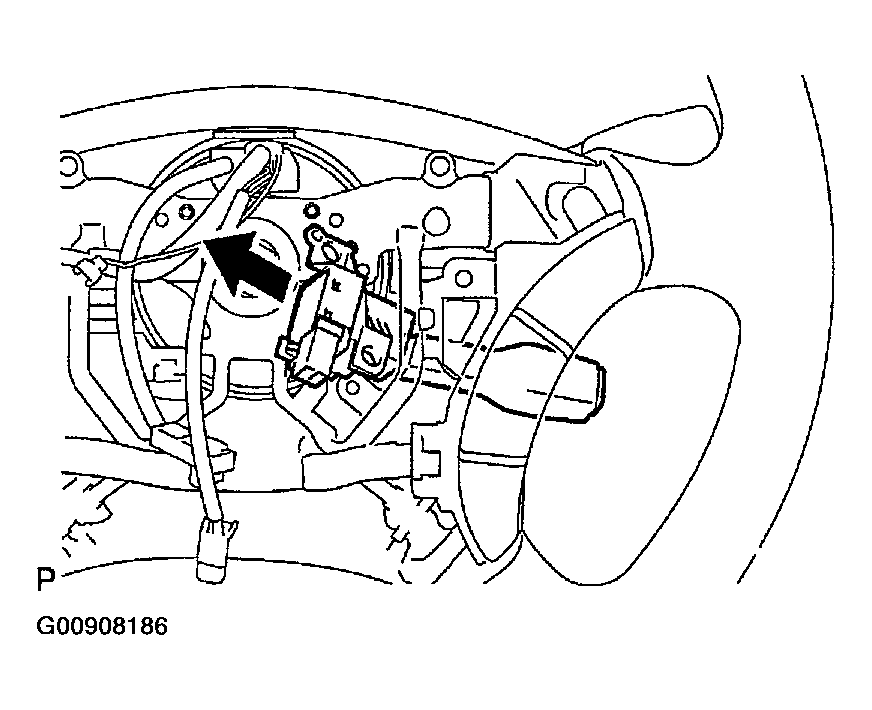

    Fig 2: Removing Cruise Control Main Switch
    G00908186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL HORN BUTTON ASSY (See  REMOVAL & INSTALLATION  )
  7. INSPECT HORN BUTTON ASSY (See  REMOVAL & INSTALLATION  )
  8. INSPECT SRS WARNING LIGHT (See  AIR BAG WARNING LIGHT INTERMITTENT  )
