Manual Up/Down Function Does Not Operate At Driver Side: Wiring Diagram

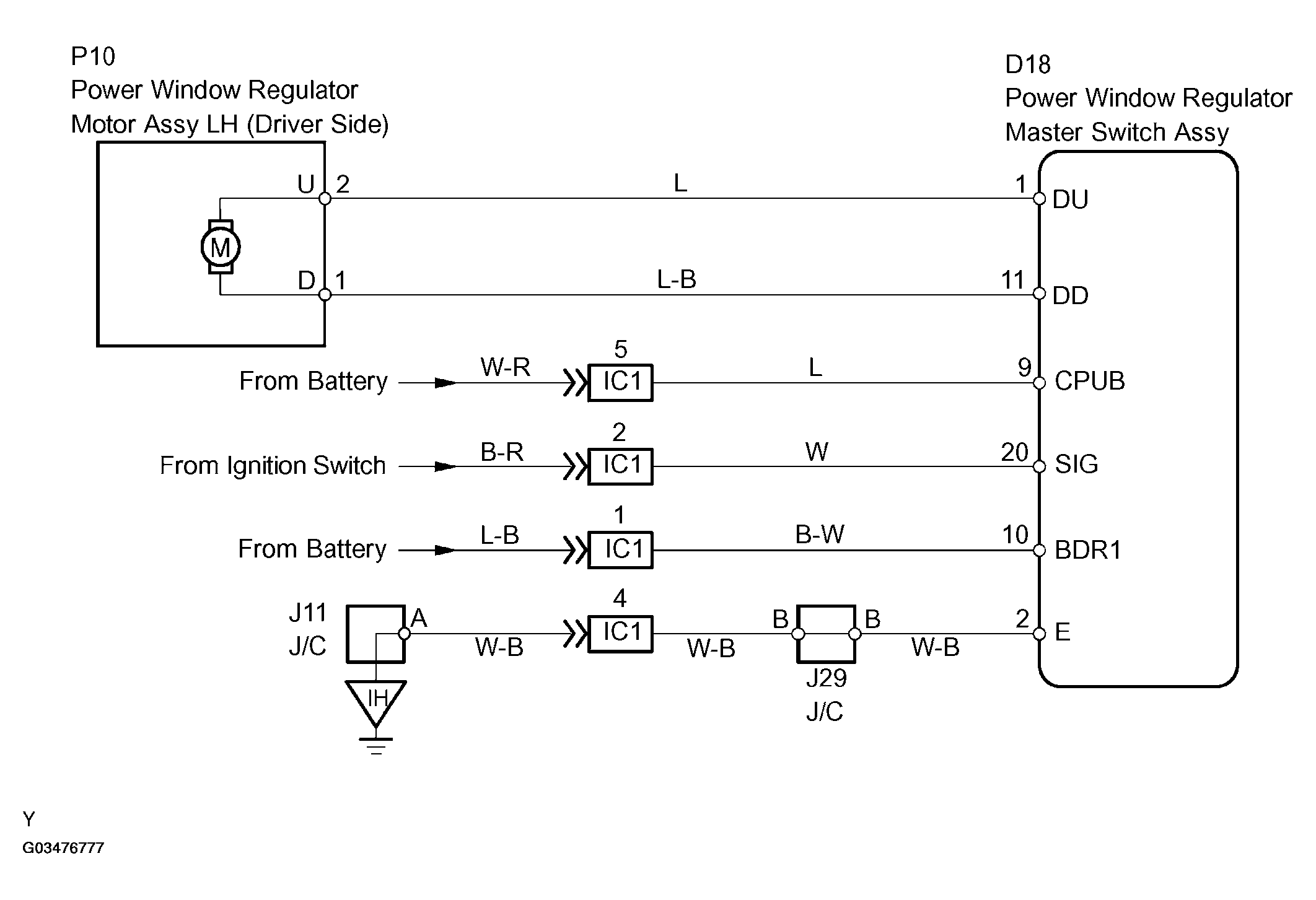

Fig 1: Identifying Manual Up/Down Function Does Not Operate At Driver Side Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECTION PROCEDURE

1. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSY
   1. Using the hand-held tester, check operation of the master switch using the data list.

   Standard:

   Data list in D-DOOR ECU

   DATA LIST



   Measurement Item	Label	Parameter
   Driver switch on master switch	P/W AUTO SW	ON/OFF

   1. NG: Go to step   3
   2. OK: Go To Next Step
2. CHECK WIRE HARNESS (MASTER SWITCH @ MOTOR)
   1. Disconnect the D18 master switch connector.
   2. Remove the front door trim LH.
   3. Disconnect the P10 power window motor connector.
   4. Check the continuity between the wire harness side connectors.

      Standard:

      TERMINAL NO AND SPECIFIED CONDITION



      Terminal No.	Specified Condition
      D18-11 <=> P10-1	Continuity
      D18-1 <=> P10-2	Continuity
      D18-1 <=> Body ground	No continuity
      D18-11 <=> Body ground	No continuity

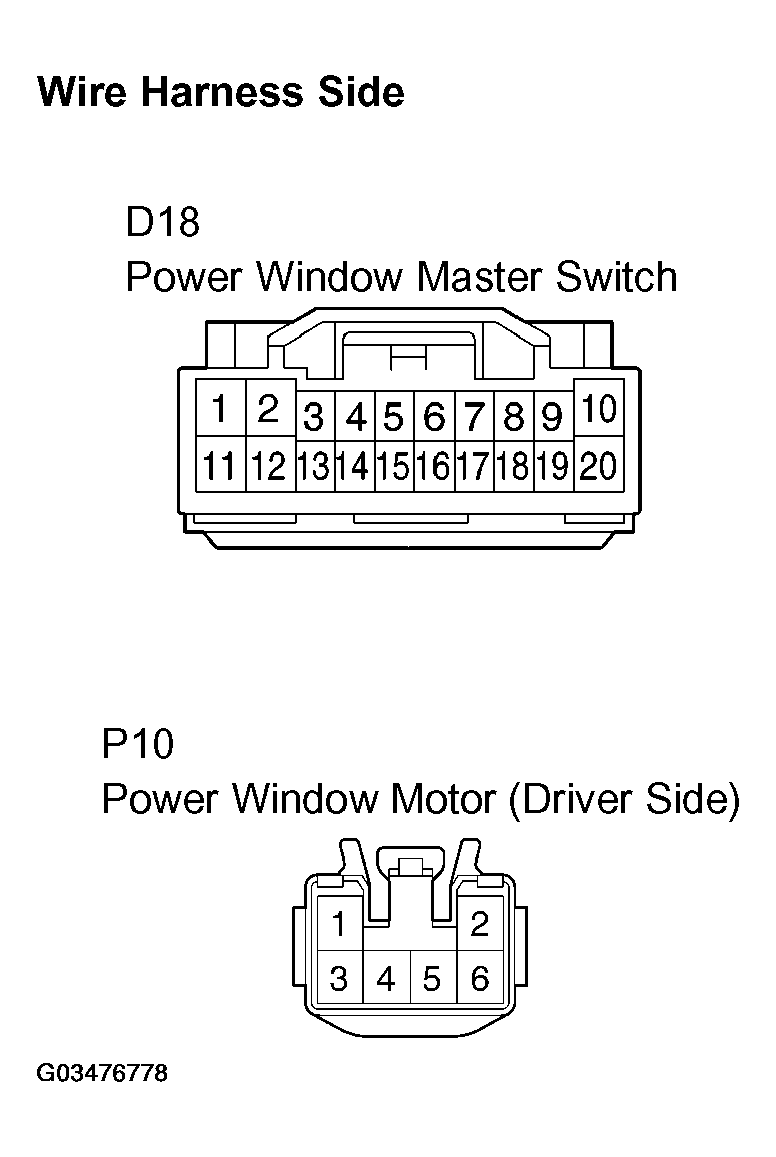

      Fig 2: Checking Wire Harness (Master Switch @ Motor)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

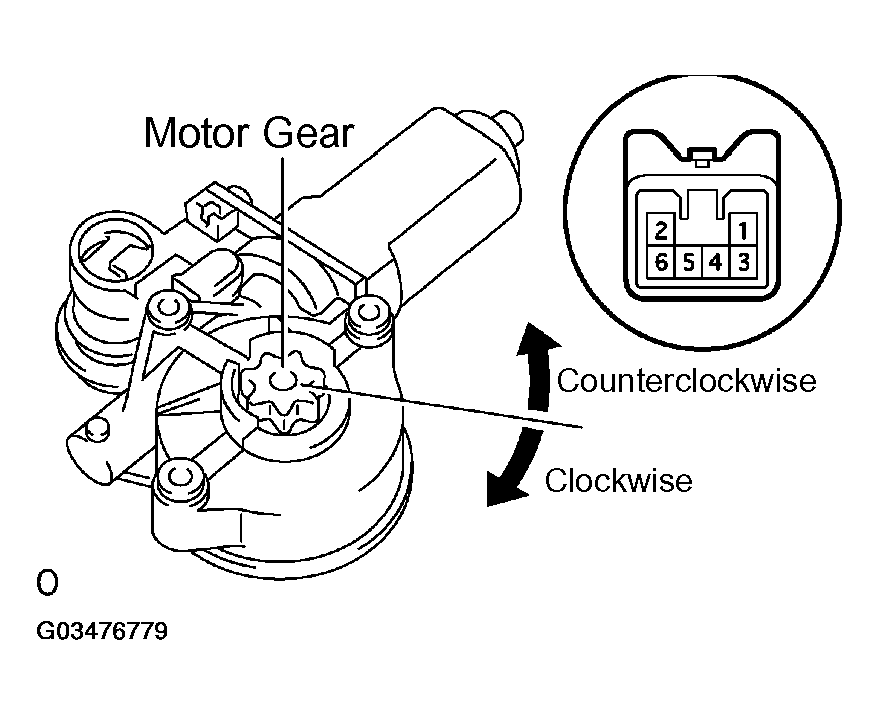

      Fig 3: Checking Operation Of Power Window Motor (Driver Side)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Reference:

   Check operation of the power window motor (driver side).

   1. Remove the motor (See page 75-13).
   2. Apply battery voltage to the connector between terminals 1 and 2.
   3. Check that the motor rotates smoothly.
   NOTE: Do not apply battery voltage to the terminals except 1 and 2.

   Standard:

   TERMINAL NO AND MOTOR GEAR ROTATION



   Terminal No.	Motor Gear Rotation
   Battery positive voltage --> 2	Clockwise
   Battery negative voltage --> 1
   Battery positive voltage --> 1	Counterclockwise
   Battery negative voltage --> 2

   1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
   2. OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH (DRIVER SIDE)
3. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY (FOR GROUND)
   1. Remove the master switch (the connector is connected).
   2. Check the continuity between terminal 2 and the body ground.

   Standard: Continuity

   1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
   2. OK: Go To Next Step
   Fig 4: Inspecting Power Window Regulator Master Switch Assy (For Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

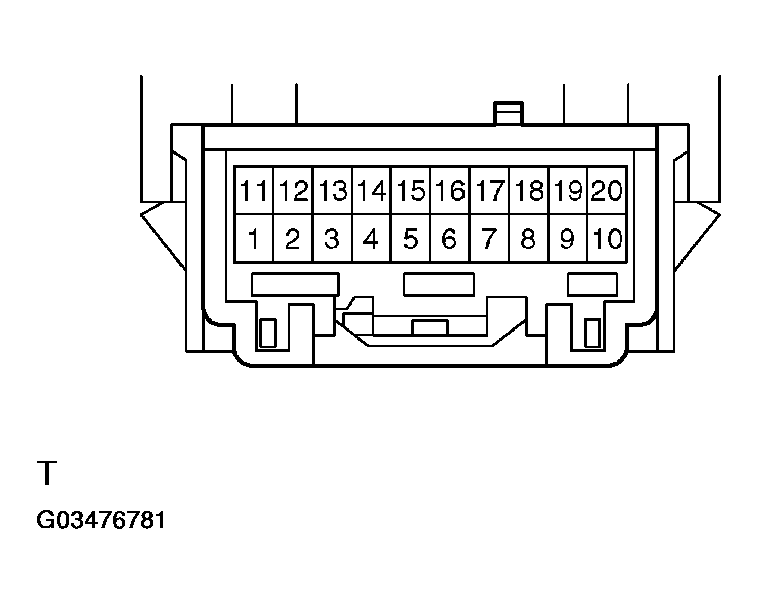

4. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY (FOR POWER SOURCE)
   Fig 5: Inspecting Power Window Regulator Master Switch Assy (For Power Source)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Check the voltage between the terminals.

   Standard:

   TERMINAL NO AND SPECIFIED CONDITION



   Terminal No.	Condition	Specified Condition
   9 <=> 2	Constant	10 - 14 V
   20 <=> 2	Ignition ON	10 - 14 V
   10 <=> 2	Constant	10 - 14 V

   1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
   2. OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
