Inspection Procedure

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (PASSENGER SIDE) (FOR GROUND)
   1. Remove the power window switch (the connector is connected).
   2. Check the continuity between terminal 7 and the body ground.

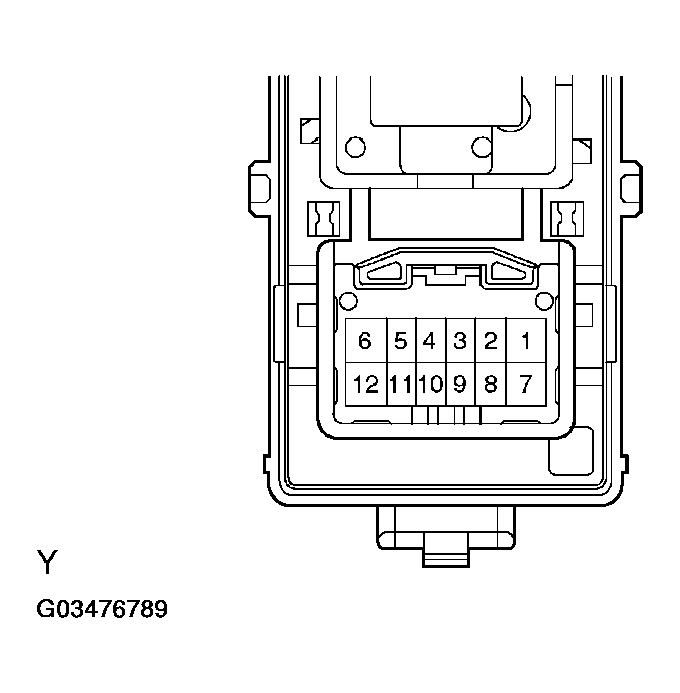

   Fig 1: Inspecting Power Window Regulator Switch Assy Rear (Passenger Side) (For Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard: Continuity

   1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
   2. OK: Go To Next Step
2. INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR LH SIDE) (FOR POWER SOURCE)
   1. Check the voltage between terminals 12 and 7.

   Standard: 10 - 14 V (Constant)

   Fig 2: Inspecting Power Window Regulator Switch Assy Rear (Rear LH Side) (For Power Source)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG REPAIR OR REPLACE HARNESS AND CONNECTOR (SWITCH @ POWER SOURCE)
   2. OK: Go To Next Step
3. INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR LH SIDE) (FOR WINDOW LOCK SWITCH)
   1. Turn the ignition switch ON.
   2. Check the voltage between terminals 11 and 7 when operating the window lock switch on the master switch.
   Fig 3: Inspecting Power Window Regulator Switch Assy Rear (Rear LH Side) (For Window Lock Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard:

   TERMINAL NO AND WINDOW LOCK SWITCH SPECIFIED CONDITION



   Terminal No.	Window Lock Switch	Specified Condition
   11 <=> 7	ON	5 V
   	OFF	Less than 1 V

   1. NG REPAIR OR REPLACE HARNESS AND CONNECTOR (SWITCH --> MASTER SWITCH)
   2. OK: Go To Next Step
4. CHECK WIRE HARNESS (SWITCH --> MOTOR)
   1. Disconnect the P8 power window switch connector.
   2. Remove the rear door trim LH.
   3. Disconnect the P12 power window motor connector.
   4. Check the continuity between the wire harness side connectors.

   Standard:

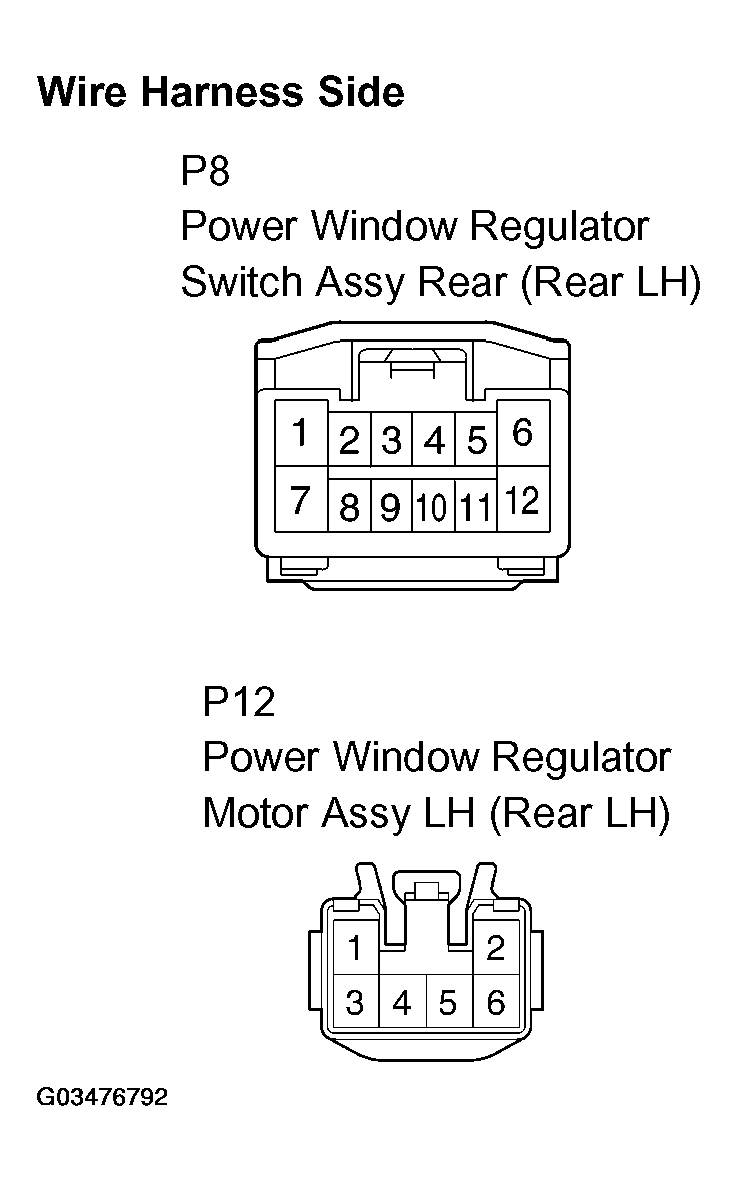

   Fig 4: Checking Wire Harness (Switch --> Motor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TERMINAL NO AND SPECIFIED CONDITION



   Terminal No.	Specified Condition
   P8-1 <=> P12-2	Continuity
   P8-6 <=> P12-1	Continuity
   P8-1 <=> Body ground	No continuity
   P8-6 <=> Body ground	No continuity

   1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
   2. OK: Go To Next Step
5. INSPECT POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)

1. Remove the motor (See page 75-26).
2. Apply battery voltage to the connector between terminals 1 and 2.
3. Check that the motor rotates smoothly.

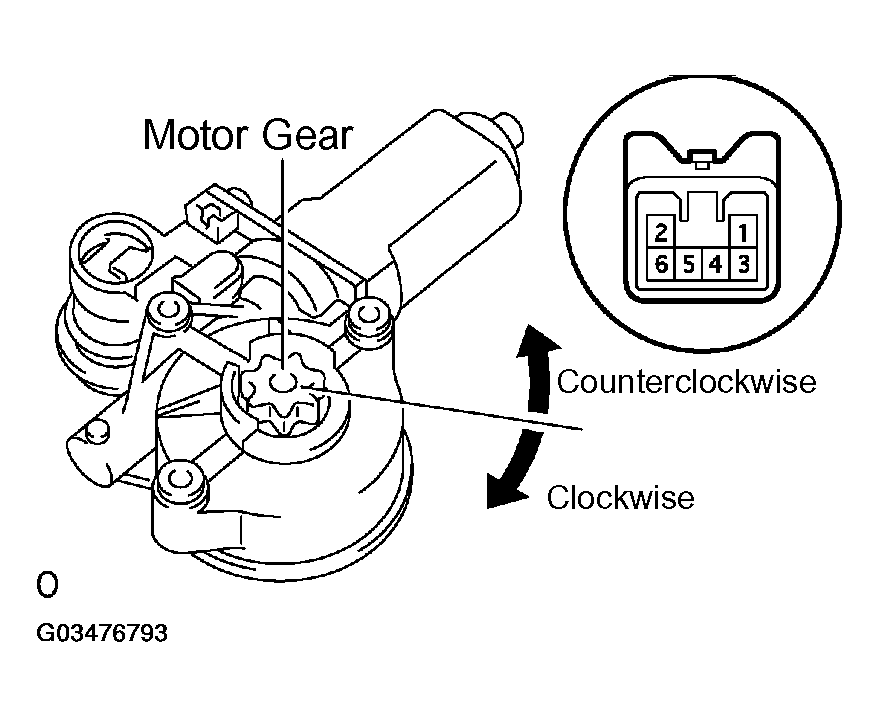

Fig 5: Inspecting Power Window Regulator Motor Assy LH (Rear LH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

1. NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)
2. OK: REPLACE POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR LH)
