Inspection Procedure

  1. INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (PASSENGER SIDE) (FOR GROUND)
    Fig 1: Inspecting Power Window Regulator Switch Assy Rear (Passenger Side) (For Ground)
    G03476795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the power window switch (the connector is connected).
    2. Check the continuity between terminal 7 and the body ground.

    Standard: Continuity

    1. NG REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: Go To Next Step
  2. INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR RH SIDE) (FOR POWER SOURCE)
    1. Check the voltage between terminals 12 and 7.

    Standard: 10 - 14 V (Constant)

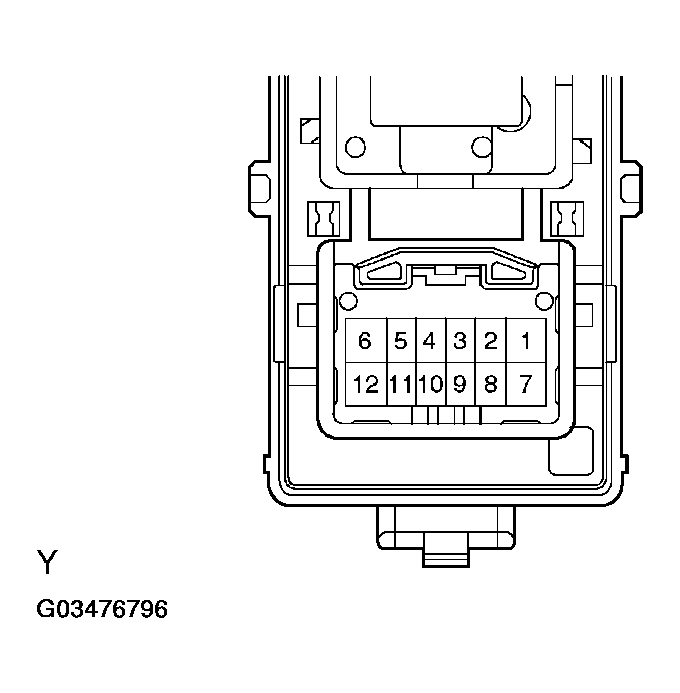

    Fig 2: Inspecting Power Window Regulator Switch Assy Rear (Rear Rh Side) (For Power Source)
    G03476796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (SWITCH @ POWER SOURCE)
    2. OK: Go To Next Step
  3. INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR RH SIDE) (FOR WINDOW LOCK SWITCH)
    1. Turn the ignition switch ON.
    2. Check the voltage between terminals 11 and 7 when operating the window lock switch on the master switch.

    Standard:

    Fig 3: Inspecting Power Window Regulator Switch Assy Rear (Rear RH Side)
    G03476797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL NO, WINDOW LOCK SWITCH AND SPECIFIED CONDITION

    Terminal No. Window Lock Switch Specified Condition
    11 <=> 7 ON 5 V
    OFF Less than 1 V
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (SWITCH --> MASTER SWITCH)
    2. OK: Go To Next Step
  4. CHECK WIRE HARNESS (SWITCH --> MOTOR)
    1. Disconnect the P9 power window switch connector.
    2. Remove the rear door trim RH.
    3. Disconnect the P13 power window motor connector.
    4. Check the continuity between the wire harness side connectors.

    Standard:

    TERMINAL NO AND SPECIFIED CONDITION

    Terminal No. Specified Condition
    P9-1 <=> P13-2 Continuity
    P9-6 <=> P13-1 Continuity
    P9-1 <=> Body ground No continuity
    P9-6 <=> Body ground No continuity

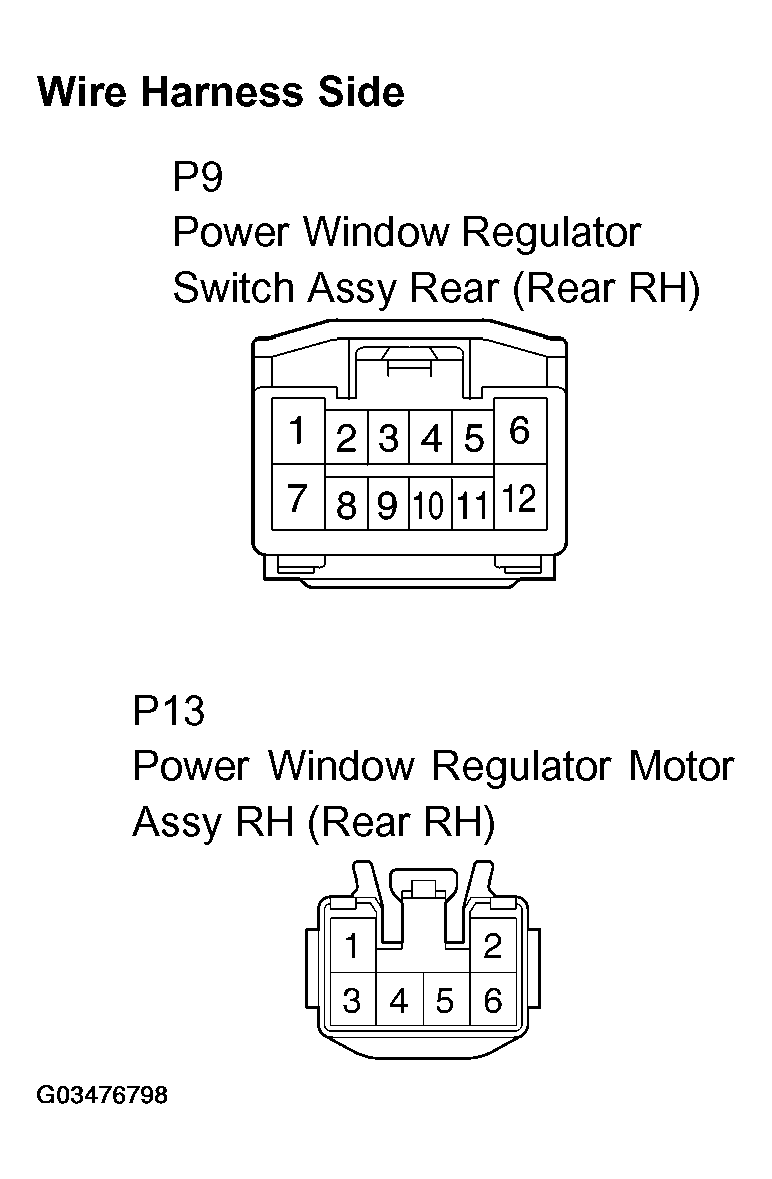

    Fig 4: Checking Wire Harness (Switch --> Motor)
    G03476798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: Go To Next Step
  5. INSPECT POWER WINDOW REGULATOR MOTOR ASSY RH (REAR RH)
    1. Remove the motor (See page 75-26).
    2. Apply battery voltage to the connector between terminals 1 and 2.
    3. Check that the motor rotates smoothly.
    NOTE: Do not apply battery voltage to the terminals except 1 and 2.

    Standard:

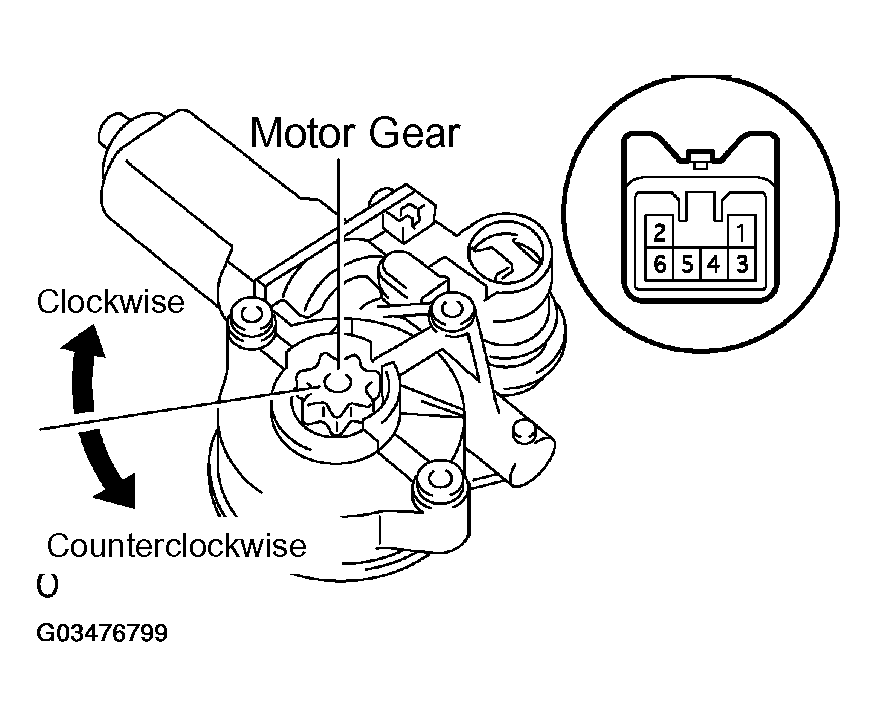

    Fig 5: Inspecting Power Window Regulator Motor Assy RH (Rear RH)
    G03476799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL NO AND MOTOR GEAR ROTATION

    Terminal No. Motor Gear Rotation
    Battery positive voltage --> 1
    Battery negative voltage --> 2    		 Clockwise
    Battery positive voltage --> 2
    Battery negative voltage --> 1    		 Counterclockwise
    1. NG REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH (REAR RH)
    2. OK: REPLACE POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR RH)
