Remote Up/Down Function Does Not Operate: Wiring Diagram

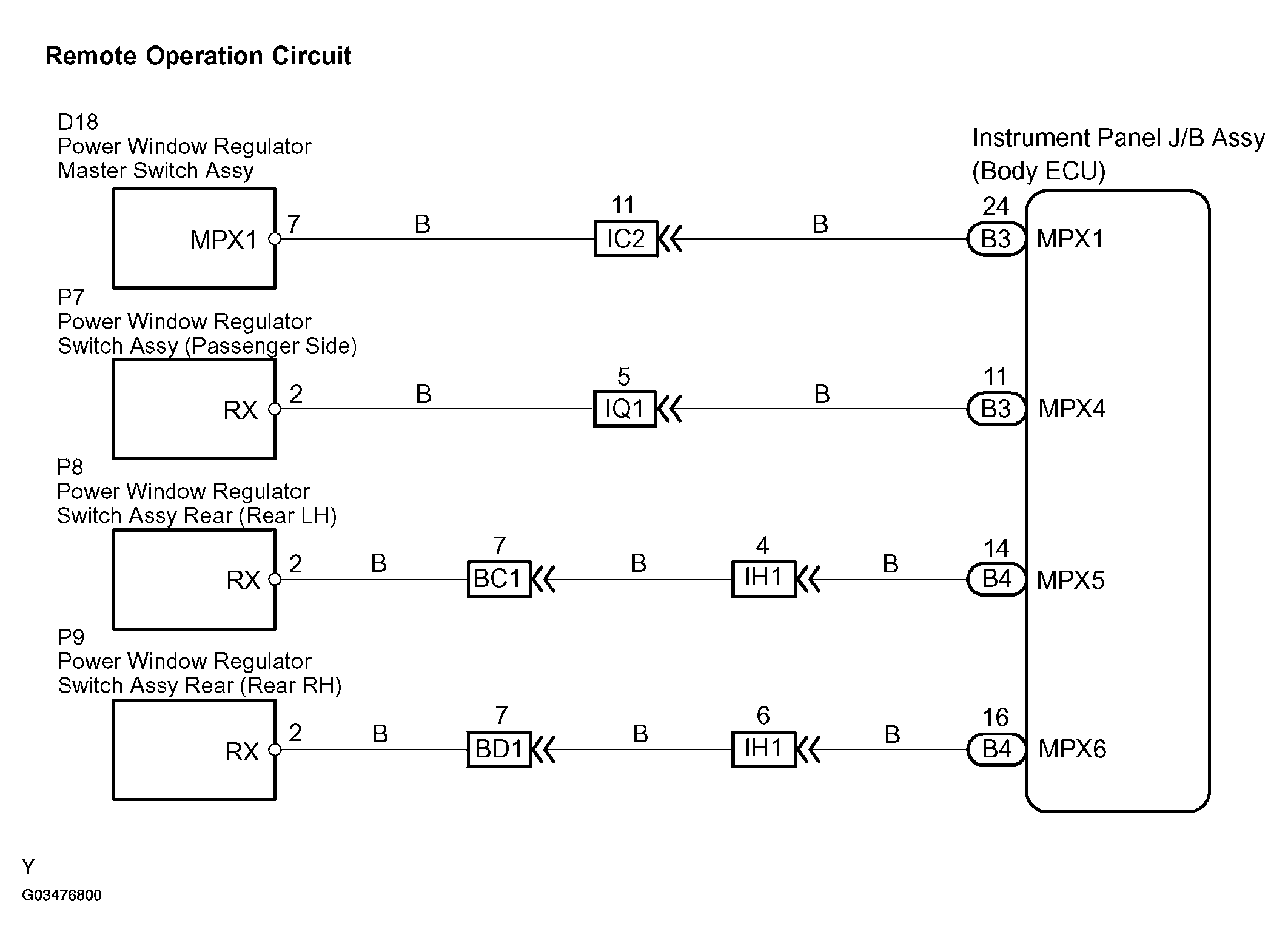

Fig 1: Identifying Remote Up/Down Function Does Not Operate Wiring Diagram (1 Of 2)
G03476800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Remote Up/Down Function Does Not Operate Wiring Diagram (2 Of 2)
G03476801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
