Quarter Window ASSY LH Components

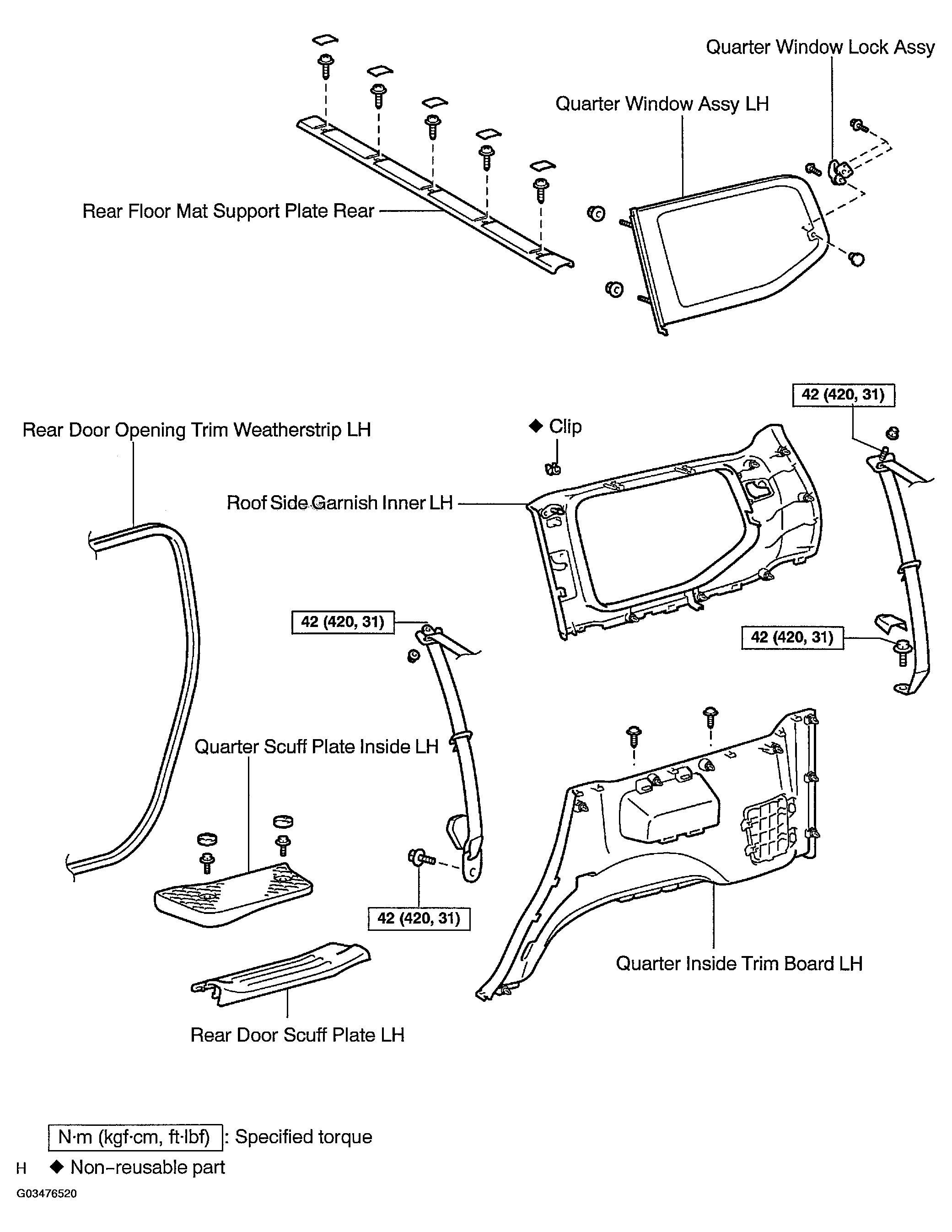

Fig 1: Identifying Quarter Window Assy LH Components
G03476520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
