Speed Sensor Front LH: Replacement

HINT:

Replacement of RH side is same as that of LH side.

1. REMOVE FRONT WHEEL
2. REMOVE SPEED SENSOR FRONT LH
   1. Disconnect the speed sensor connector.

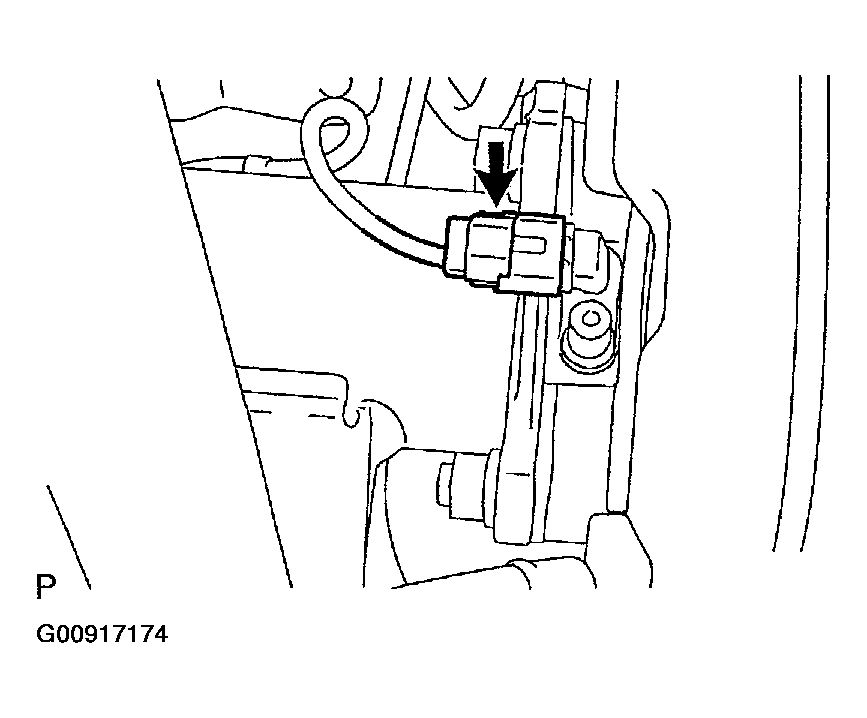

      Fig 1: Disconnecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using a hexagon wrench (5 mm), remove the bolt and front speed sensor from the steering knuckle.
   NOTE:

   • Do not stick a foreign matter on the sensor tip.
   • Do not let the foreign matter into the sensor installation hole.

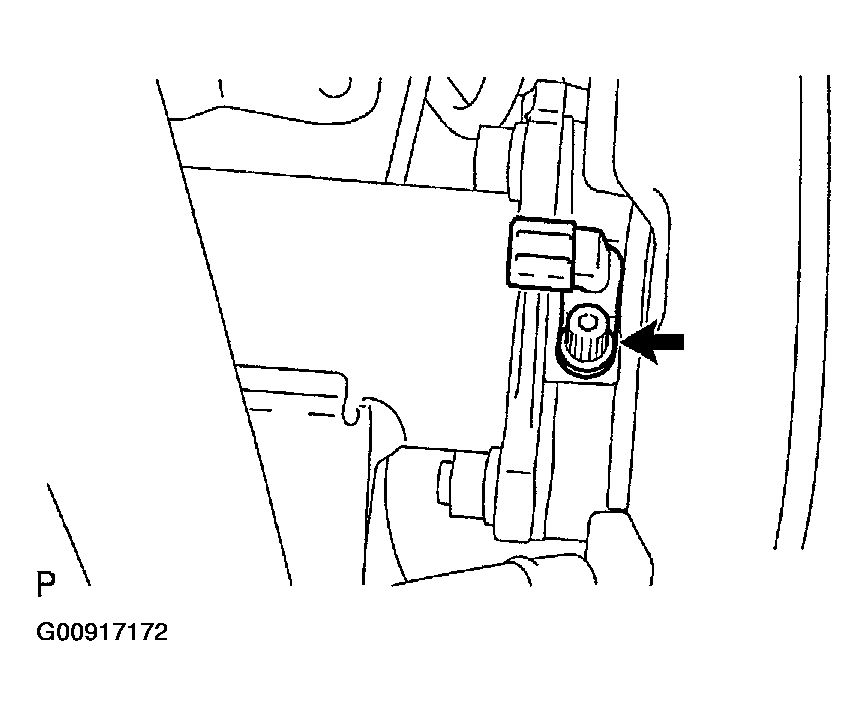

   Fig 2: Removing Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL SPEED SENSOR FRONT LH
   1. Using a hexagon wrench (5 mm), install the front speed sensor with the bolt to the steering knuckle.
      1. Torque: 8.3 N.m (85 kgf.cm, 73 in..lbf)
      NOTE: Make sure the sensor tip is clean.
      Fig 3: Installing Front Speed Sensor Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect the speed sensor connector.

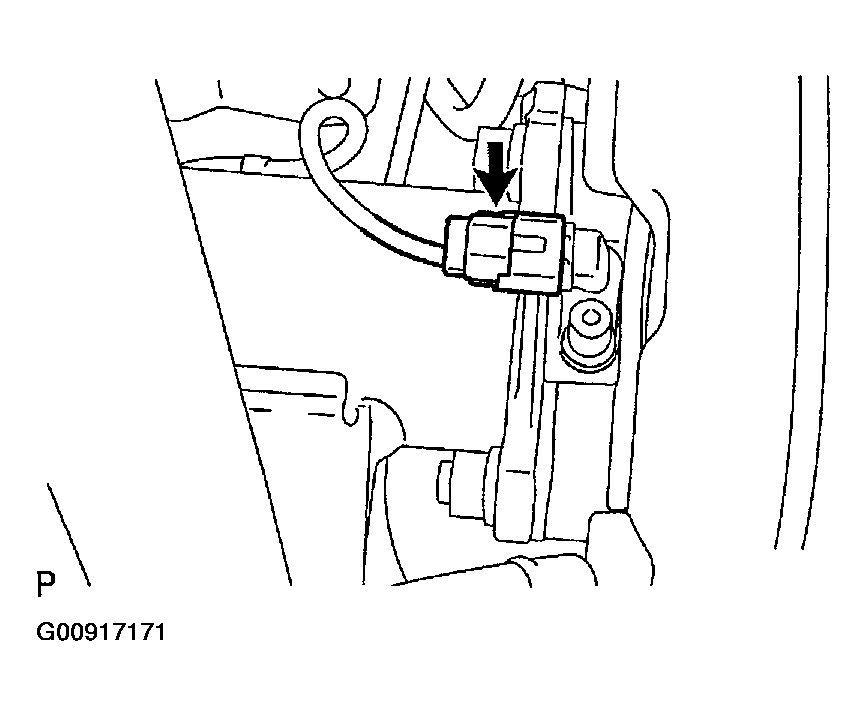

      Fig 4: Connecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL FRONT WHEEL
   1. Torque: 112 N.m (1,142 kgf.cm, 83 ft.lbf)
5. CHECK VSC SENSOR SIGNAL (See  ABS WITH EBD & BA & TRAC & VSC SYSTEM - DIAGNOSIS  )
