Speed Sensor Rear LH: Replacement

HINT:

Replacement of RH side is same as that of LH side.

1. REMOVE REAR WHEEL
2. REMOVE SPEED SENSOR REAR LH
   1. Disconnect the speed sensor connector.

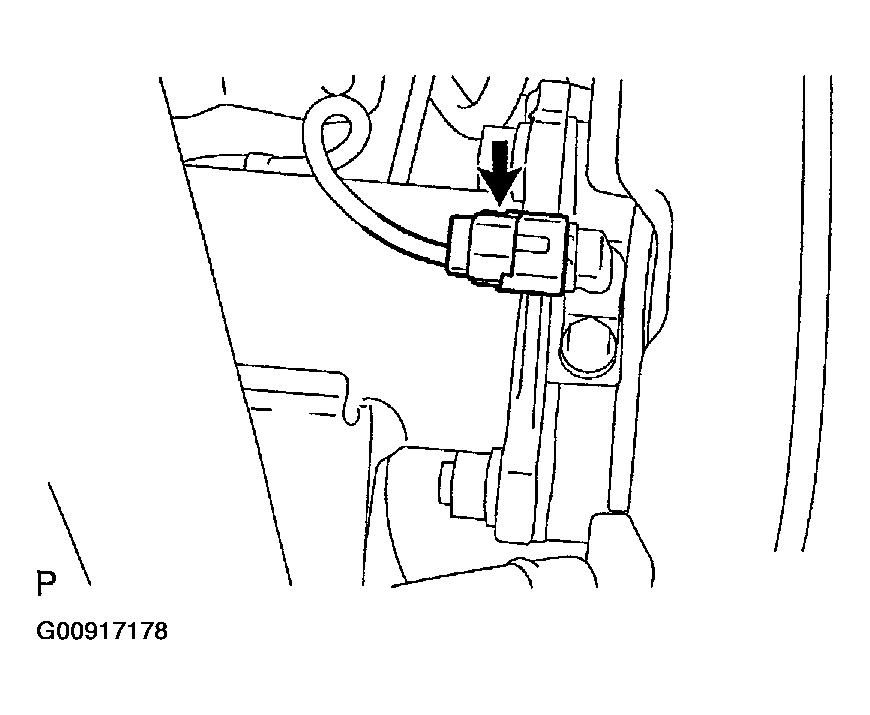

      Fig 1: Disconnecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the nut and speed sensor rear from the axle hub.
   NOTE:

   • Do not stick a foreign matter on the sensor tip.
   • Do not let the foreign matter into the sensor installation hole.

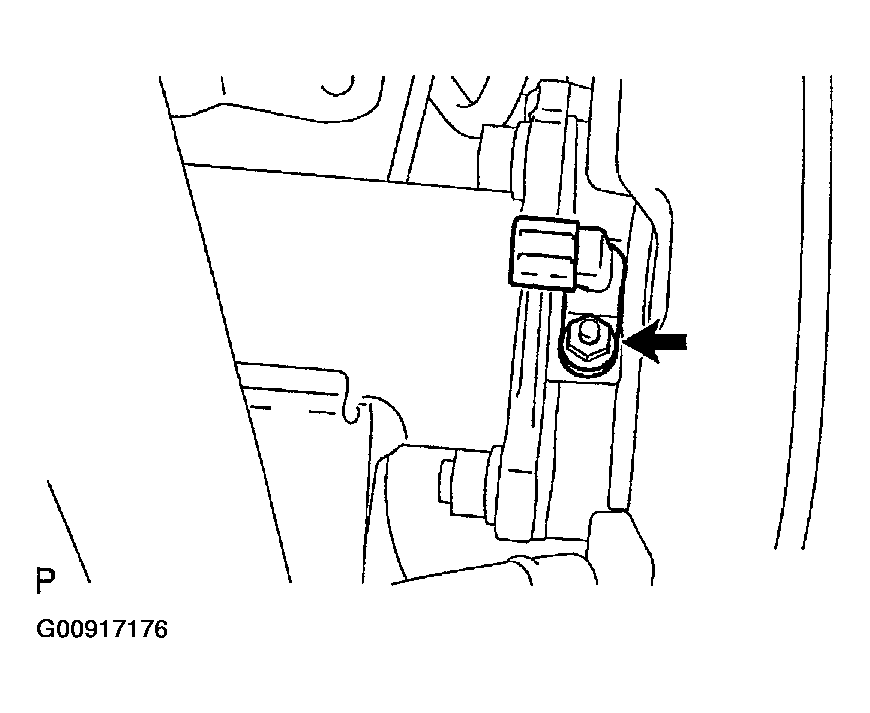

   Fig 2: Removing Nut Of Speed Sensor Rear

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL SPEED SENSOR REAR LH
   1. Install the rear speed sensor with the nut to the steering knuckle.
      1. Torque: 8.3 N.m (85 kgf.cm, 73 in..lbf)
      NOTE: Make sure the sensor tip is clean.
      Fig 3: Installing Rear Speed Sensor Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect the speed sensor connector.

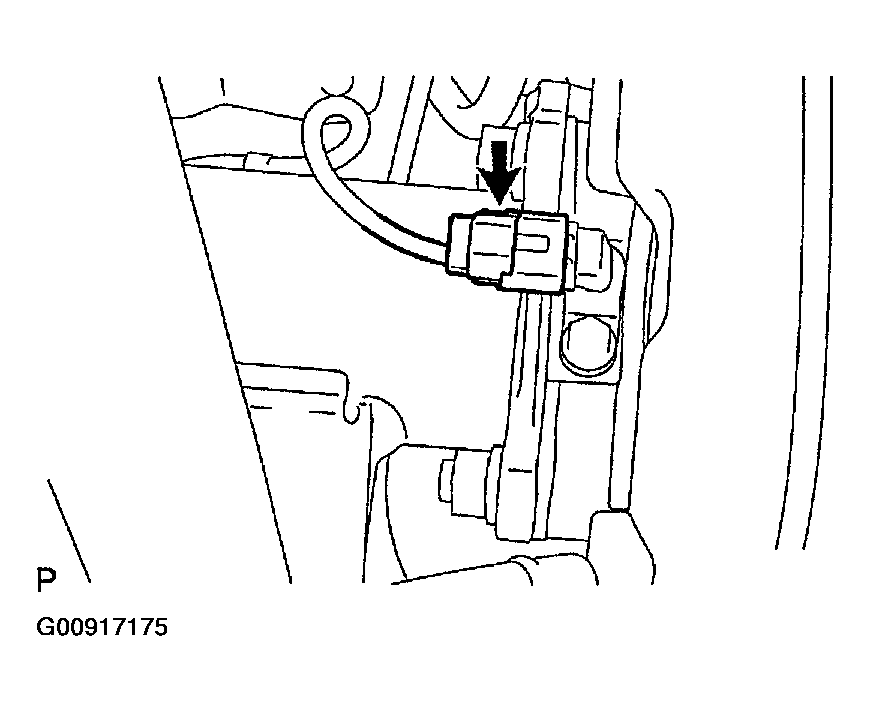

      Fig 4: Connecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL REAR WHEEL
   1. Torque: 112 N.m (1,142 kgf.cm, 83 ft.lbf)
5. CHECK VSC SENSOR SIGNAL (See  ABS WITH EBD & BA & TRAC & VSC SYSTEM - DIAGNOSIS  )
