Combination Meter ASSY: Components

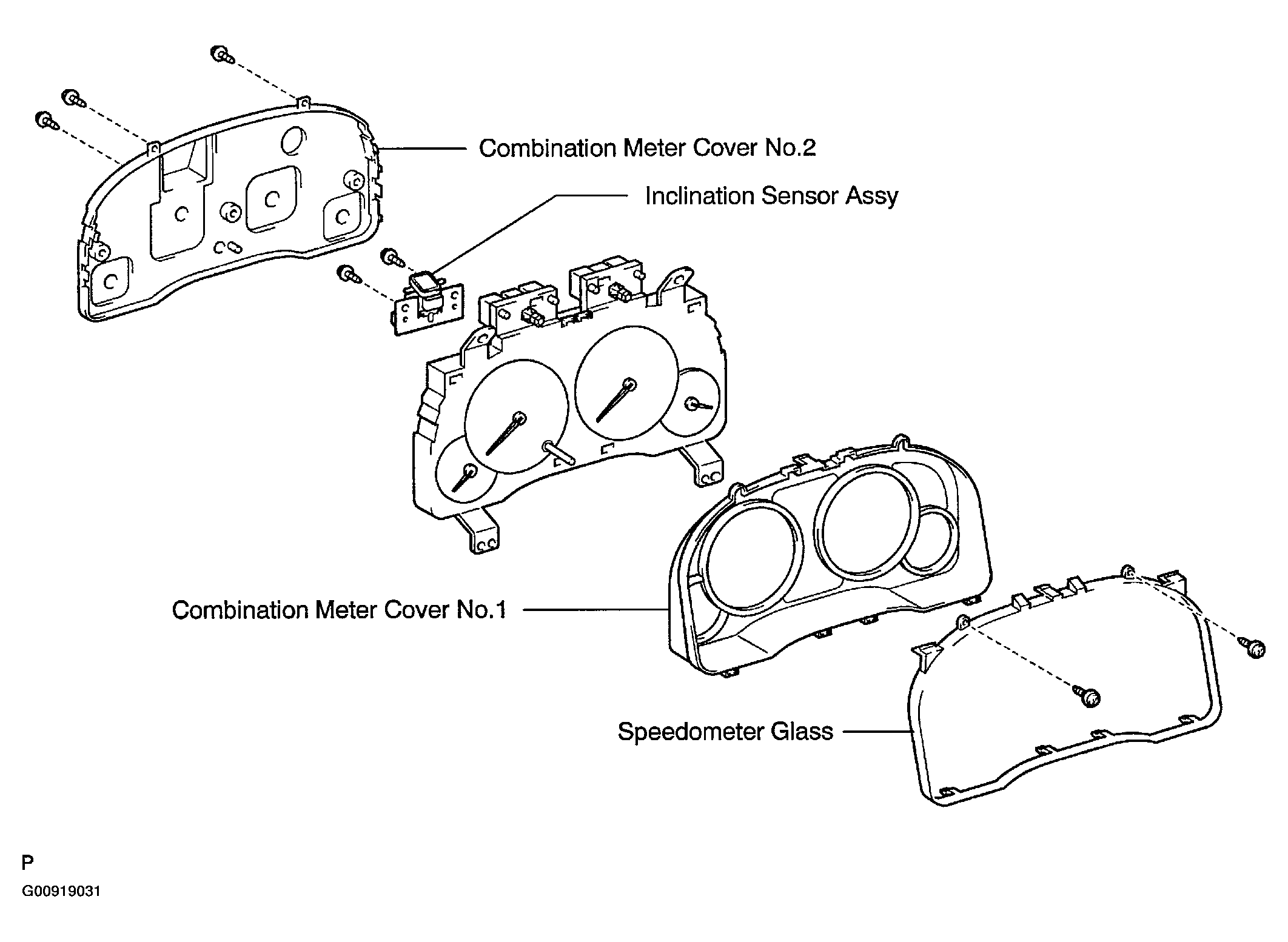

Fig 1: Identifying Components Of Combination Meter Assy
G00919031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
