Crankshaft Position Sensor: Replacement

  1. REMOVE ENGINE UNDER COVER ASSY REAR
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.

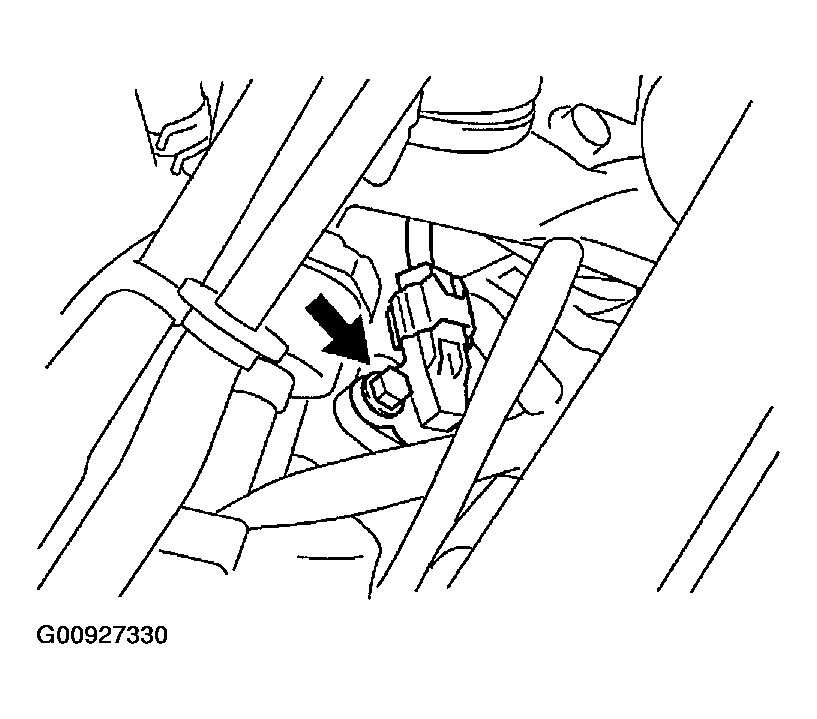

    Fig 1: Identifying Bolt
    G00927330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL CRANKSHAFT POSITION SENSOR
    1. Install crankshaft position sensor with bolt.
      1. Torque: 6.5 N.m (65 kgf.cm, 58 in.lbf)
  4. INSTALL ENGINE UNDER COVER ASSY REAR
