Accelerator Pedal Rod ASSY (2UZ-FE): Replacement

  1. REMOVE ACCELERATOR PEDAL ROD ASSY
    1. Disconnect the accelerator pedal connector.
    2. Remove the 2 nuts and the accelerator pedal assy.

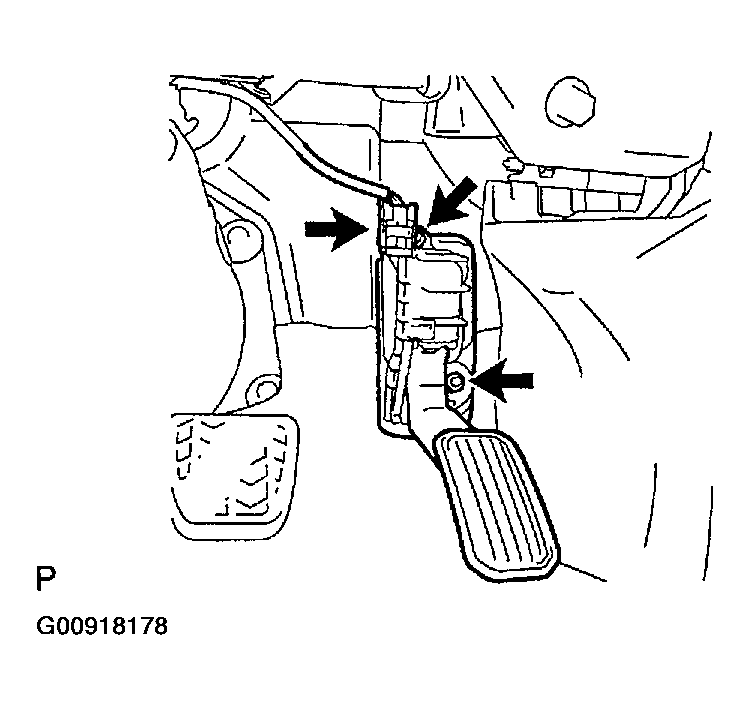

    Fig 1: Removing Accelerator Pedal Assembly
    G00918178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ACCELERATOR PEDAL ROD ASSY
    NOTE:
    • Avoid physical shock to the accelerator pedal assy.
    • Do not disassemble the accelerator pedal assy.
    1. Install the accelerator pedal assy with the 2 nuts.
      1. Torque: 5.0 N.m (51 kgf. cm, 44 in. lb)
    2. Connect the accelerator pedal connector.
