Ignition System: Inspection

INSPECT SPARK PLUG

NOTE:

Never use a wire brush for cleaning.
Never attempt to adjust the electrode gap on used spark plug.
Spark plug should be replaced every 200,000 km (120,000 miles).

Check the electrode.
1. Using a ohmmeter, measure the insulation resistance.
  1. Correct insulation resistance: 10 MΩ or more
If the resistance is less then specified, proceed to step (d).

HINT:

If a ohmmeter is not available, the following simple method of inspection provides fairly accurate results.

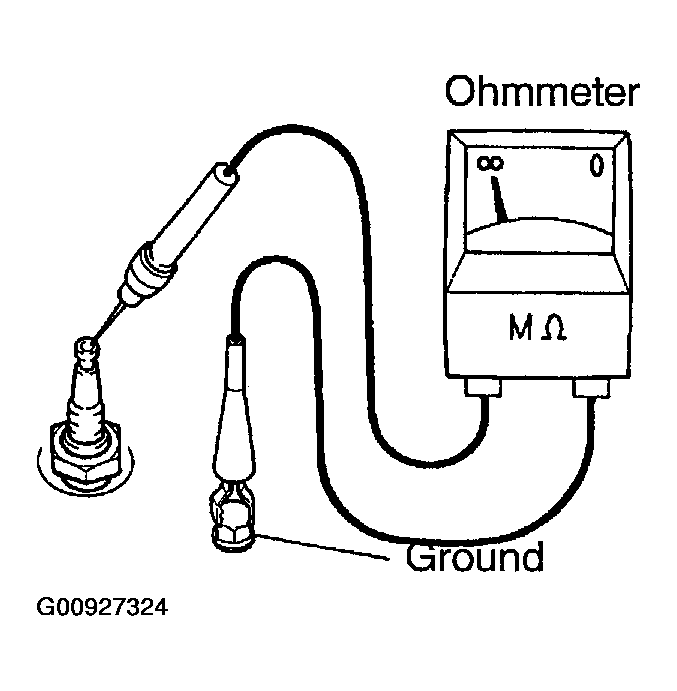

Fig 1: Measuring Insulation Resistance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Simple Method:
1. Quickly race the engine to 4, 000 RPM 5 times.
2. Remove the spark plug.
3. Visual check the spark plug.
4. If the electrode is dry...OK.
5. If the electrode is wet...Proceed to step (C).
6. Reinstall the spark plug.

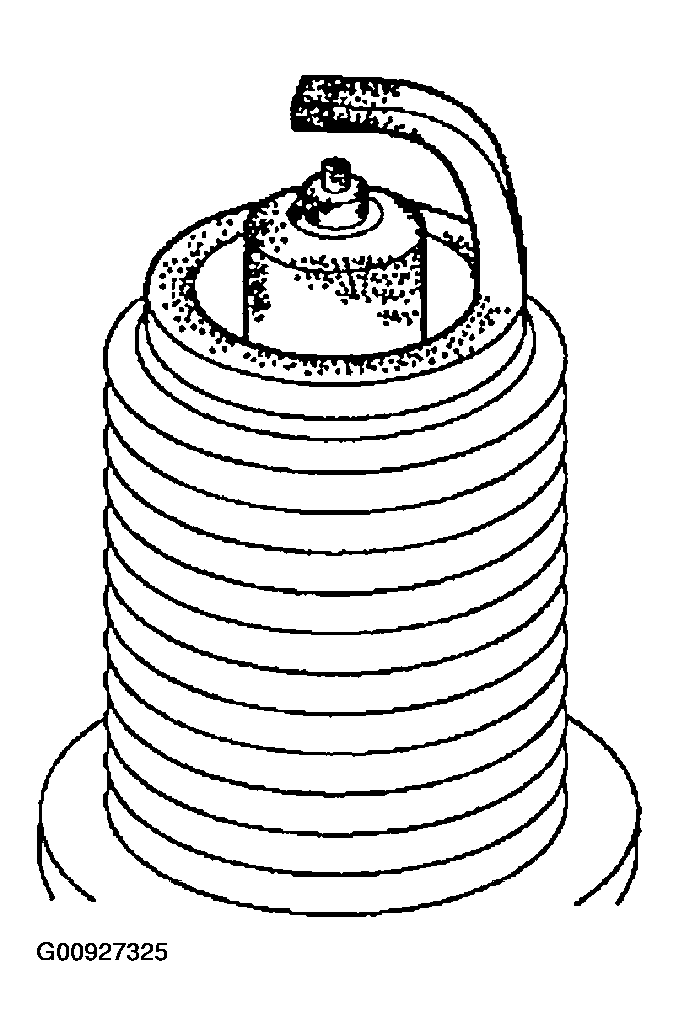

Fig 2: Identifying Spark Electrode
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the spark plug for thread damage and insulator damage.

If abnormal, replace the spark plug.

Recommended spark plug:

SPARK PLUG SPECIFICATION

DENSO made	SK20R11
NGK made	IFR6A11

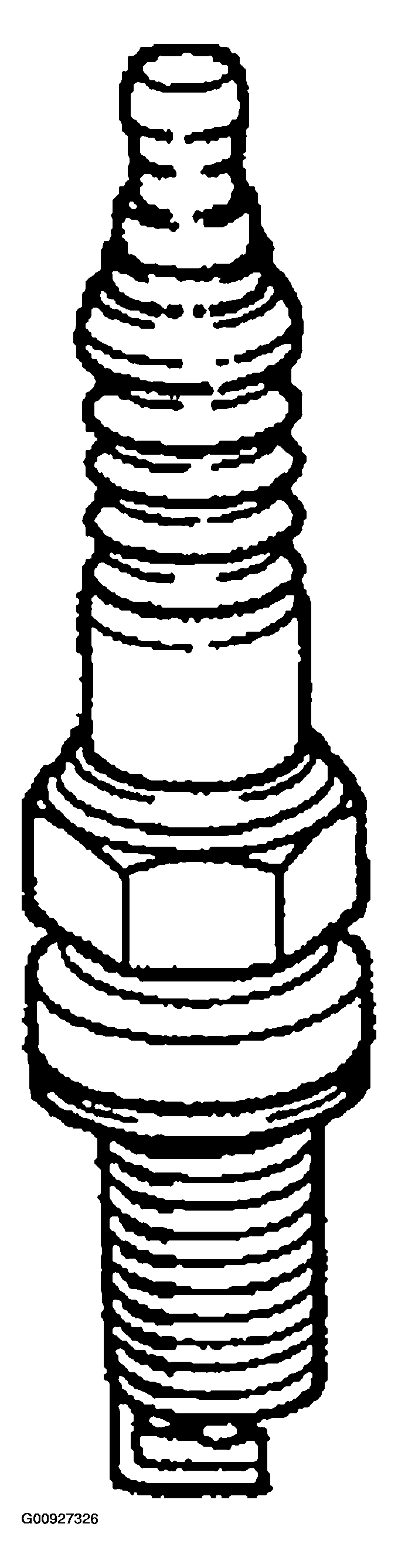

Fig 3: Identifying Spark Plug

G00927326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the spark plug electrode gap.
1. Maximum electrode gap for used spark plug: 1.3 mm (0.051 in.)
If the gap is greater than maximum, replace the spark plug.
1. Correct electrode gap for new spark plug: 1.0 - 1.1 mm (0.039 - 0.043 in.)

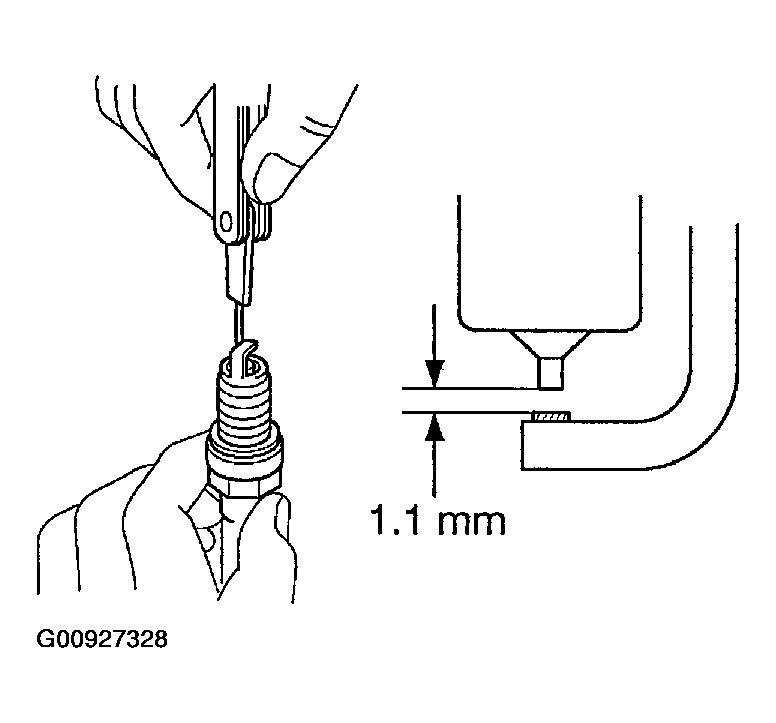

Fig 4: Checking Spark Plug Electrode Gap
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Clean the spark plugs.
If the electrode has traces of wet carbon, allow it to dry and than clean with a spark plug cleaner.
1. Air pressure: Blow 588 kPa (6 kgf/cm2, 85 psi)
2. Duration: 20 seconds or less
HINT:

If there are traces of oil, remove is with gasoline before using the spark plug cleaner.

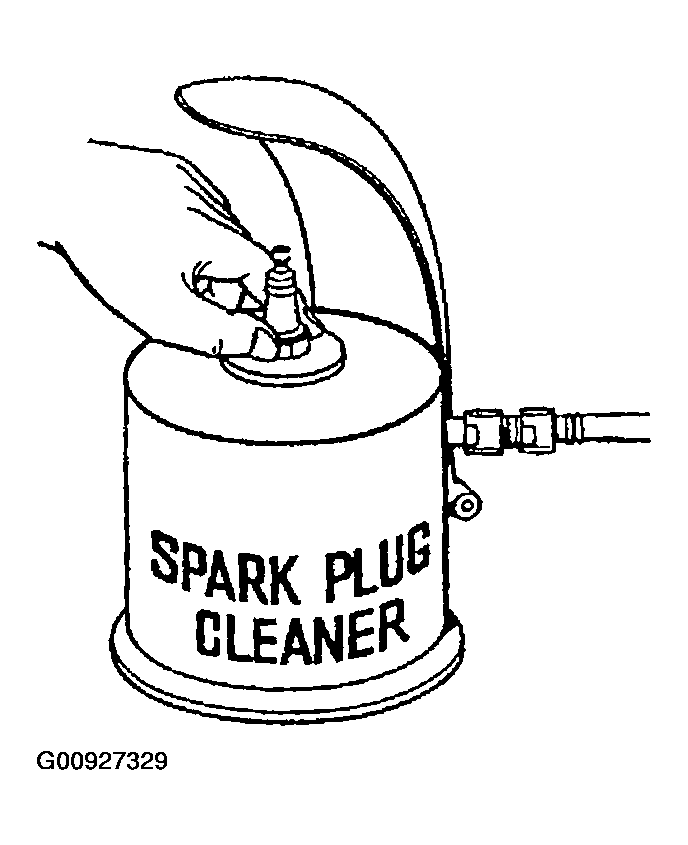

Fig 5: Cleaning Spark Plugs
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT CAMSHAFT POSITION SENSOR
1. Using an ohmmeter, measure the resistance between terminals.
  RESISTANCE:
  1. at cold 835 - 1400 Ω
  2. at hot 1060 - 1645 Ω
NOTE: "Cold" and "Hot" on the table express the temperature of the coils themselves. "Cold" is from - 10° C (14°F) to 50 °C (122 °F) and "Hot" is from 50 °C (122 °F) to 100 °C (212 °F).
1. SST 23101
INSPECT CRANKSHAFT POSITION SENSOR
1. Using an ohmmeter, measure the resistance between terminals.
  RESISTANCE:
  1. at cold 1630 - 2740 Ω
  2. at hot 2065 - 3225 Ω
  NOTE: ""Cold" and "Hot" on the table express the temperature of the coils themselves. "Cold" is from - 10°C (14°F) to 50 °C (122 °F) and "Hot" is from 50 °C (122 °F) to 100 °C (212 °F).
