Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

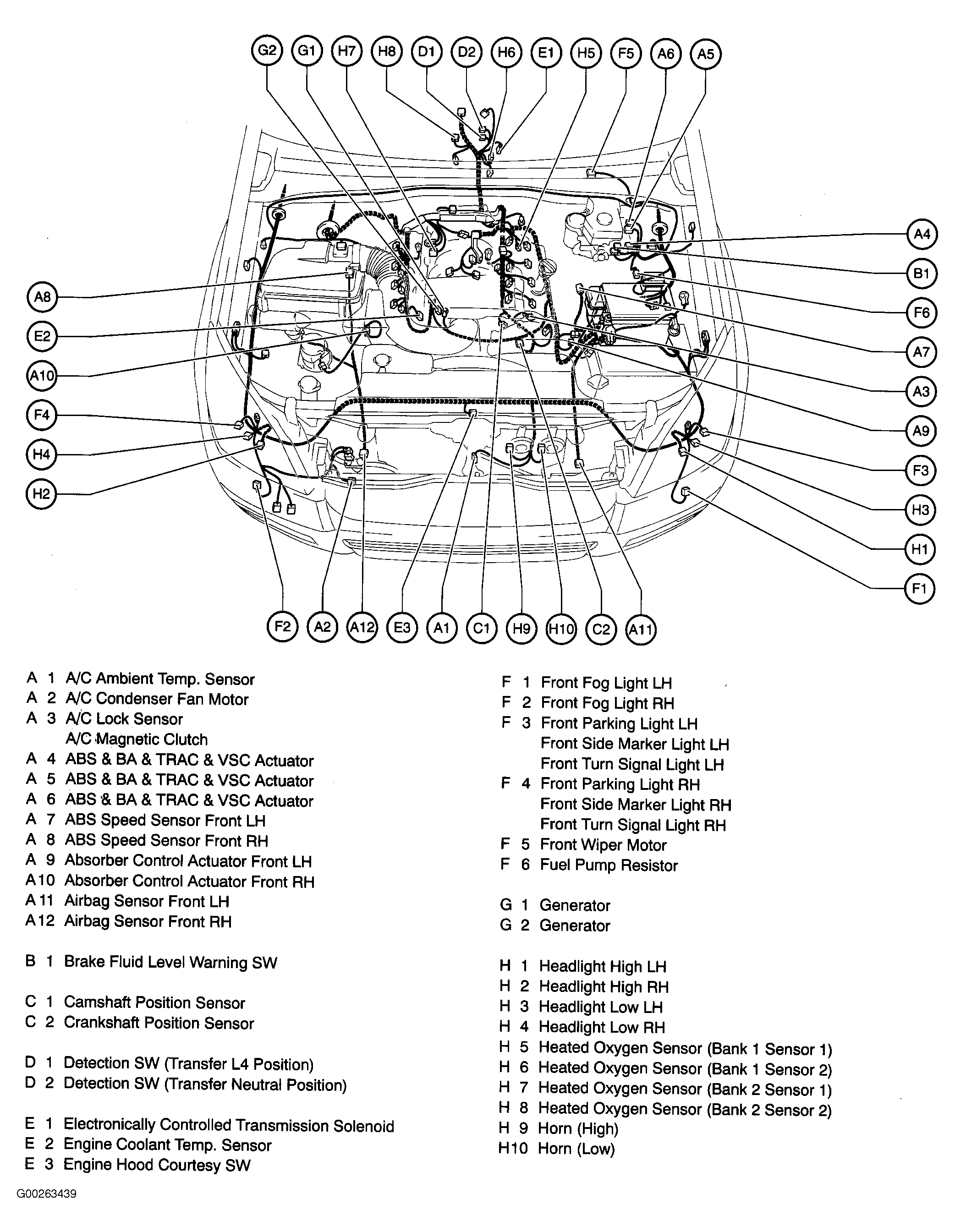

Fig 1: Engine Compartment
G00263439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

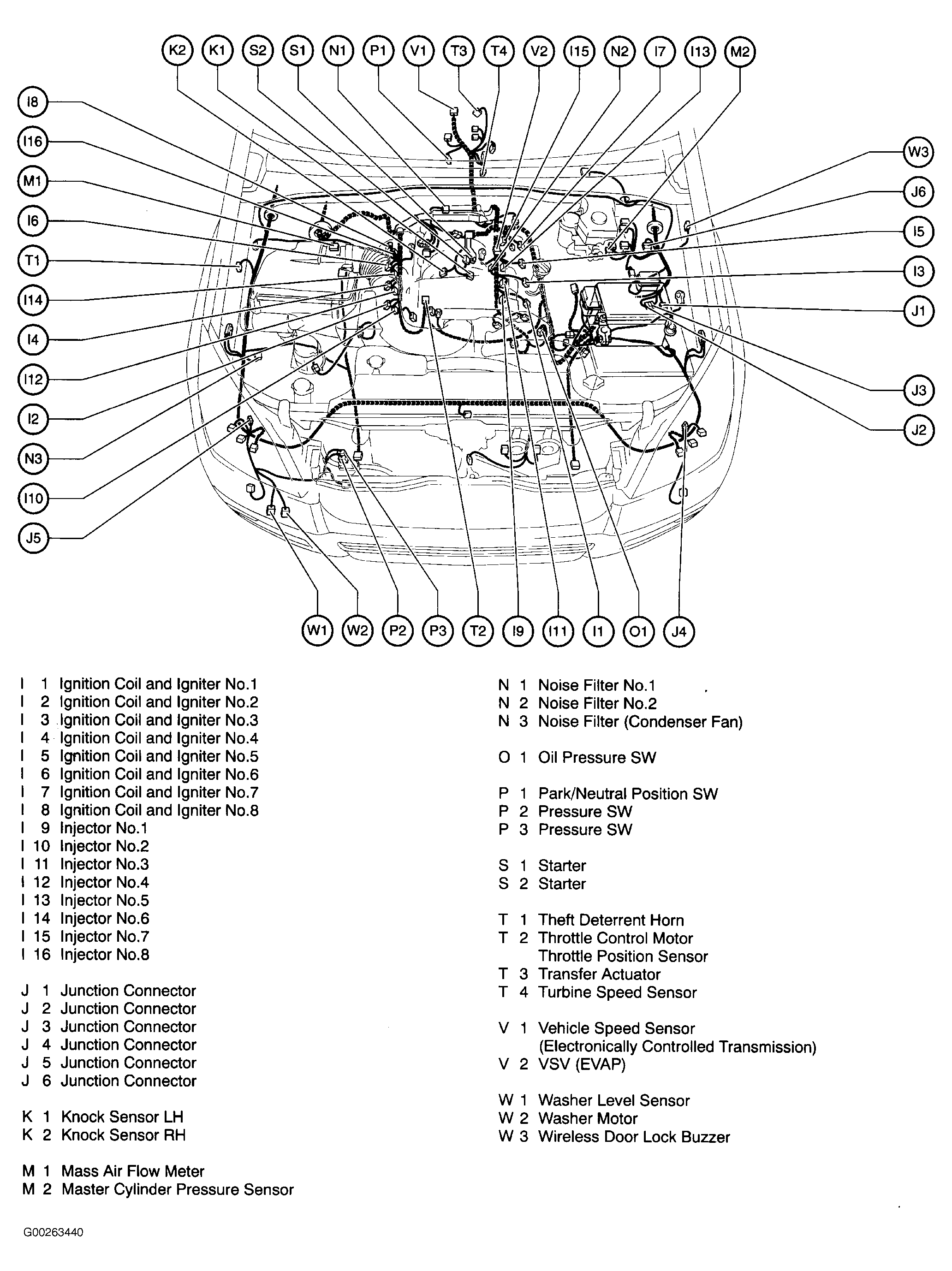

Fig 2: Engine Compartment
G00263440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

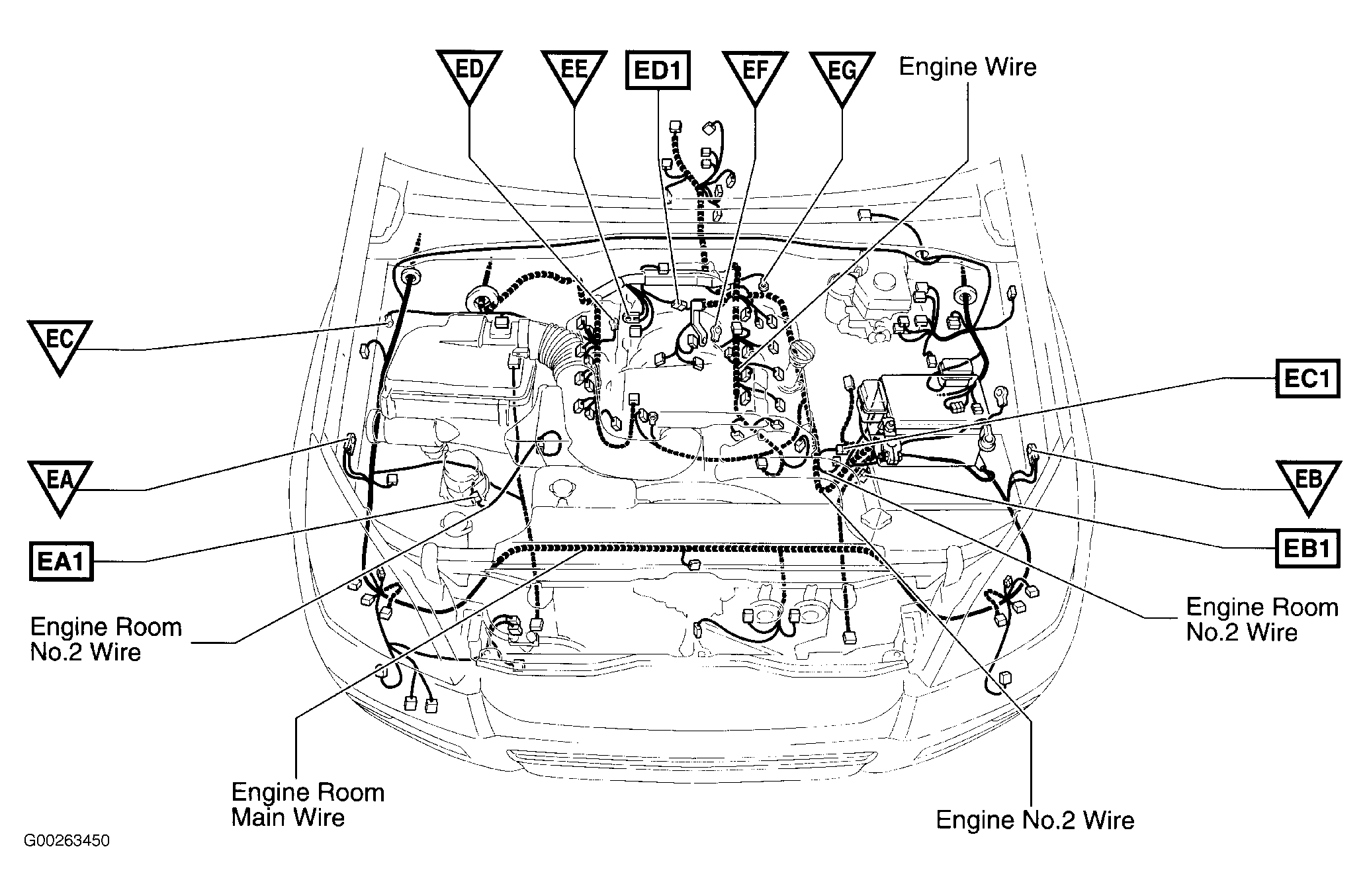

Fig 3: Engine Compartment
G00263450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Dash
G00263441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

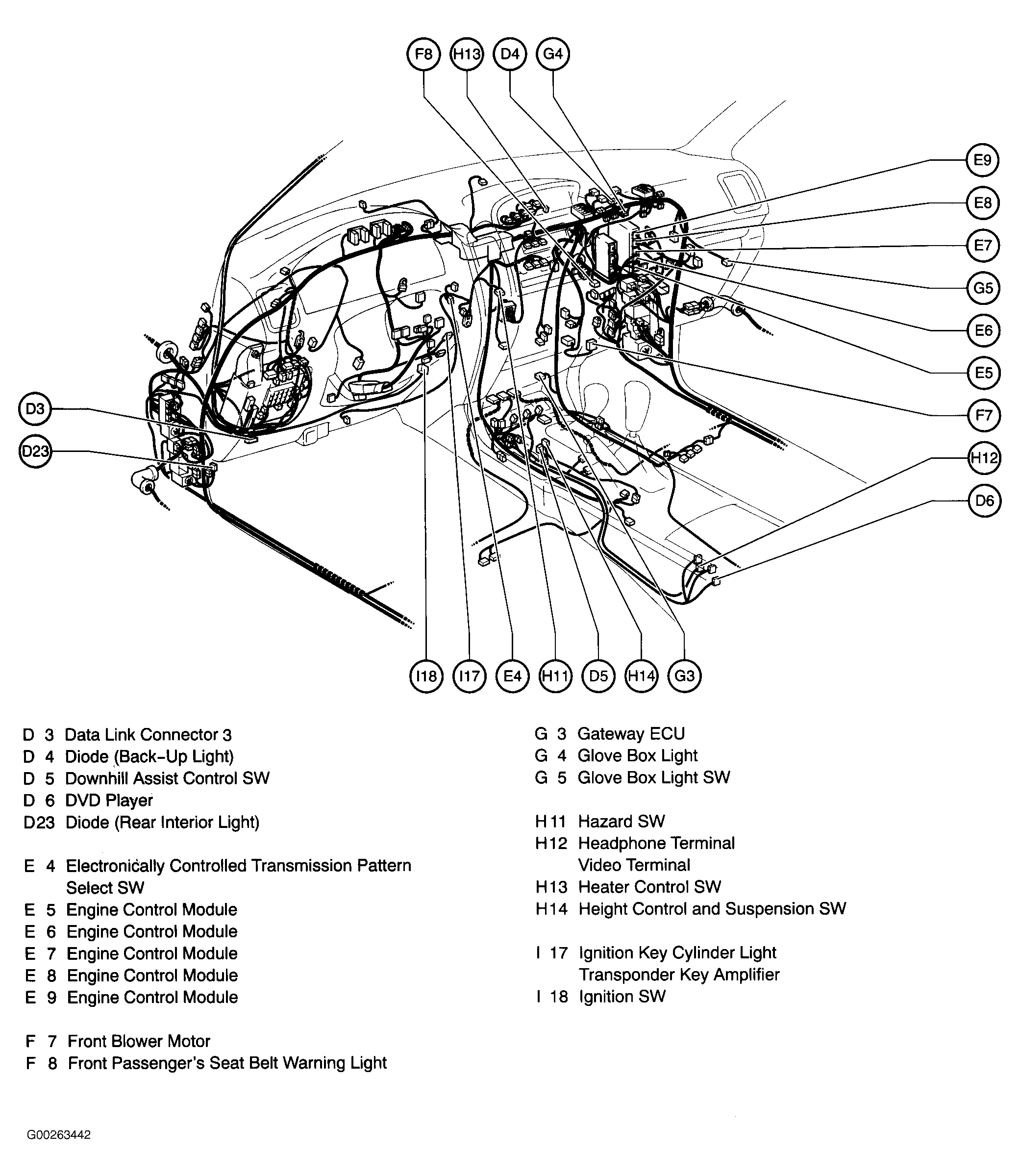

Fig 5: Dash
G00263442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Dash
G00263444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

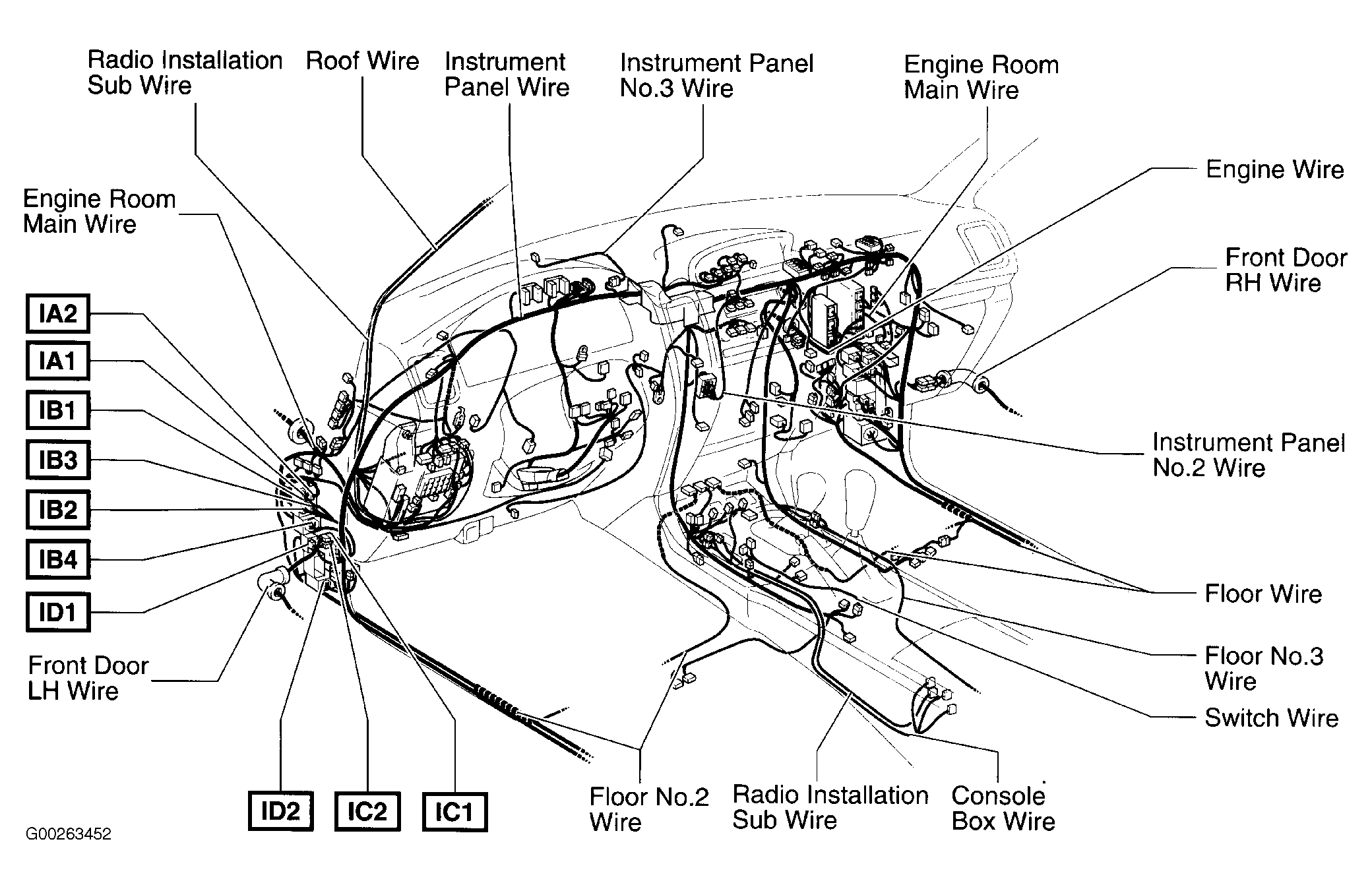

Fig 7: Dash
G00263452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Vehicle Overview
G00263458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Vehicle Overview
G00263445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Vehicle Overview
G00263433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PASSENGER'S AREA RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Cooler Relay
Towing Converter Relay

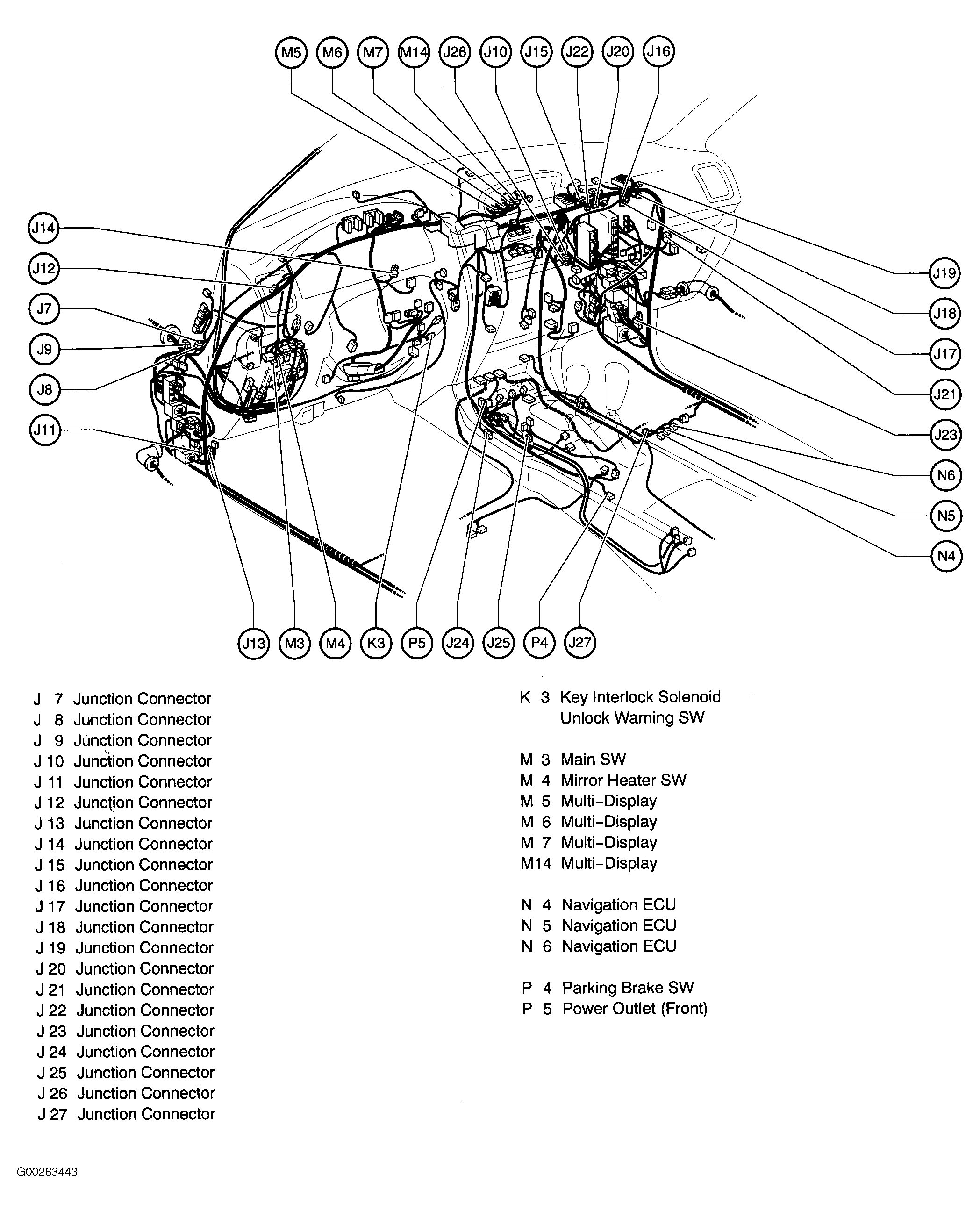

Fig 11: Dash
G00263443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

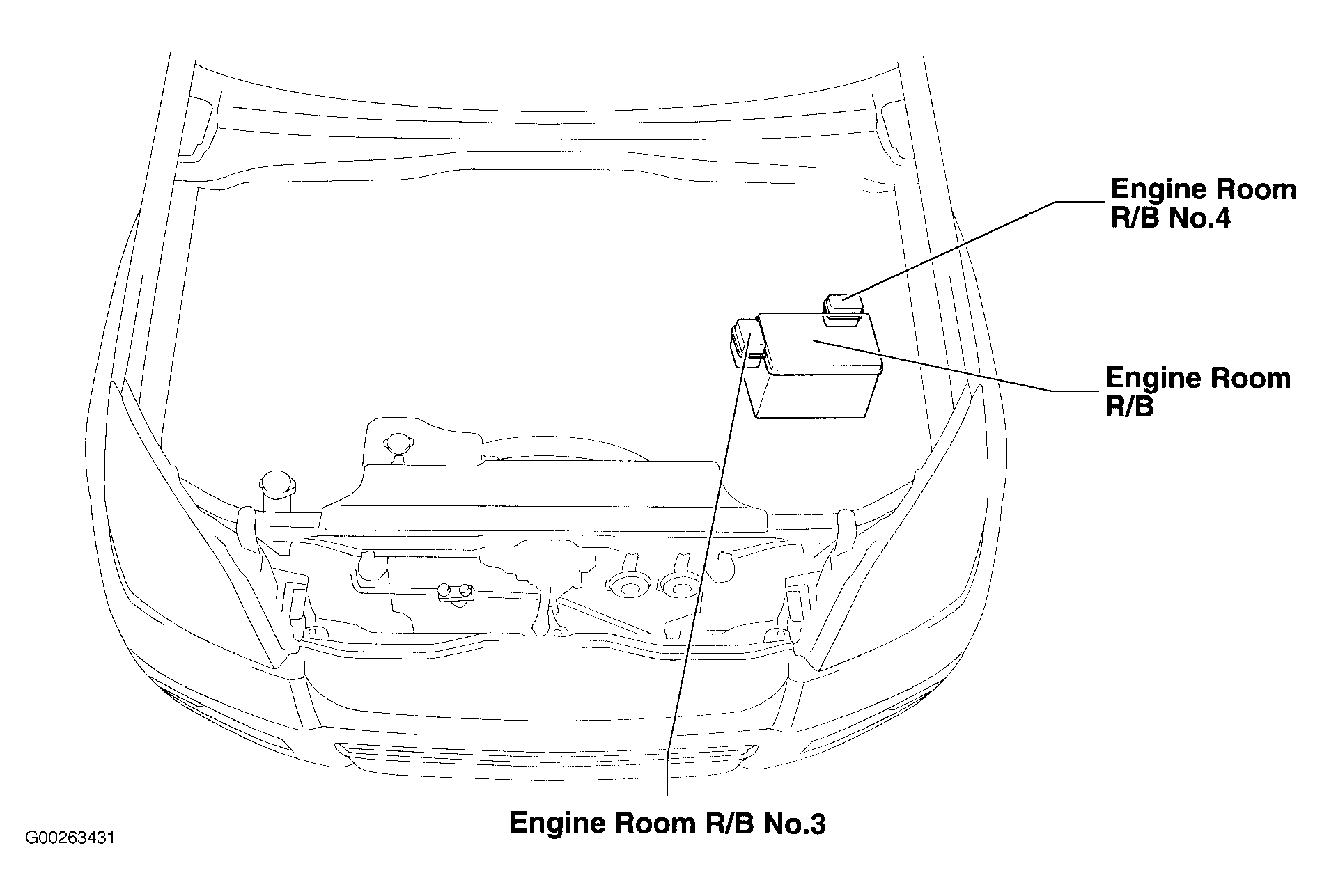

Fig 12: Engine Compartment
G00263431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 13: Dash
G00263432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Wiper Relay

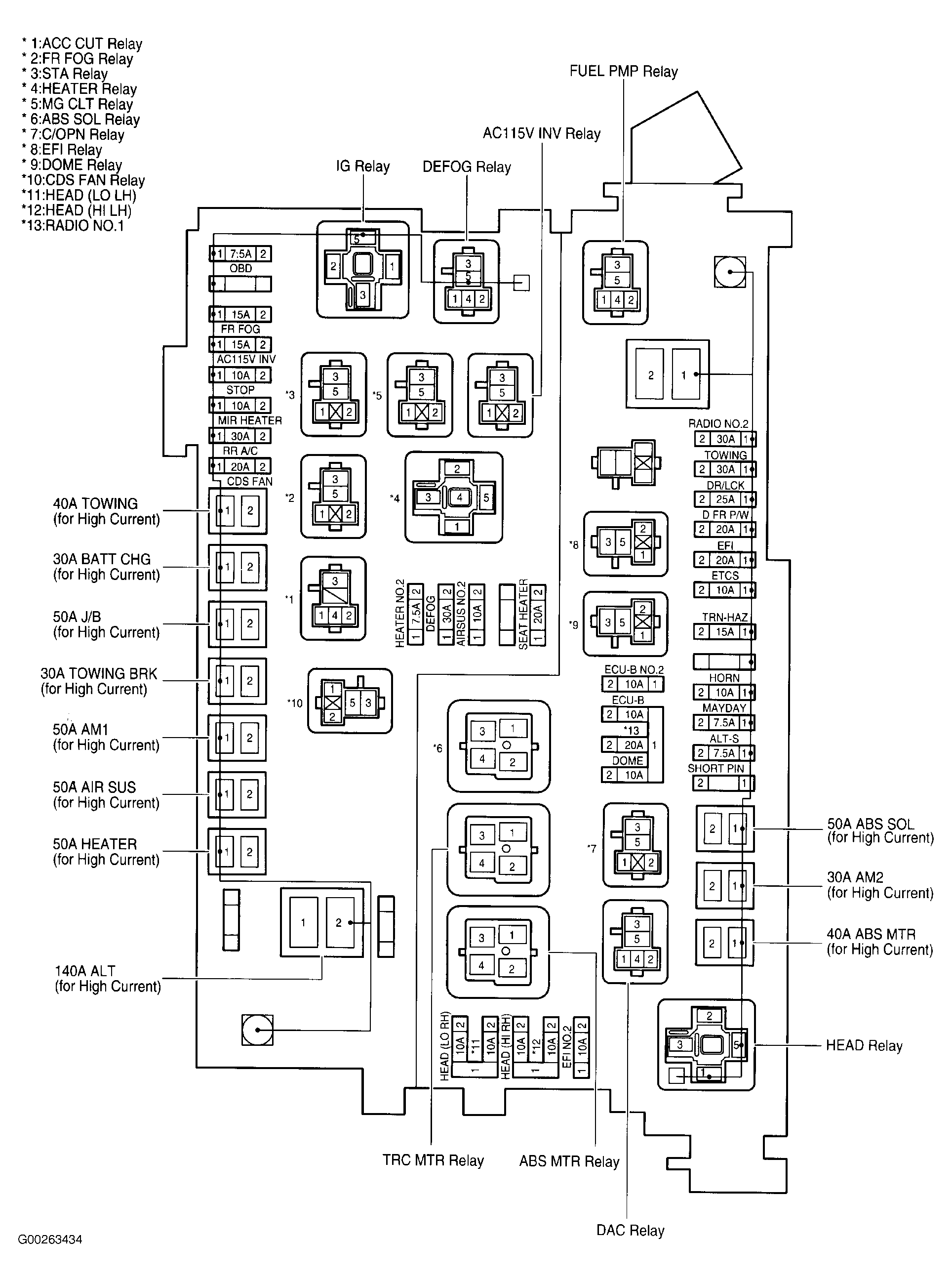

Fig 14: Engine Room R/B
G00263434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE COMPARTMENT RELAY BLOCK RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
*1: ACC CUT Relay
*2: FR Fog Relay
*3: STA Relay
*4: Heater Relay
*5: MG CLT Relay
*6: ABS SOL Relay
*7: C/OPN Relay
*8: EFI Relay
*9: Dome Relay
*10: CDS Fan Relay
- IG Relay
- Defog Relay
- AC115V INV Relay
- Fuel PMP Relay
- Head Relay
- DAC Relay
- ABS MTR Relay
- TRC MTR Relay
Fig 15: Engine Room R/B No. 3
G00263435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM RELAY BLOCK NO. 3 RELAY IDENTIFICATION

RELAY DESCRIPTION
Air SUS Relay
Fig 16: Engine Room R/B No. 4
G00263436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM RELAY BLOCK NO. 4 RELAY IDENTIFICATION

RELAY DESCRIPTION
BATT CHG Relay
Towing Tail Relay
Fig 17: Passenger Side R/B
G00263437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PASSENGER'S SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
MIR HTR Relay
BK/UP LP Relay
Fig 18: Driver Side J/B
G00263438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER'S SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Horn Relay
Tail Relay
Power Relay
ACC SKT Relay

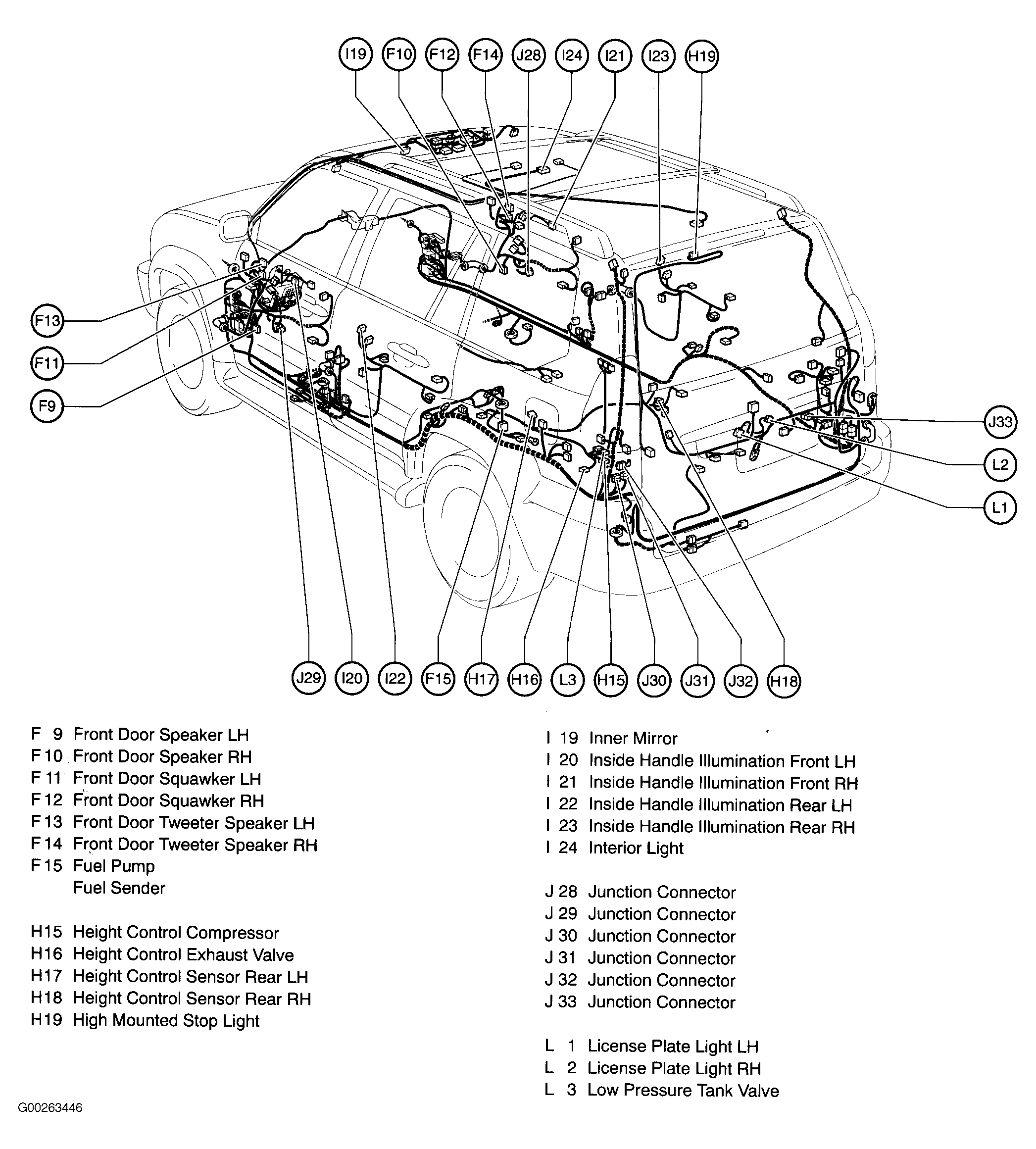

Fig 19: Left Side Of Vehicle
G00263446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Left Side Of Vehicle
G00263447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 21: Left Side Of Vehicle
G00263448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 22: Front Seats
G00263449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

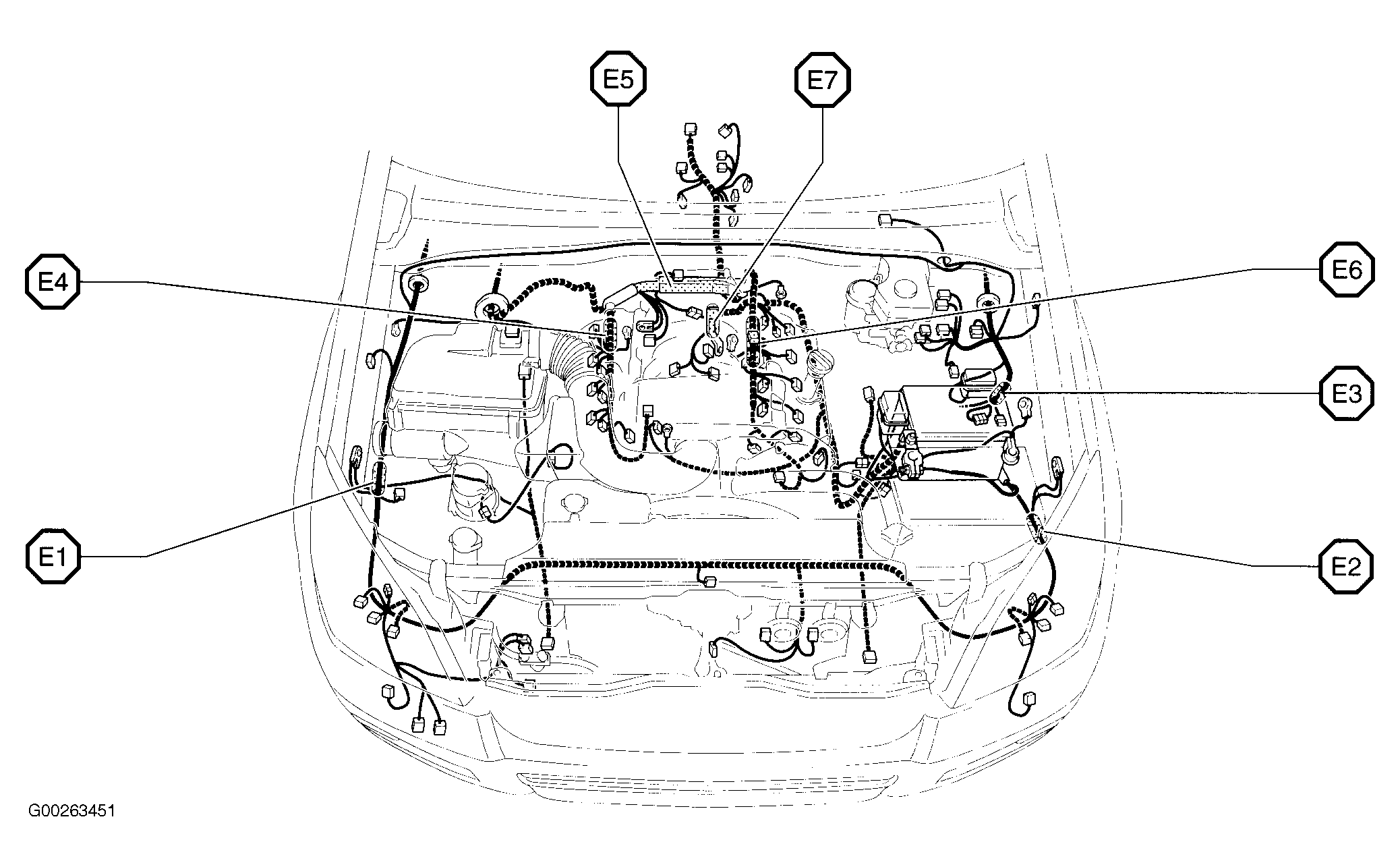

Fig 23: Engine Compartment
G00263451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

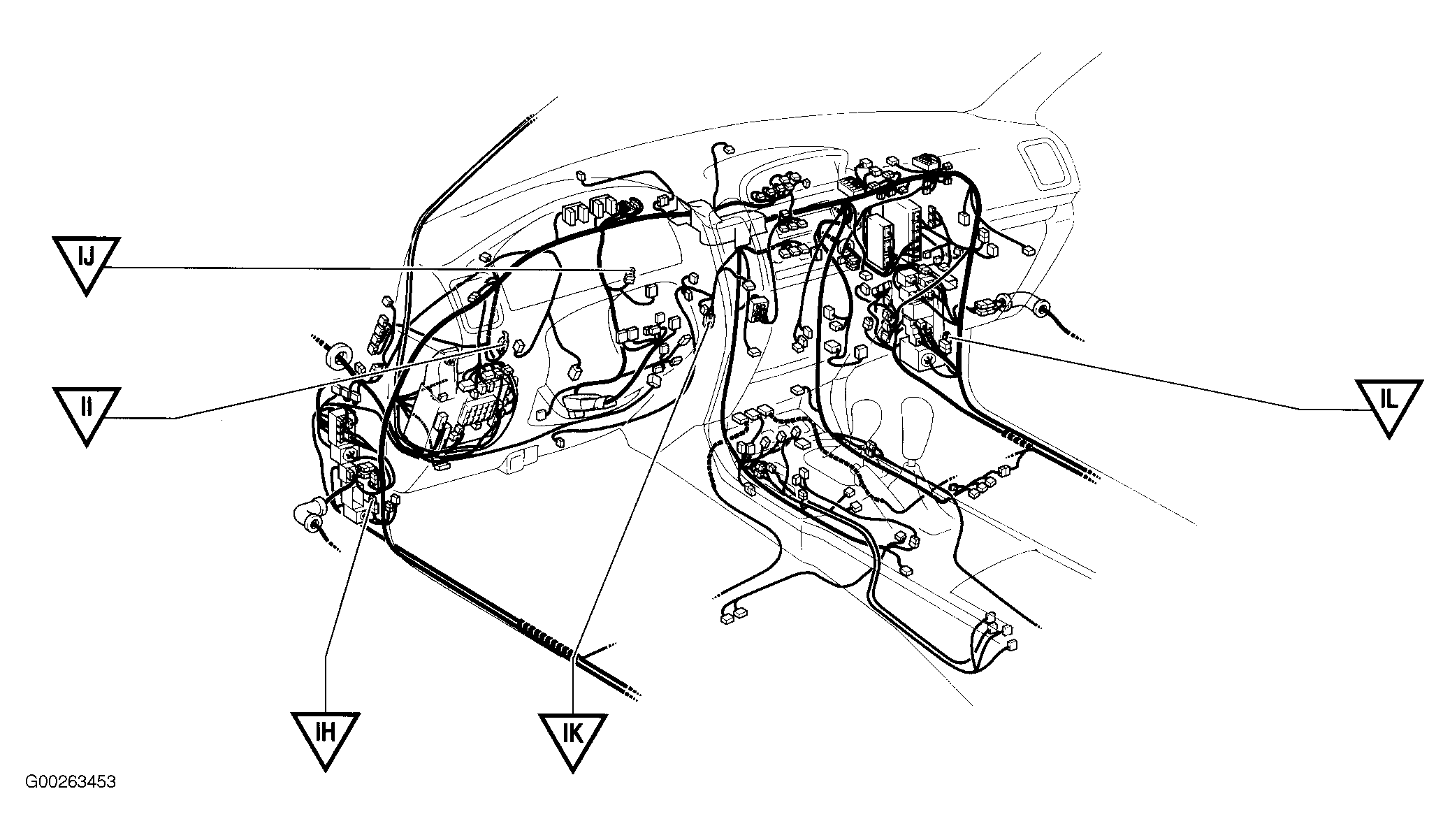

Fig 24: Dash
G00263453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

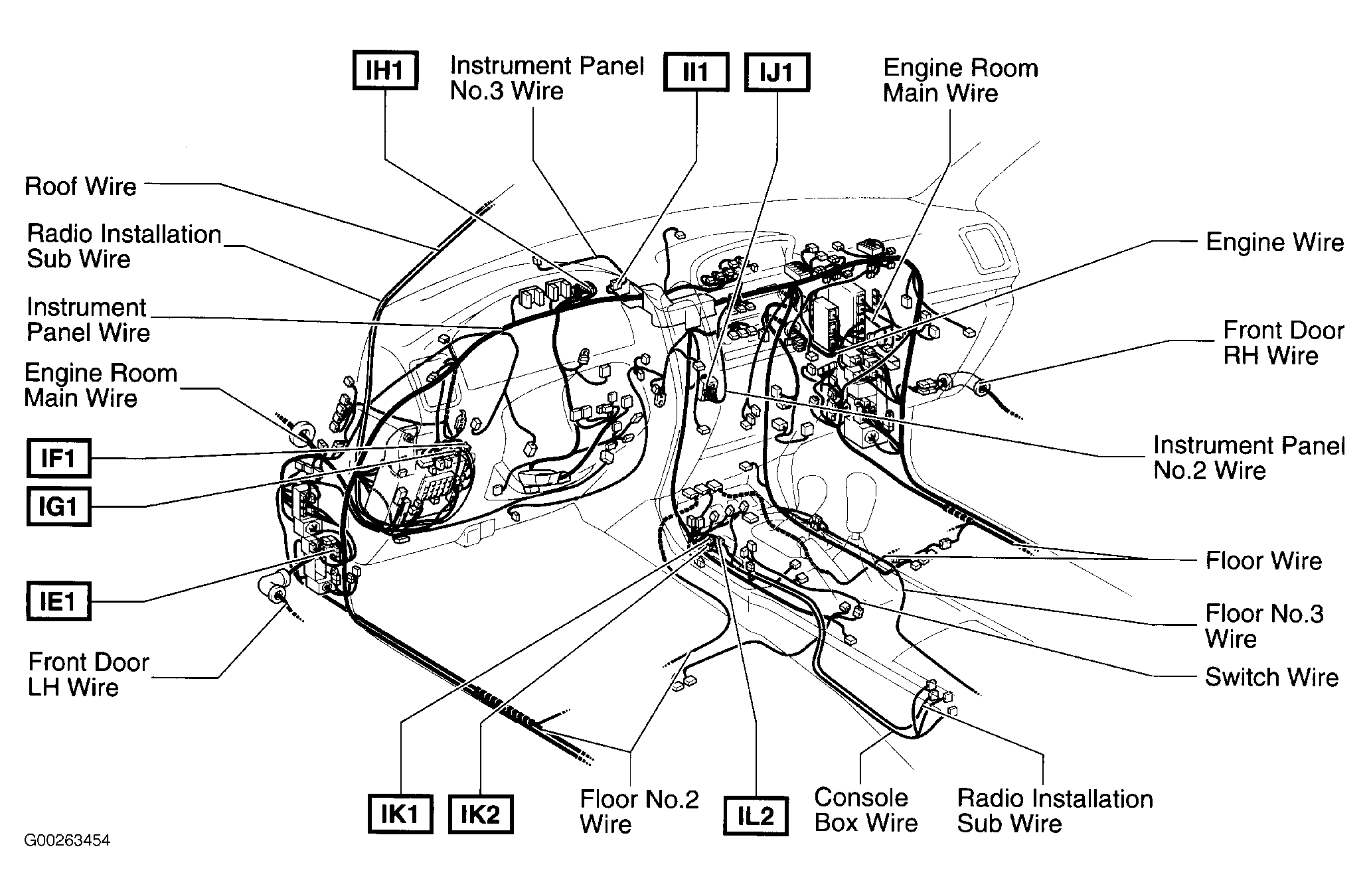

Fig 25: Dash
G00263454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

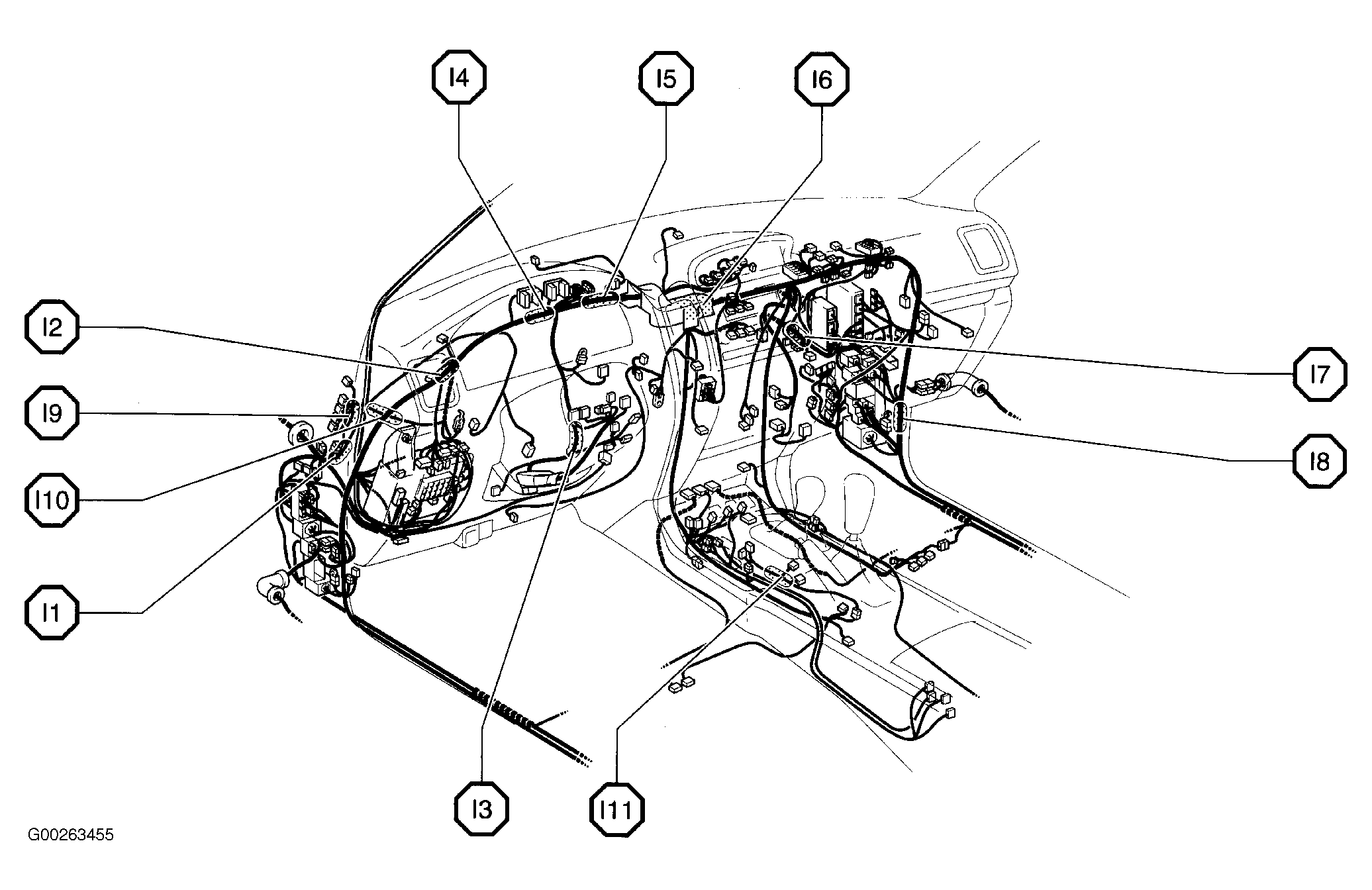

Fig 26: Dash
G00263455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

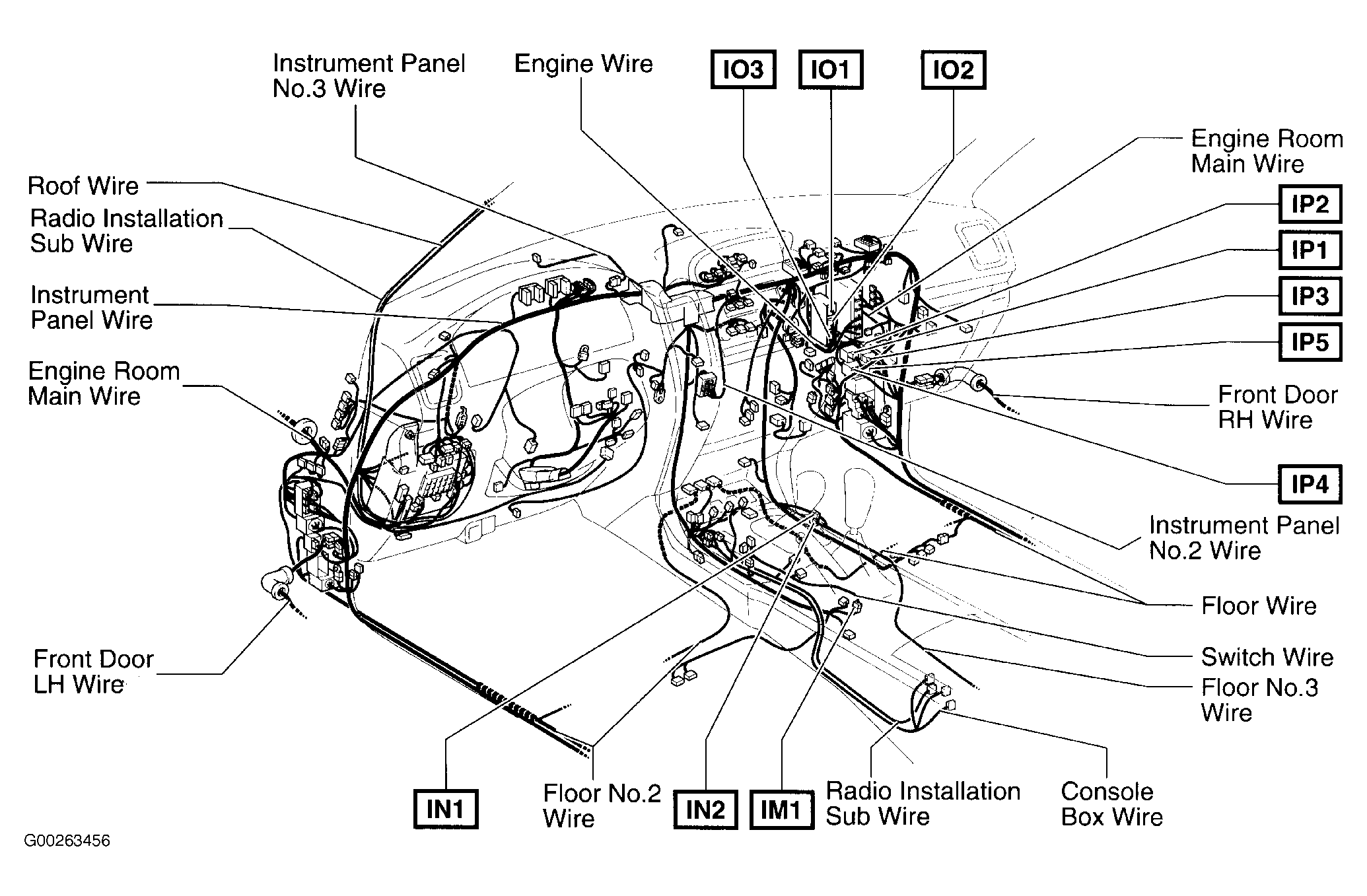

Fig 27: Dash
G00263456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

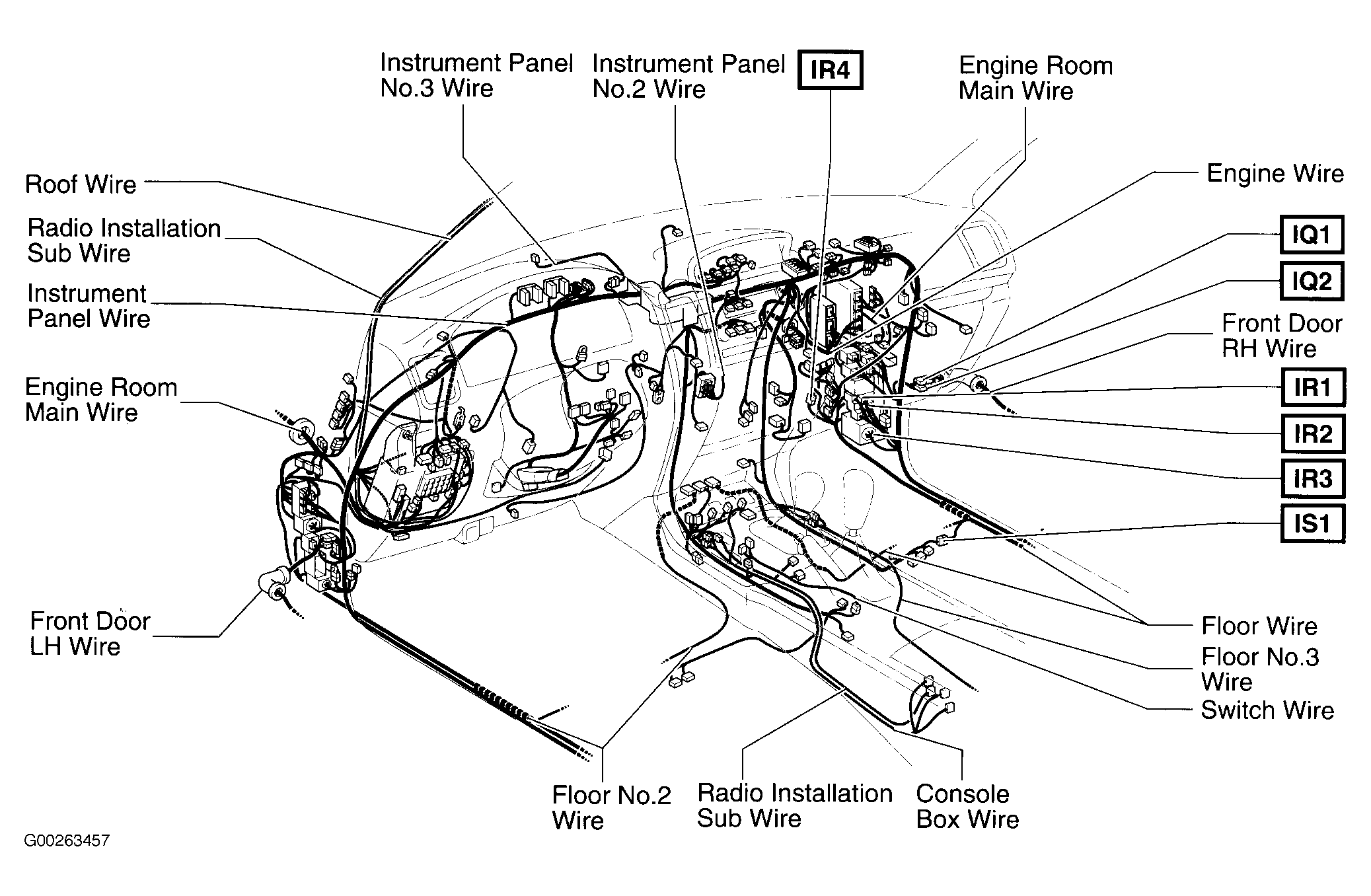

Fig 28: Dash
G00263457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 29: Vehicle Overview
G00263459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

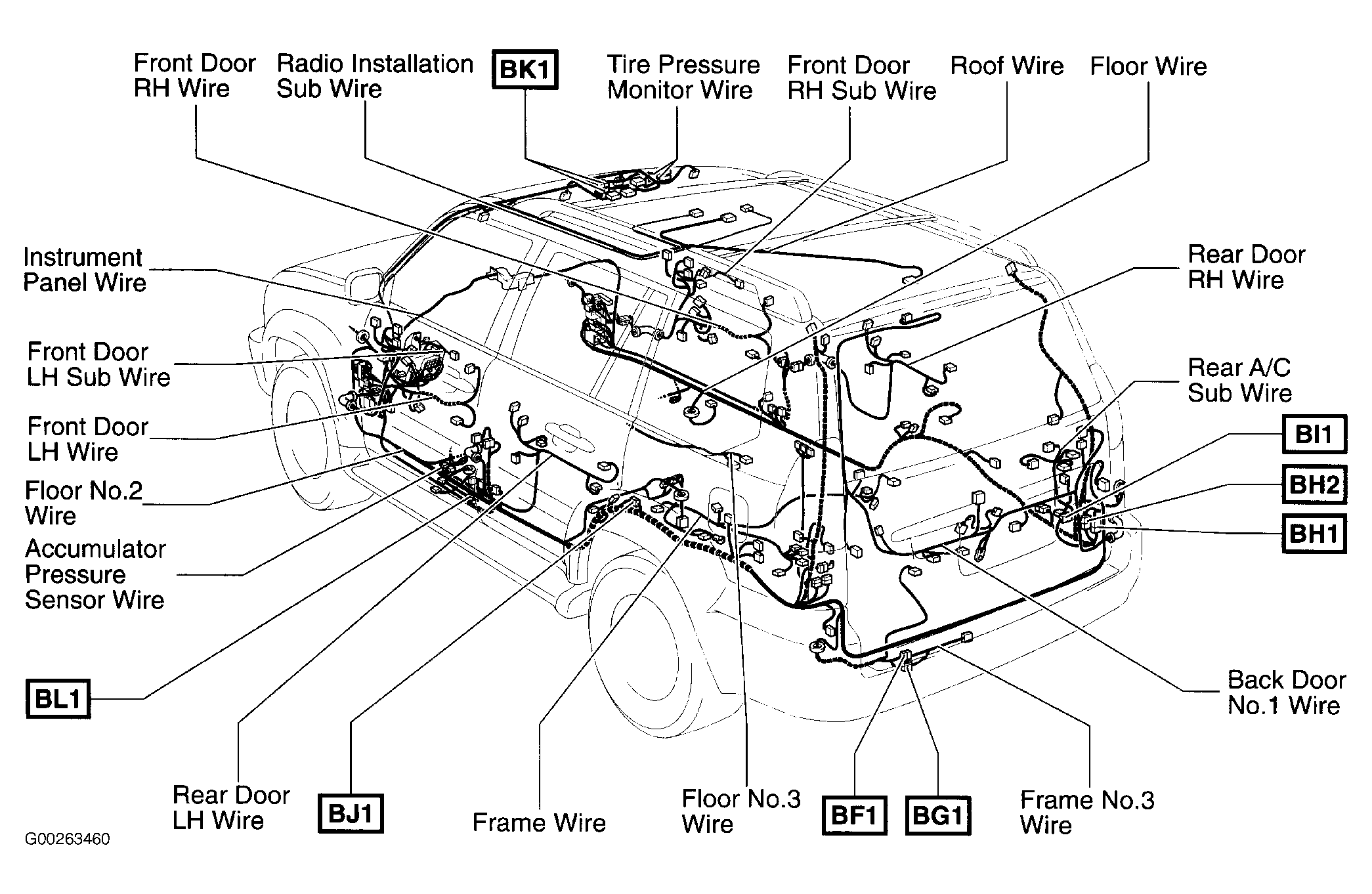

Fig 30: Vehicle Overview
G00263460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

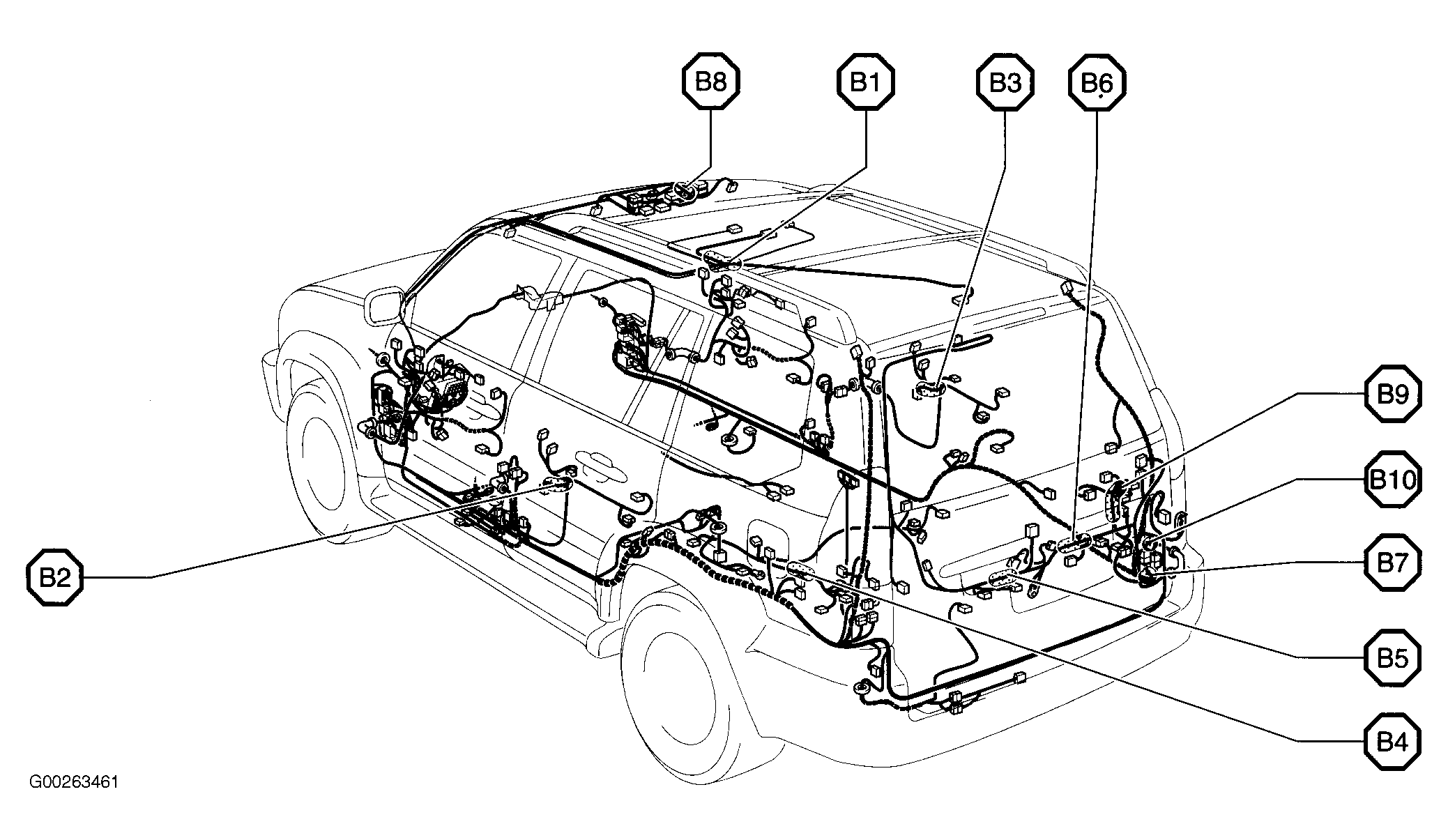

Fig 31: Vehicle Overview
G00263461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
