Power Steering Link ASSY: Components

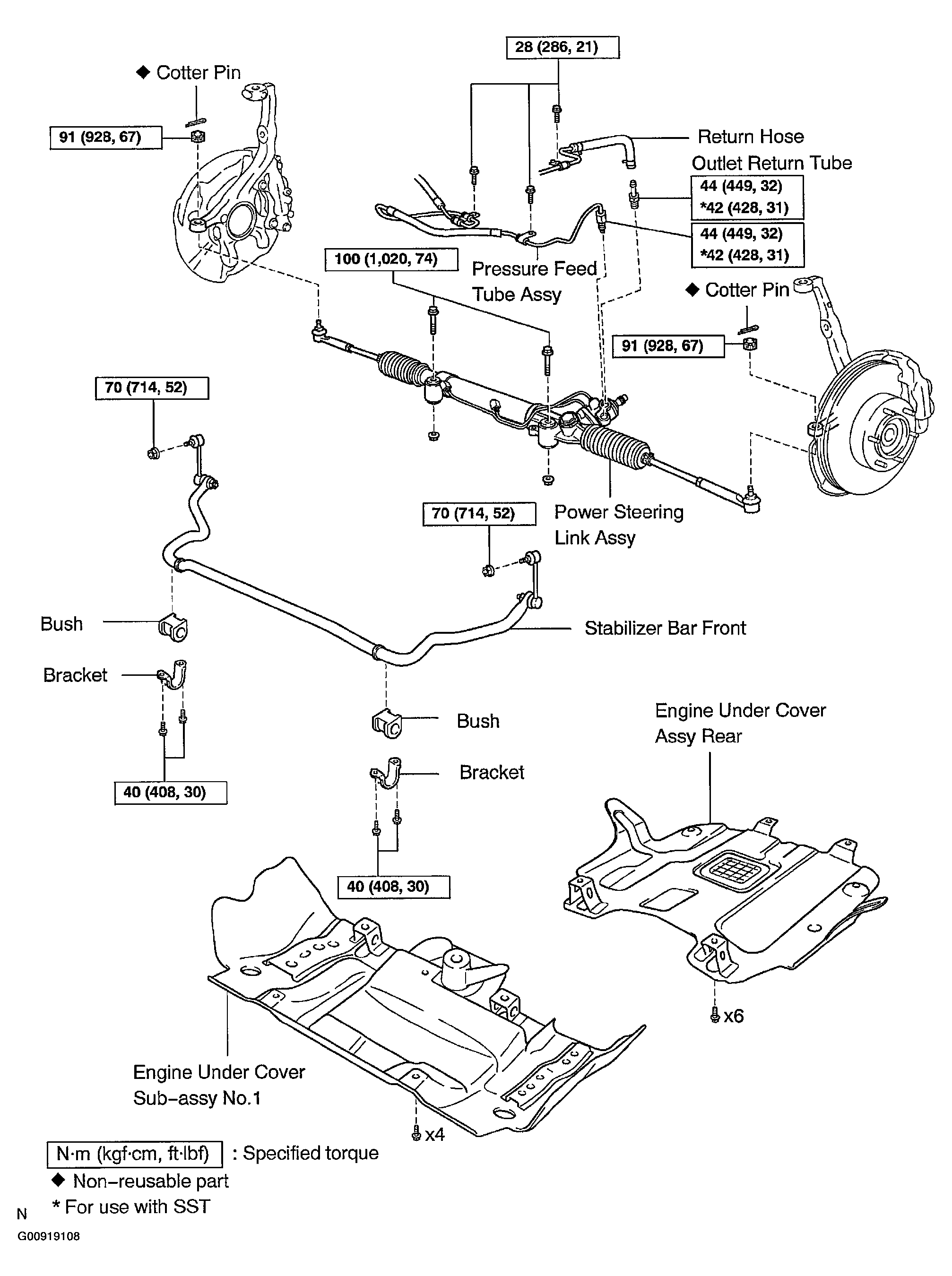

Fig 1: Identifying Components Of Power Steering Link Assy (1 Of 3)
G00919108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Components Of Power Steering Link Assy (2 Of 3)
G00919109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

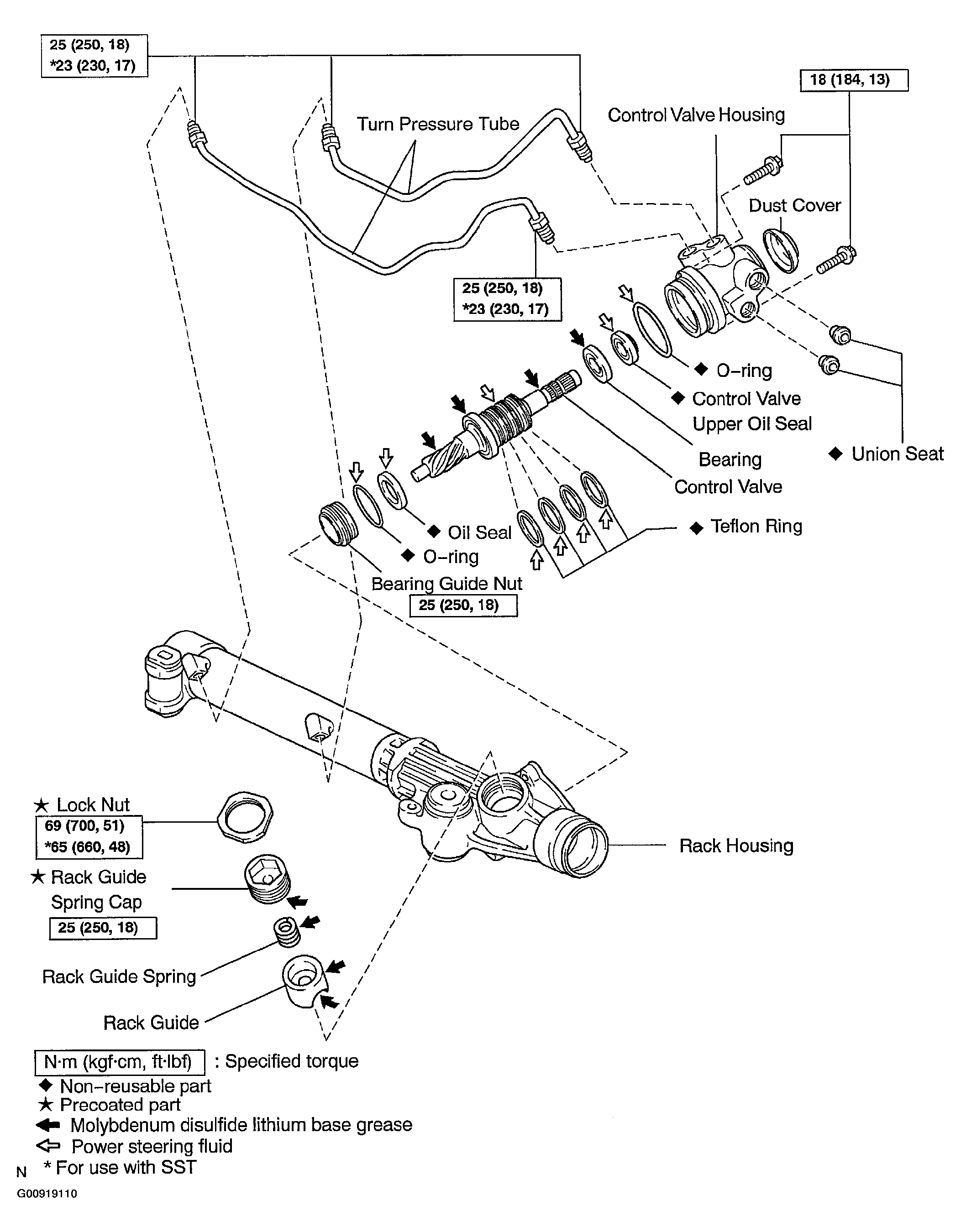

Fig 3: Identifying Components Of Power Steering Link Assy (3 Of 3)
G00919110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
