Standard Value Of Ecu Terminal

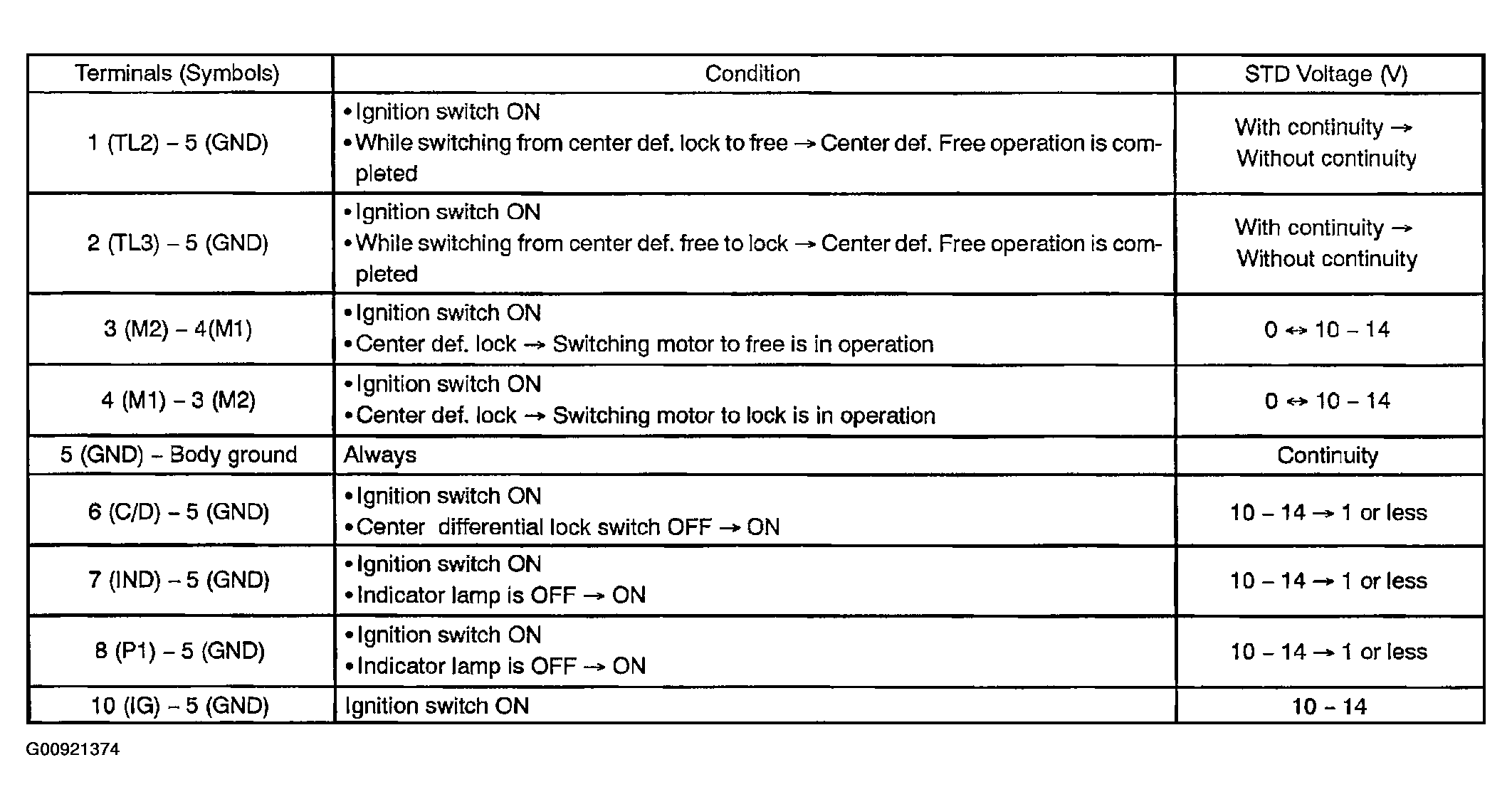

Fig 1: Four Wheel Drive Control ECU Terminals Reference Table
G00921374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
