Testing Procedure

For wiring diagram see Fig 1. For testing procedure see Fig 2 and Fig 3 .

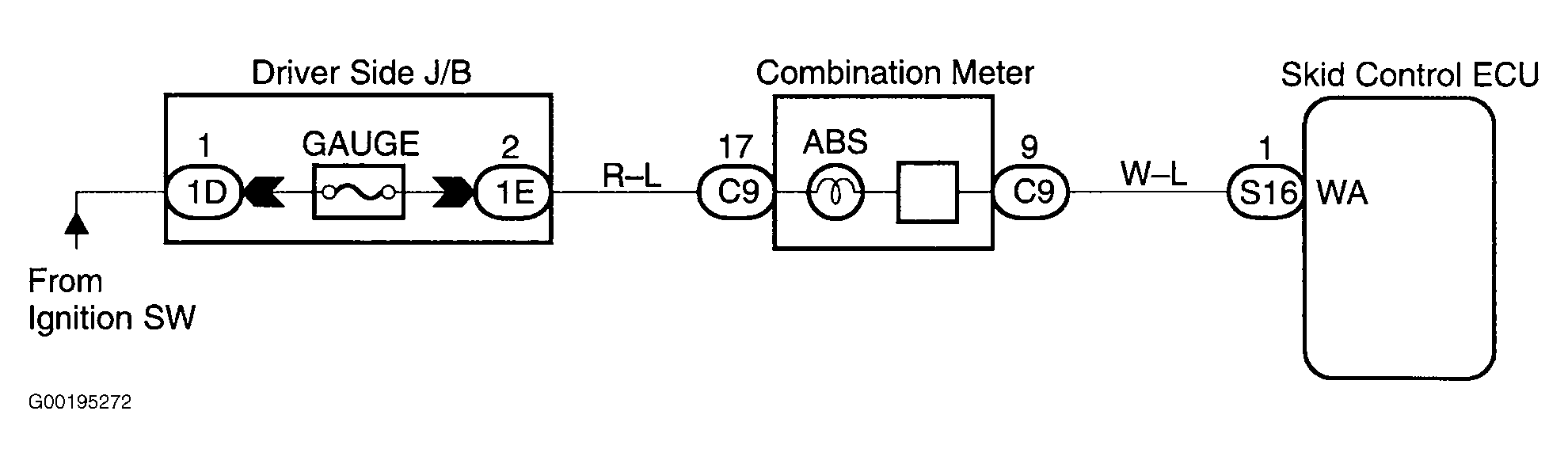

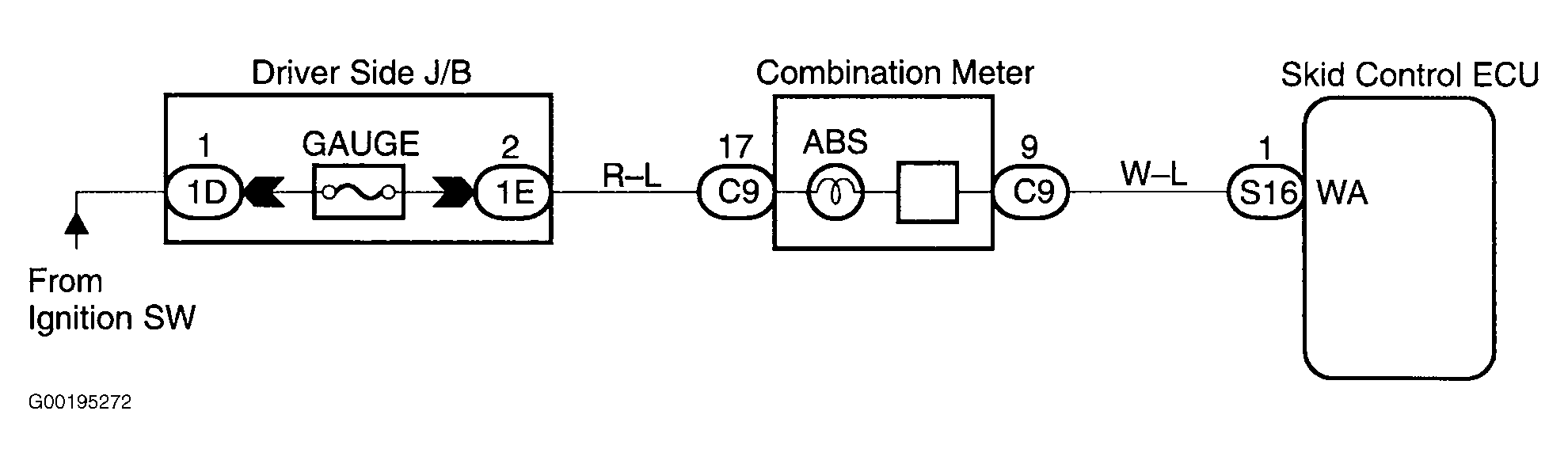

Fig 1: Wiring Diagram ABS Warning Light Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

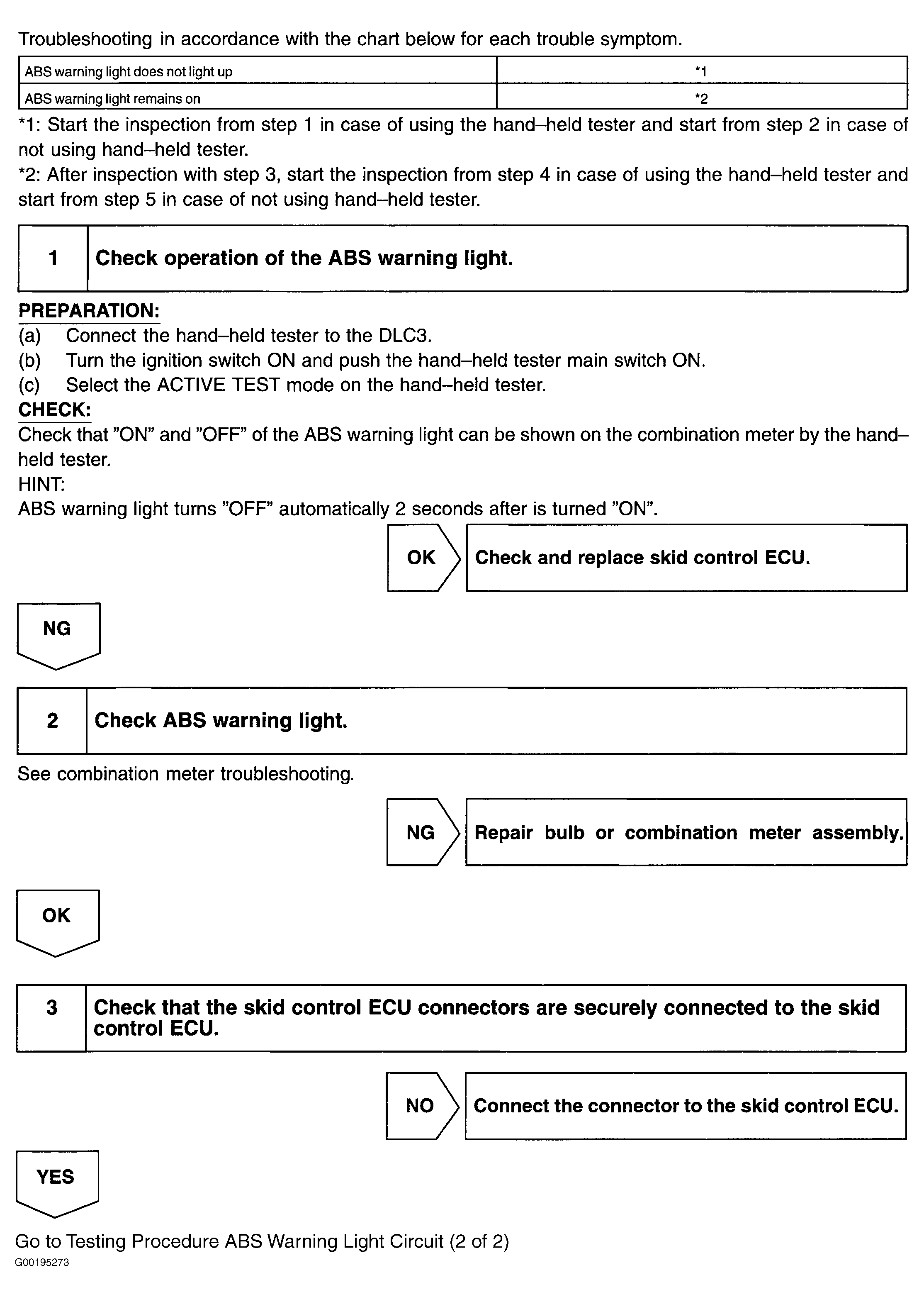

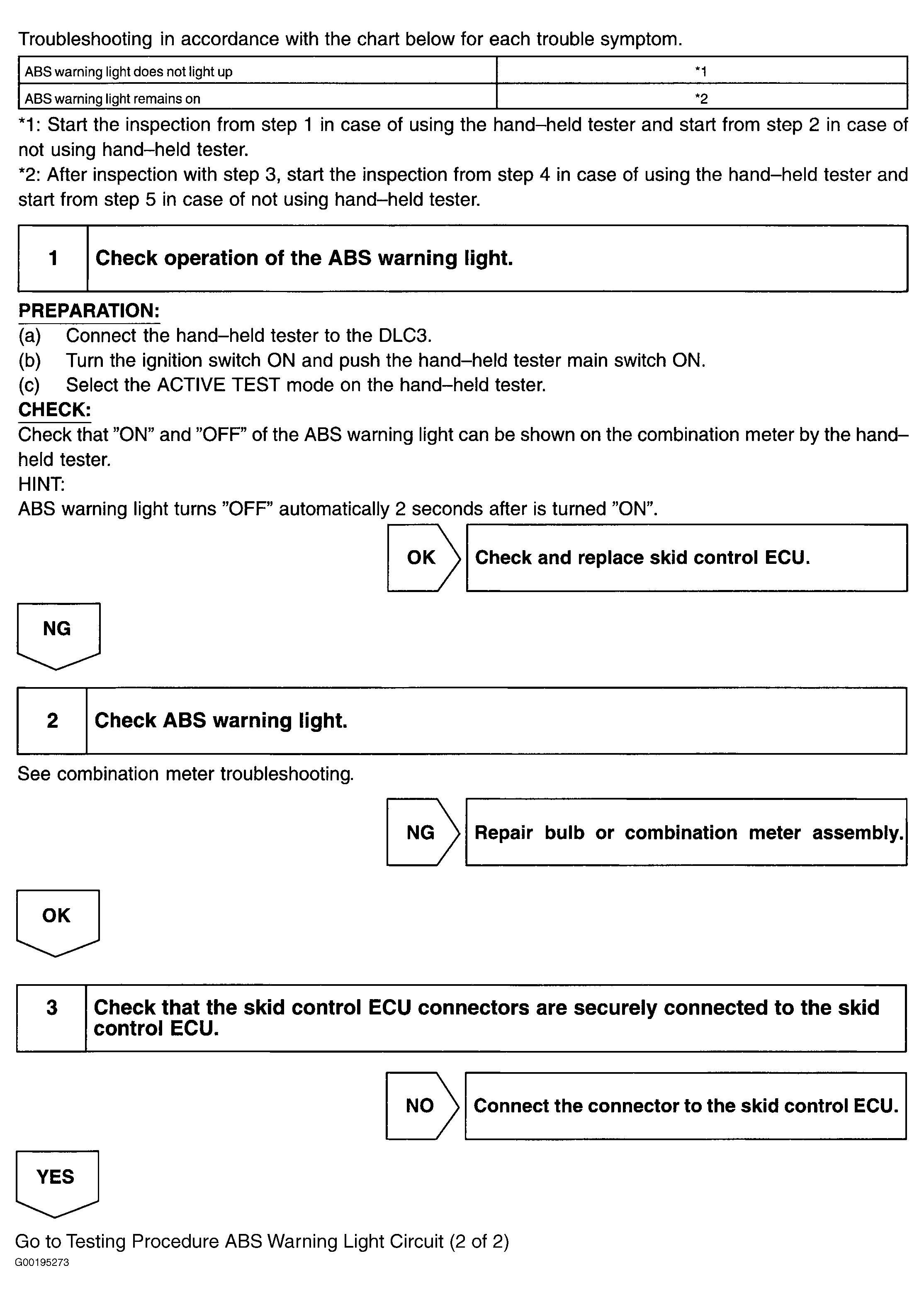

Fig 2: Testing Procedure ABS Warning Light Circuit (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

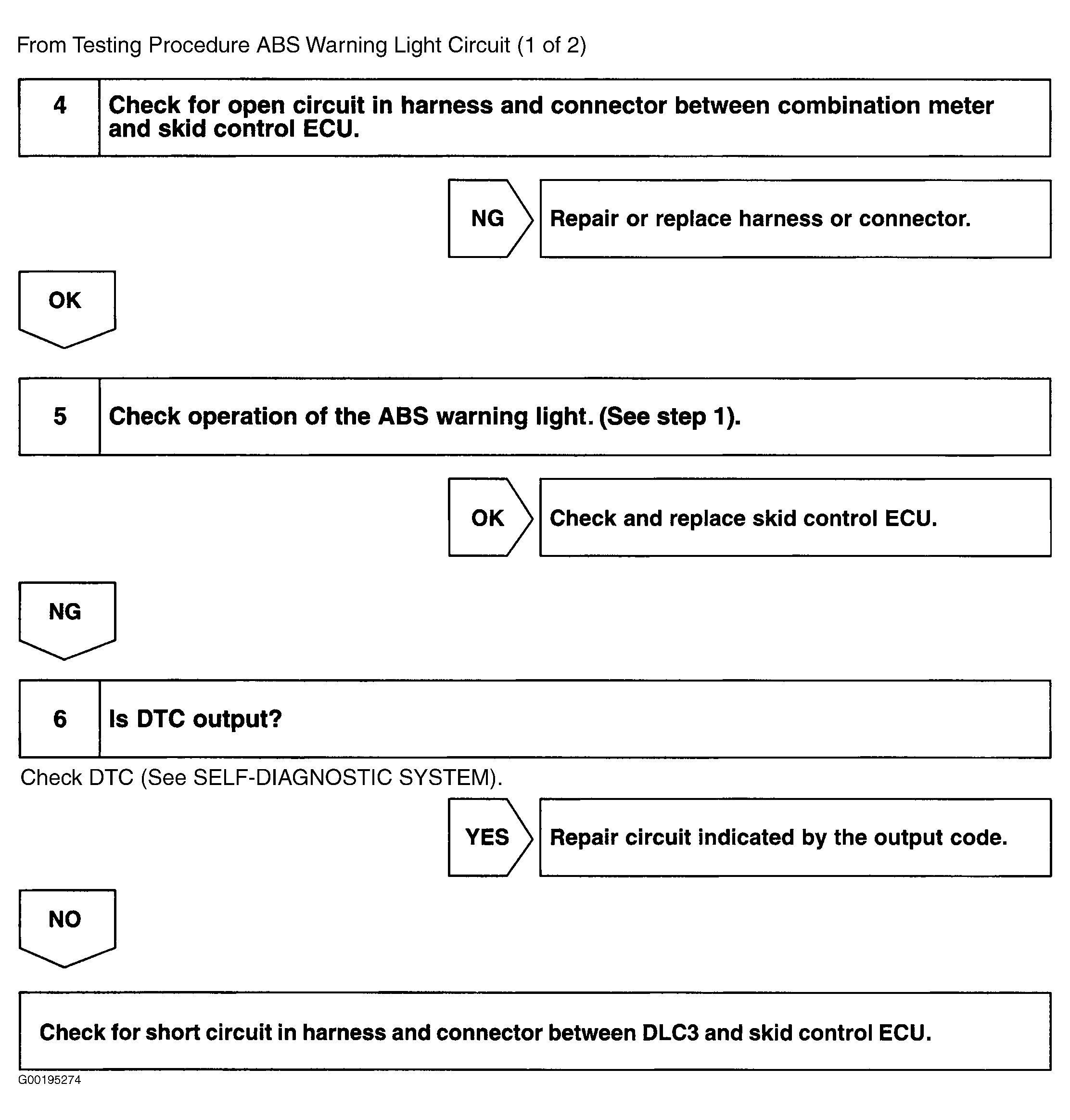

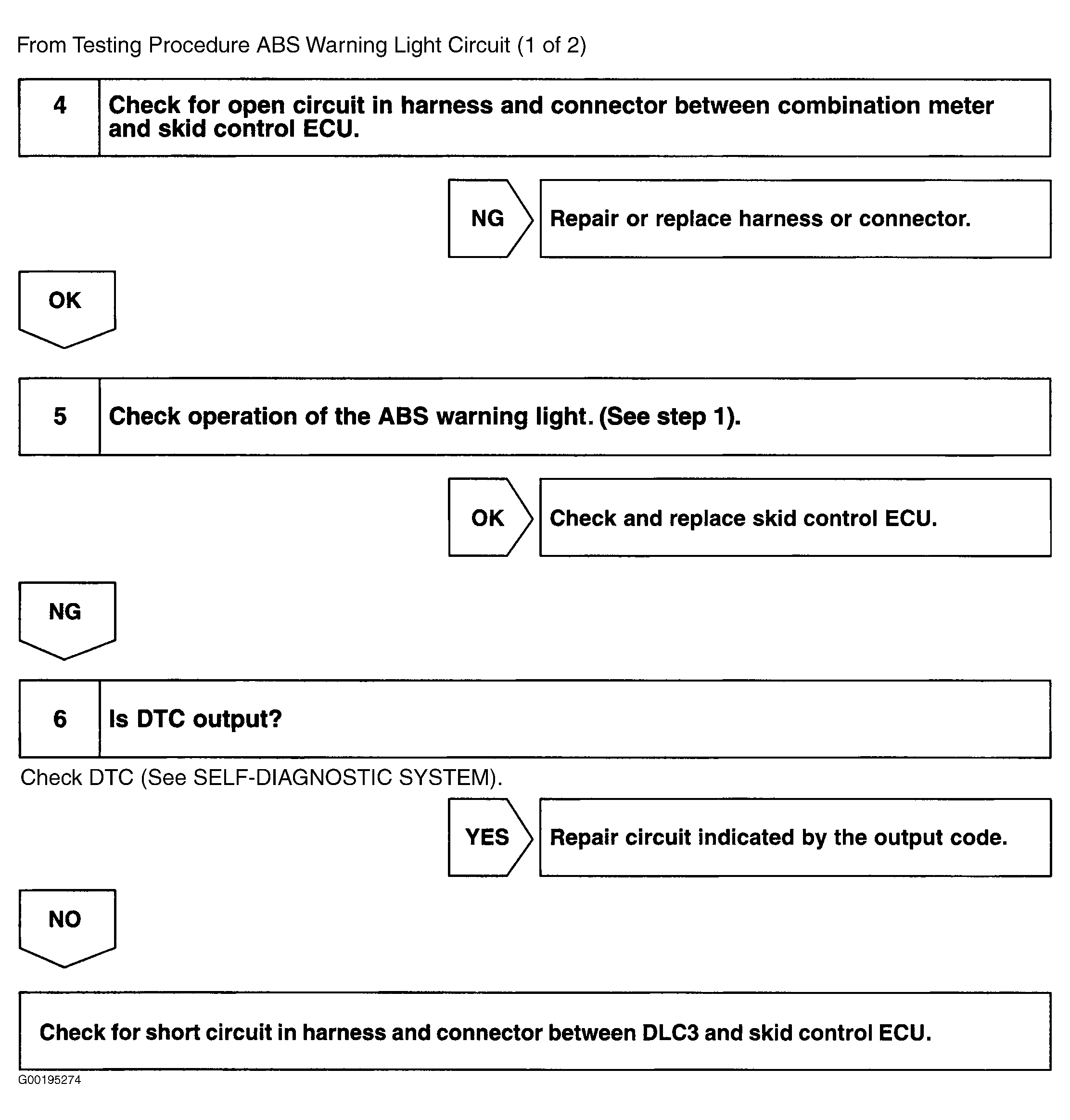

Fig 3: Testing Procedure ABS Warning Light Circuit (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
