Circuit Description

Refer to DTC P0115: Engine Coolant Temperature Circuit, DTC P0117: Engine Coolant Temperature Circuit Low Input, DTC P0118: Engine Coolant Temperature Circuit High Input  .

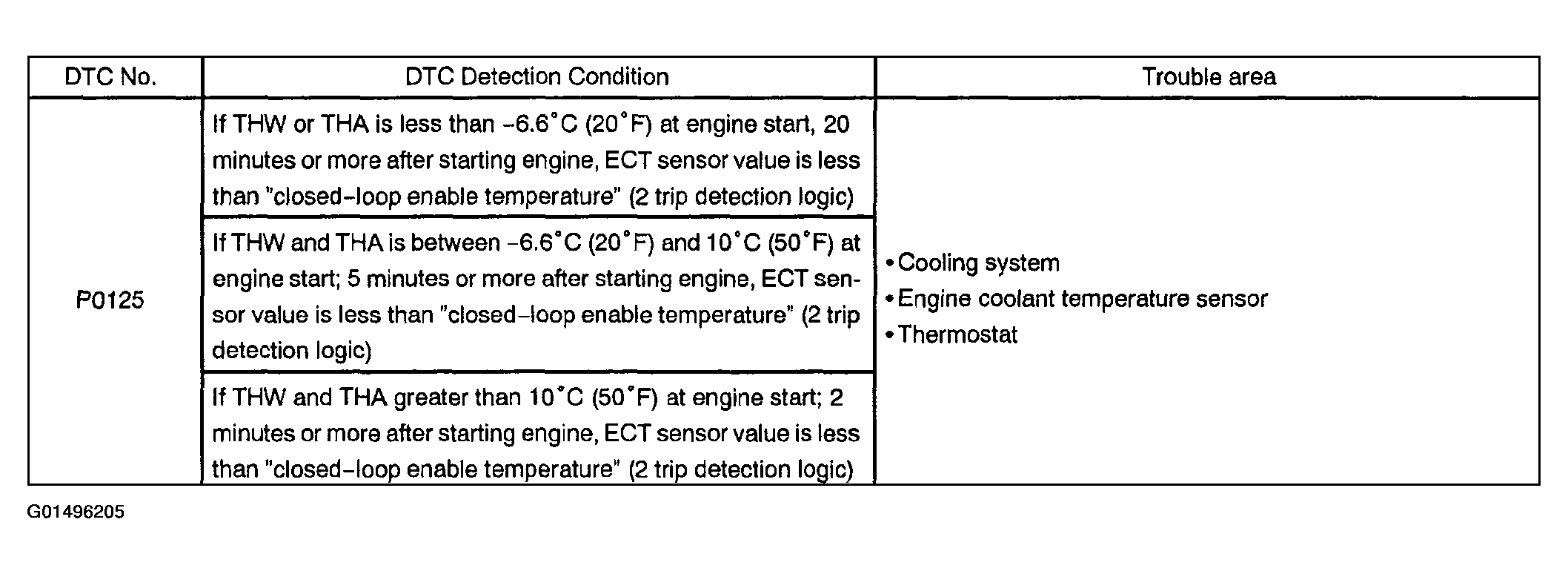

Fig 1: DTC P0125 Chart
G01496205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
