EFI Main Relay: Inspection

REMOVE RELAY BOX COVER
REMOVE EFI MAIN RELAY (Marking: EFI)

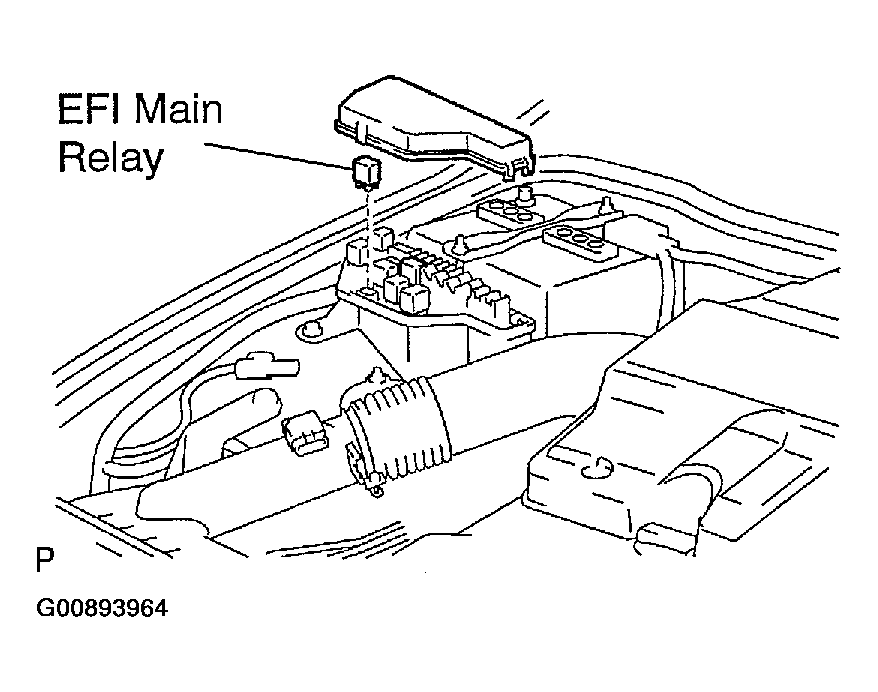

Fig 1: Removing EFI Main Relay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT EFI MAIN RELAY
1. Inspect the relay continuity.
  1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
    If there is no continuity, replace the relay.
  2. Check that there is no continuity between terminals 3 and 5.
  If there is continuity, replace the relay.

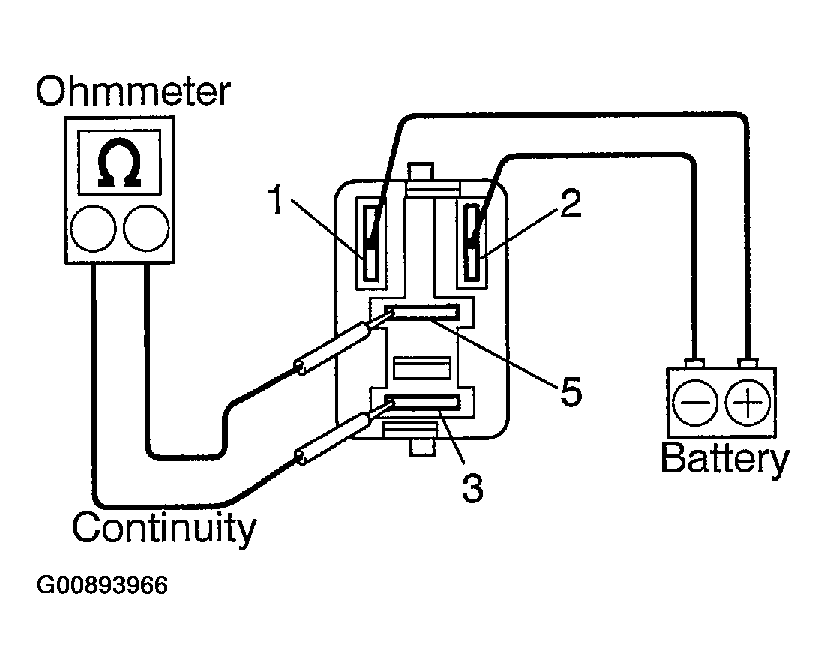

  Fig 2: Inspecting EFI Main Relay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the relay operation.

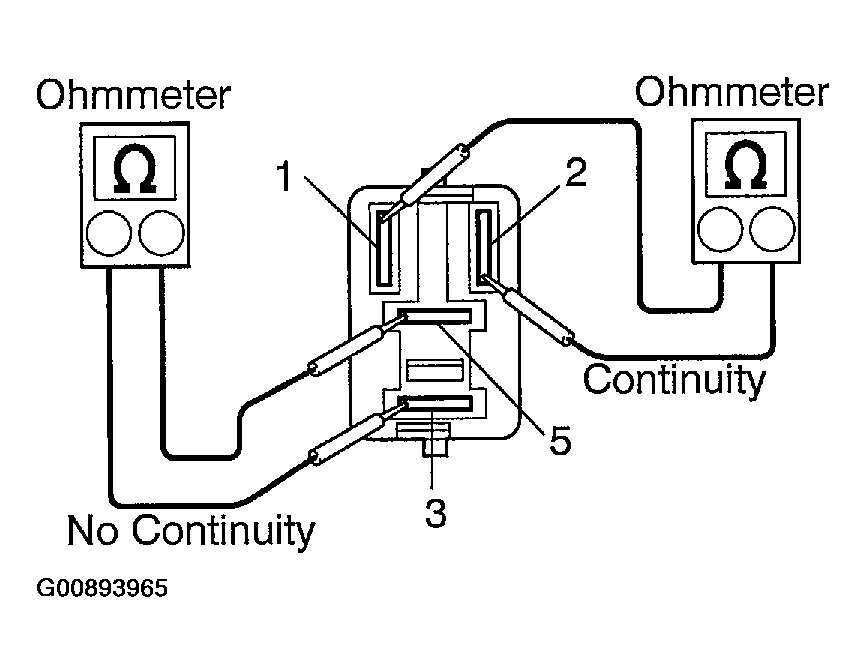

  Fig 3: Inspecting Relay Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Apply battery positive voltage across terminals 1 and 2.
  2. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.
REINSTALL EFI MAIN RELAY
REINSTALL RELAY BOX COVER
