Fuel Pump: Removal

CAUTION: Do not smoke or work near an open frame when working the fuel pump.

REMOVE REAR SEAT CUSHION
REMOVE FLOOR SERVICE HOLE COVER

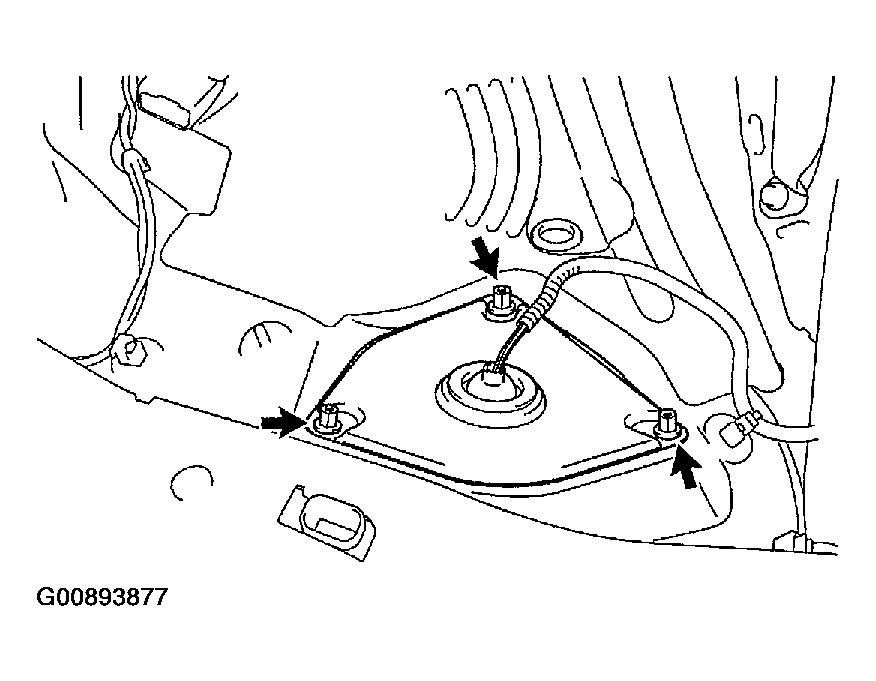

Remove the 3 cap nuts and service hole cover.

Fig 1: Removing Cap Nuts & Floor Service Hole Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT FUEL PUMP & SENDER GAUGE CONNECTOR
DISCONNECT FUEL TANK MAIN TUBE (FUEL TUBE CONNECTOR) FROM FUEL SECTION PLATE
CAUTION:
- Perform disconnecting operation of the fuel tube connector (quick type) after observing precaution (See PRECAUTION ).
- As there is retained pressure in the fuel line, prevent it from splashing inside the vehicle compartment.

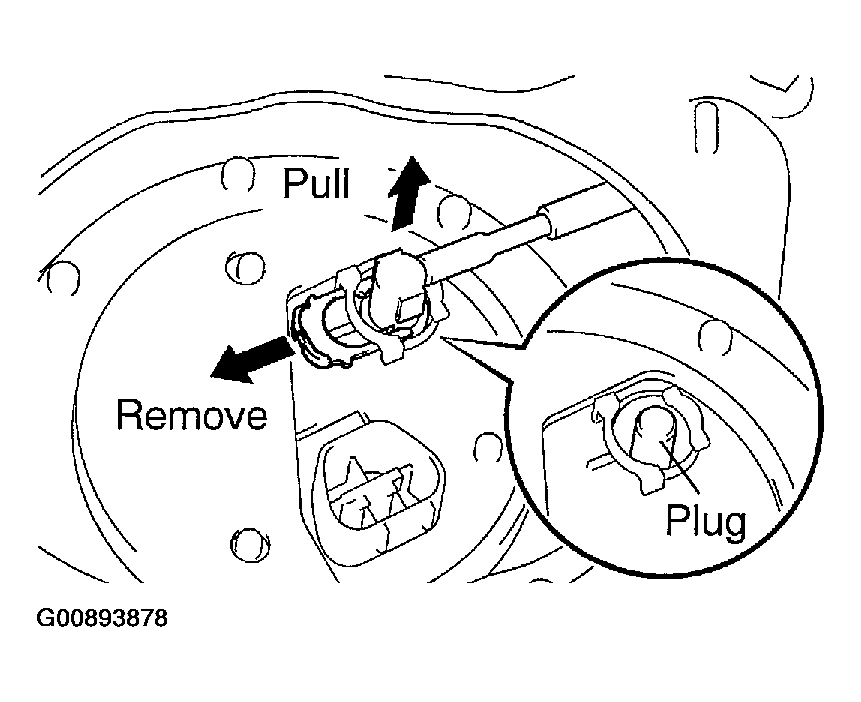

1. Remove the tube joint clip.
2. Pull out the fuel main tube.
3. Plug the port of the fuel suction plate with a clean rubber cap.
REMOVE FUEL PUMP AND SENDER GAUGE ASSEMBLY FROM FUEL TANK

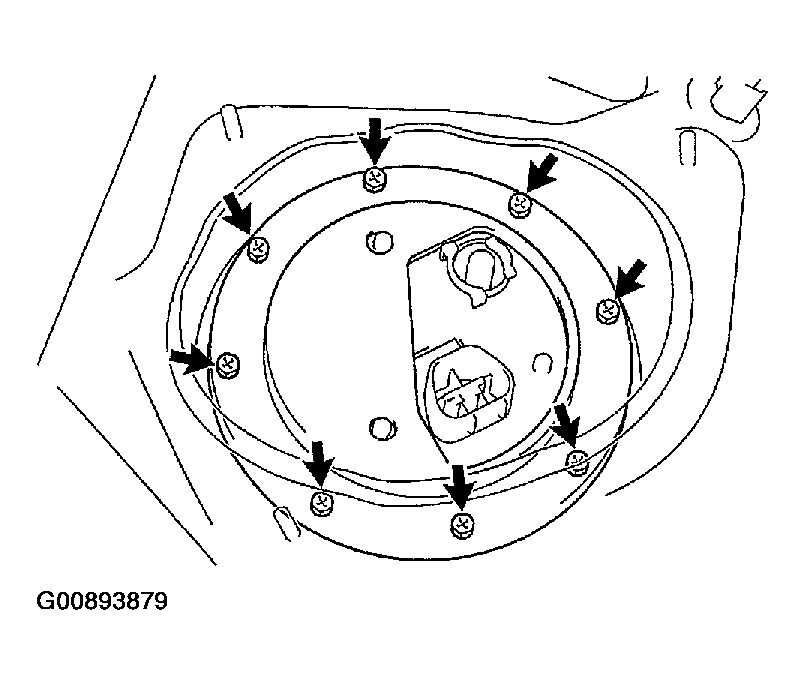

1. Remove the 8 bolts and fuel tank vent tube set plate.

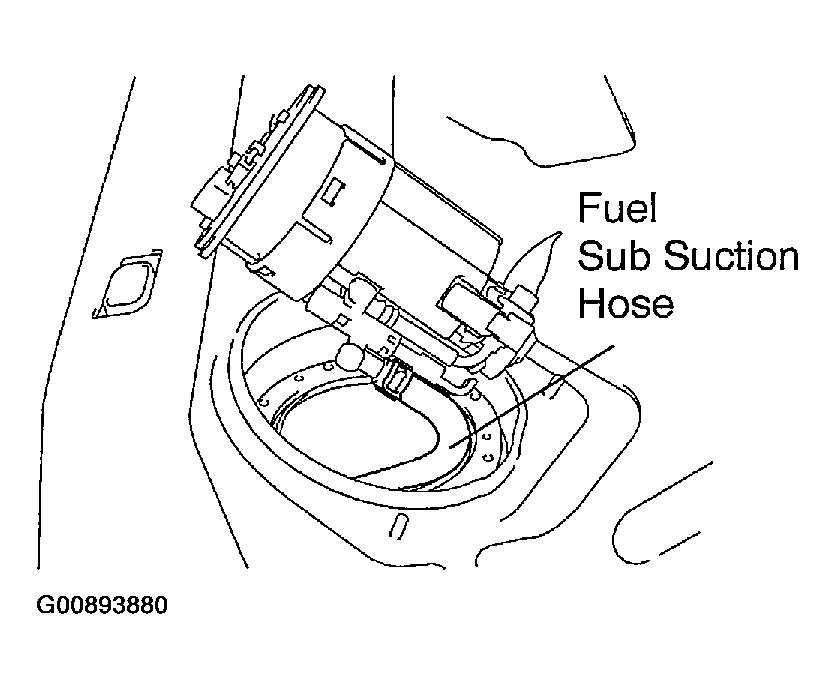

2. Lift up the fuel pump and sender gauge assembly, and disconnect the fuel sub suction hose from the fuel return jet tube and remove the fuel pump, sender gauge assembly and gasket.
REMOVE NO. 2 FUEL SUCTION SUPPORT (See REMOVAL )
REMOVE FUEL PRESSURE REGULATOR AND FUEL RETURN JET TUBE ASSEMBLY (See REMOVAL )
REMOVE FUEL SUCTION FILTER

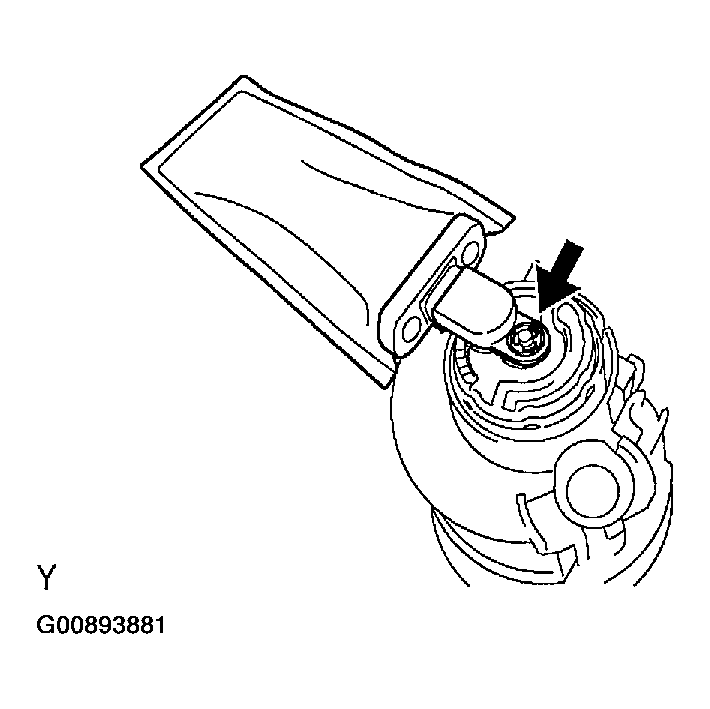

1. Remove the clip.
2. Pull out the suction filter.

  Fig 5: Removing Fuel Suction Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP

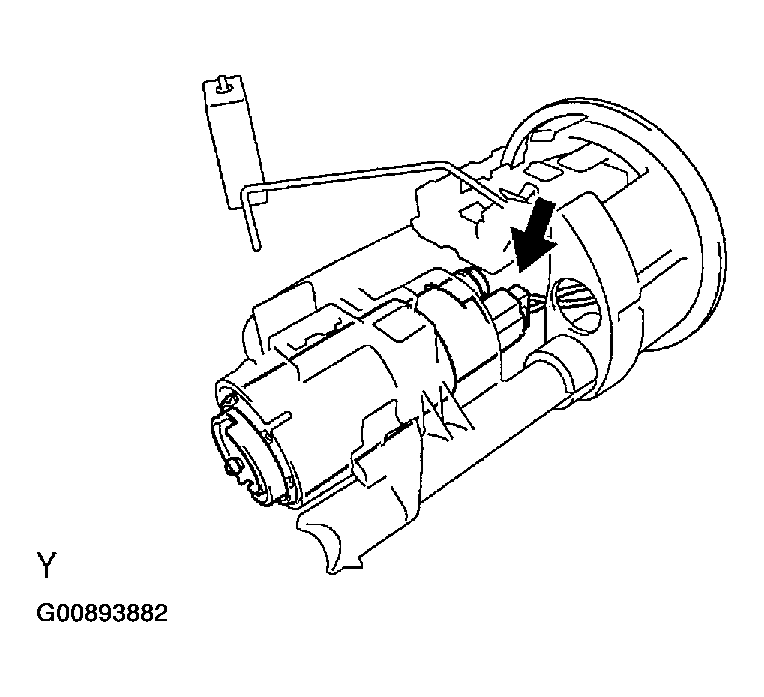

1. Disconnect the fuel pump connector from the fuel pump.
2. Pull out the fuel pump.

  Fig 6: Removing Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
