Shift Lock System: Location

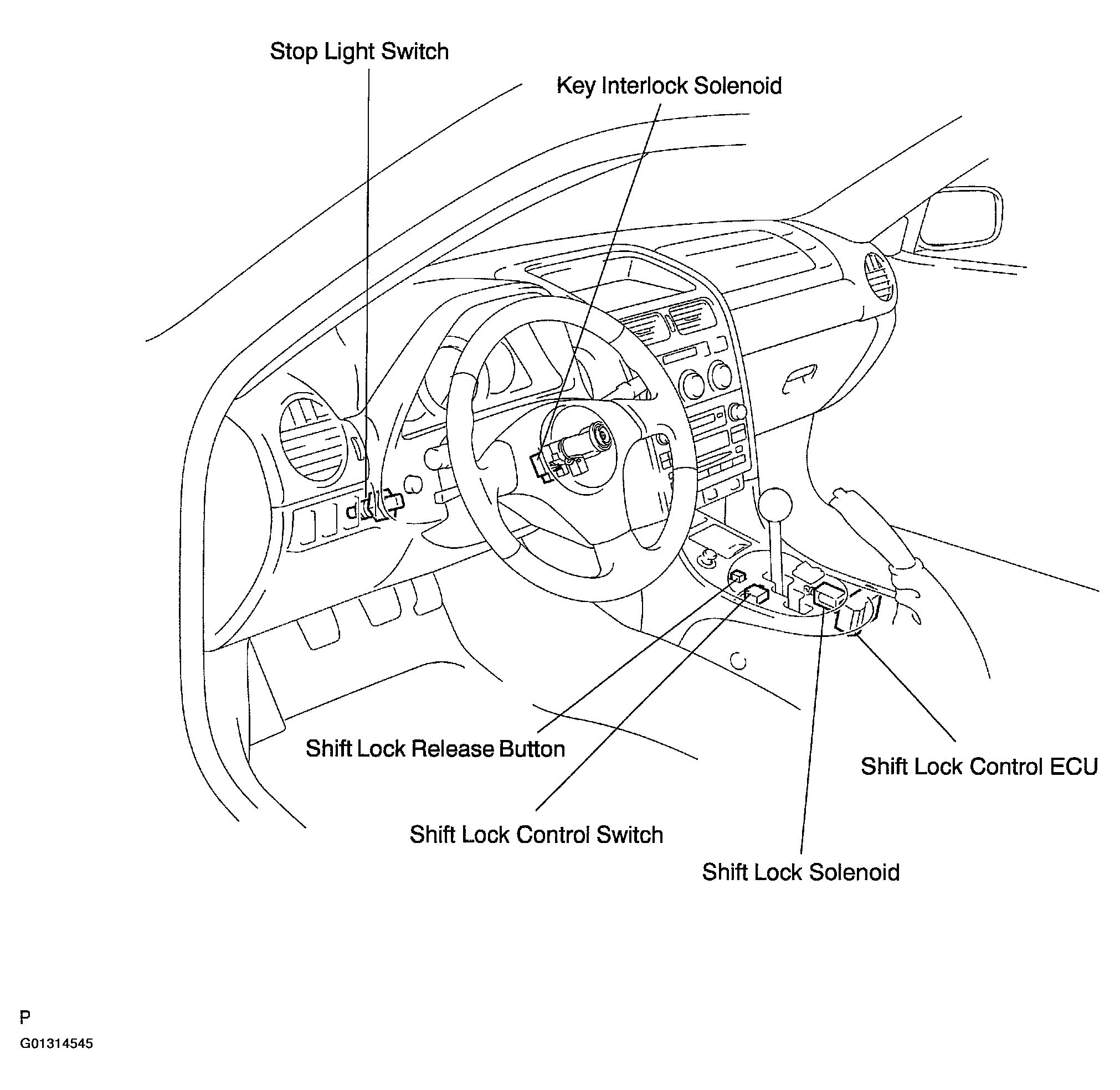

Fig 1: Locating Shift Lock System
G01314545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
