Hood Lock Control: Installation

Apply MP grease to the sliding surface of the lock.

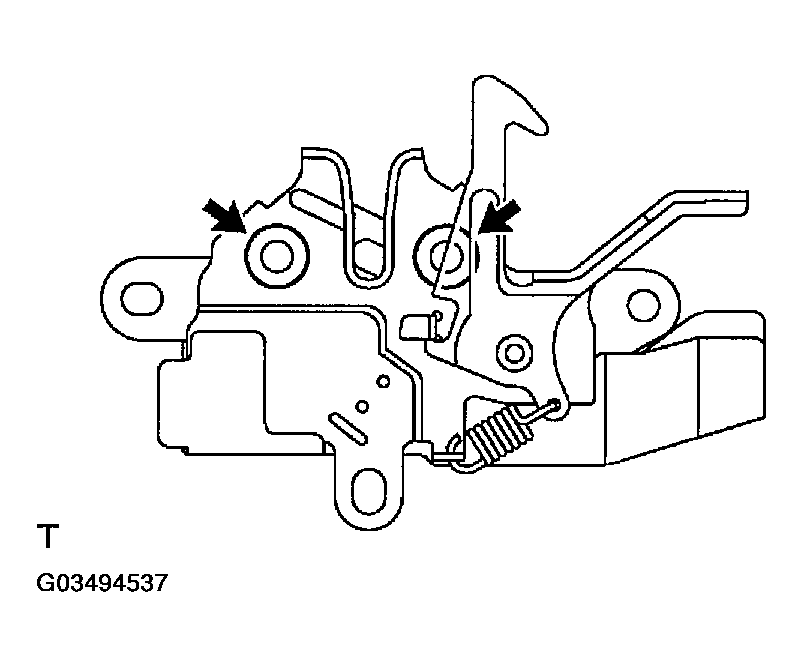

Fig 1: Applying MP Grease To Sliding Surface Lock

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Push the rear side cable through the grommet.

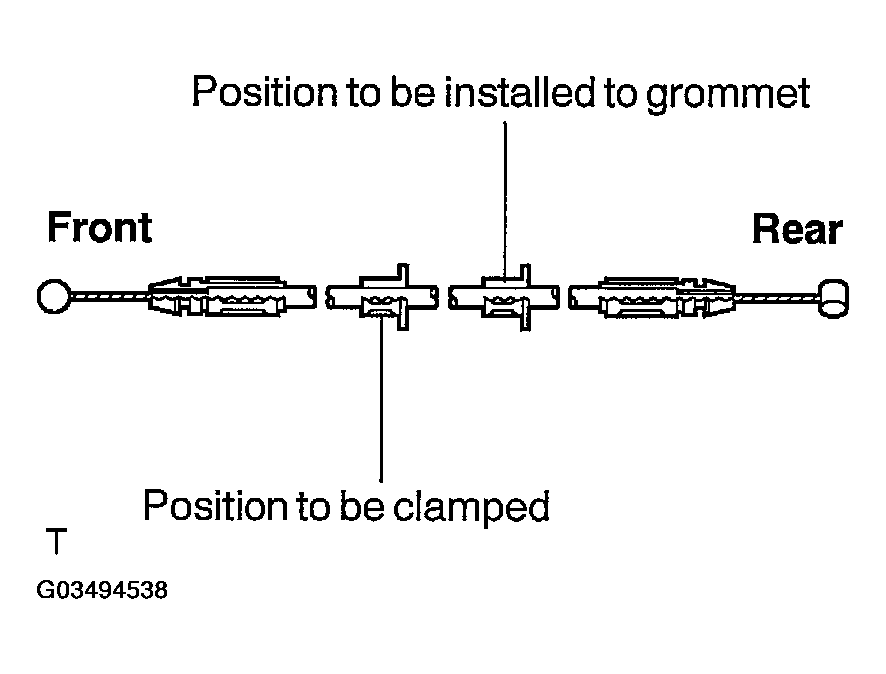

   Fig 2: Pushing Rear Side Cable Through Grommet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push the cable stopper to the grommet.
3. Pass the front side cable through the upper radiator support.
4. Install the cable with clamps.
5. Push the cable stopper to the clamp.

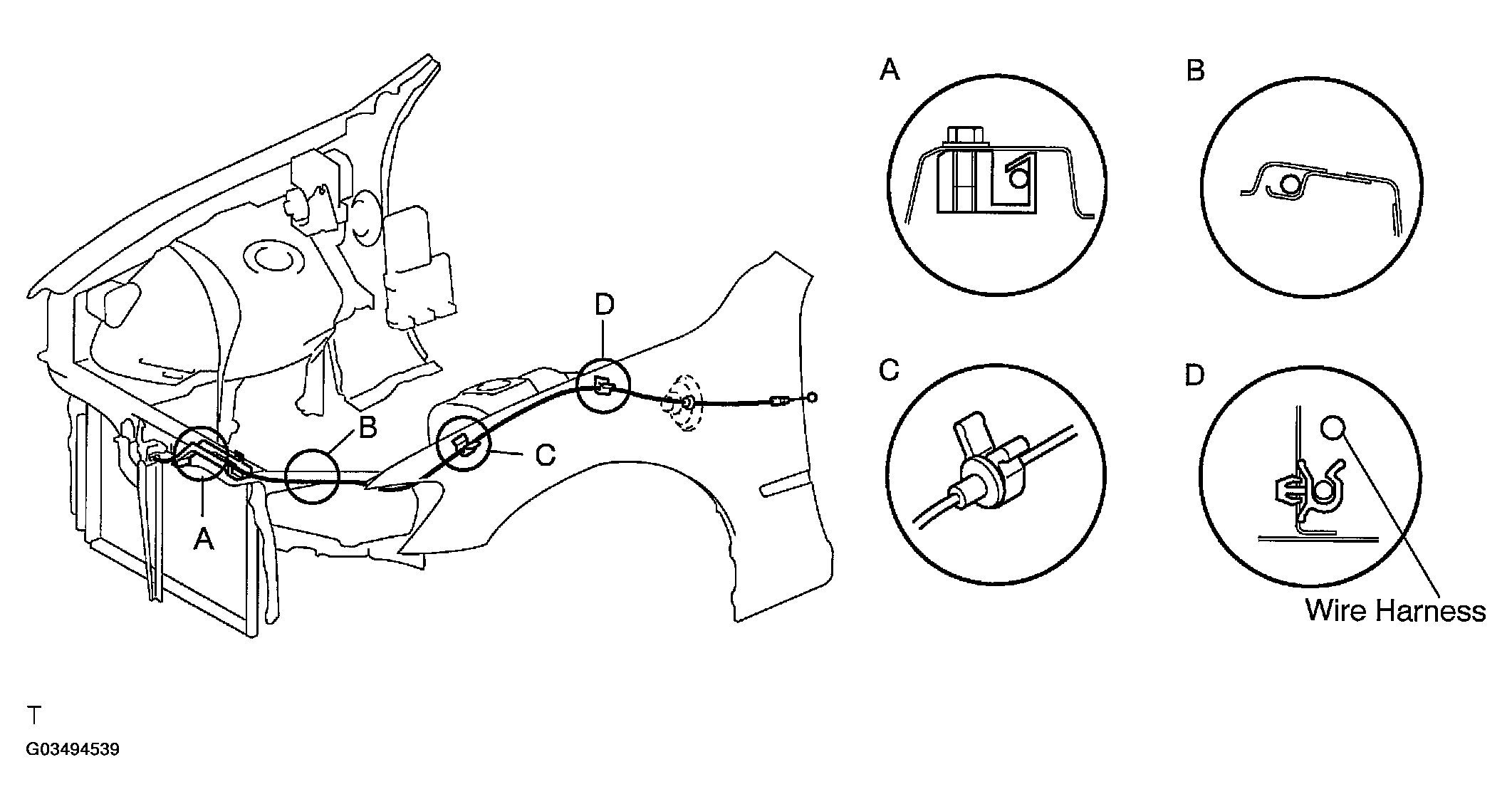

Fig 3: Installing Hood Lock Control Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the hood lock control cable to the hood lock, then close the cover.

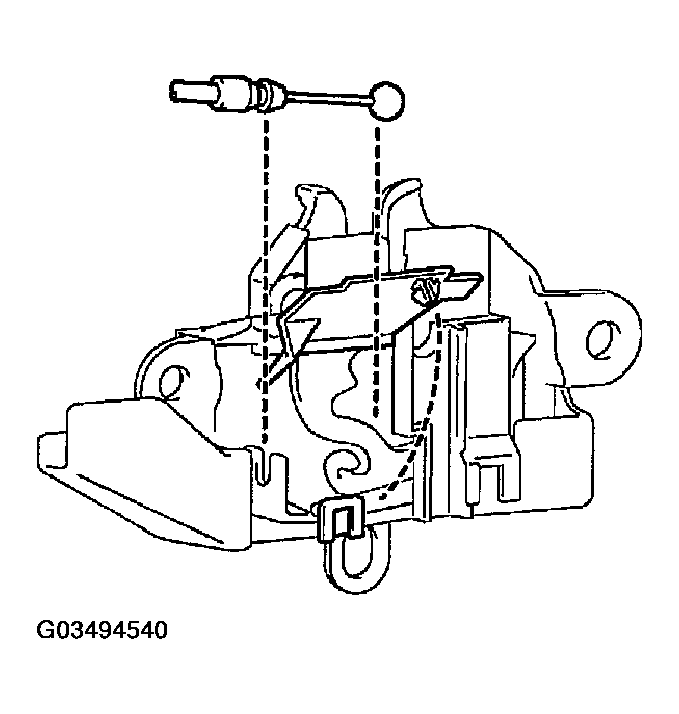

   Fig 4: Connecting Hood Lock Control Cable To Hood Lock

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the hood lock with the 3 bolts.

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

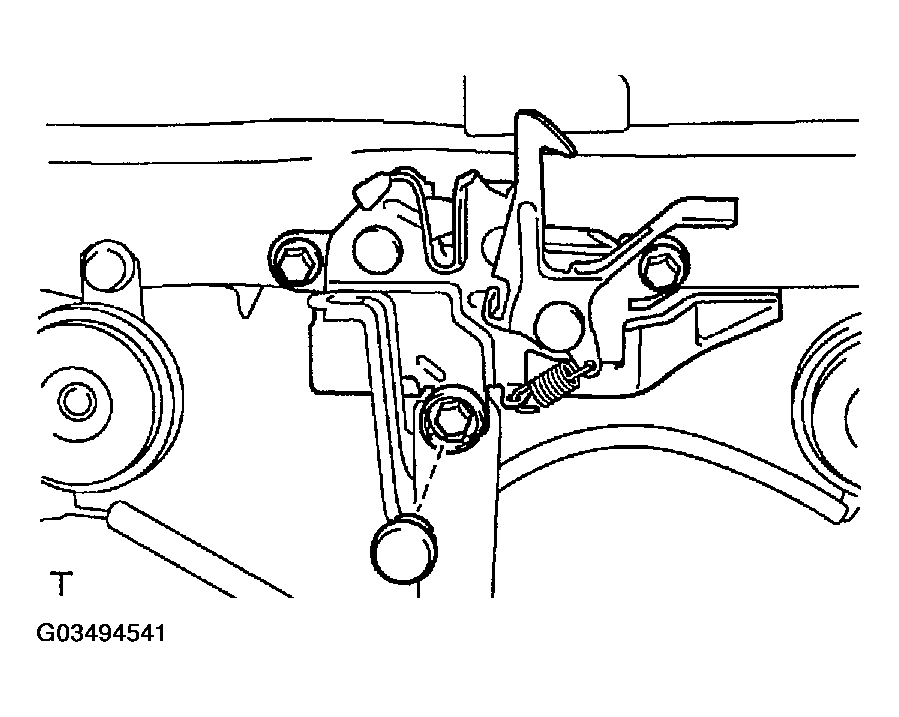

   Fig 5: Installing Hood Lock

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the hood lock bolt cap.

Install the hood lock control cable cover with the bolt.

Install the radiator grille with the screw and 2 clips.

1. Connect the connectors and hood lock control cable to the lower finish panel.
2. Install the lower finish panel with the 3 screws.

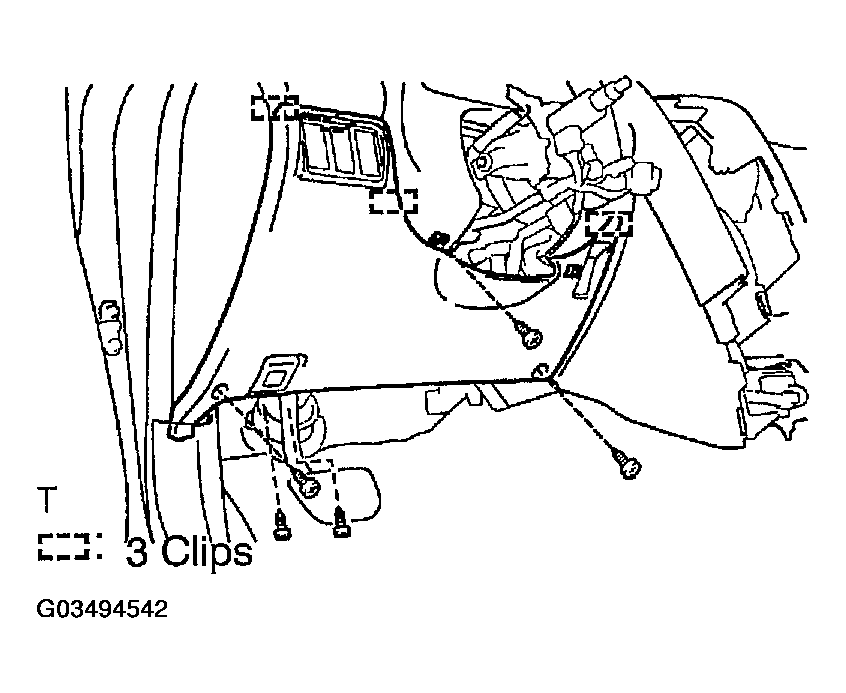

   Fig 6: Installing Lower Finish Panel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

After checking for proper operation, tighten the 3 bolts to install the lock.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
