Instrument Panel: Disassembly
- REMOVE SIDE DEFROSTER DUCT
Remove the screw, then disconnect the side defroster duct as shown in Fig 1 .
- REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
Remove the screw and side defroster nozzle duct.
- REMOVE DEFROSTER NOZZLE ASSEMBLY
Remove the 3 screws and defroster nozzle assembly.

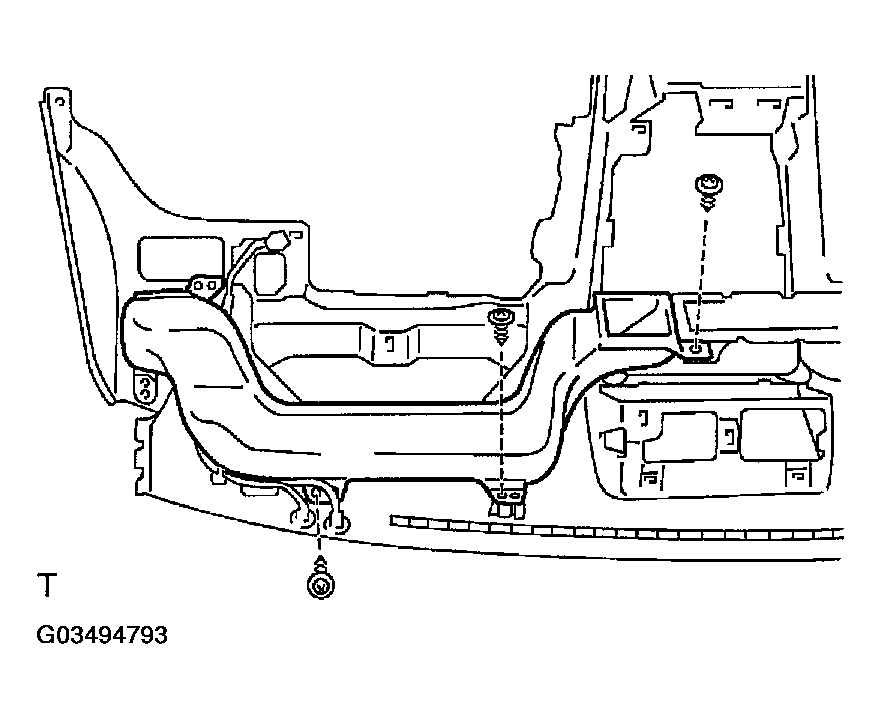

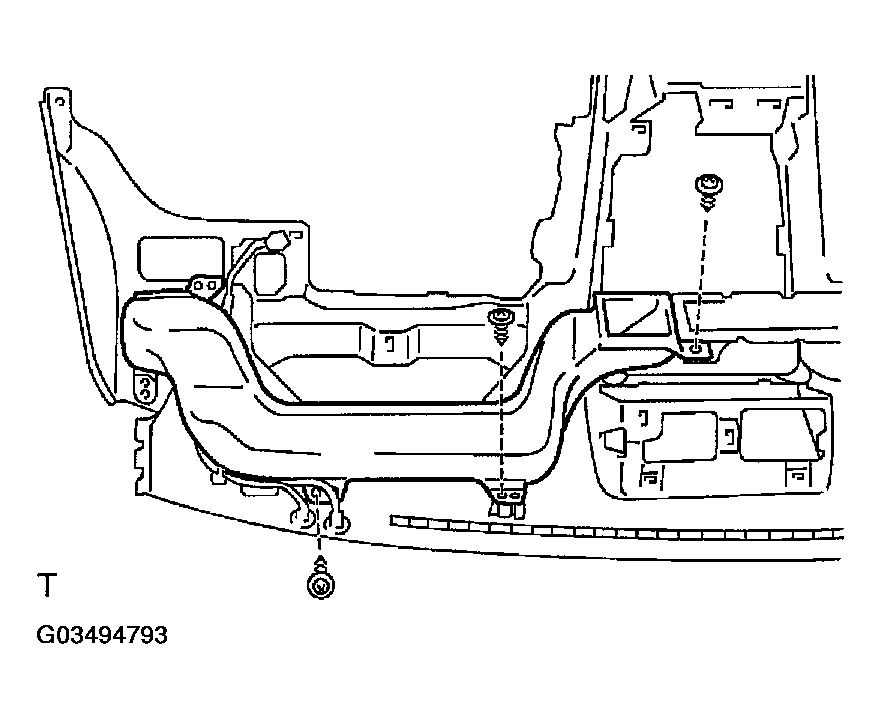

- REMOVE NO. 1 HEATER TO REGISTER DUCT
Remove the 3 screws and heater to register duct.

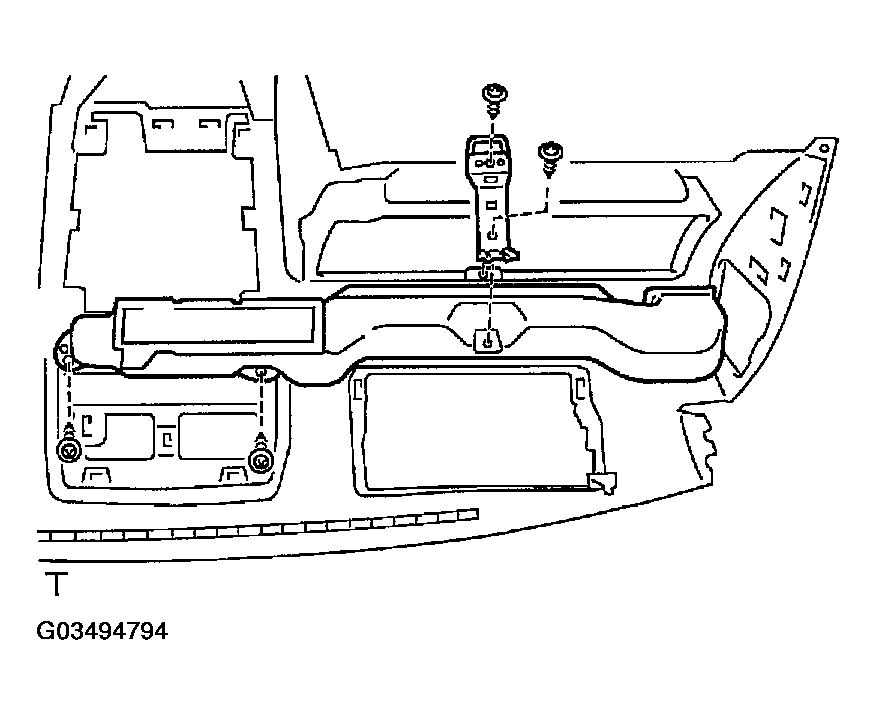

- REMOVE NO. 2 HEATER TO REGISTER DUCT
- Remove the 2 screws and center bracket.
- Remove the 2 screws and heater to register duct.

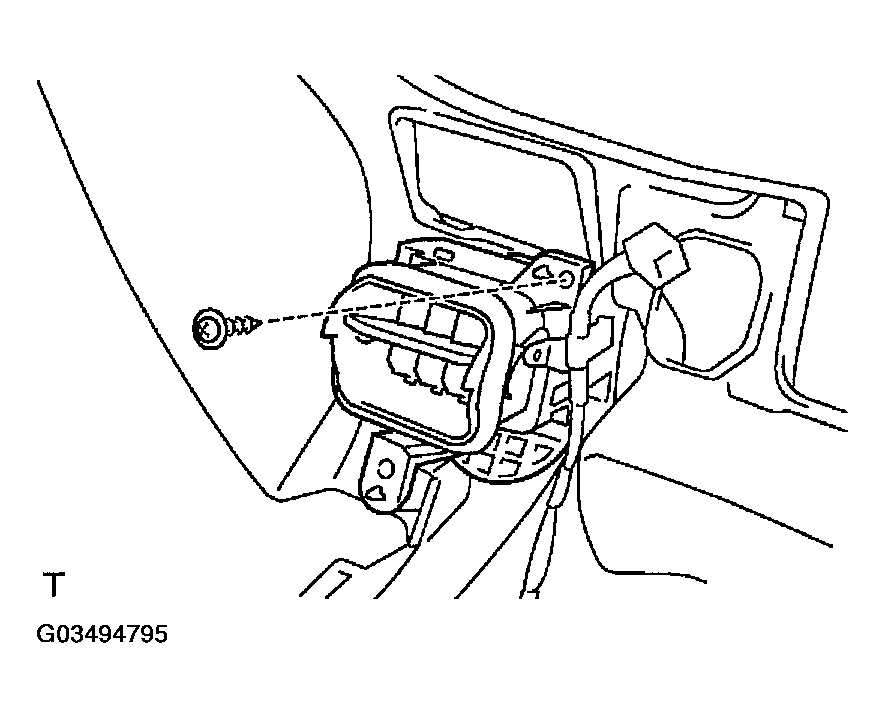

- REMOVE NO. 1 REGISTER AND NO. 2 REGISTER
Remove the screw and register as shown in Fig 3 .

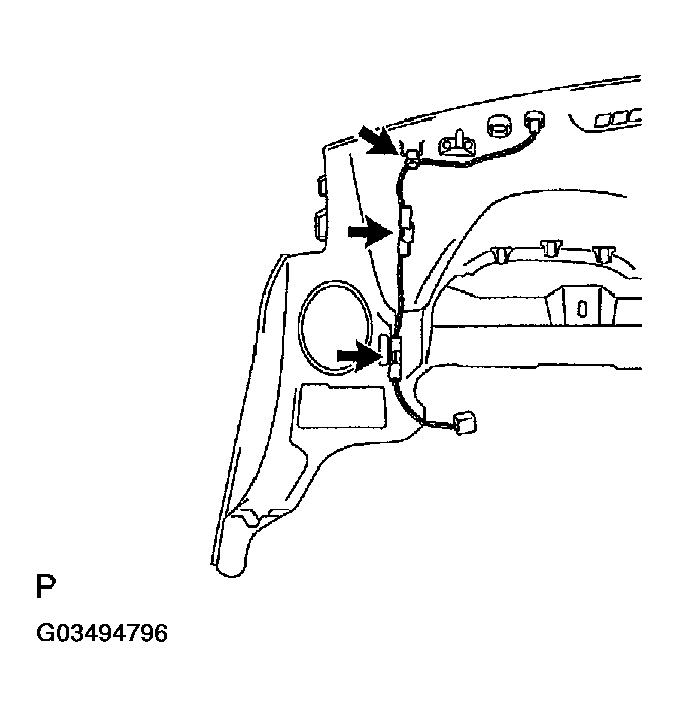

- REMOVE NO. 2 INSTRUMENT PANEL WIRE
- Disconnect the connectors.
- Disengage the wire harness clamps and remove the instrument panel wire.
- REMOVE SOLAR SENSOR
- REMOVE LIGHT CONTROL SWITCH SENSOR AND HOLE COVER

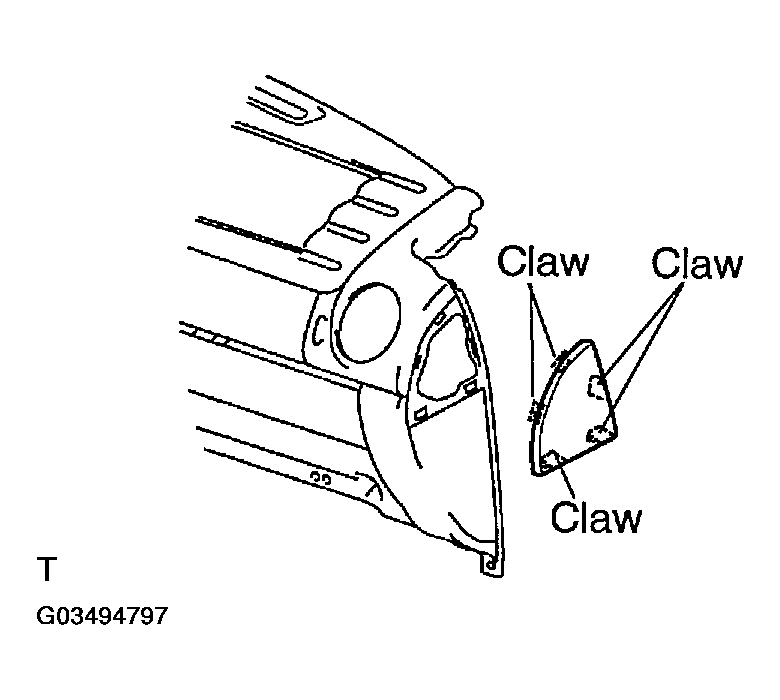

- REMOVE INSTRUMENT SIDE PANEL
Using a screwdriver, disengage the 5 claws and remove the instrument side panel.
HINT:
Tape the screwdriver tip before use.
- REMOVE NO. 1 PINS
Remove the 4 screws and pins.
- REMOVE INSTRUMENT PANEL END PAD
- Using a heat light, heat the end pad between 20 to 30°C (68 to 86°F).NOTE: Do not heat the end pad excessively.
- Remove the end pad.
HINT:
When replacing the end pad, use a new pad.
- Using a heat light, heat the end pad between 20 to 30°C (68 to 86°F).
