Fuel Tank And Line Components: Components

CAUTION:
  • Always use new gaskets when replacing the fuel tank or components parts.
  • Apply the proper torque to all parts tightened.

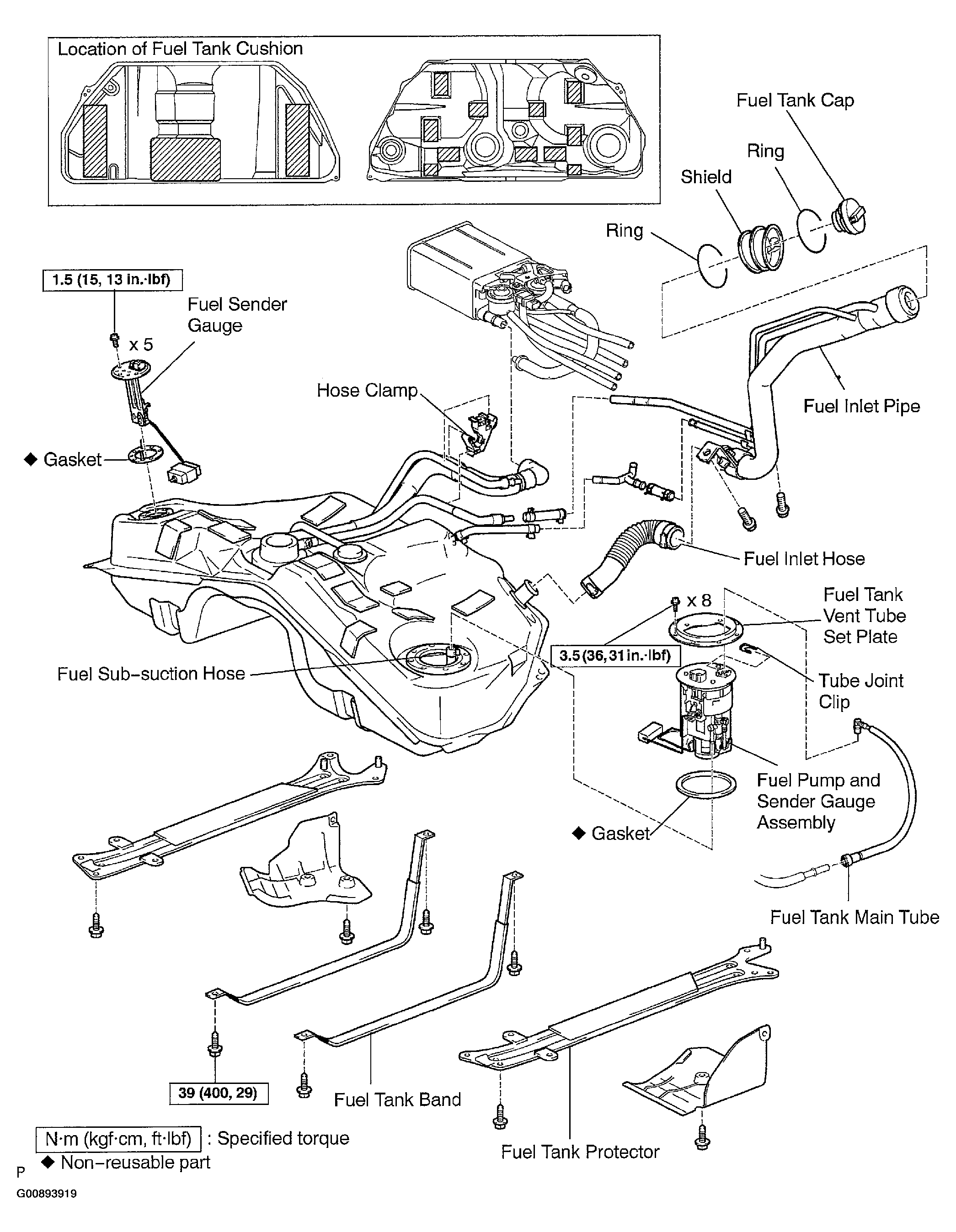

Fig 1: Identifying Fuel Tank & Line Components
G00893919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
