Circuit Description
WARNING: This page is about a different car, the 2003 Lexus IS 300 and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

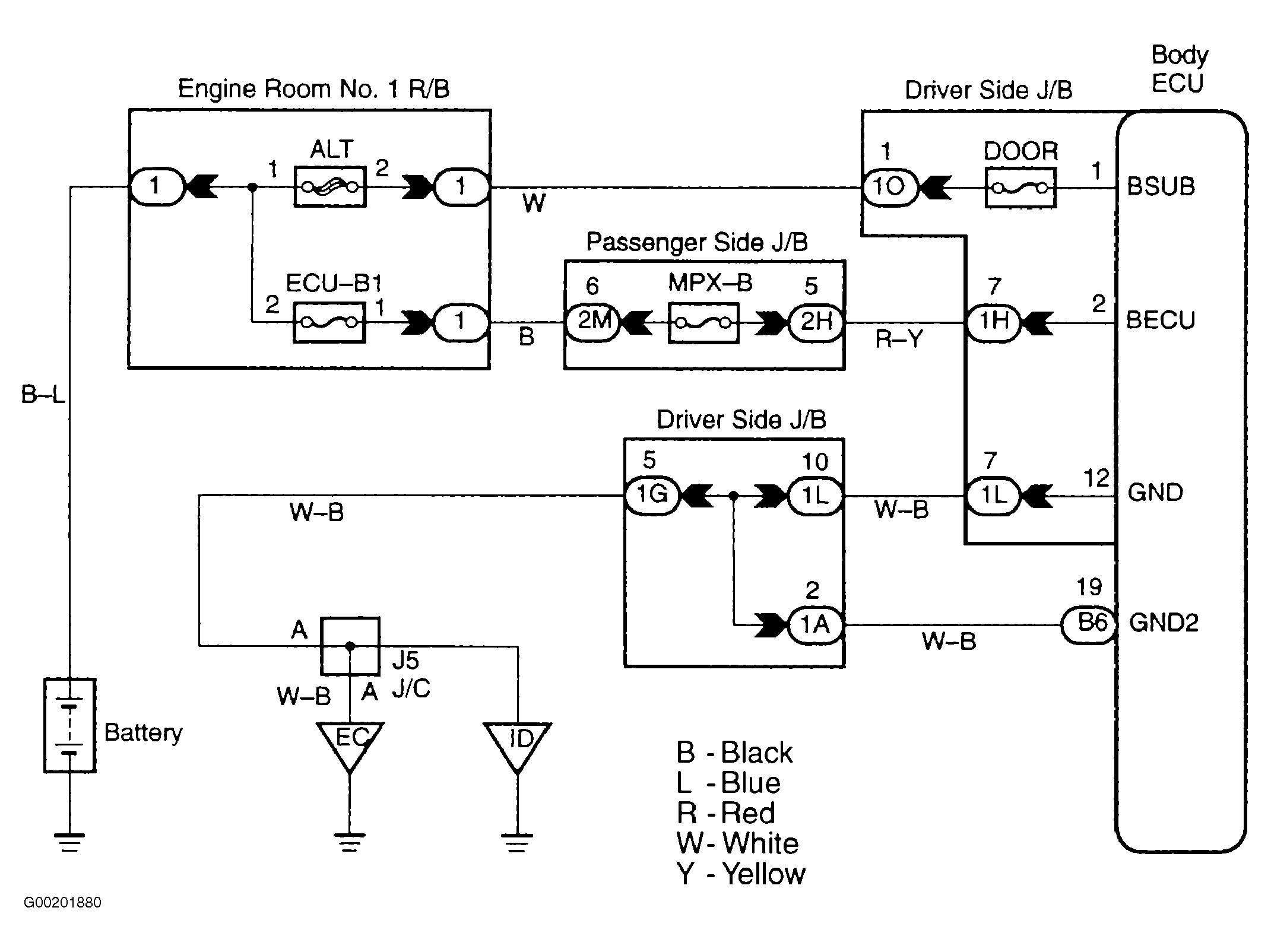

This circuit provides power to operate the body ECU. For circuit diagram, see Fig 1.
