Power Steering Gear: Removal

  1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  2. REMOVE STEERING WHEEL PAD (See  REMOVAL  )
  3. REMOVE STEERING WHEEL (See  REMOVAL  )
  4. REMOVE RH AND LH FRONT BRAKE CALIPERS (See  REMOVAL & INSTALLATION  )
  5. DISCONNECT RH AND LH TIE ROD ENDS (See  REMOVAL  )
  6. REMOVE NO. 2 ENGINE UNDER COVER
  7. DISCONNECT SLIDING YOKE (See  REMOVAL  )
  8. REMOVE FRONT SUSPENSION MEMBER BRACE

    Remove the 8 bolts and front suspension member brace.

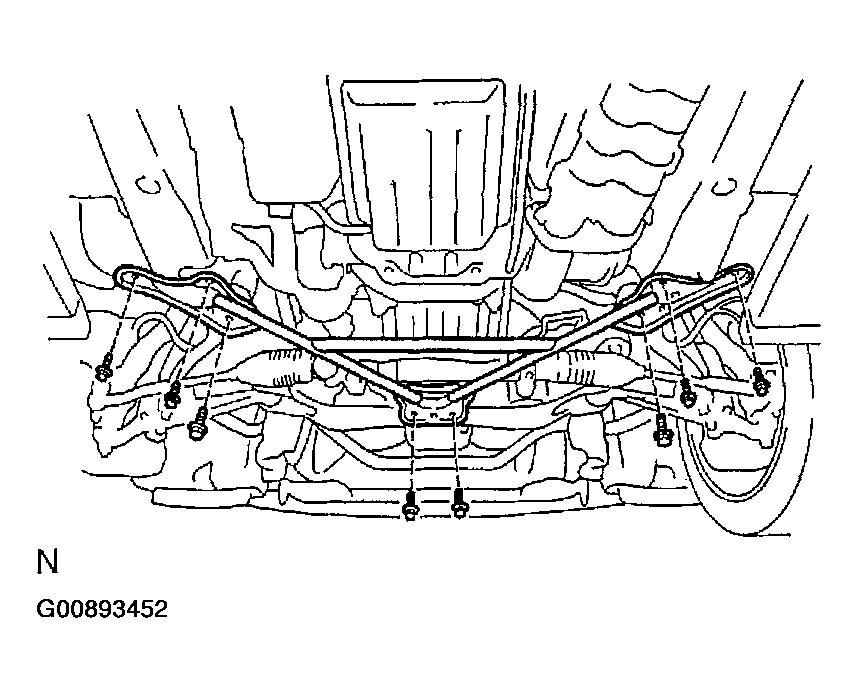

    9. Fig 1: Removing Front Suspension Member Brace
    G00893452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT PRESSURE FEED TUBE

    Remove the union bolt and gasket, and disconnect the pressure feed tube.

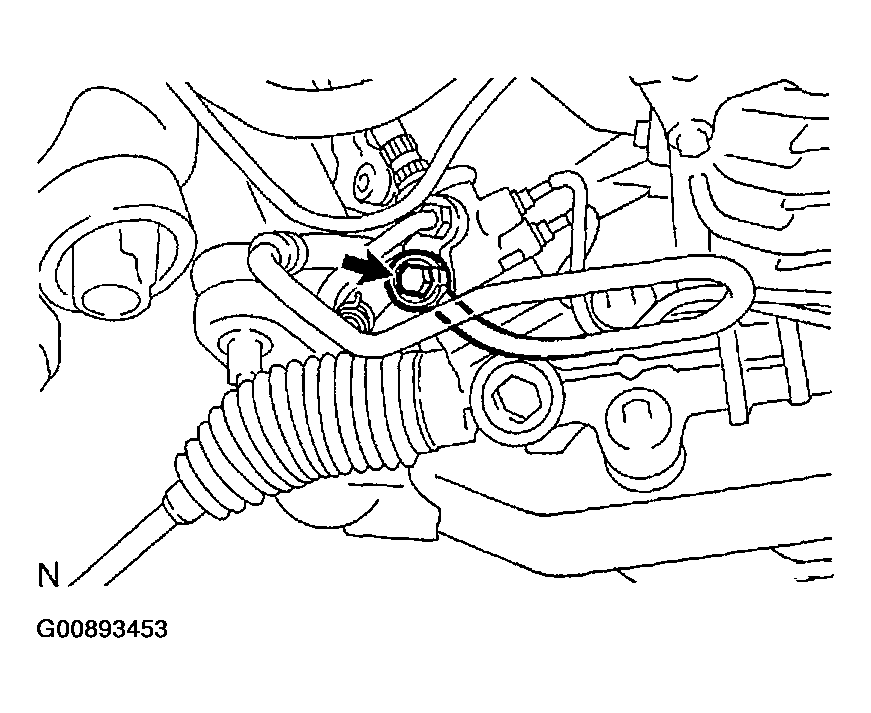

    10. Fig 2: Disconnecting Pressure Feed Tube
    G00893453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISCONNECT RETURN TUBE

    Using SST, disconnect the return tube.

    1. SST 09023-38400
  11. REMOVE PS GEAR ASSEMBLY, BRACKET AND GROMMET

    Remove the 4 bolts, PS gear assembly, bracket and grommet.
