Power Steering Vane Pump: Inspection

NOTE: When using a vise, do not overtighten it.
  1. CHECK OIL CLEARANCE BETWEEN VANE PUMP SHAFT AND BUSHING

    Using a micrometer and caliper gauge, measure the oil clearance.

    1. Standard clearance: 0.03 - 0.05 mm (0.0012 - 0.0020 in.)
    2. Maximum clearance: 0.07 mm (0.0028 in.)

    If it is more than the maximum, replace the vane pump shaft and front housing.

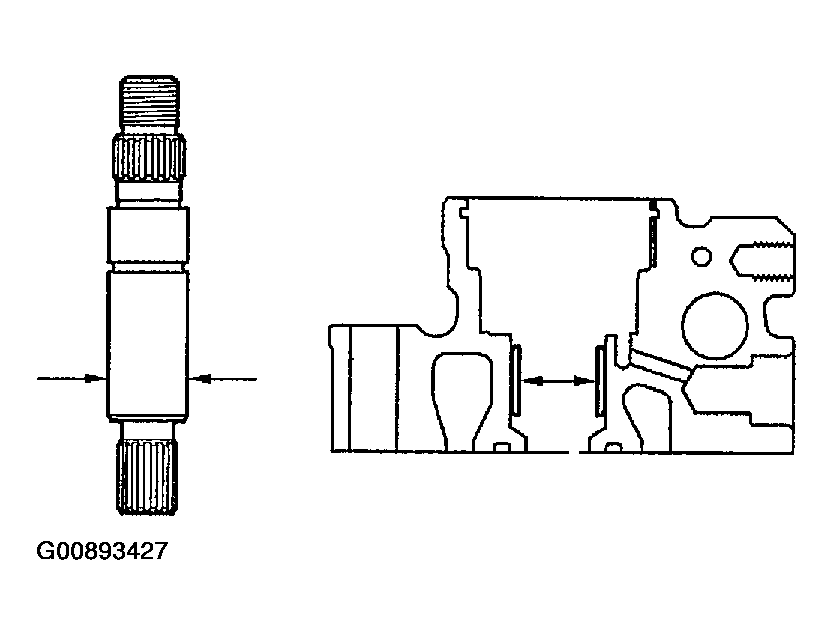

    Fig 1: Checking Oil Clearance Between Vane Pump Shaft & Bushing
    G00893427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT VANE PUMP ROTOR AND VANE PLATES
    1. Using a micrometer, measure the height, thickness and length of the 10 vane plates.
      1. Minimum height: 8.6 mm (0.339 in.)
      2. Minimum thickness: 1.40 mm (0.0551 in.)
      3. Minimum length: 14.99 mm (0.5902 in.)

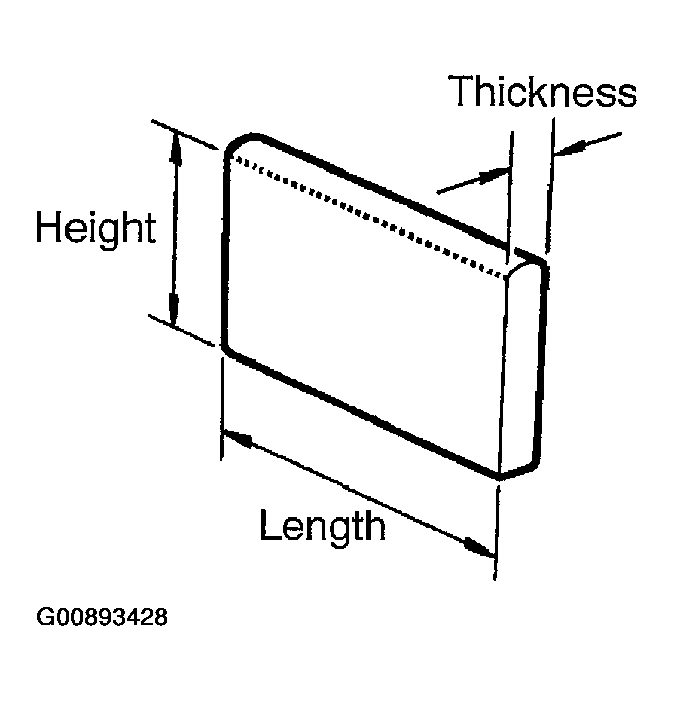

      Fig 2: Measuring Height, Thickness & Length Of Vane Plates
      G00893428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a feeler gauge, measure the clearance between the vane pump rotor groove and vane plate.
      1. Maximum clearance: 0.033 mm (0.0013 in.)

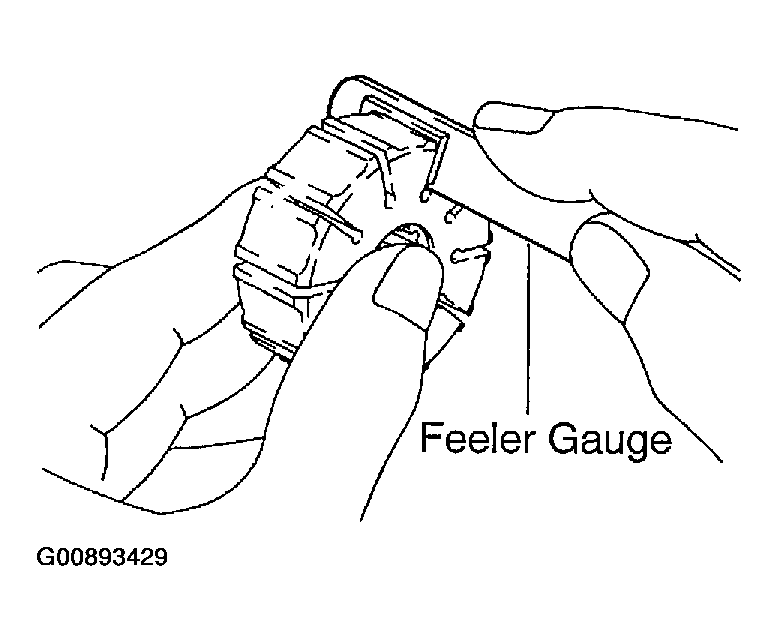

      Fig 3: Measuring Clearance Between Vane Pump Rotor Groove & Vane Plate
      G00893429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If it is more than the maximum, replace the vane plate and/or vane pump rotor with one having the same mark stamped on the cam ring.

      1. Inscribed mark: 1, 2, 3, 4 or None

      HINT:

      There are 5 vane plate lengths with the following rotor and cam ring marks:

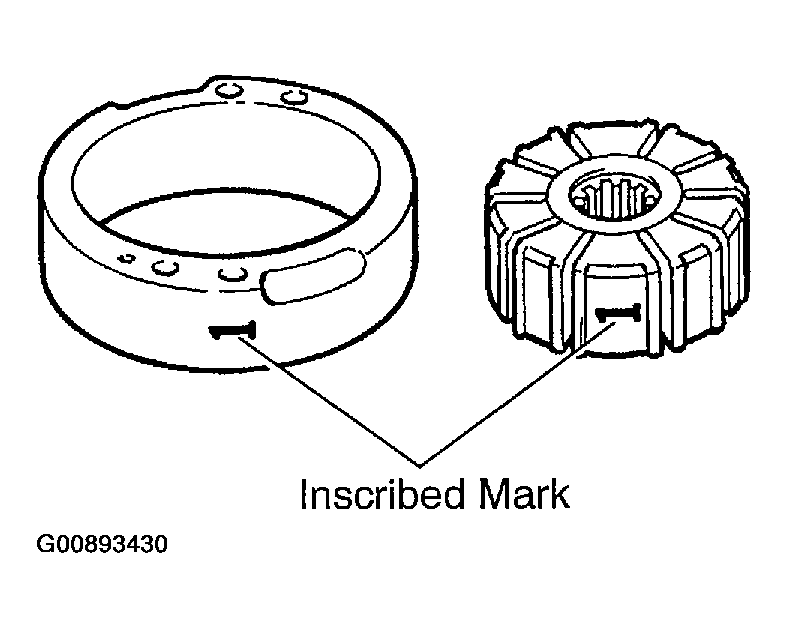

      Fig 4: Identifying Inscribed Marks On Vane Plate & Vane Pump Rotor
      G00893430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT FLOW CONTROL VALVE
    1. Coat the flow control valve with power steering fluid and check that it falls smoothly into the valve hole by its own weight.

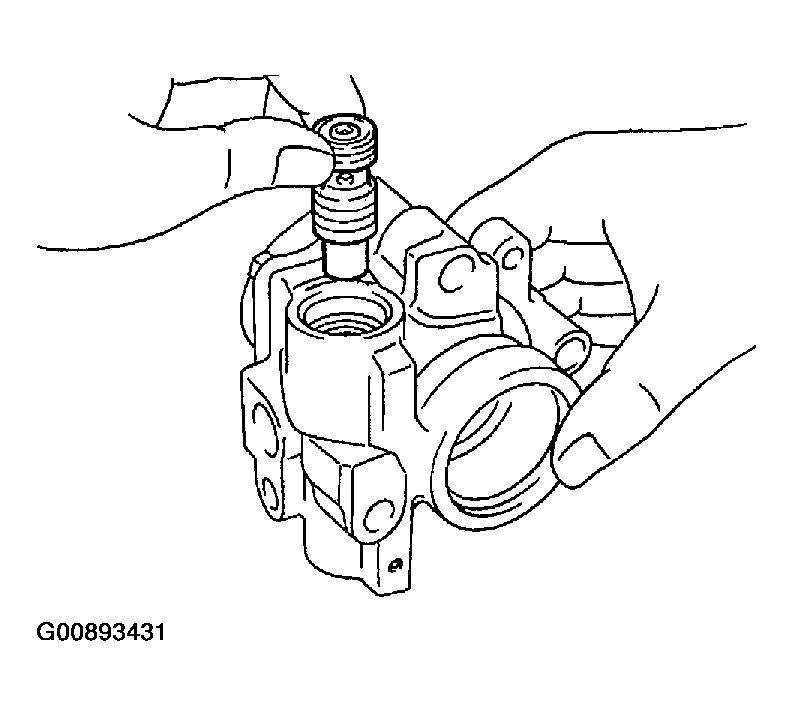

      Fig 5: Inspecting Flow Control Valve (1 Of 2)
      G00893431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

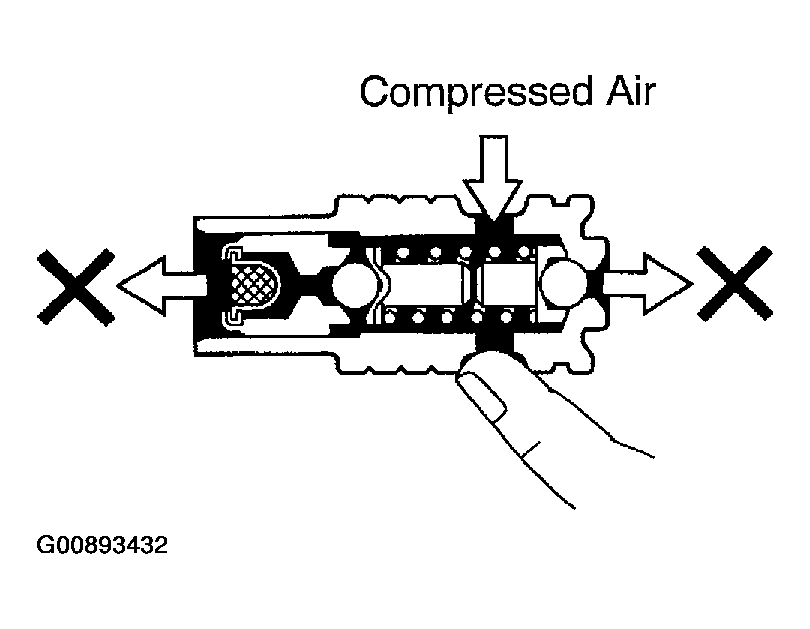

    2. Check the flow control valve for leakage.
      Fig 6: Inspecting Flow Control Valve (2 Of 2)
      G00893432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Close one of the holes and apply compressed air 392 - 490 kPa (4 - 5 kgf/cm2 , 57 - 71 psi) into the opposite side, and confirm that air does not come out from the end holes.

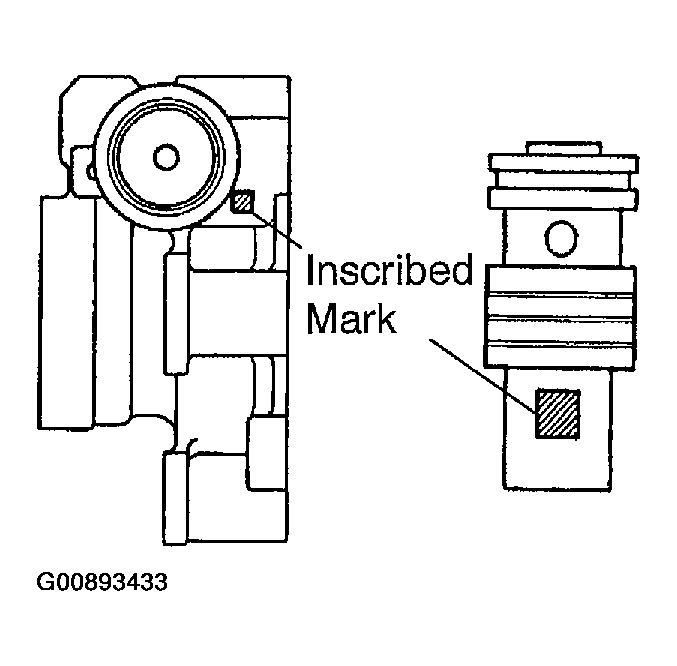

      Fig 7: Identifying Inscribed Mark On Flow Control Valve
      G00893433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If necessary, replace the flow control valve with one having the same letter as inscribed on the front housing.

      1. Inscribed mark: A, B, C, D, E or F

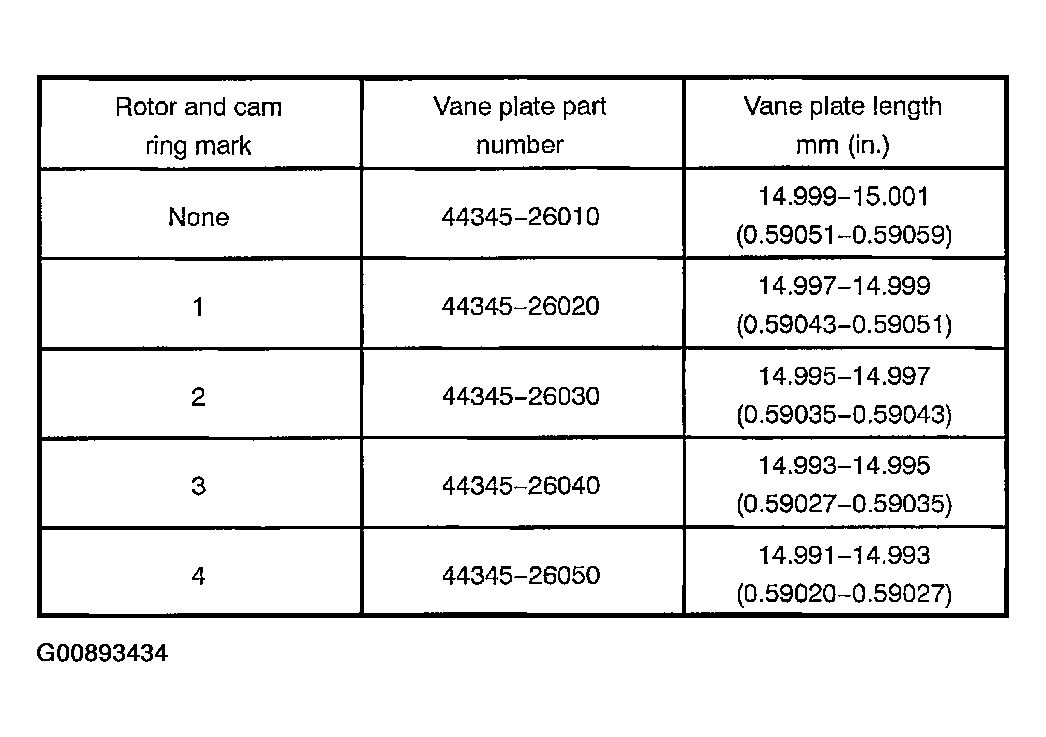

        Fig 8: Rotor & Cam Ring Mark & Vane Plate Length Table
        G00893434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT SPRING

    Using vernier calipers, measure the free length of the spring.

    1. Minimum free length: 33.2 mm (1.307 in.)

    If it is not within the specification, replace the spring.

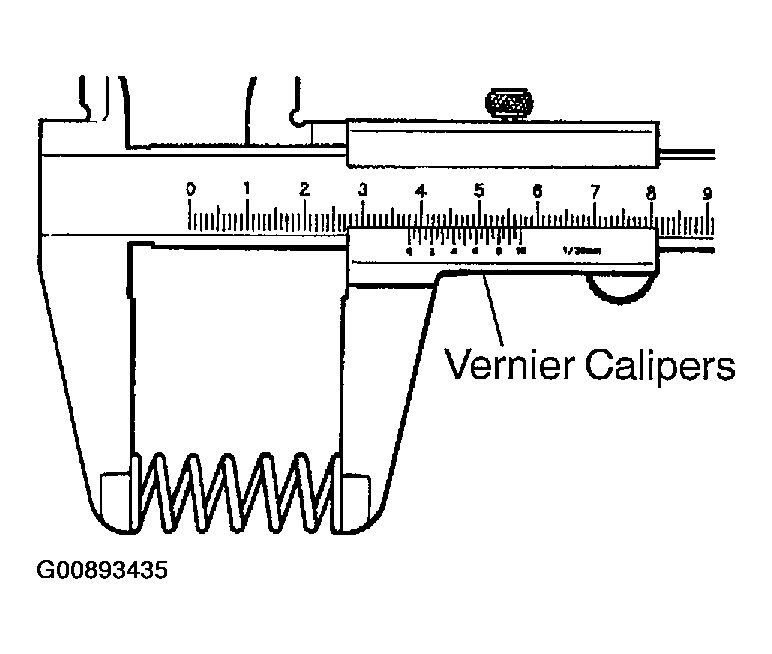

    Fig 9: Measuring Free Length Of Spring
    G00893435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
