Power Steering Vane Pump: Installation

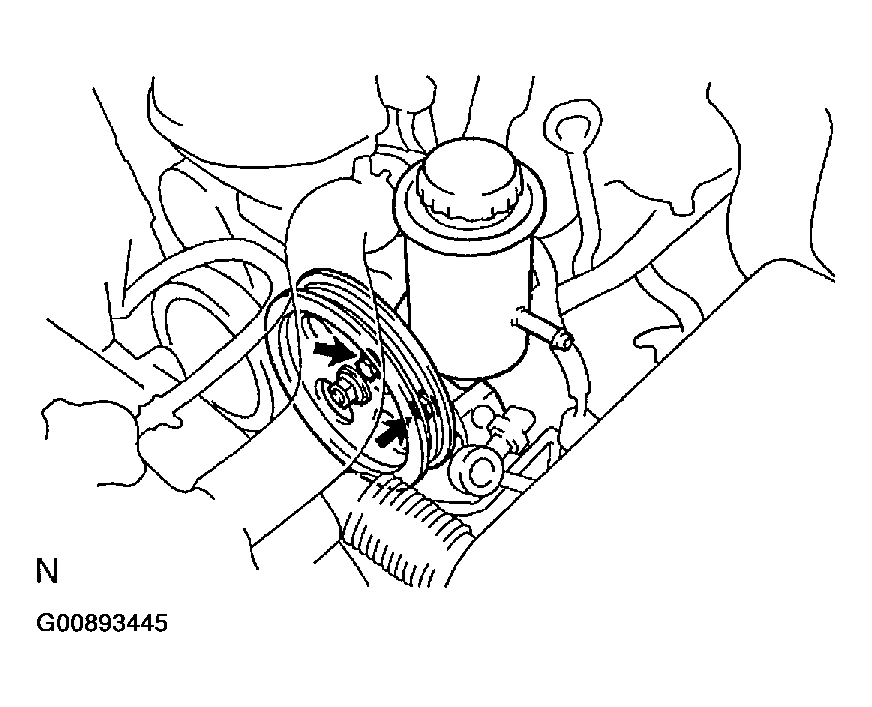

Install the PS vane pump assembly with the 2 bolts.

1. Torque: 58 N.m (590 kgf.cm, 43 ft.lbf)
Fig 1: Installing PS Vane Pump Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

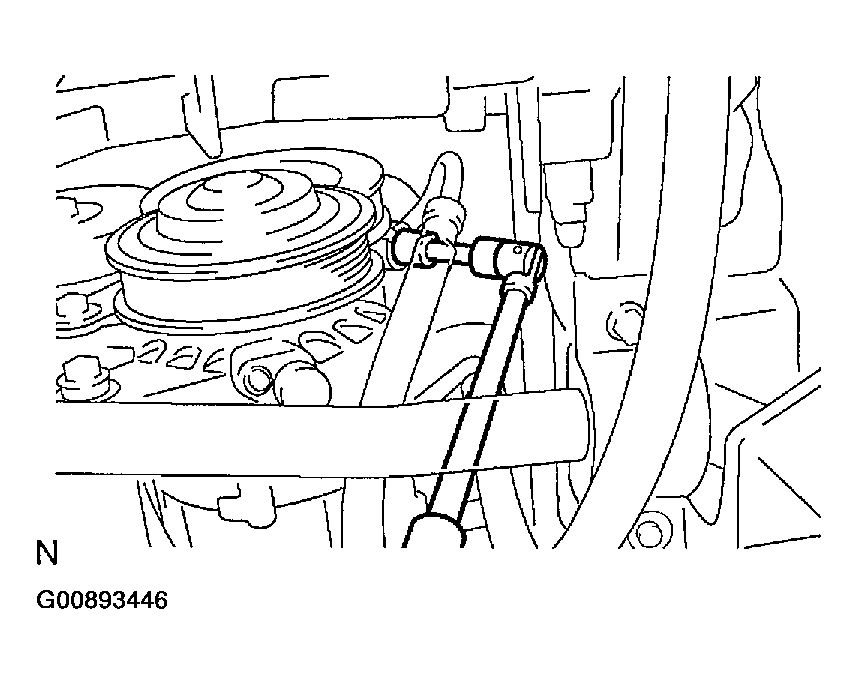

1. Install a new gasket to the pressure feed tube.
2. Connect the pressure feed tube with the union bolt.
   Fig 2: Connecting Pressure Feed Tube With Union Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

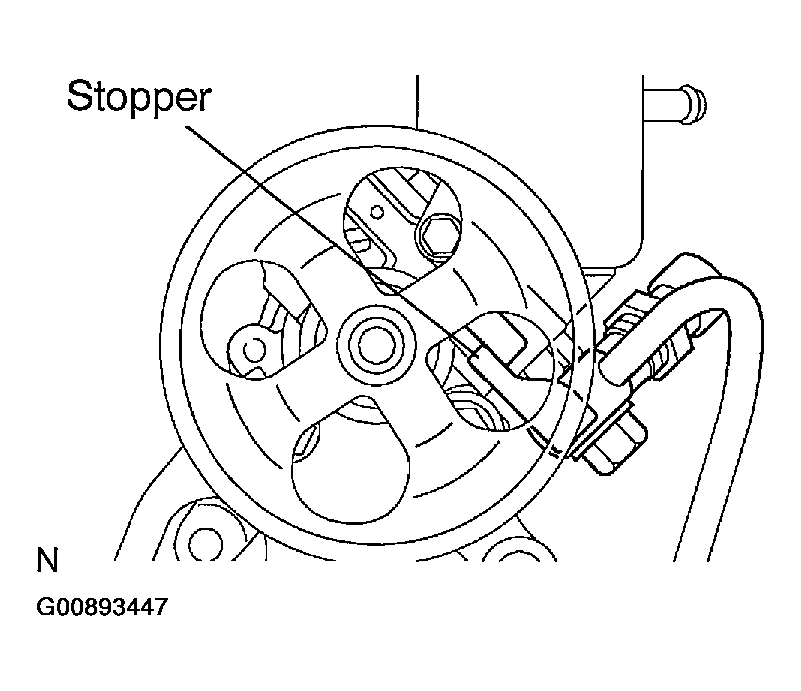

   Make sure the stopper of the pressure feed tube touches the PS vane pump body as shown in Fig 3 , then install the union bolt.

   Fig 3: Identifying Stopper Of Pressure Feed Tube & PS Vane Pump Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

Connect the return hose with the clip.

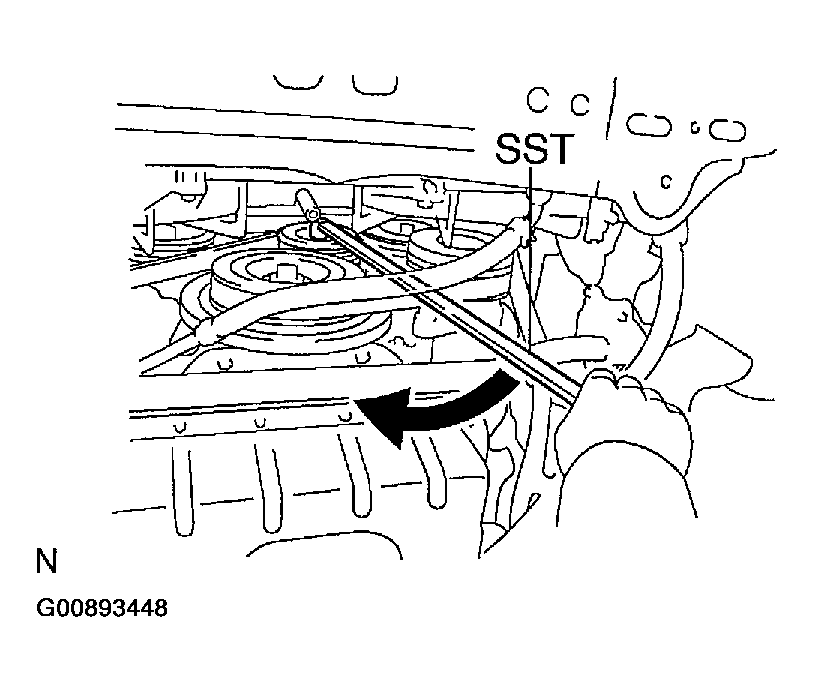

Using SST, loosen the drive belt tension by turning the drive belt tensioner clockwise from the bottom side, and install the drive belt.

1. SST 09216-00041
Fig 4: Installing Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the No. 1 engine under cover with the 16 screws and clip.
