Manual Transmission Assembly: Disassembly

1. Remove the bolt and disconnect the back-up light switch clamp.
   1. Torque: 5.8 N.m (59 kgf.cm, 51 in.lbf)
2. Remove the back-up light switch with the gasket.
   1. Torque: 41 N.m (410 kgf.cm, 30 ft.lbf)

1. Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

Remove the 9 bolts and clutch housing.

1. Torque: 38 N.m (387 kgf.cm, 28 ft.lbf)

1. Remove the 6 bolts.
   1. Torque: 18.5 N.m (189 kgf.cm, 14 ft.lbf)
2. Remove the control shift lever retainer assembly and oil deflector.

   HINT:

   At the time of installation, please refer to the following item. Be sure to spline the small ball portion of inner lever into the shift lever housing.

   (At this time, pay attention so that the retainer assy will not move to forth and back.)

   Fig 1: Removing Control Shift Lever Retainer Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a hexagon wrench (10 mm), remove the straight screw plug.
   1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
   2. Torque: 24.5 N.m (250 kgf.cm, 18 ft.lbf)
4. Using a magnetic finger, remove the compression spring and lock ball pin.

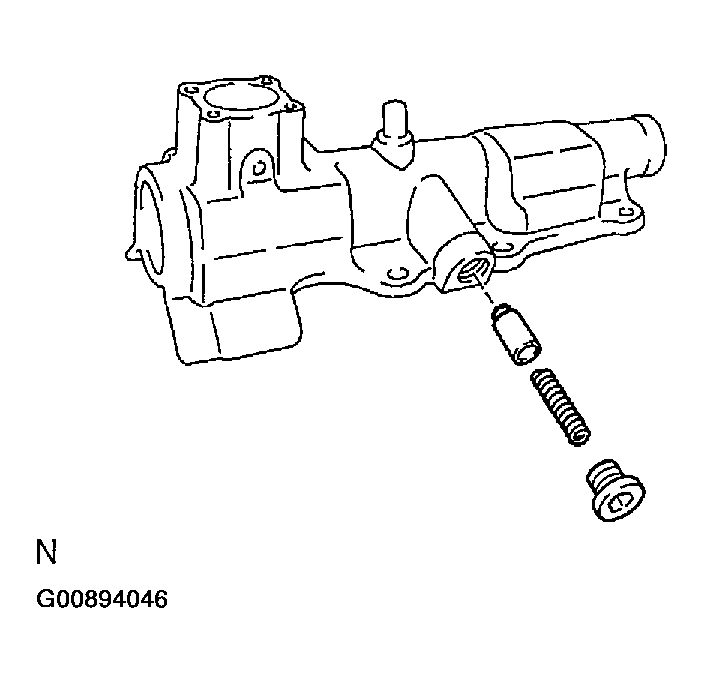

Fig 2: Removing Straight Screw Plug

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the restrict pin (color: black) with the gasket.
   1. Torque: 41 N.m (418 kgf.cm, 30 ft.lbf)

   HINT:

   Install the black pin on the reverse gear/5th gear side.

2. Remove the restrict pin (color: white) with the gasket.
   1. Torque: 41 N.m (418 kgf.cm, 30 ft.lbf)

Fig 3: Removing 2 Restrict Pins & Gaskets

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the shift lever housing set bolt.
   1. Torque: 33 N.m (337 kgf.cm, 24 ft.lbf)

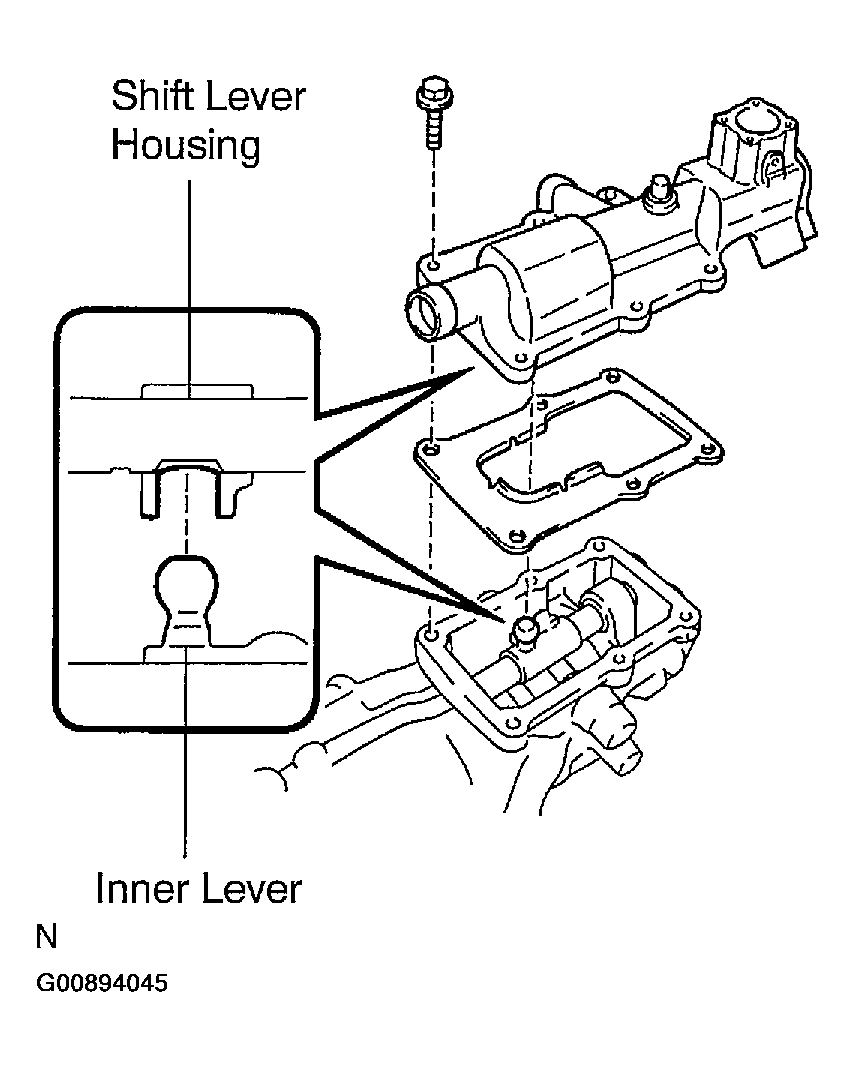

   Fig 4: Removing Shift Lever Housing Set Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 9 bolts and wire harness clamp from the extension housing.
   1. Torque: 38 N.m (387 kgf.cm, 28 ft.lbf)
3. Using a plastic hammer, carefully tap the extension housing.
4. Pull out the extension housing and inner lever.

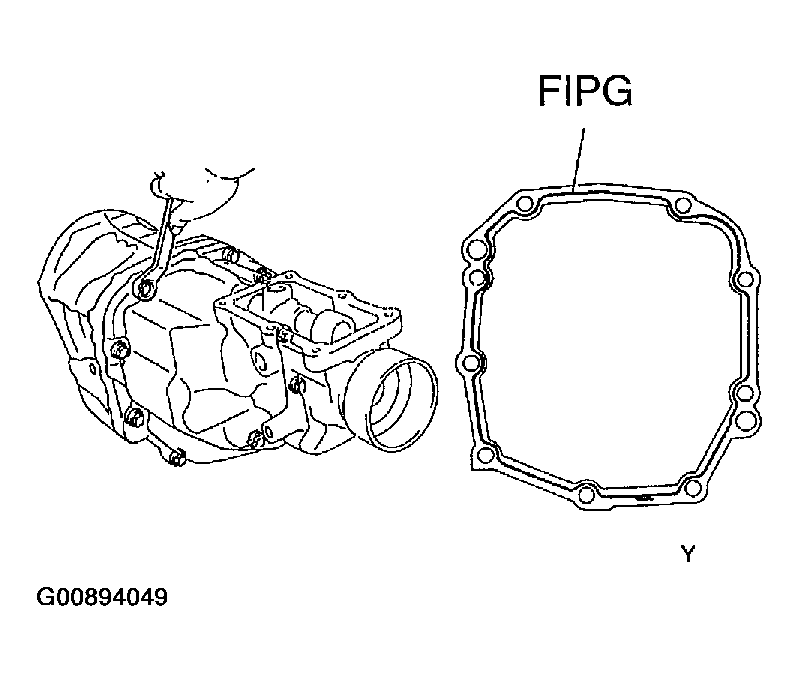

   1. FIPG: Part No. 08826-00090, THREE BOND 1281 or equivalent
Fig 5: Removing Bolts & Wire Harness Clamp From Extension Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. (a) Remove the 7 bolts.
   1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
   2. Torque: 25 N.m (255 kgf.cm, 18 ft.lbf)
2. Remove the front bearing retainer.
   1. FIPG: Part No. 08826-00090, THREE BOND 1281 or equivalent

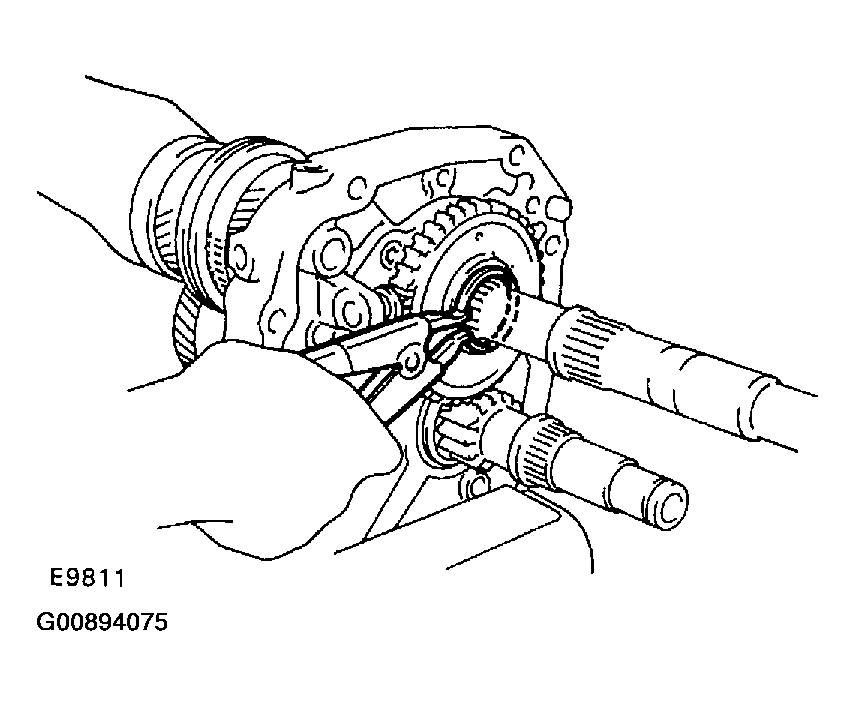

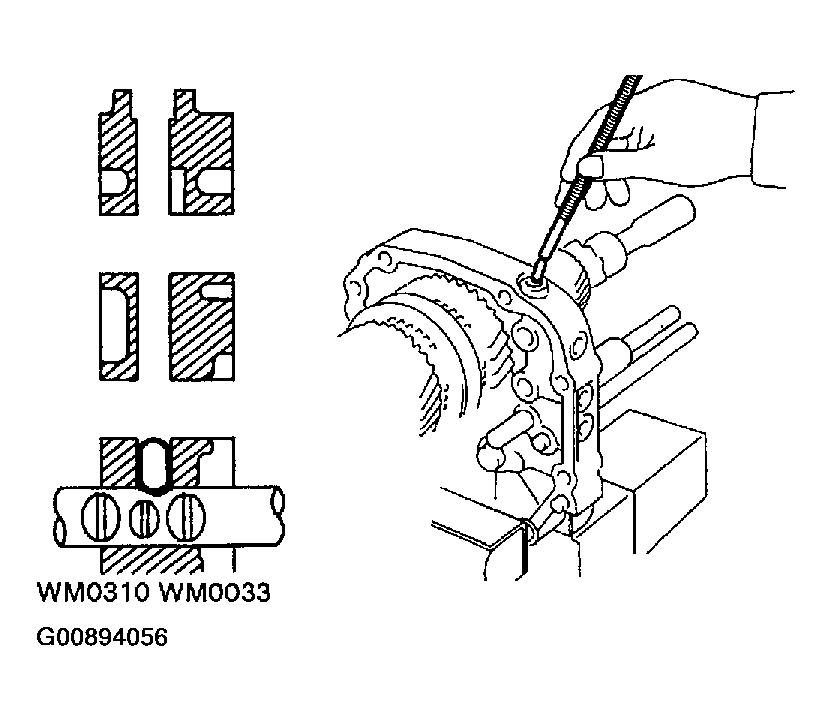

3. Using a snap ring expander, remove the 2 bearing snap rings.

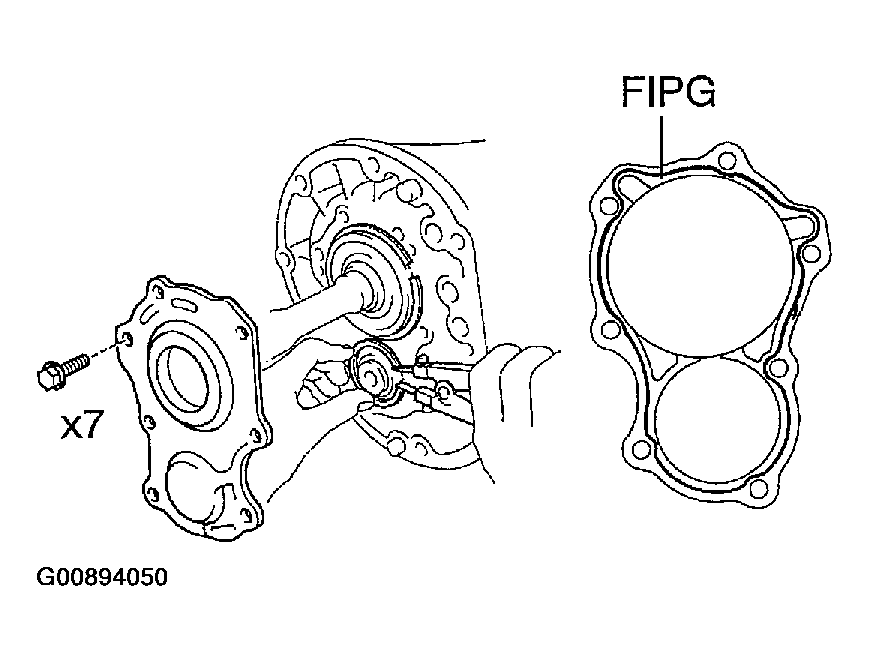

Fig 6: Removing Front Bearing Retainer & Bearing Snap Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

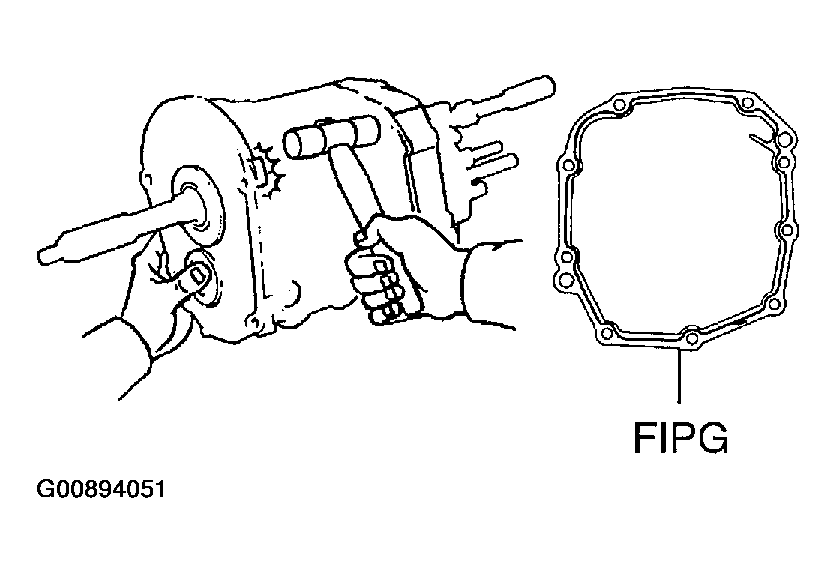

1. Using a plastic hammer, carefully tap the transmission case.
2. Pull the transmission case from the intermediate plate.

HINT:

At the time of installation, please refer to the following item. Align each bearing outer race and each shift fork shaft end with the case holes.

1. FIPG: Part No. 08826-00090, THREE BOND 1281 or equivalent

Fig 7: Separating Intermediate Plate From Transmission Case

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

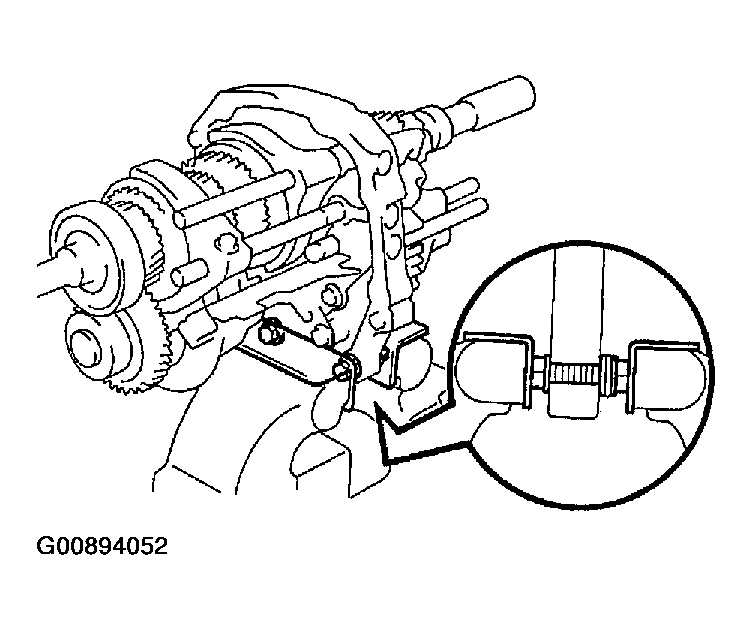

1. Use the 2 long clutch housing bolts, plate washers and suitable nuts, as shown.
   NOTE: Increase or decrease plate washers so that the bolt tip does not protrude from the nut.
2. Mount the intermediate plate in a vise.
Fig 8: Mounting Intermediate Plate In Vise
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts and oil separator.

1. Torque: 18.5 N.m (189 kgf.cm, 14 ft.lbf)

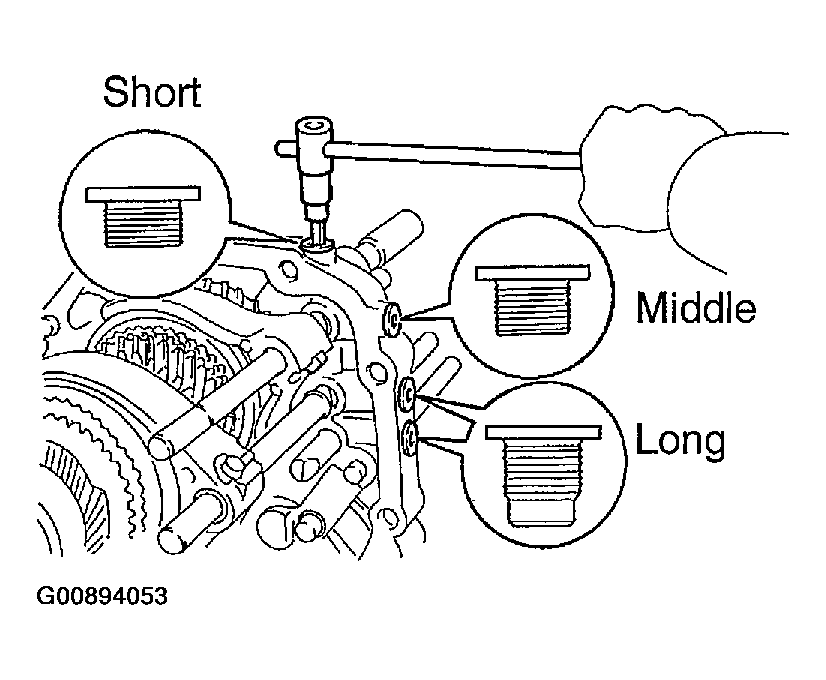

1. Using a hexagon wrench (6 mm), remove the 4 straight screw plugs.
   1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
   2. Torque: 25 N.m (255 kgf.cm, 18 ft.lbf)
2. Using a magnetic finger, remove the 3 springs and balls.

Fig 9: Removing Straight Screw Plug

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the No. 1 and No. 2 shift forks set bolts.
   1. Torque: 20 N.m (203 kgf.cm, 15 ft.lbf)
2. Remove the bolt and reverse idler gear shaft stopper.
   1. Torque: 25 N.m (255 kgf.cm, 18 ft.lbf)
3. Remove the reverse idler gear and shaft with the snap ring.
4. Remove the No. 1 shift fork and shaft.

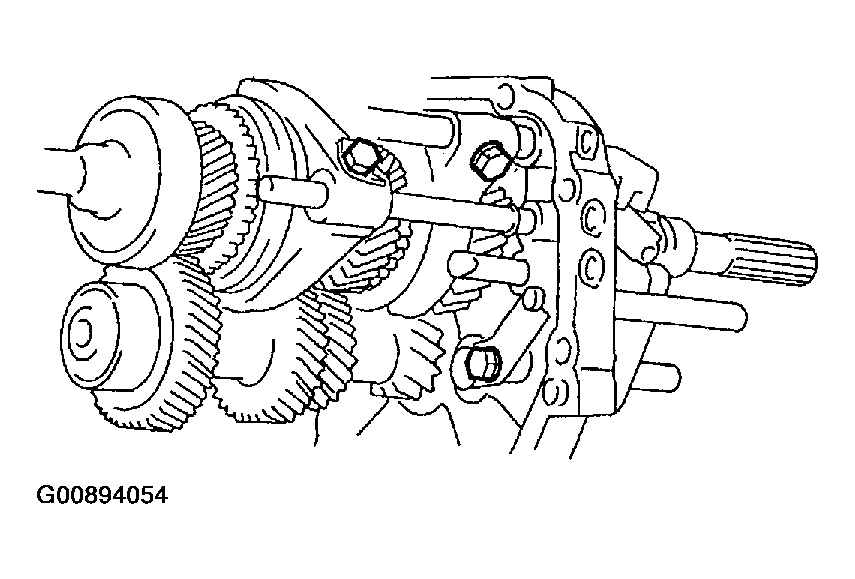

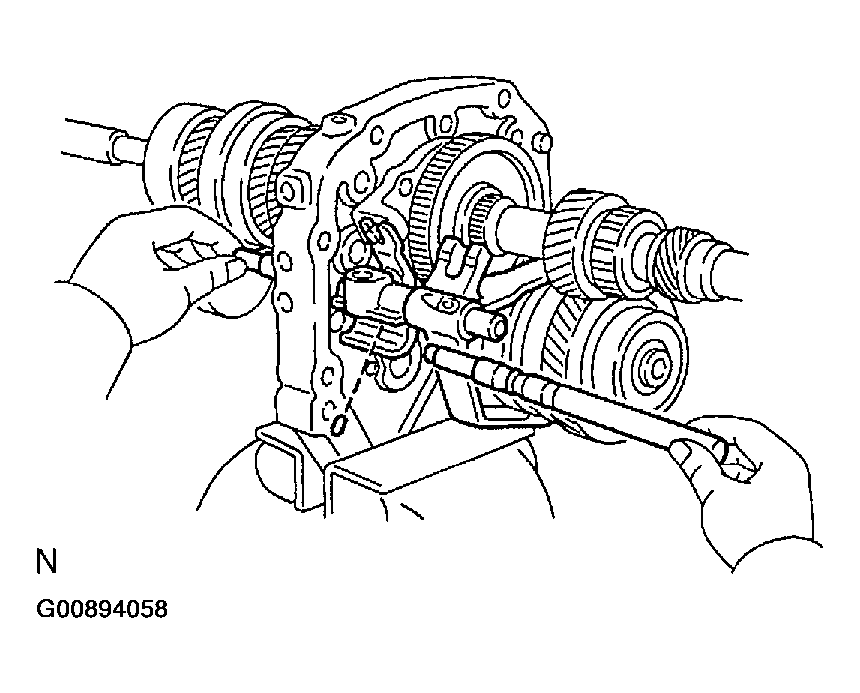

   Fig 10: Removing Shift Fork, Shift Fork Shaft & Reverse Idler Gear

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a magnetic finger, remove the No. 1 and No. 2 interlock pins.

   HINT:

   At the time of installation, please refer to the following item. Apply MP grease to the No. 1 and No. 2 interlock pins.

6. using 2 screwdrivers and a hammer, tap out the No. 2 shift fork shaft snap ring.
7. Remove the No. 2 shift fork and shaft.
   Fig 11: Removing No. 1 & No. 2 Interlock Pins

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Using a magnetic finger, remove the No. 3 interlock pin.

   HINT:

   At the time of installation, please refer to the following item. Apply MP grease to the No. 3 interlock pin.

   Fig 12: Removing No. 3 Interlock Pin

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

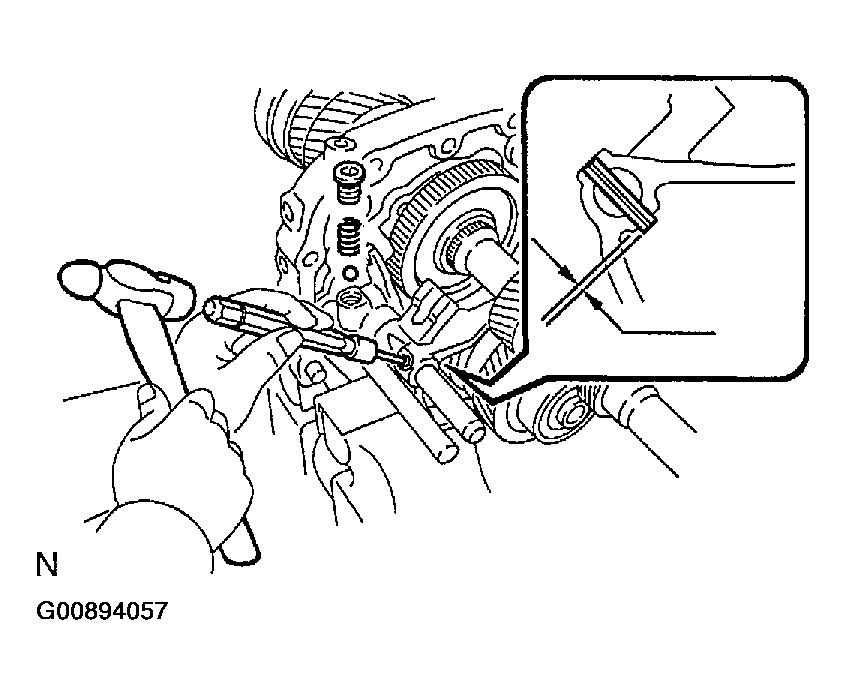

9. Using a pin punch (5 mm) and hammer, drive out the No. 3 shift fork pin.

   HINT:

   At the time of installation, please refer to the following item. Using a pin punch (5 mm) and a hammer, install the No. 3 shift fork pin.

   1. Drive in depth: 0 - 0.5 mm (0 - 0.020 in.)
10. Using a hexagon wrench (6 mm), remove the straight screw plug.
    1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
    2. Torque: 25 N.m (255 kgf.cm, 18 ft.lbf)
11. Using a magnetic finger, remove the spring and ball.
    Fig 13: Removing No. 3 Shift Fork Pin

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. Pull out the No. 4 shift fork shaft.

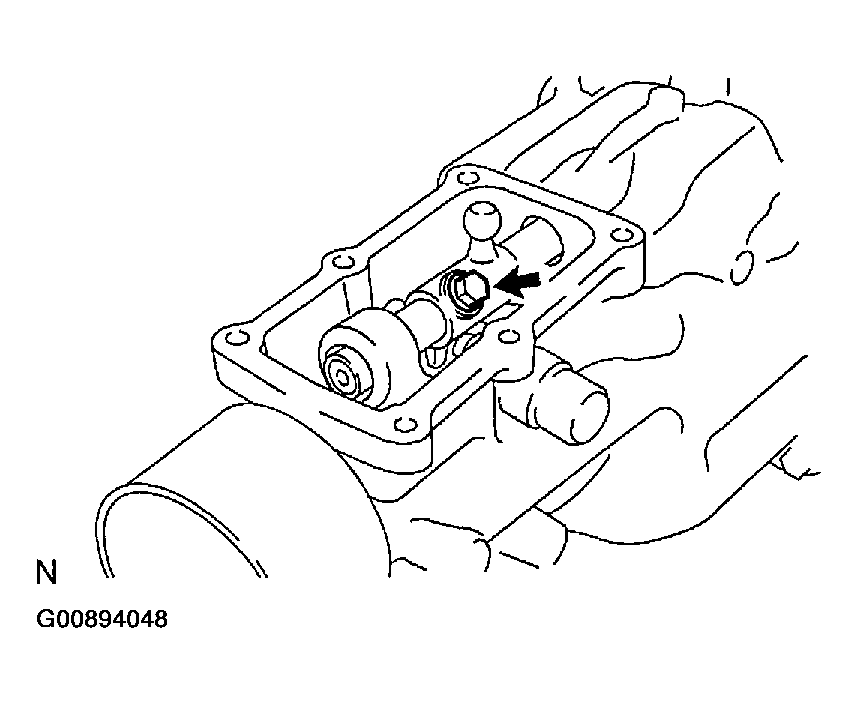

13. Remove the pin from the reverse shift head.

    HINT:

    At the time of installation, please refer to the following item. Apply MP grease to the pin.

14. Remove the No. 3 shift fork, fork shaft and reverse shift arm with the snap ring.

    HINT:

    At the time of installation, please refer to the following item. Align the No. 3 shift fork with the No. 3 hub sleeve groove, put the reverse shift arm into the pivot of bearing retainer and align the reverse shift arm shoe with the reverse idler gear groove.

    Fig 14: Removing No. 4 Shift Fork Shaft

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. Using a screwdriver, remove the E-ring, separate the reverse shift head and reverse shift arm.

Fig 15: Removing E-Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

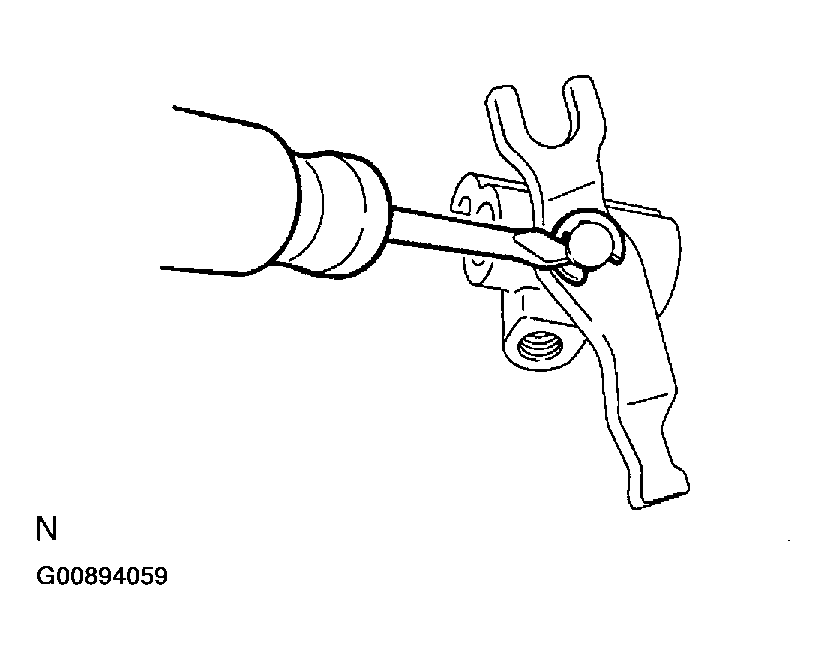

Pry out both ends of the clip and remove the drive gear.

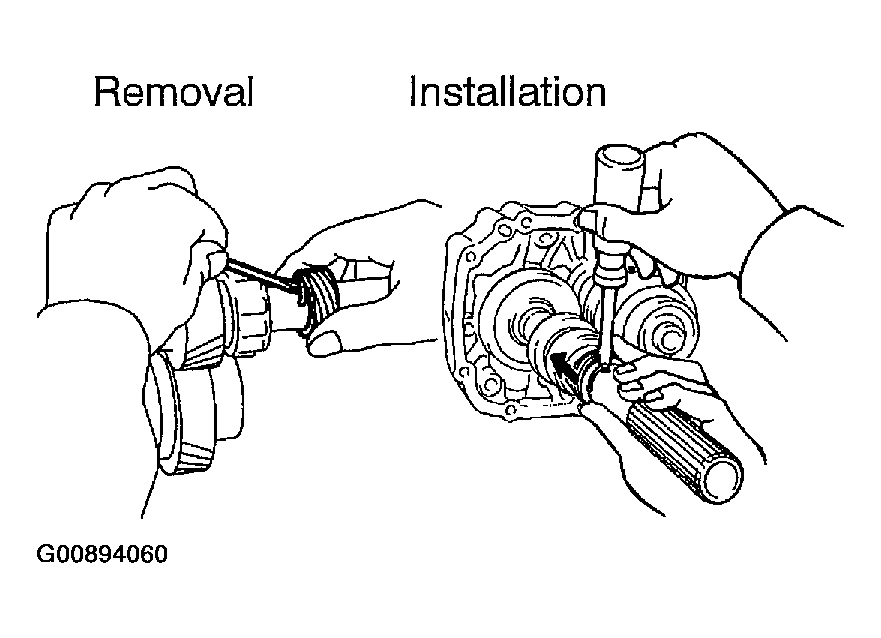

Fig 16: Removing Vehicle Speed Sensor Drive Gear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

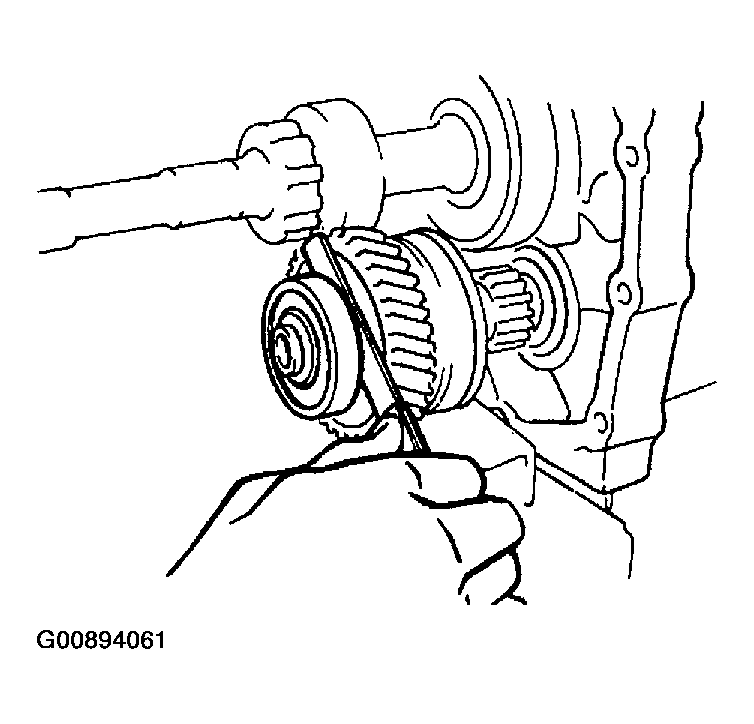

Using a feeler gauge, measure the counter 5th gear thrust clearance.

1. Standard clearance: 0.10 - 0.41 mm (0.0039 - 0.0161 in.)
2. Maximum clearance: 0.41 mm (0.0161 in.)

Fig 17: Inspecting Counter 5th Gear Thrust Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a snap ring expander, remove the snap ring.

   HINT:

   At the time of installation, please refer to the following item. Select a snap ring that will allow minimum axial play.

   Fig 18: Removing Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

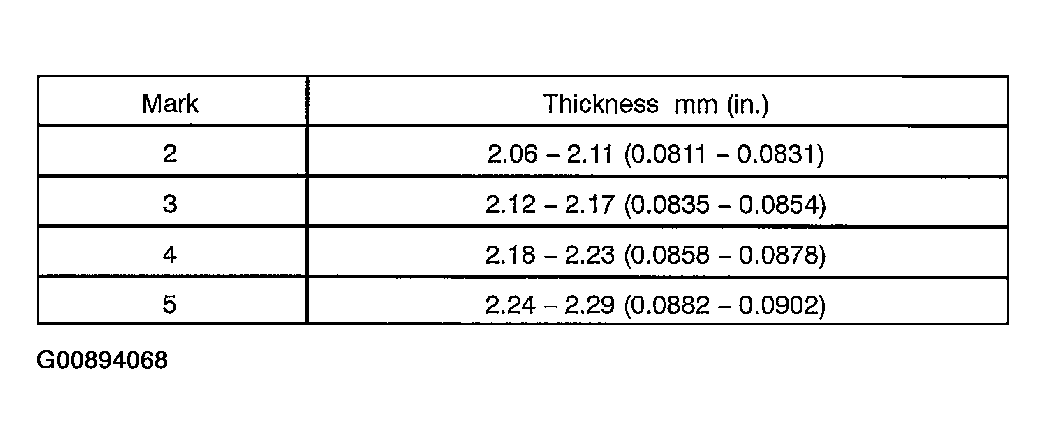

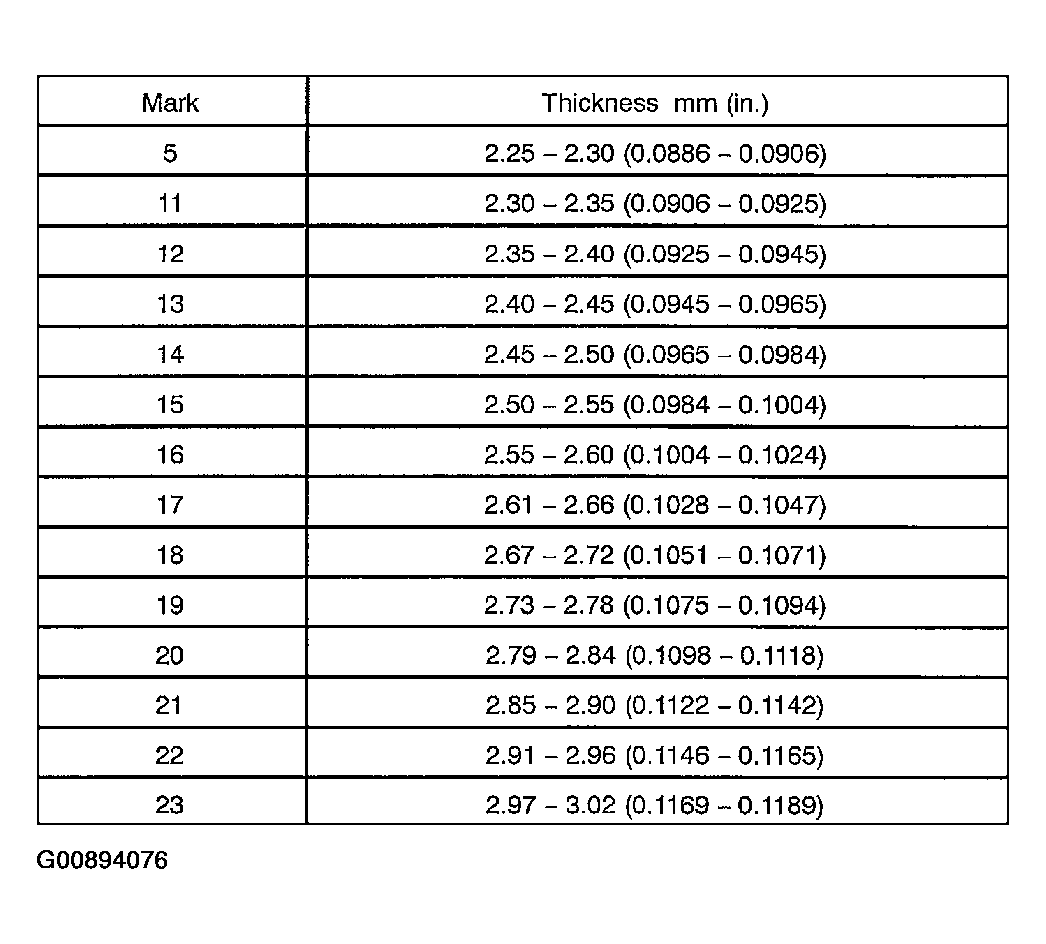

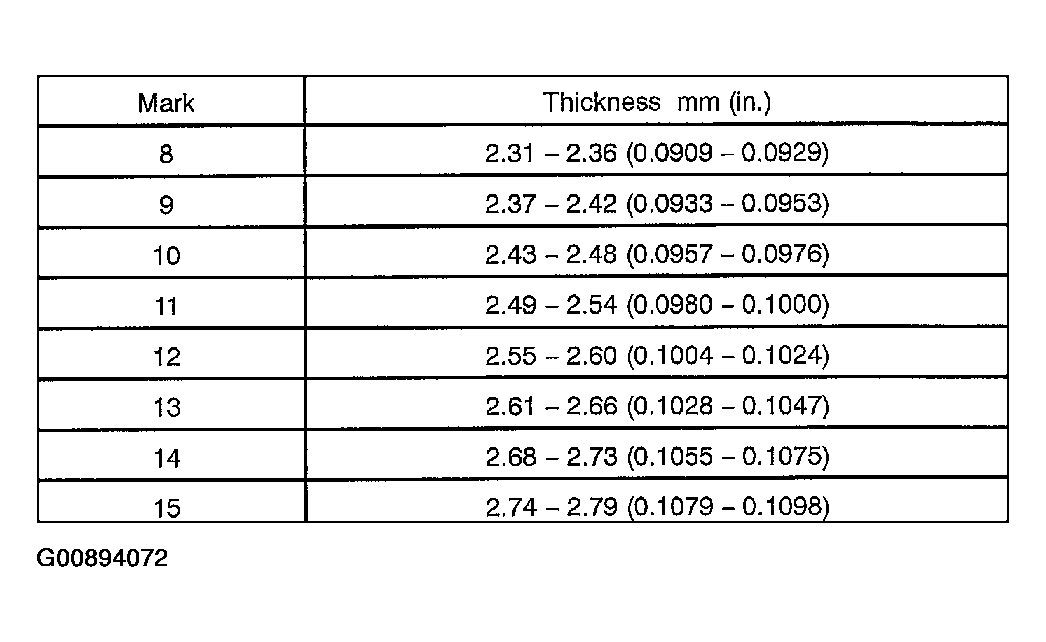

   Fig 19: Snap Ring Thickness Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

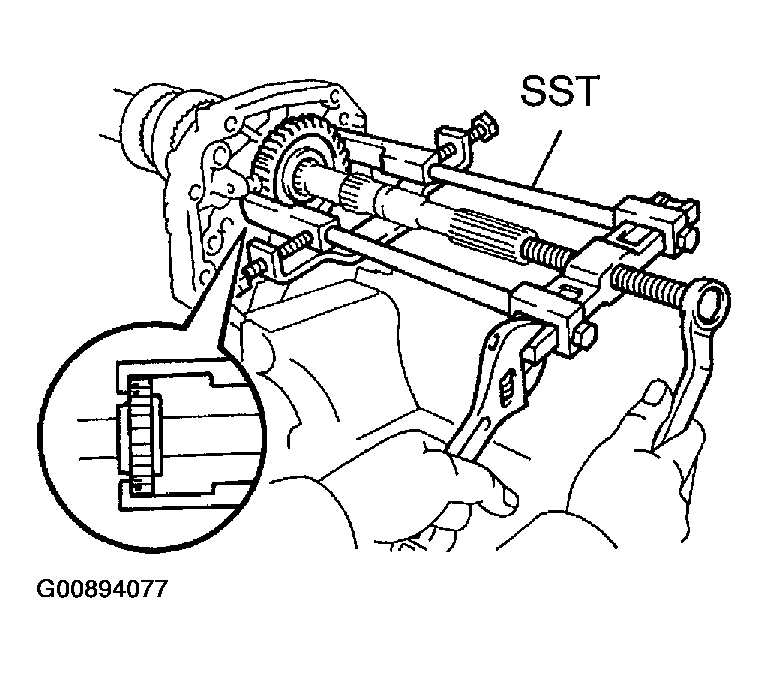

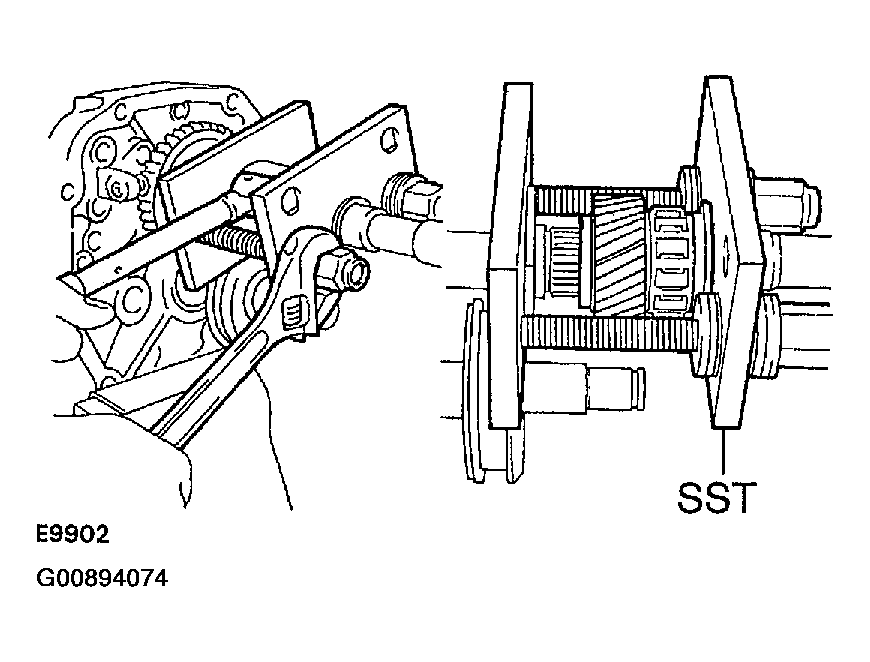

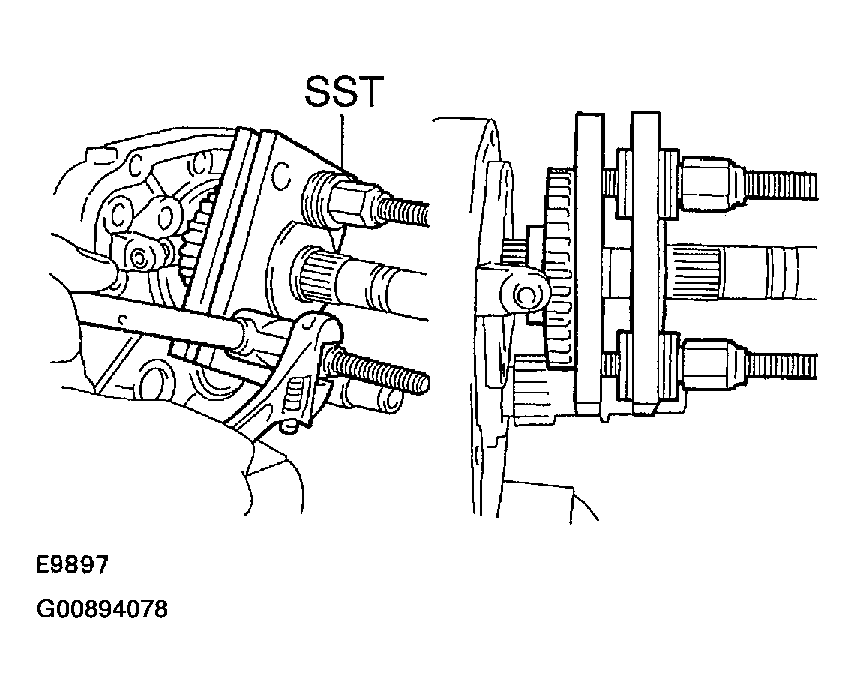

2. Using SST, remove the rear bearing, spacer, counter 5th gear and bearing.
   1. SST 09950-40011 (09951-04020, 09953-04030, 09954-04010, 09955-04051, 09957-04010, 09958-04011)
   NOTE: Be careful not to catch the output shaft rear bearing roller on the counter 5th gear.

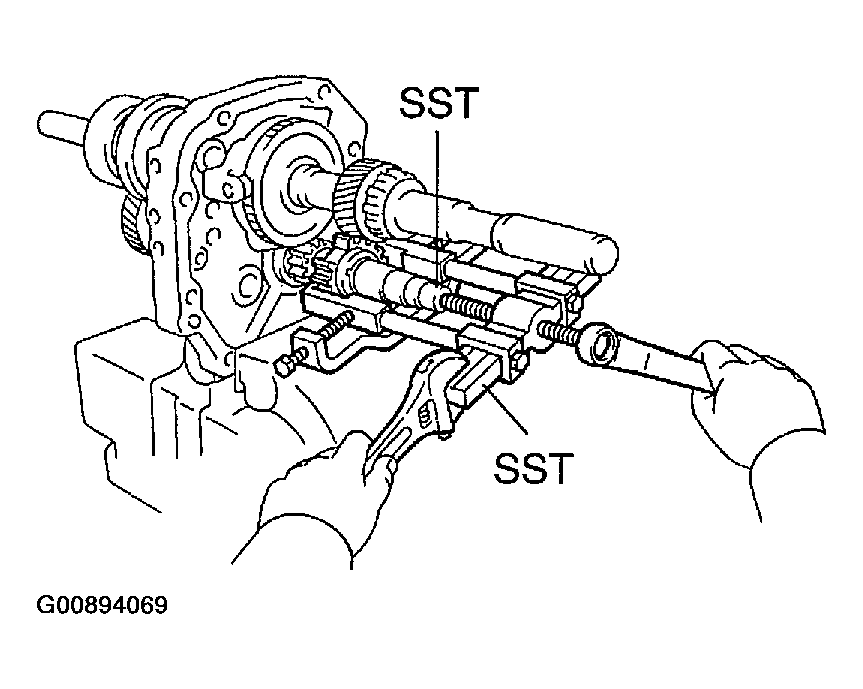

   Fig 20: Removing Rear Bearing, Spacer, Counter 5th Gear & Bearing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the spacer.

HINT:

At the time of installation, please refer to the following items.

• Install the counter 5th gear with the 5th gear gaps aligned with the synchronizer cone ring pin.

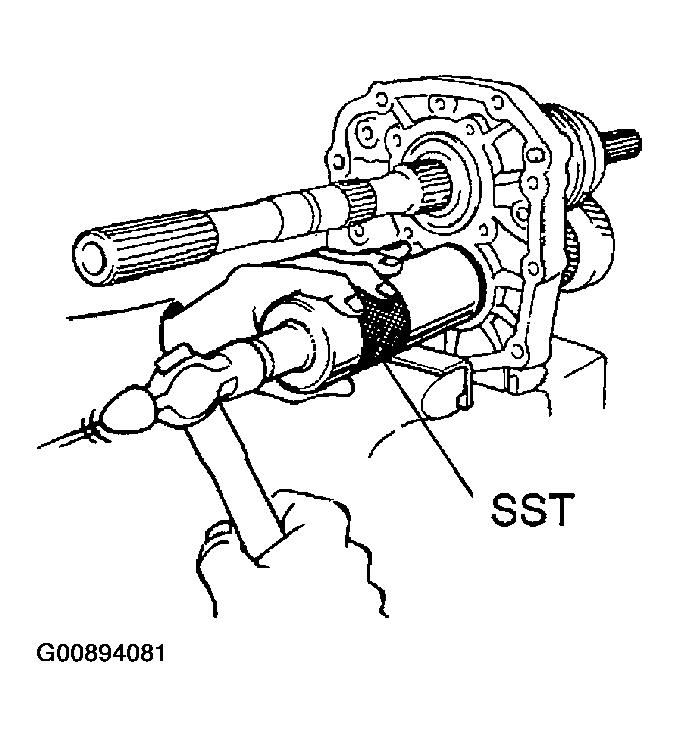

• Using a socket wrench and hammer, drive in the bearing.
• When driving in the bearing support the counter shaft in front with a 1.4 - 2.3 kg (3 - 5 lb) hammer or equivalent.

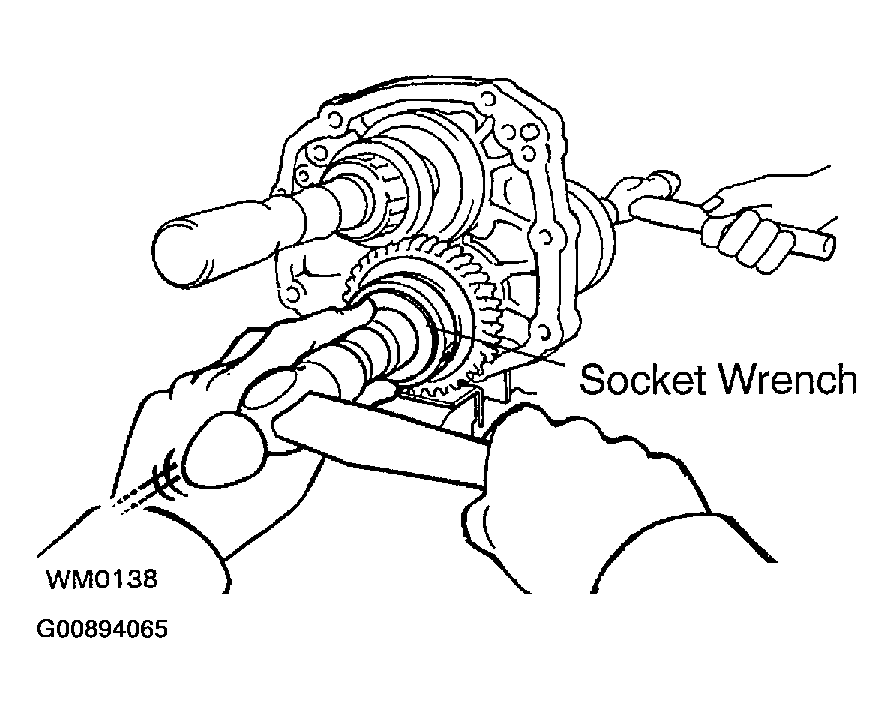

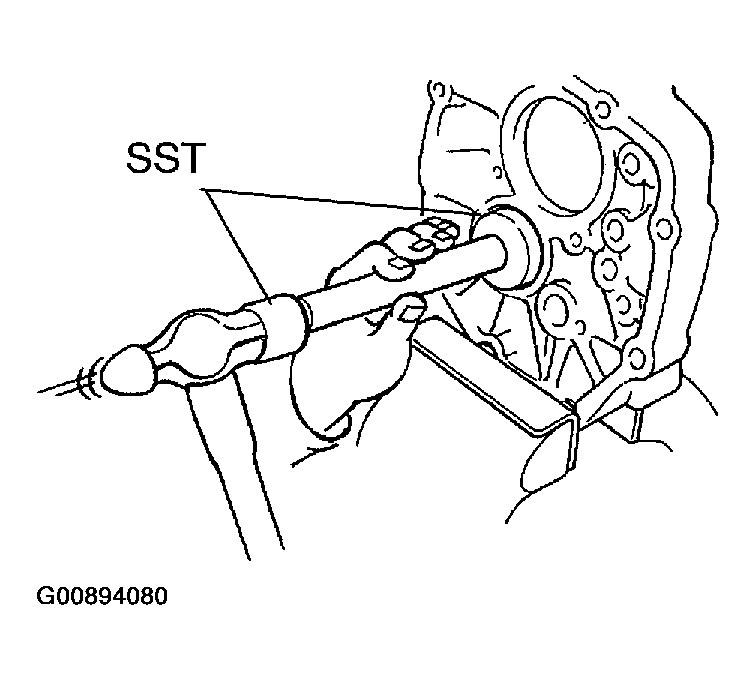

Fig 21: Installing Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the synchronizer ring assembly with the No. 3 hub sleeve from the No. 3 clutch hub.

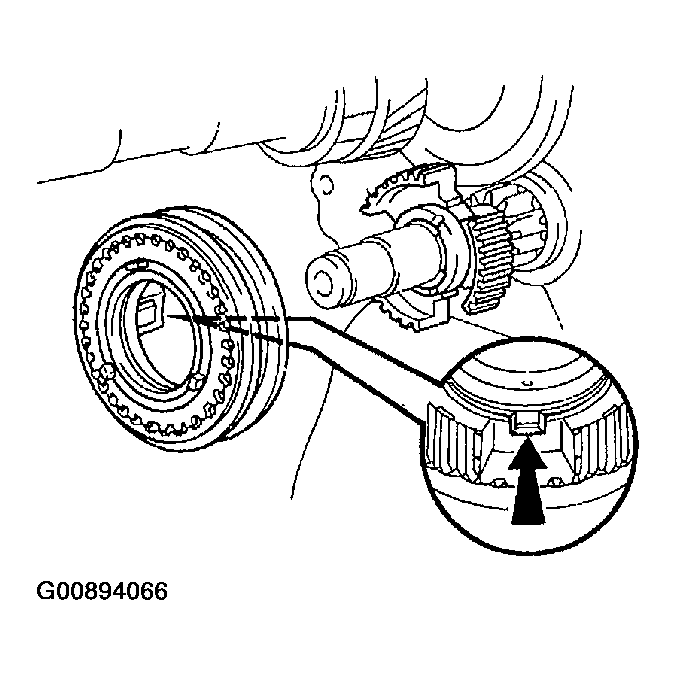

   Fig 22: Removing Synchronizer Ring Assembly With No. 3 Hub Sleeve & No. 3 Clutch Hub

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the spacer.

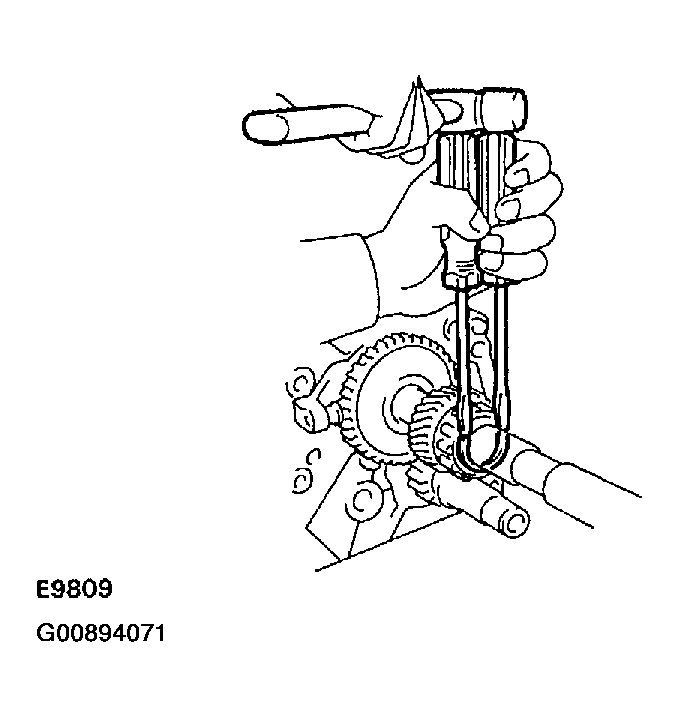

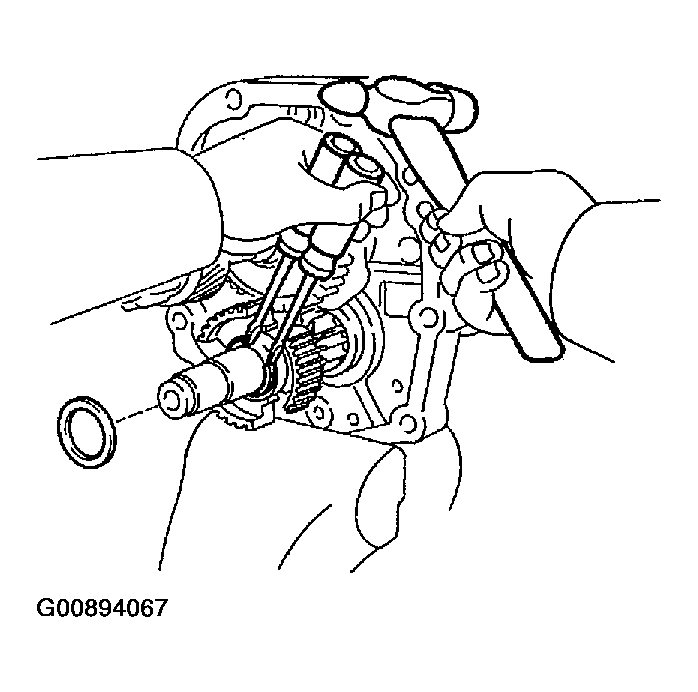

3. Using 2 screwdrivers and a hammer, tap out the snap ring.

   HINT:

   At the time of installation, please refer to the following item. Select a snap ring that will allow minimum axial play.

   Fig 23: Removing Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

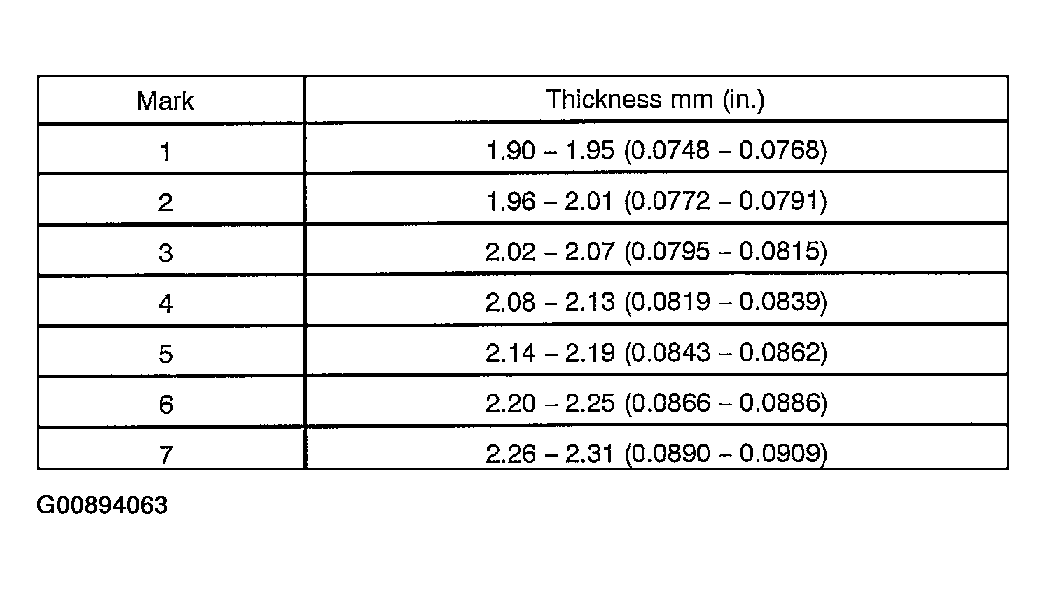

   Fig 24: Snap Ring Thickness Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

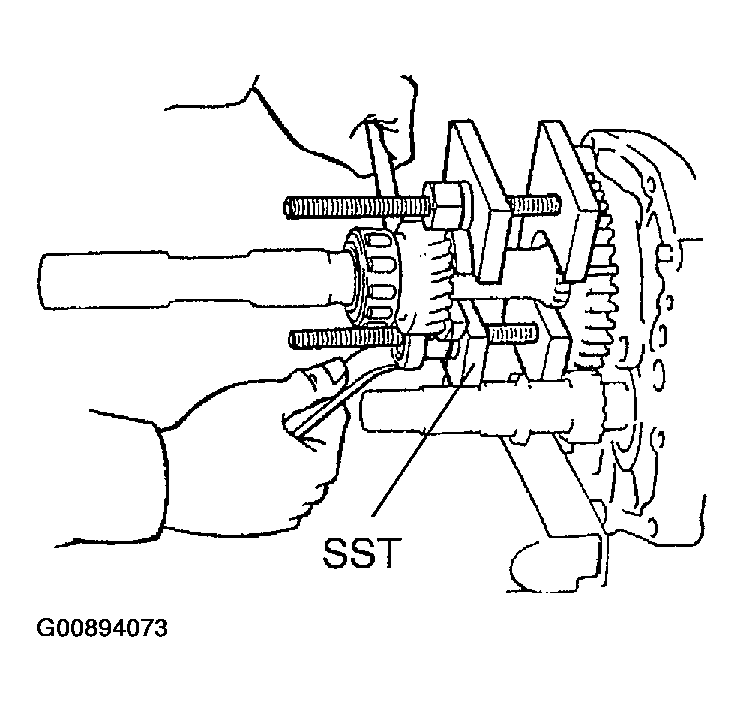

4. Using SST, remove the No. 3 clutch hub.
   1. SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04051, 09957-04010, 09958-04011) 09950-60010 (09951-00200)

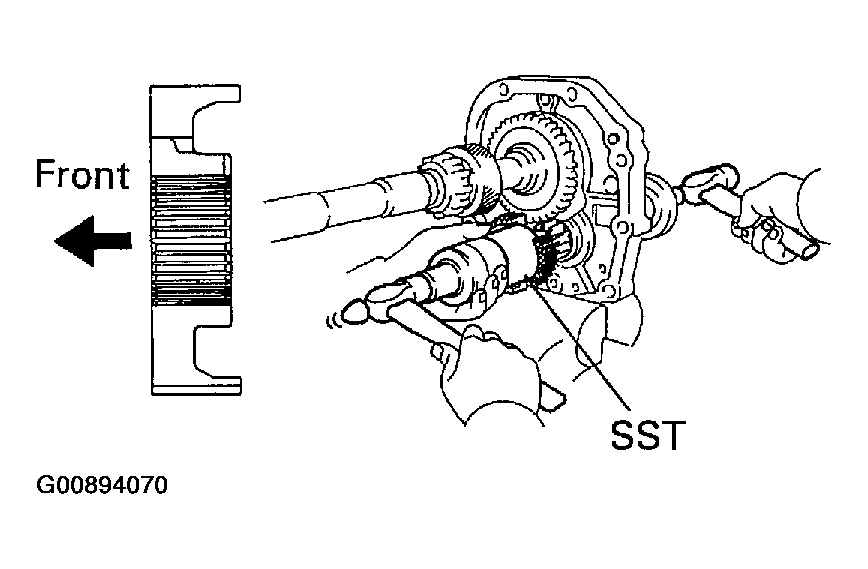

   Fig 25: Removing No. 3 Clutch Hub

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

At the time of installation, please refer to the following items.

• Using SST and a hammer, drive in the No. 3 clutch hub.
  1. SST 09316-60011 (09316-00011, 09316-00071)
• When installing the No. 3 clutch hub, support the counter shaft in front with a 1.4 - 2.3 kg (3 - 5 lb) hammer or equivalent.

1. Using 2 screwdrivers and a hammer, tap out the snap ring.

   HINT:

   At the time of installation, please refer to the following item. Select a snap ring that will allow minimum axial play.

   Fig 27: Removing Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 28: Snap Ring Thickness Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the rear bearing and 5th gear.
   1. SST 09312-20012 (09313-00030, 09313-00040, 09313-00050)
   Fig 29: Removing Rear Bearing & 5th Gear

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

At the time of installation, please refer to the following item. Using SST, install the 5th gear and rear bearing.

1. SST 09312-20012 (09313-00010, 09313-00030, 09313-00040, 09313-00050)

Fig 30: Installing 5th Gear & Rear Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

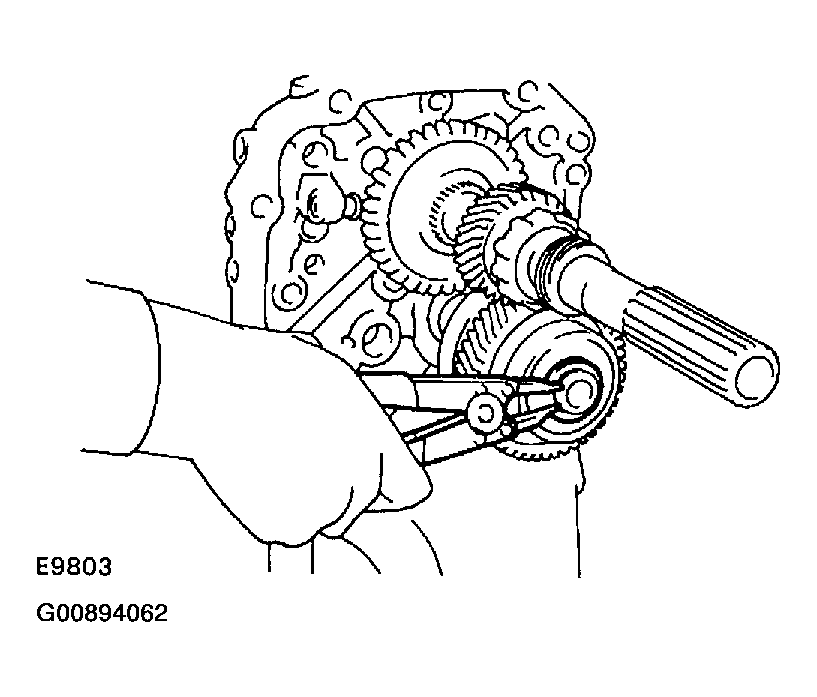

1. Using a snap ring expander, remove the snap ring.
   Fig 31: Removing Reverse Gear Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   At the time of installation, please refer to the following item. Select a snap ring that will allow minimum axial play.

   Fig 32: Snap Ring Thickness Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the reverse gear.
   1. SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04040, 09955-04051, 09958-04011)
   Fig 33: Removing Reverse Gear

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

At the time of installation, please refer to the following item. Using SST, install the reverse gear.

1. SST 09312-20012 (09313-00030, 09313-00040, 09313-00050)
Fig 34: Installing Reverse Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a torx socket wrench (T40), unscrew the 4 torx screws and remove the rear bearing retainer.
   1. Torque: 18.5 N.m (189 kgf.cm, 14 ft.lbf)
2. Using a snap ring expander remove the 2 snap rings.

HINT:

At the time of installation, please refer to the following item. Be sure the snap ring is flush with the intermediate plate surface.

1. Remove the output shaft, input shaft and counter gear as a unit from the intermediate plate by pulling on the counter gear and tapping on the intermediate plate with a plastic hammer.
2. Remove the input shaft from the output shaft.

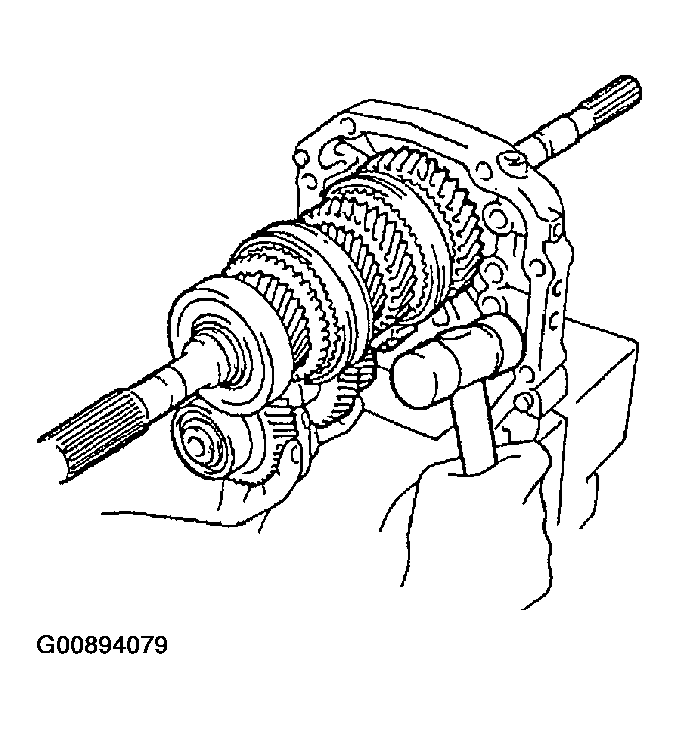

Fig 35: Removing Input Shaft From Output Shaft

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

At the time of installation, please refer to the following items.

• Before installing the output shaft, use SST to remove the counter gear center bearing outer race.
  1. SST 09950-60010 (09951-00510), 09950-70010 (09951-07150)
• Install the outer race after installing the counter gear.
• Install the output shaft into the intermediate plate by pulling on the output shaft and tapping on the intermediate plate.

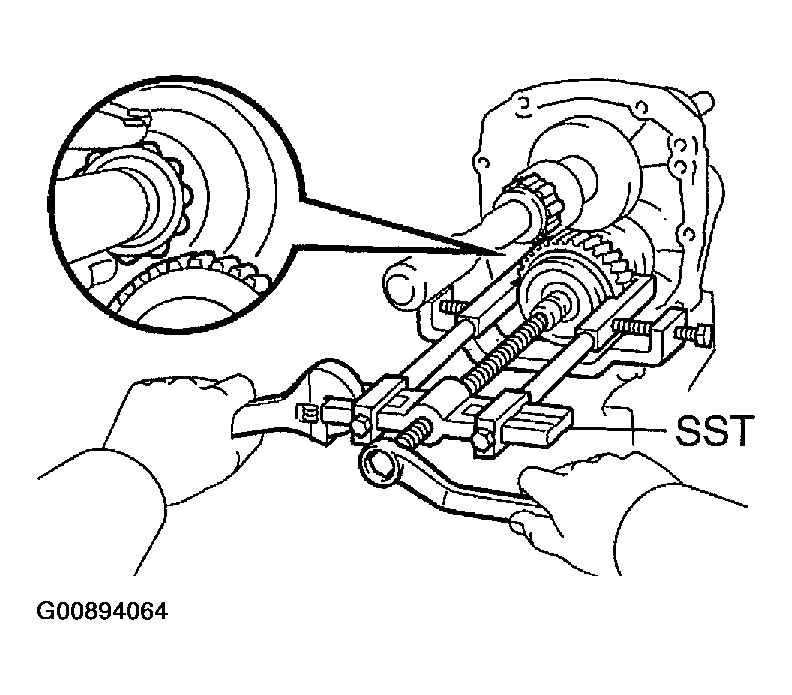

  Fig 36: Removing Counter Gear Center Bearing Outer Race

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  At the time of installation, please refer to the following items.

• Apply gear oil to the needle roller bearing.
• Install the needle roller bearing to the input shaft.
• Install the input shaft and counter gear together.
• Using SST and a hammer, install the counter gear center bearing outer race.
  1. SST 09316-60011 (09316-00011)
• Be careful not to damage the bearing rollers.

Fig 37: Installing Counter Gear Center Bearing Outer Race

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
