Engine Control Module

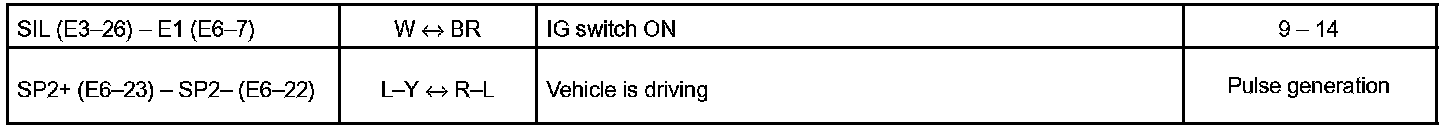

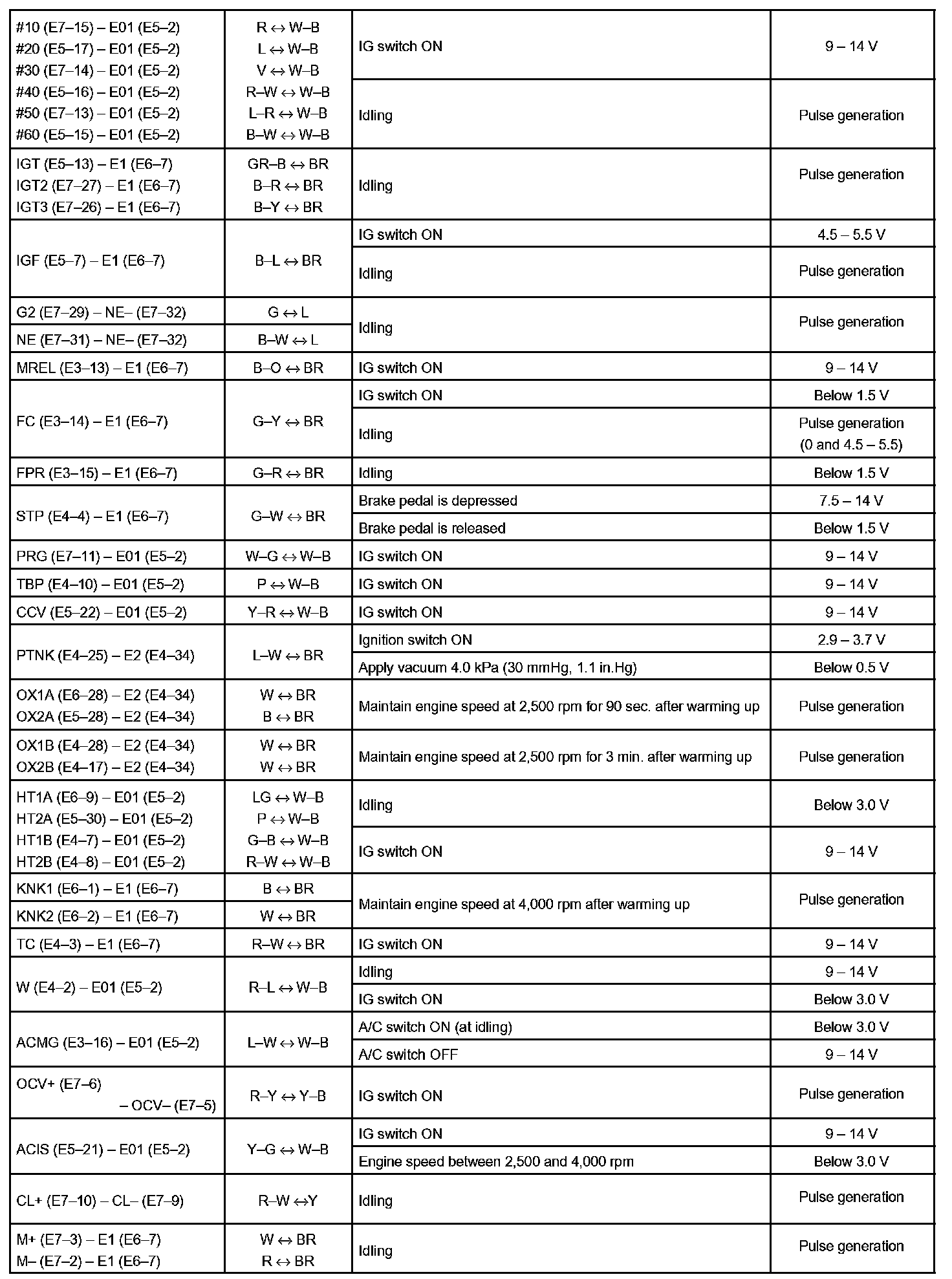

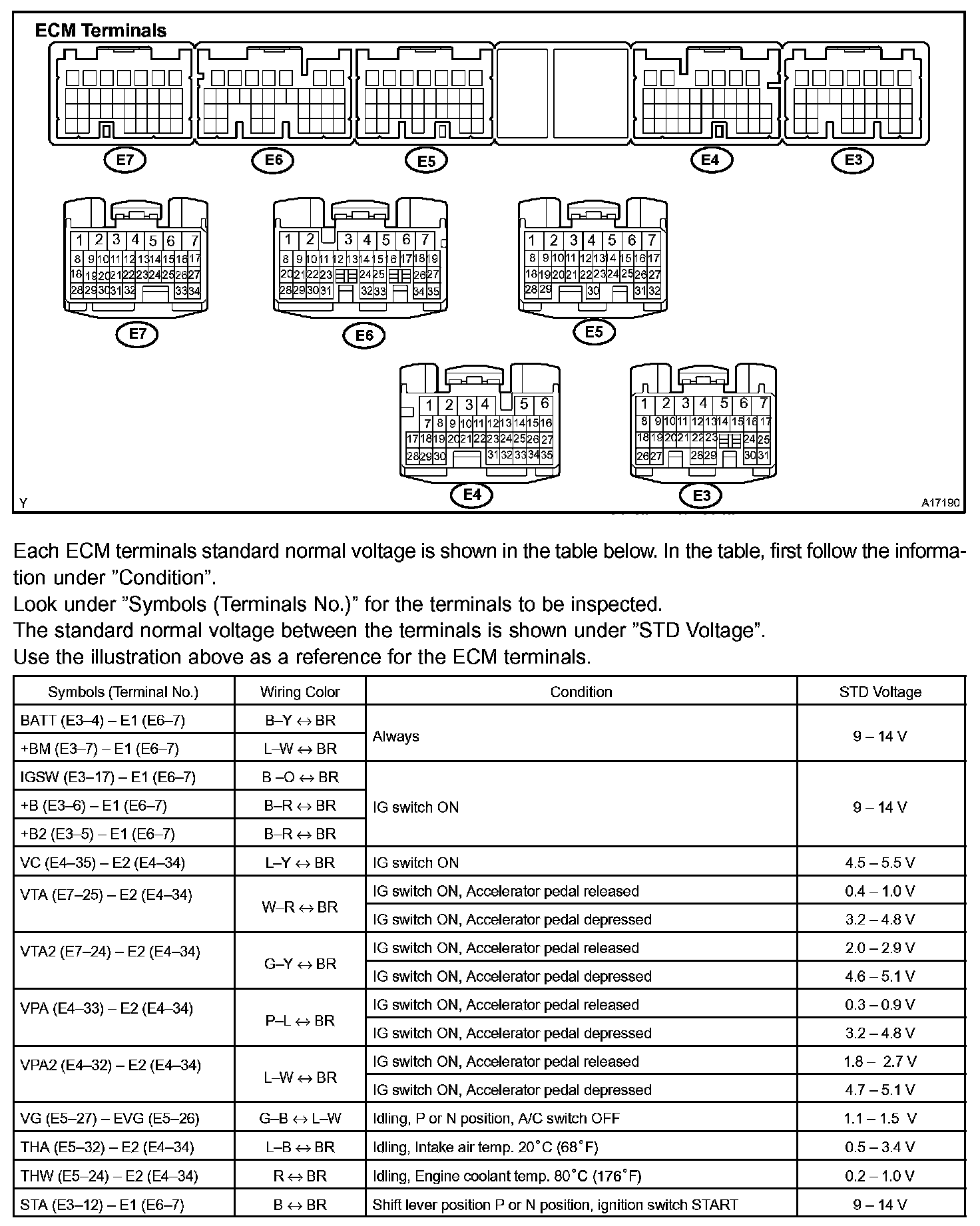

Terminals Of ECM/Pinouts Part 1:
Terminals Of ECM/Pinouts Part 2:
Terminals Of ECM/Pinouts Part 3:
