Specifications & Procedures: Specifications

Use illustrations for wheel alignment specifications. See Fig 1-Fig 3 .

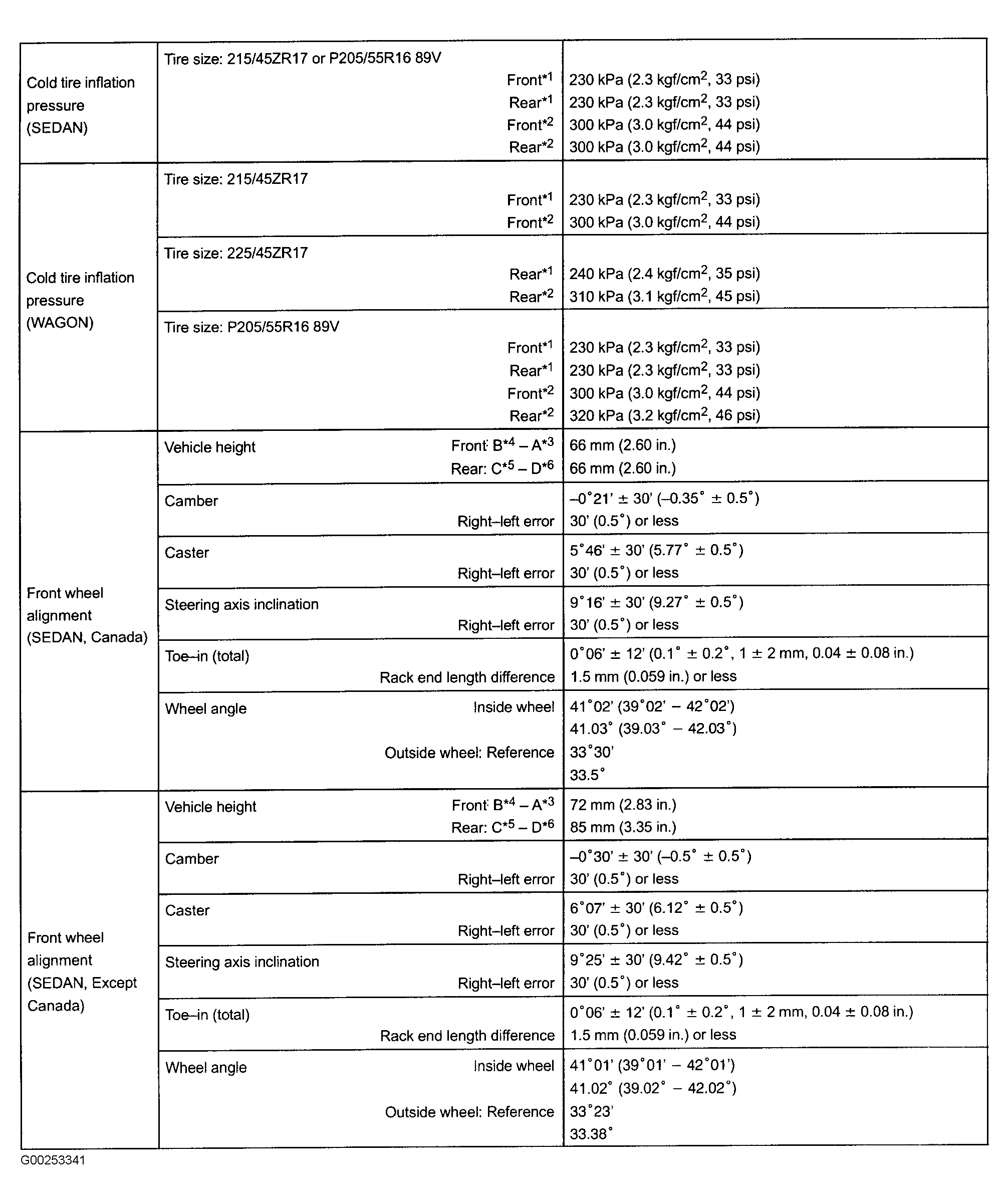

Fig 1: Front & Rear Wheel Alignment Specifications (IS 300 - 1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front & Rear Wheel Alignment Specifications (IS 300 - 2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Front & Rear Wheel Alignment Specifications (IS300 - 3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
