On-Vehicle Repair

  1. REMOVE NO. 1 AND NO. 2 ENGINE UNDER COVERS
  2. REMOVE LH FRONT FLOOR CENTER COVER
  3. REMOVE NO. 1 REAR FLOOR BOARD
  4. DISCONNECT VEHICLE SPEED SENSOR CONNECTOR.

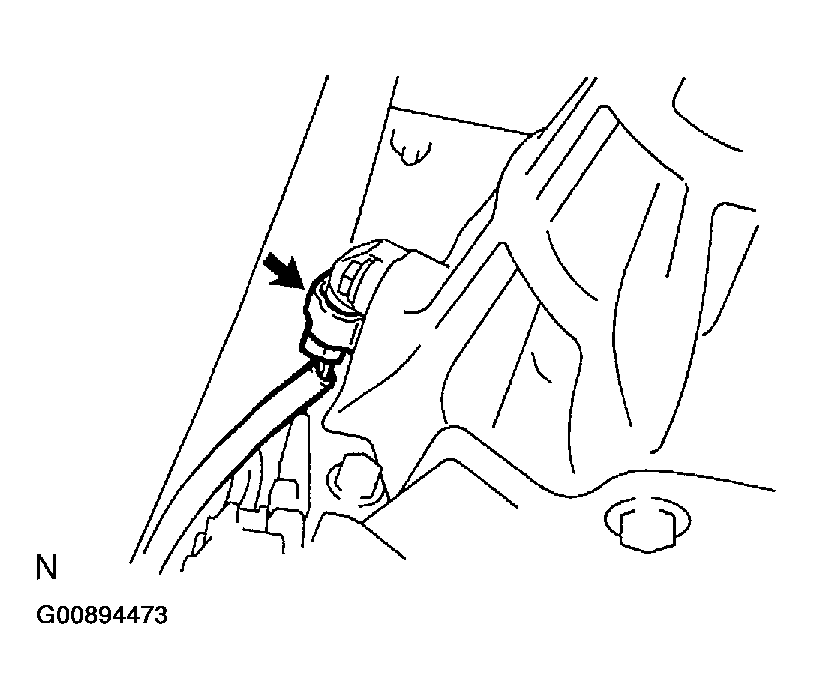

    5. Fig 1: Disconnecting Vehicle Speed Sensor Connector
    G00894473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE VEHICLE SPEED SENSOR
    1. Remove the bolt and vehicle speed sensor.
    2. Remove the O-ring from the vehicle speed sensor.
  6. INSTALL VEHICLE SPEED SENSOR
    1. Coat a new O-ring with ATF and install it to the vehicle speed sensor.
    2. Install the vehicle speed sensor to the extension housing and torque the bolt.
      1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
  7. INSTALL NO. 1 REAR FLOOR BOARD
  8. INSTALL LH FRONT FLOOR CENTER COVER
  9. INSTALL NO. 1 AND NO. 2 ENGINE UNDER COVERS
