Navigation Module: Testing and Inspection

TERMINALS OF ECU

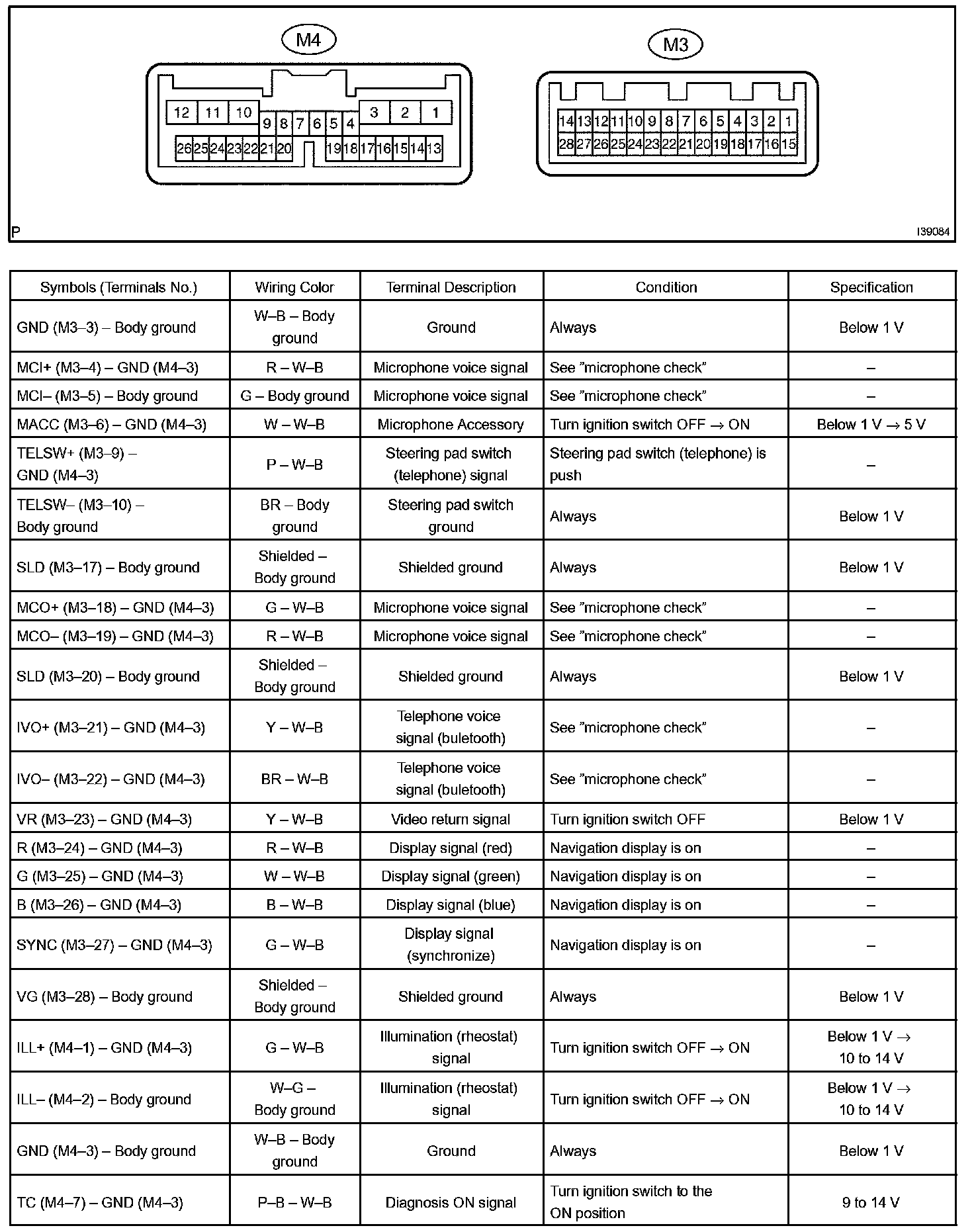

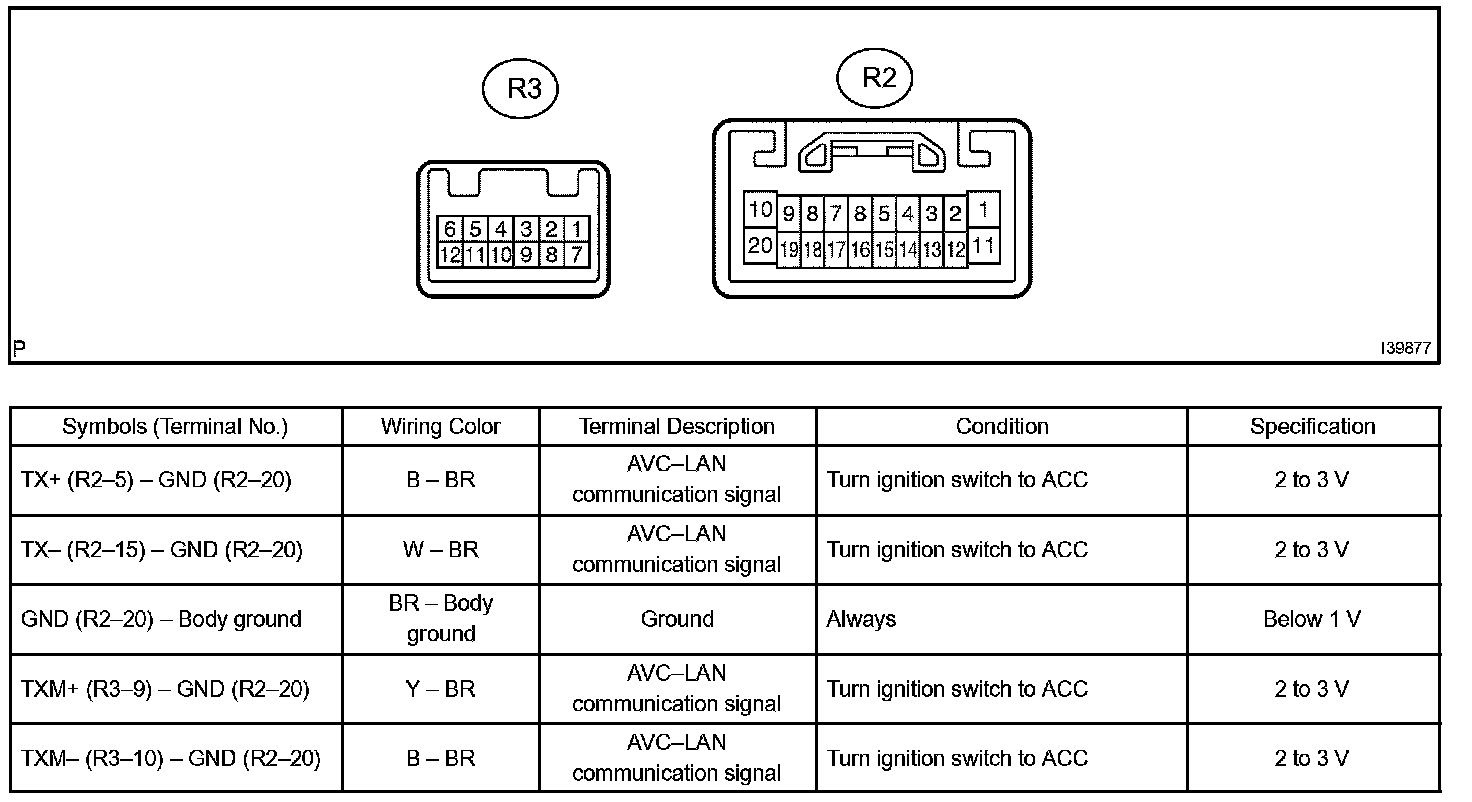

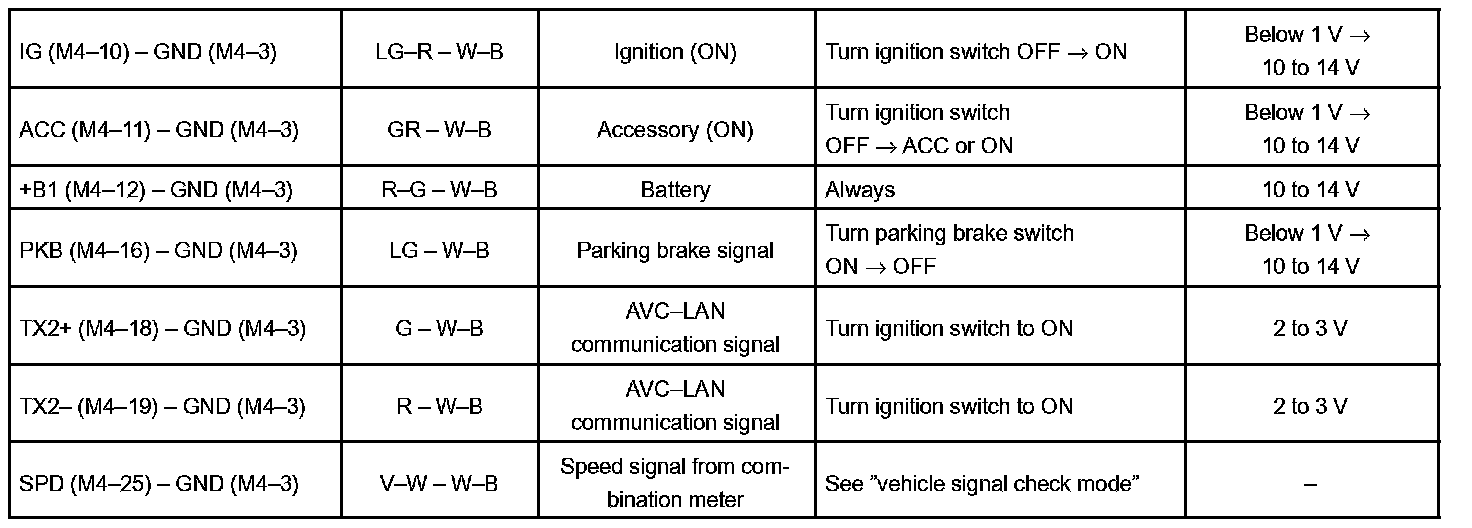

Terminals Of ECU / Pinouts - Multi-Display Assy Part 1:

Terminals Of ECU / Pinouts - Multi-Display Assy Part 2:

1. MULTI-DISPLAY ASSY:

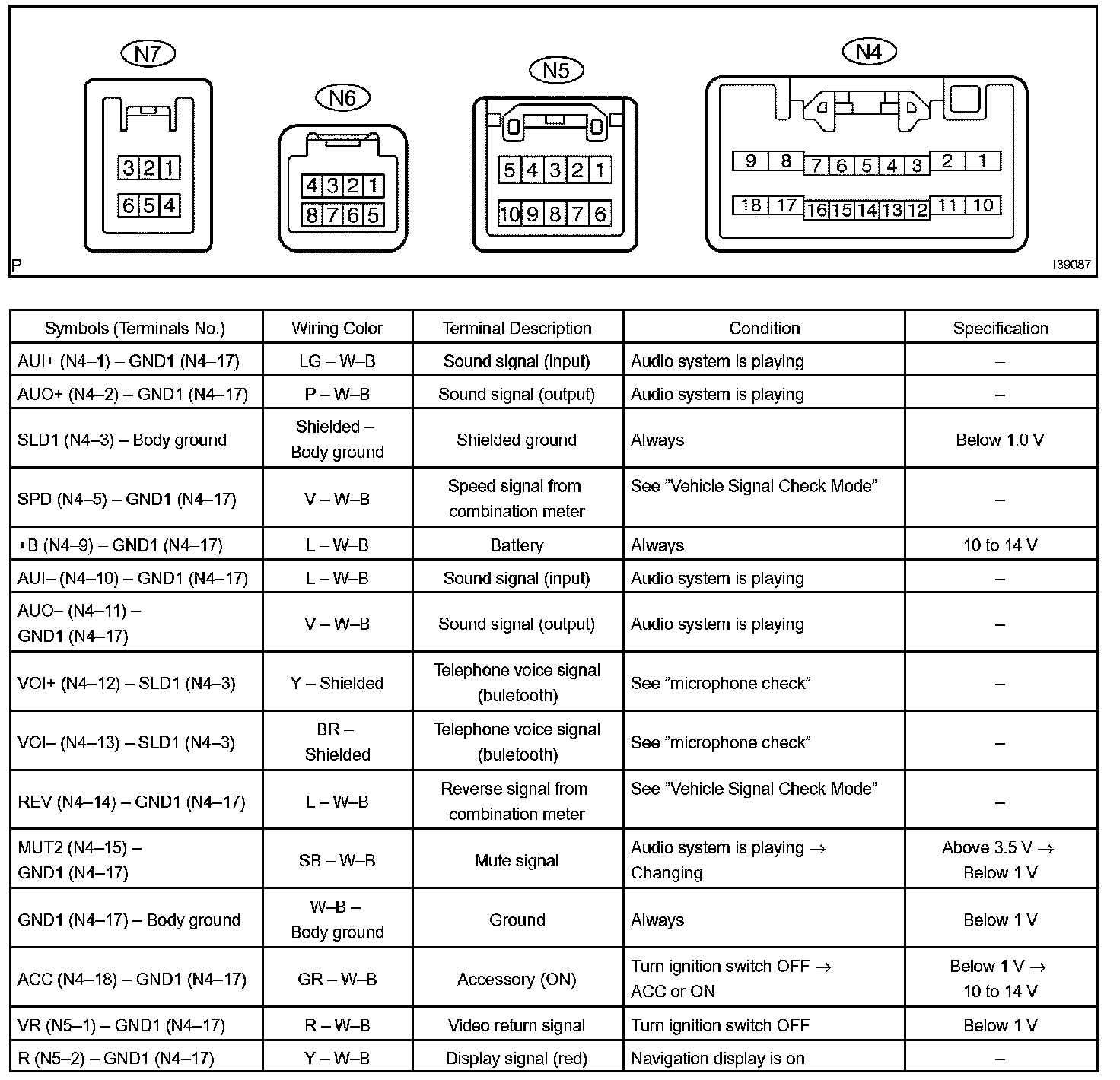

Terminals Of ECU / Pinouts - Navigation ECU Part 1:

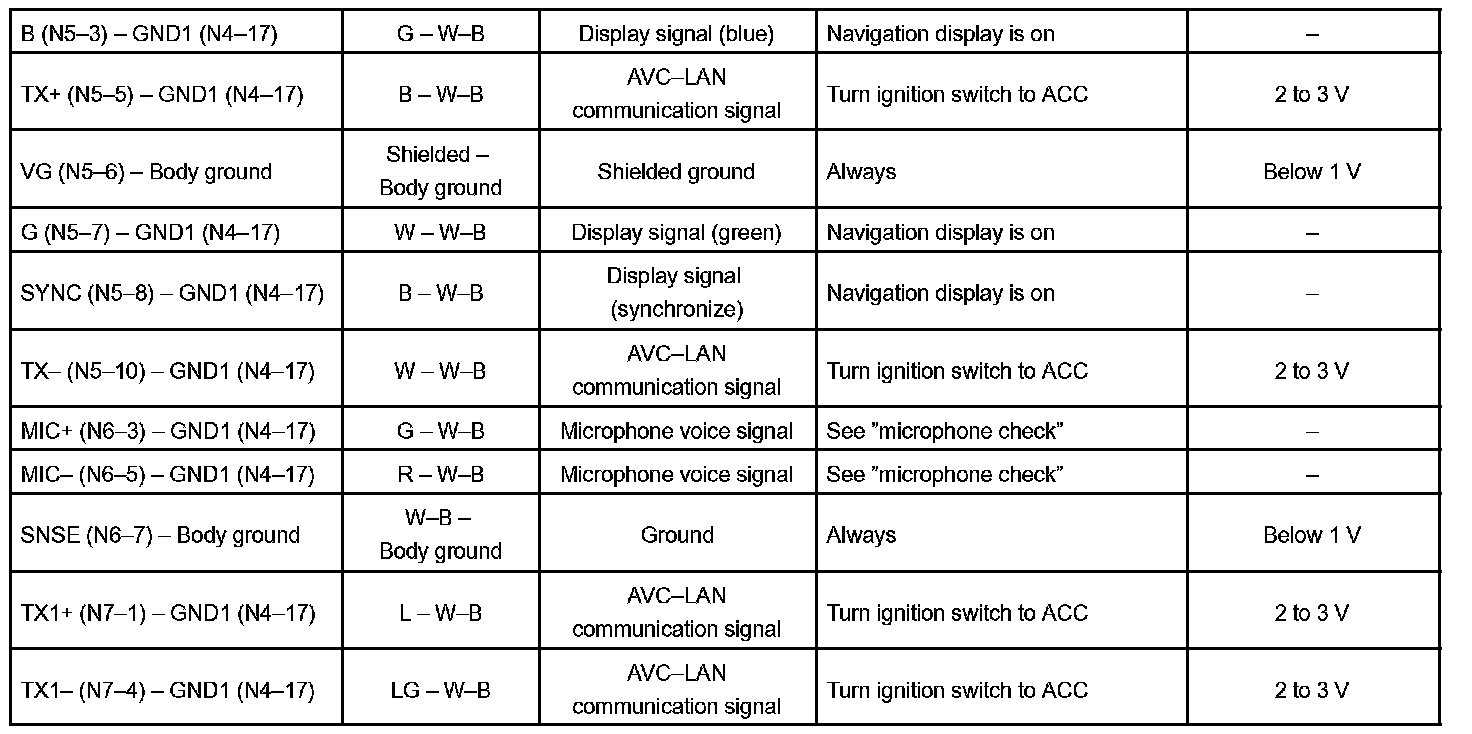

Terminals Of ECU / Pinouts - Navigation ECU Part 2:

2. NAVIGATION ECU:

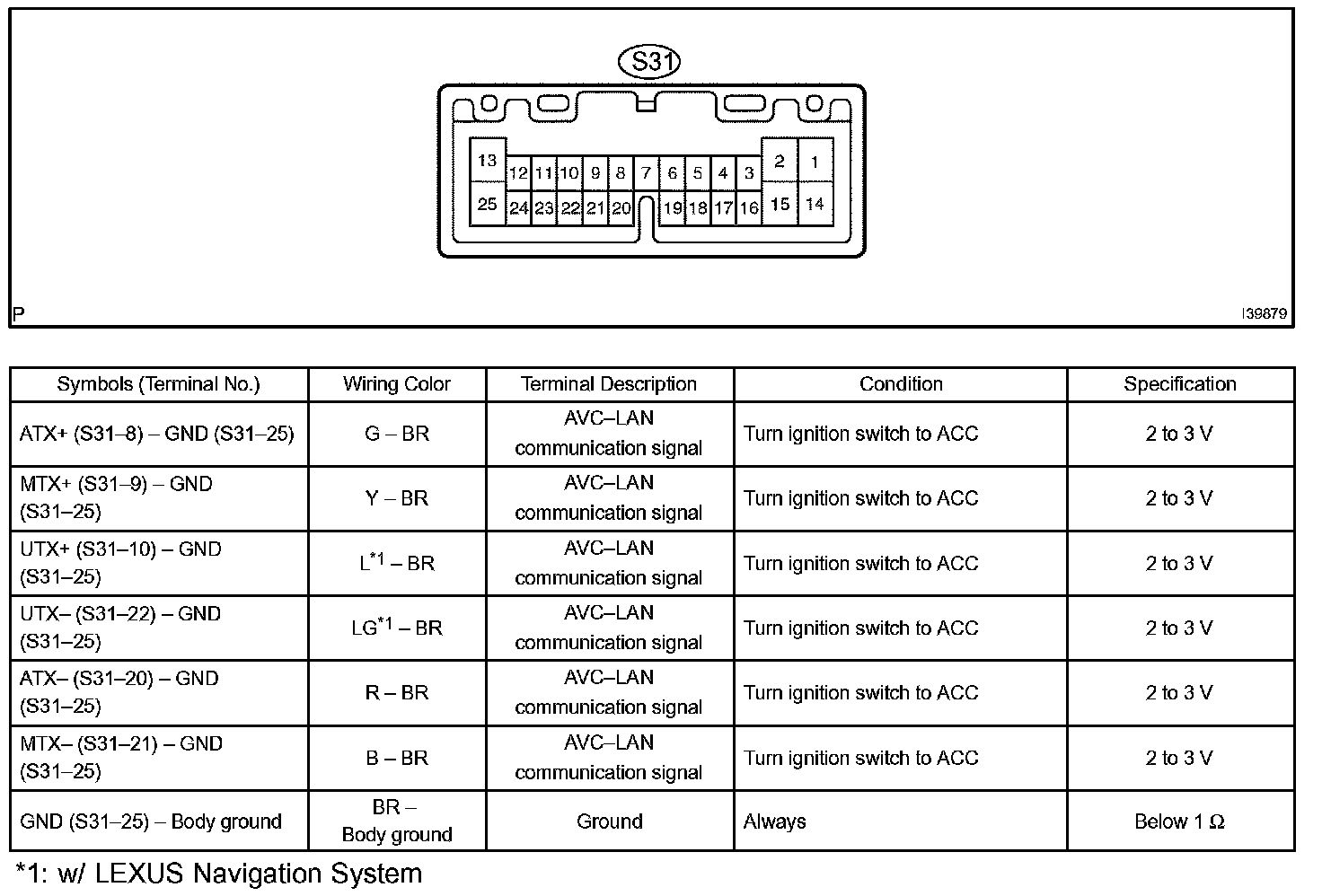

Terminals Of ECU / Pinouts - Radio Receiver Assy:

3. RADIO RECEIVER ASSY:

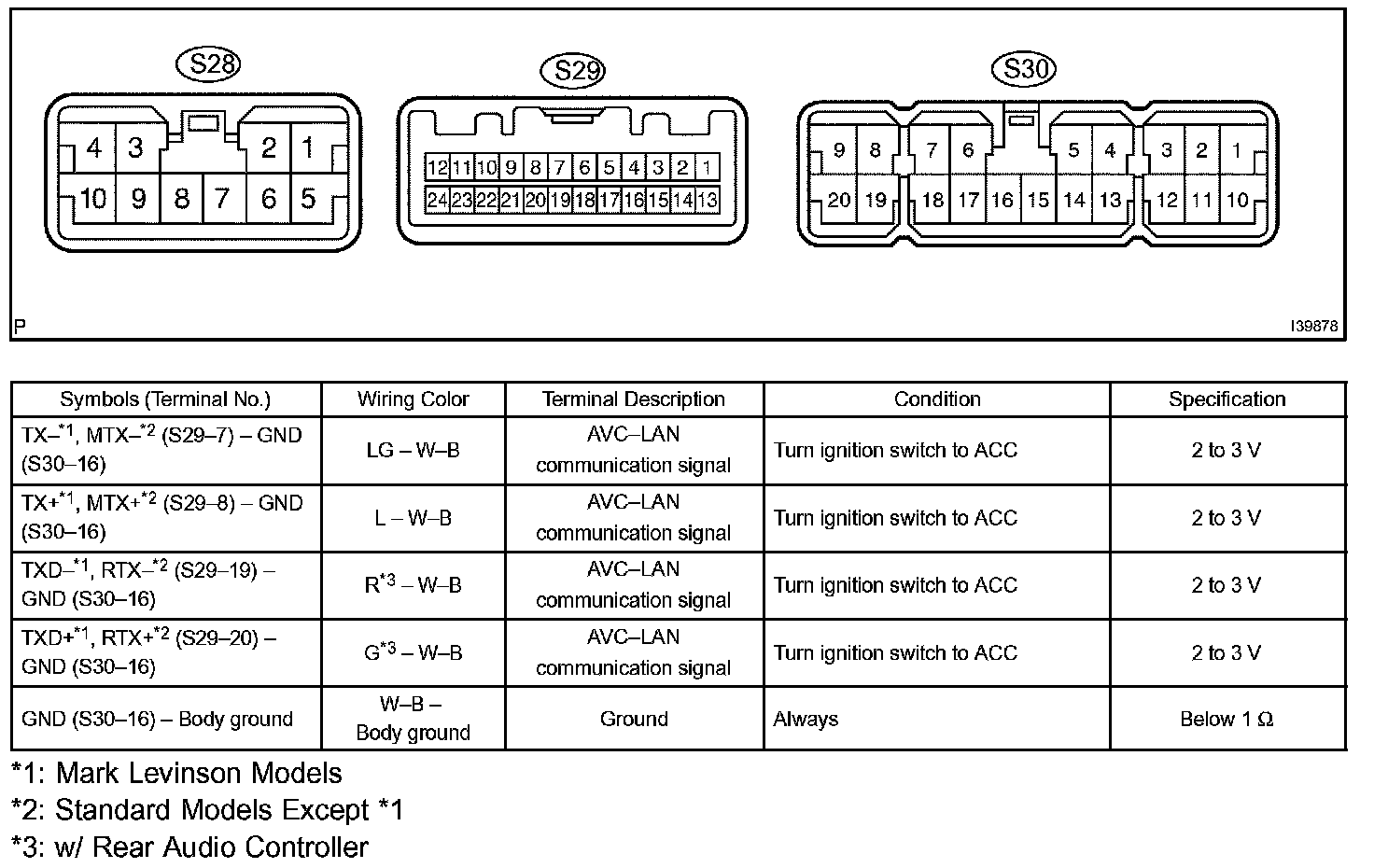

Terminals Of ECU / Pinouts - Stereo Component Amplifier Assy:

4. STEREO COMPONENT AMPLIFIER ASSY:

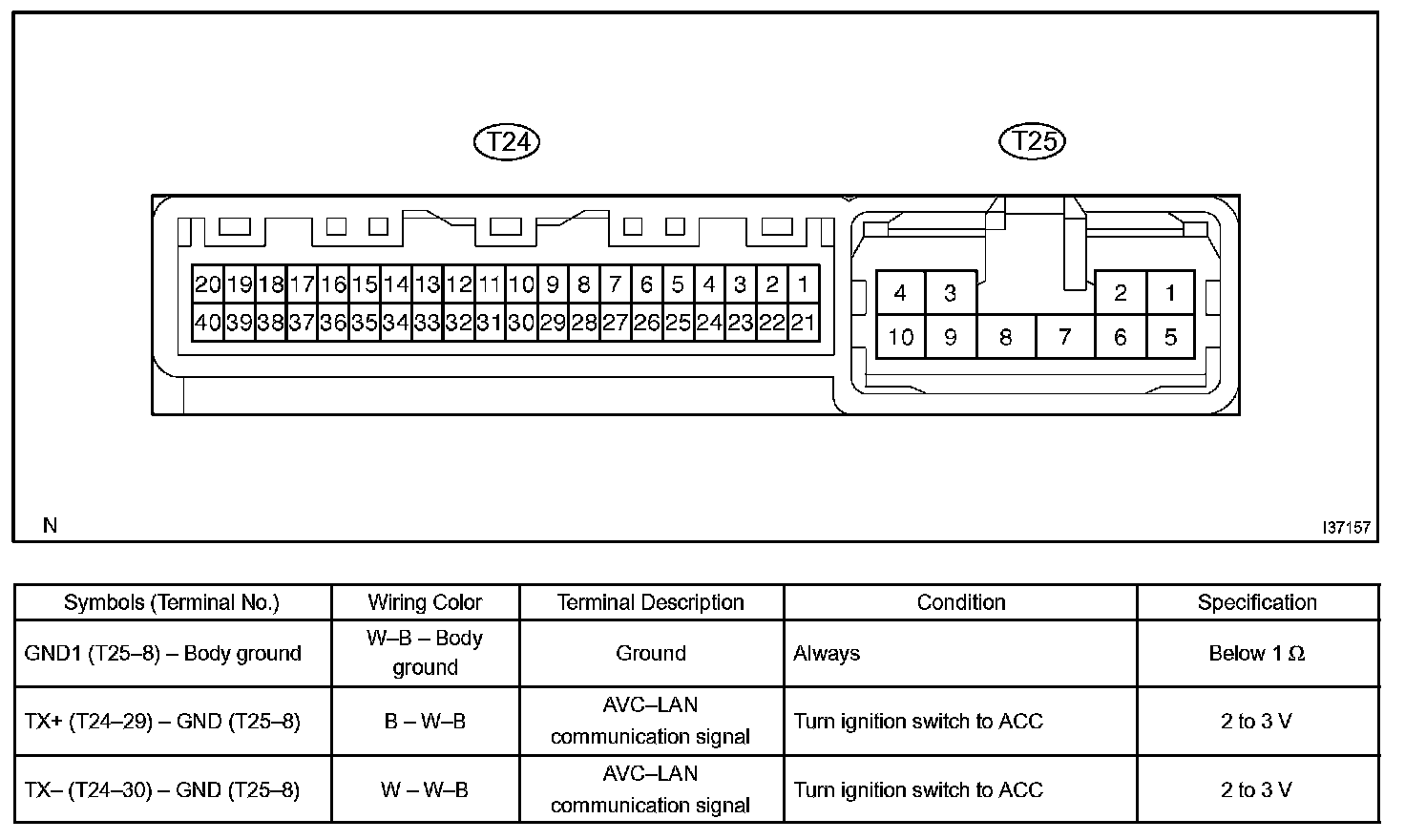

Terminals Of ECU / Pinouts - Stereo Component Tuner:

5. STEREO COMPONENT TUNER:

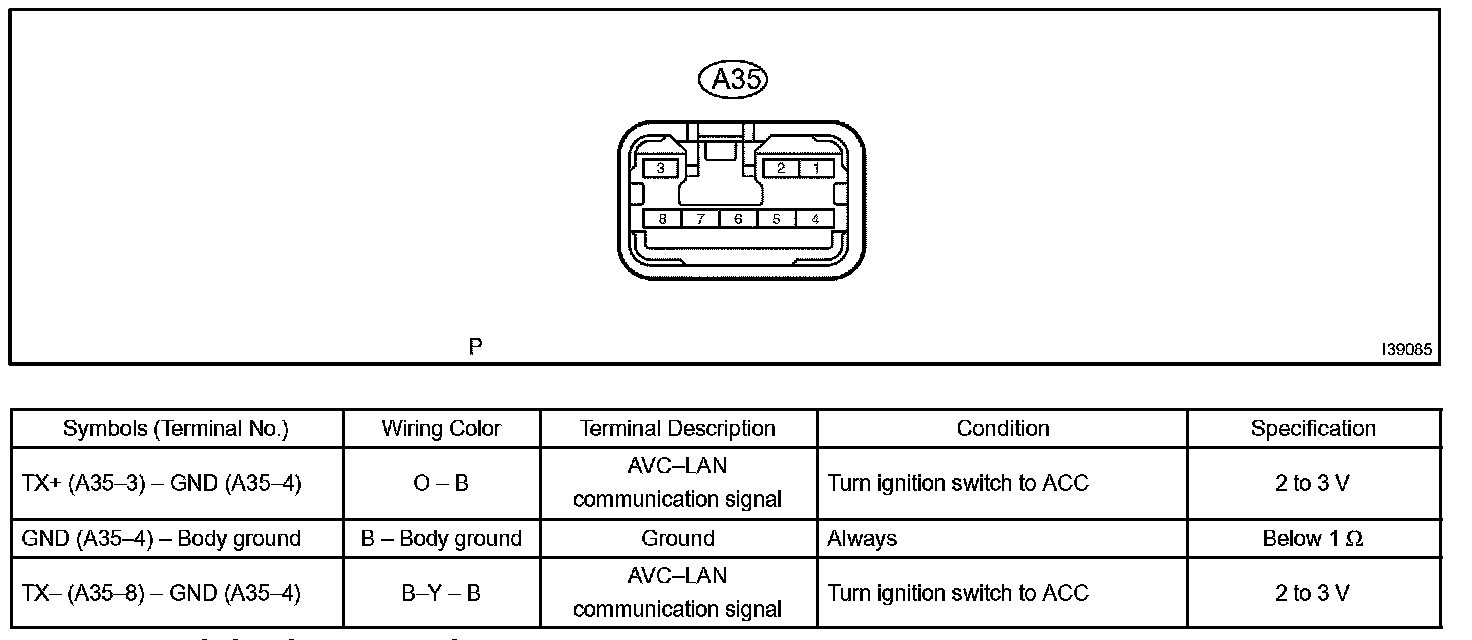

Terminals Of ECU / Pinouts - Audio And Rear A/C Control SW:

6. AUDIO AND REAR A/C CONTROL SW:

Terminals Of ECU / Pinouts - Televsion Camera ECU:

7. TELEVISION CAMERA ECU:

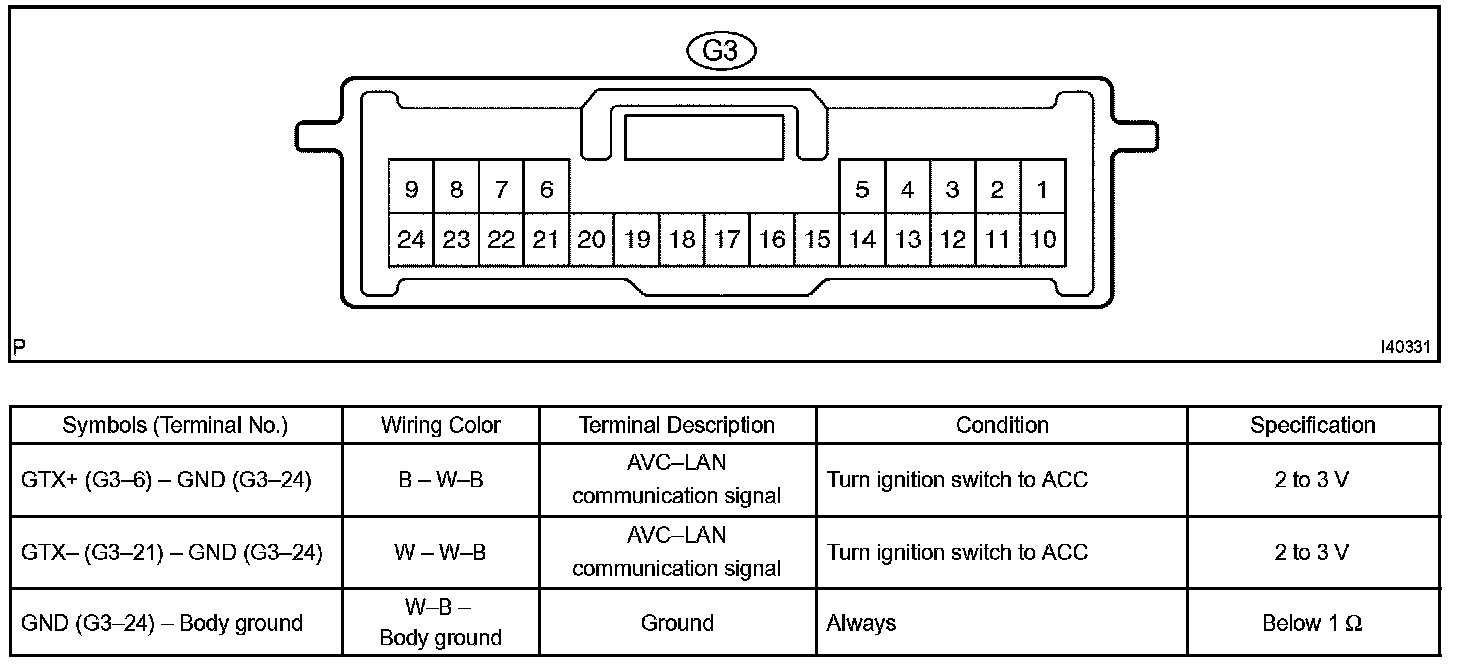

Terminals Of ECU / Pinouts - Gateway ECU:

8. GATEWAY ECU:
