Power Seat Control Module: Locations

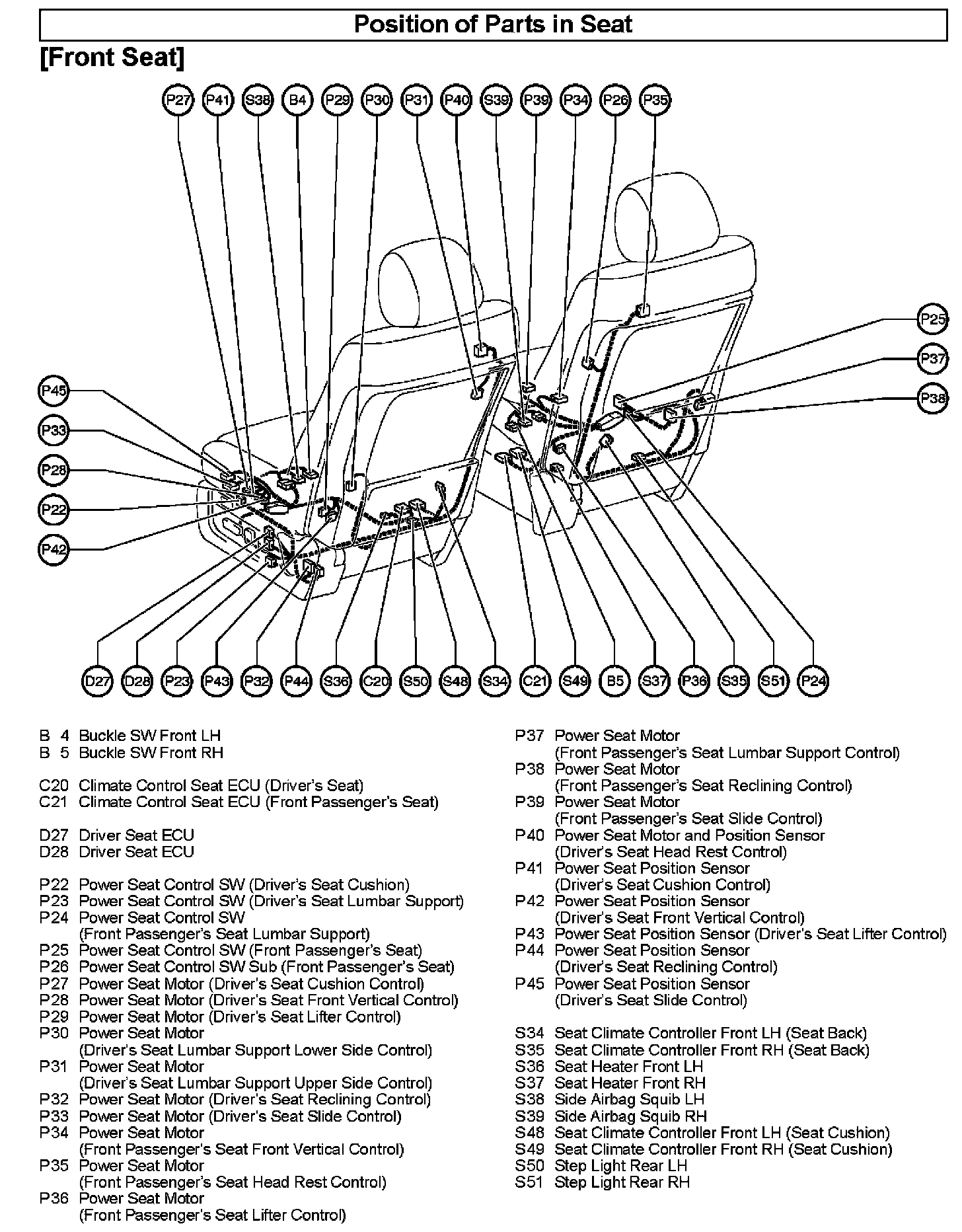

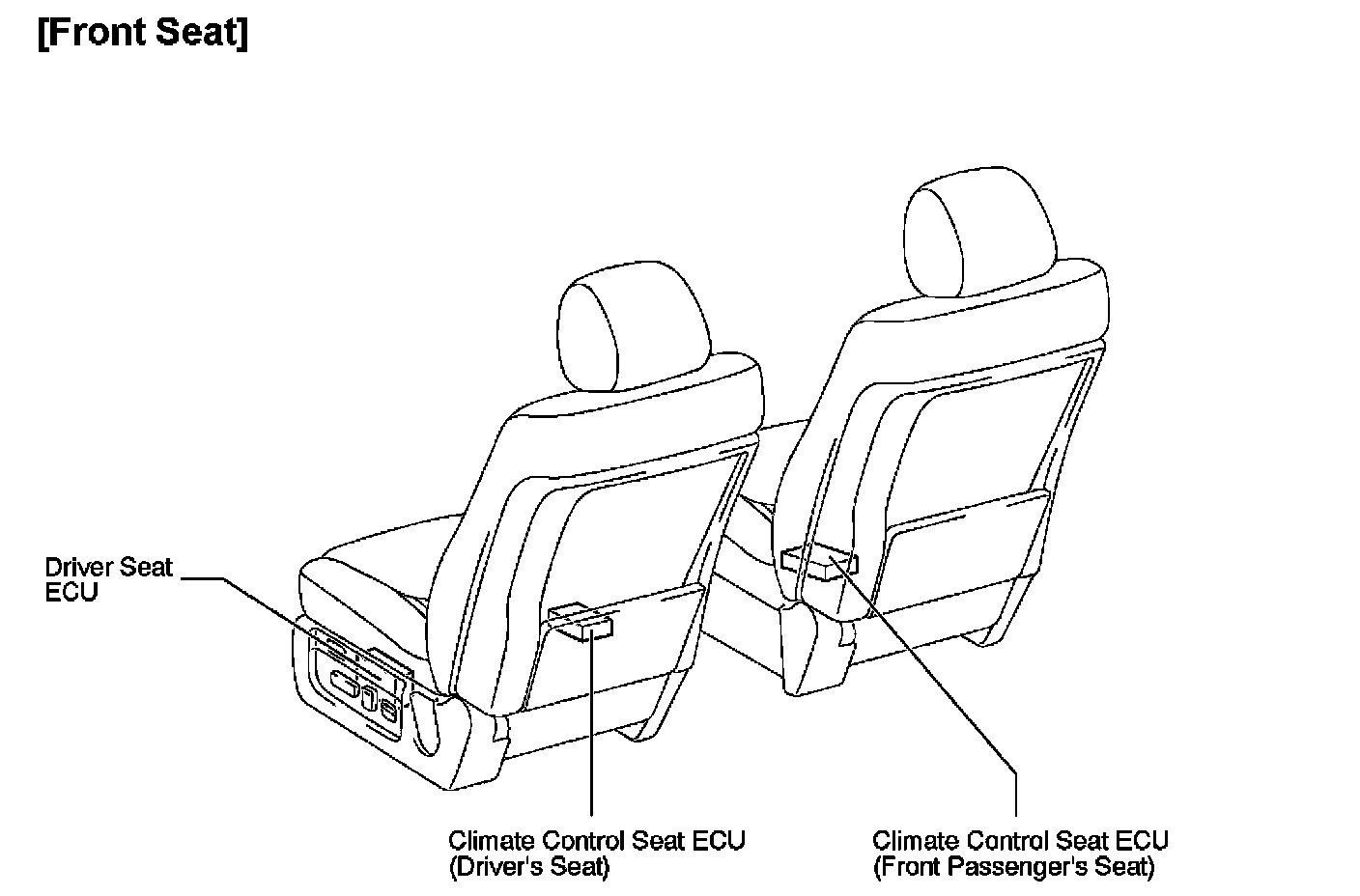

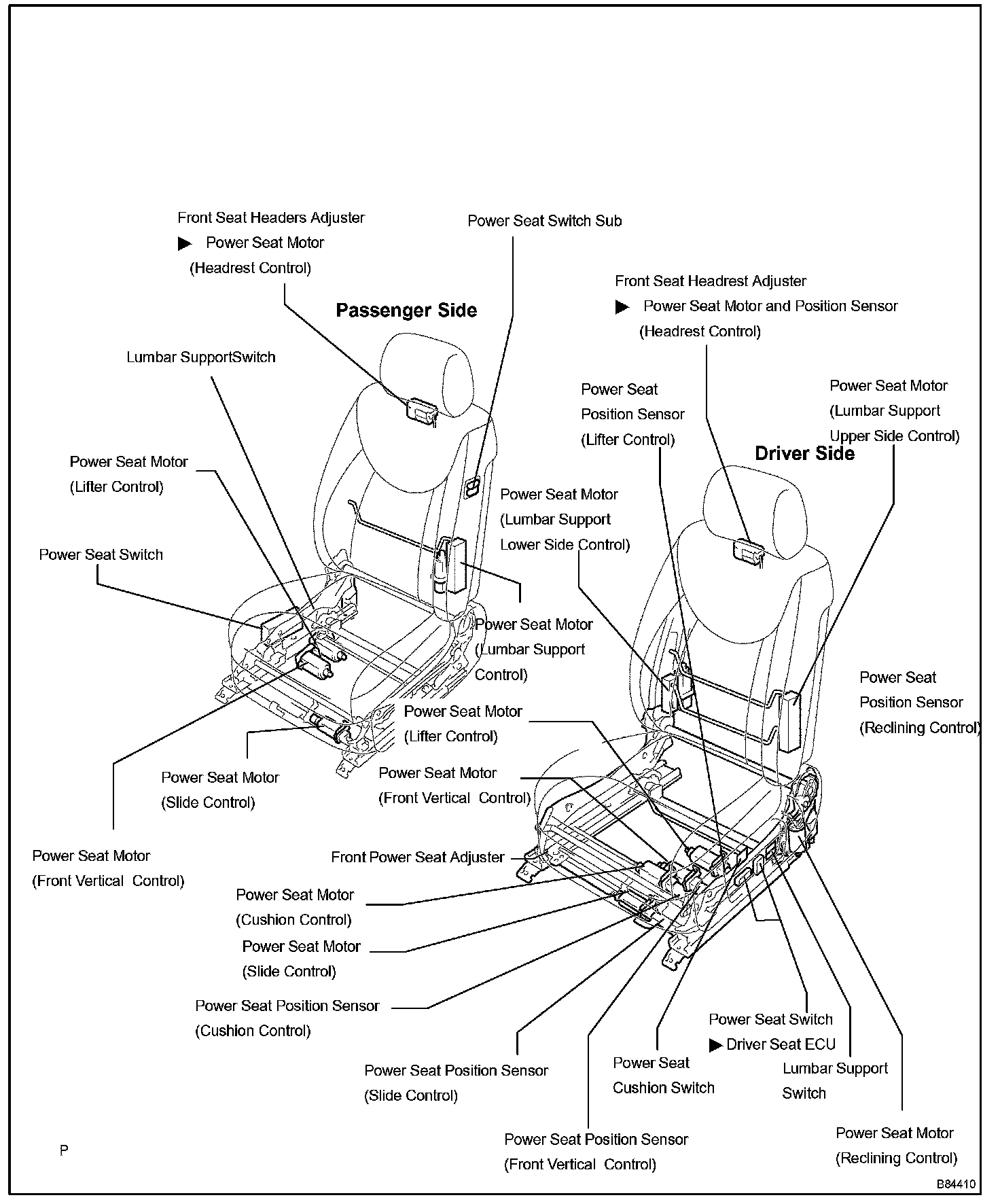

Front Seat:

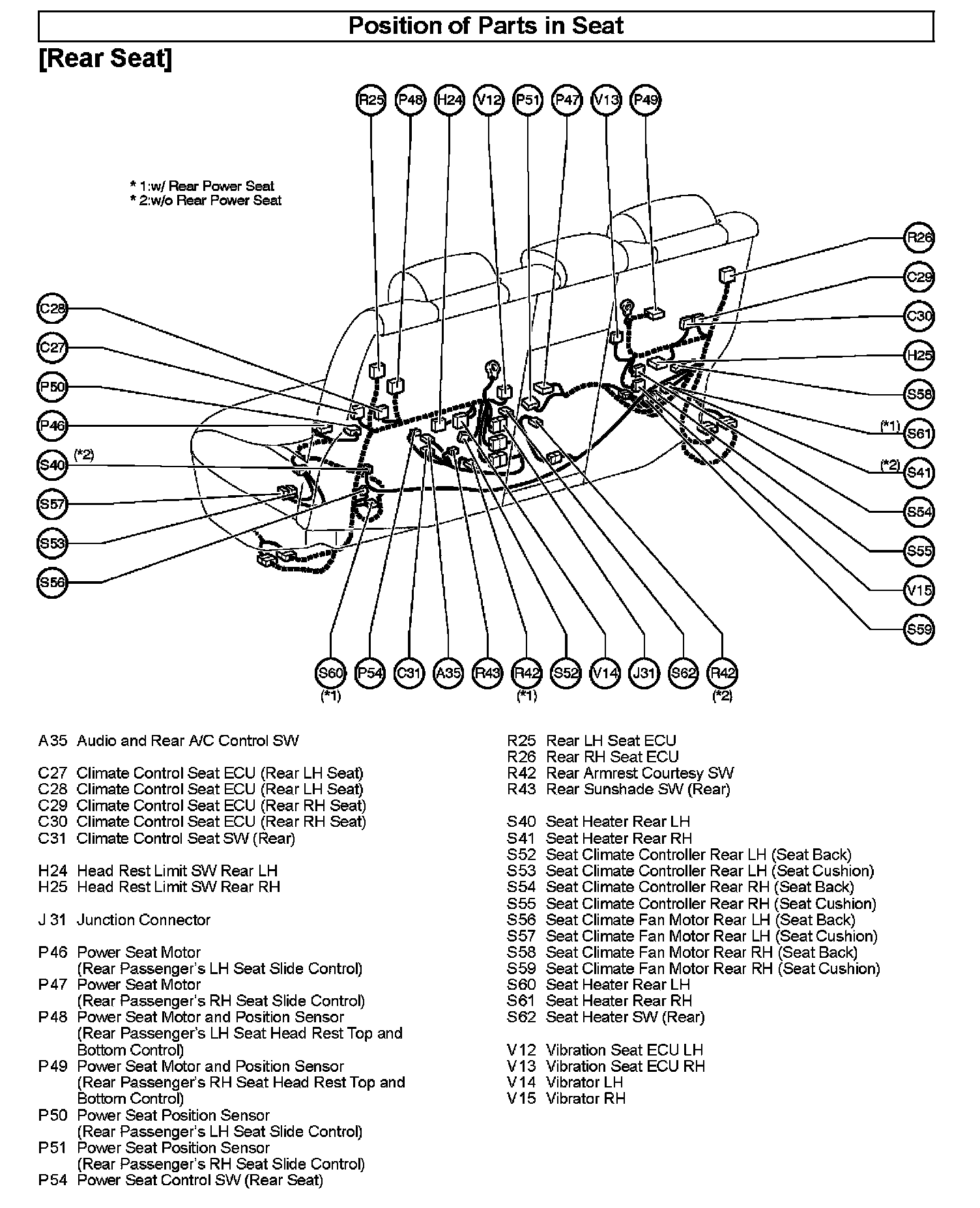

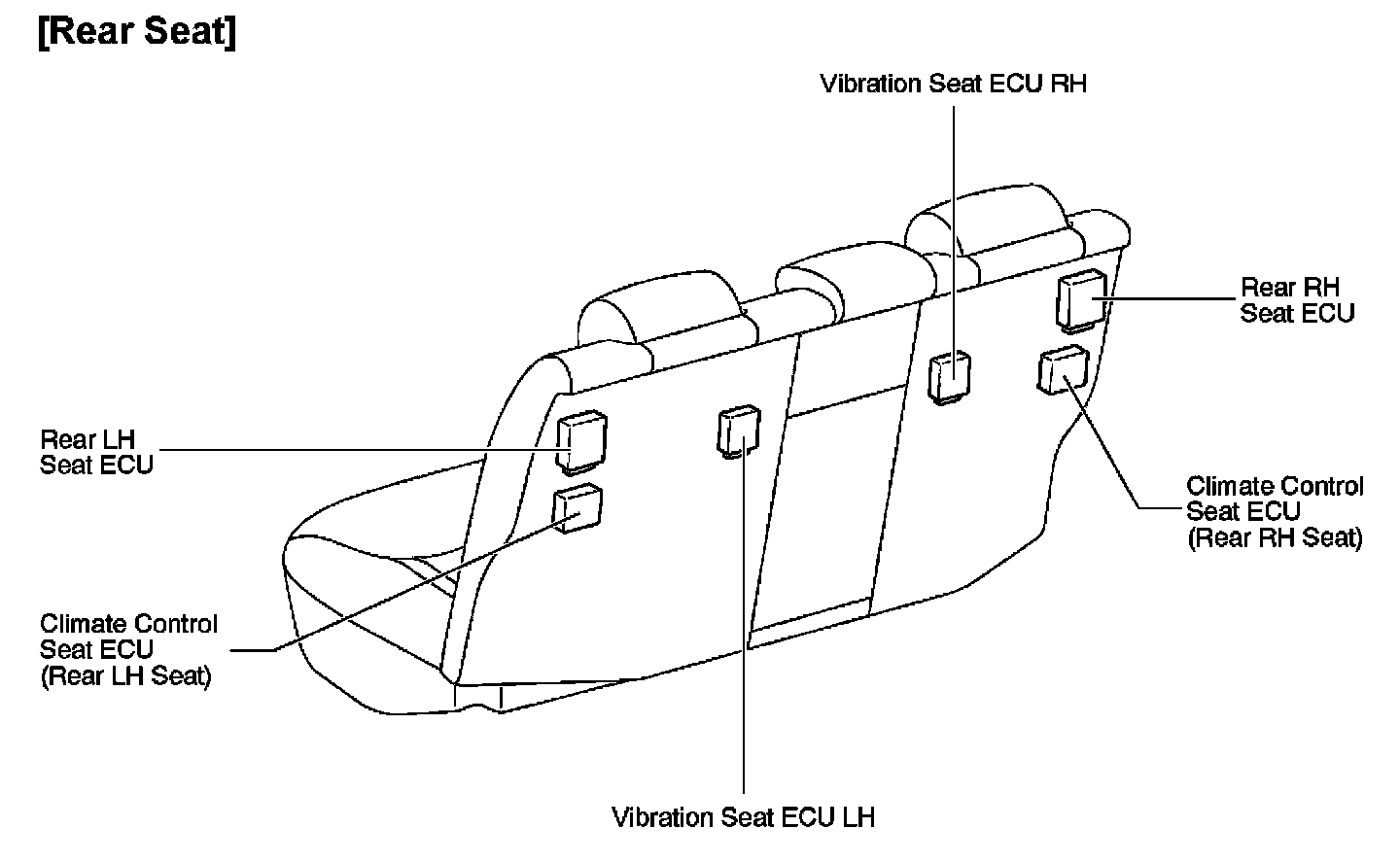

Rear Seat:

Bu - St:

Au - Vi:

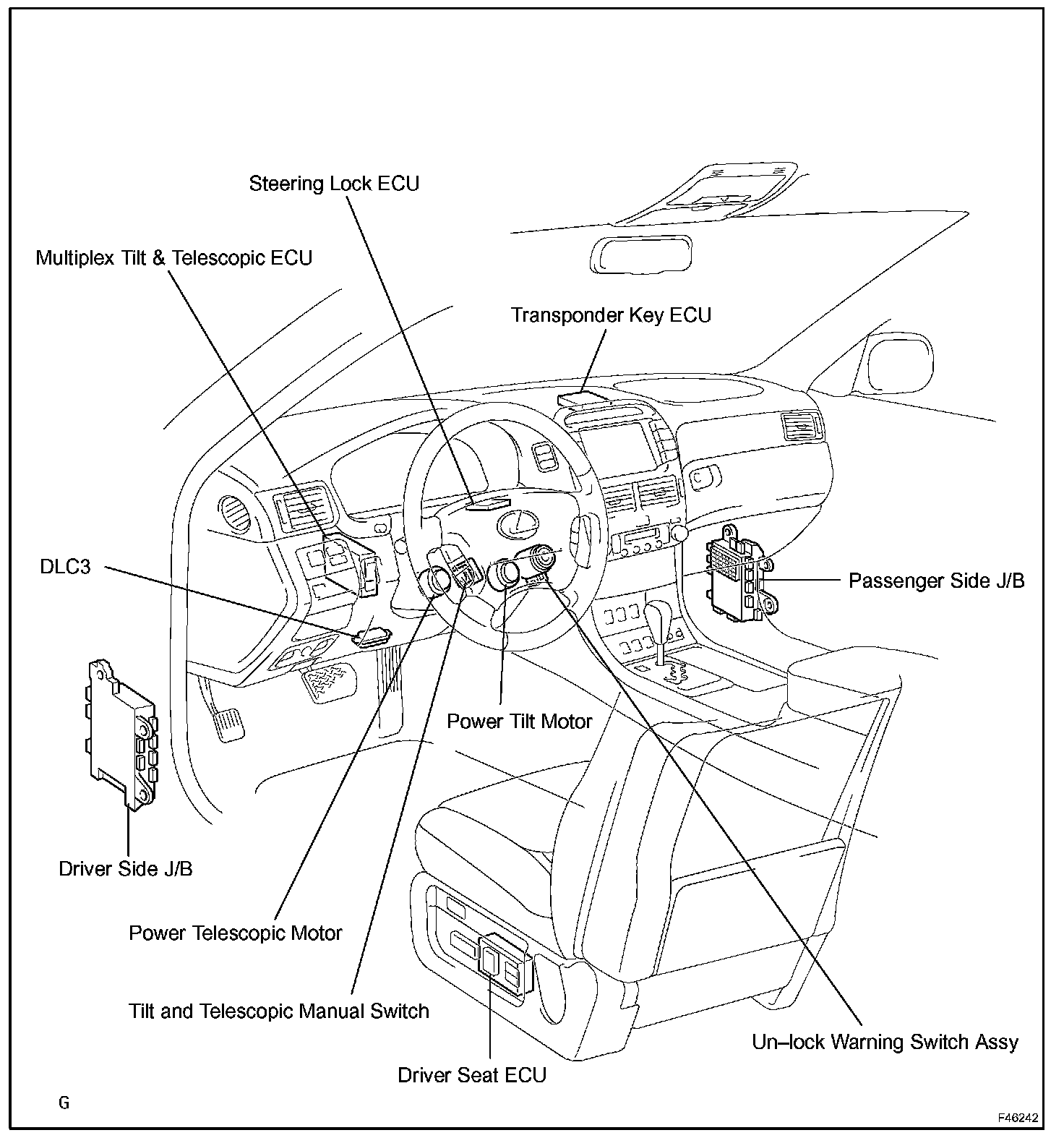

Power Tilt And Power Telescopic Steering Column:

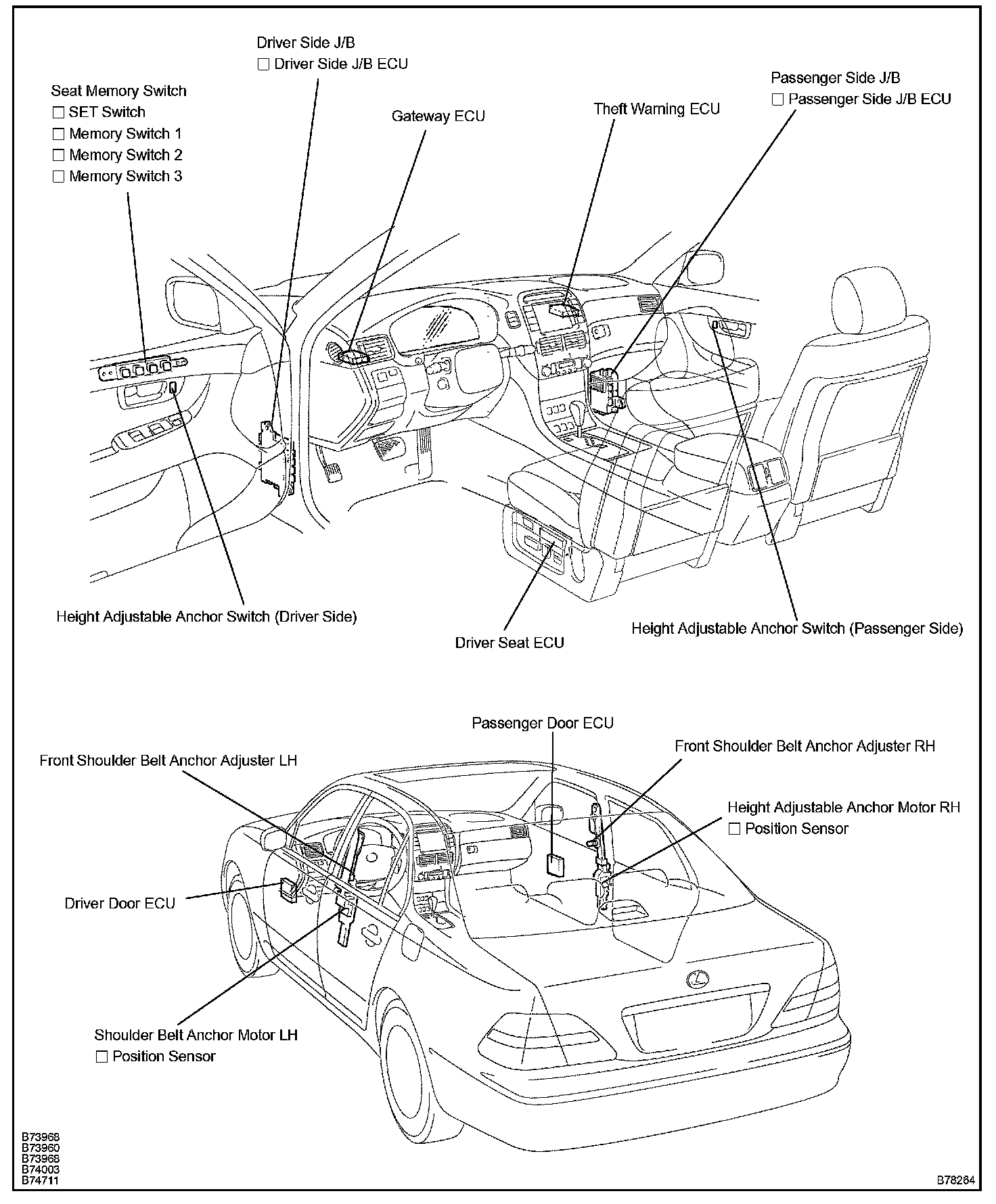

Power Shoulder Belt Anchorage System:

Front Wiper Seat Control System:

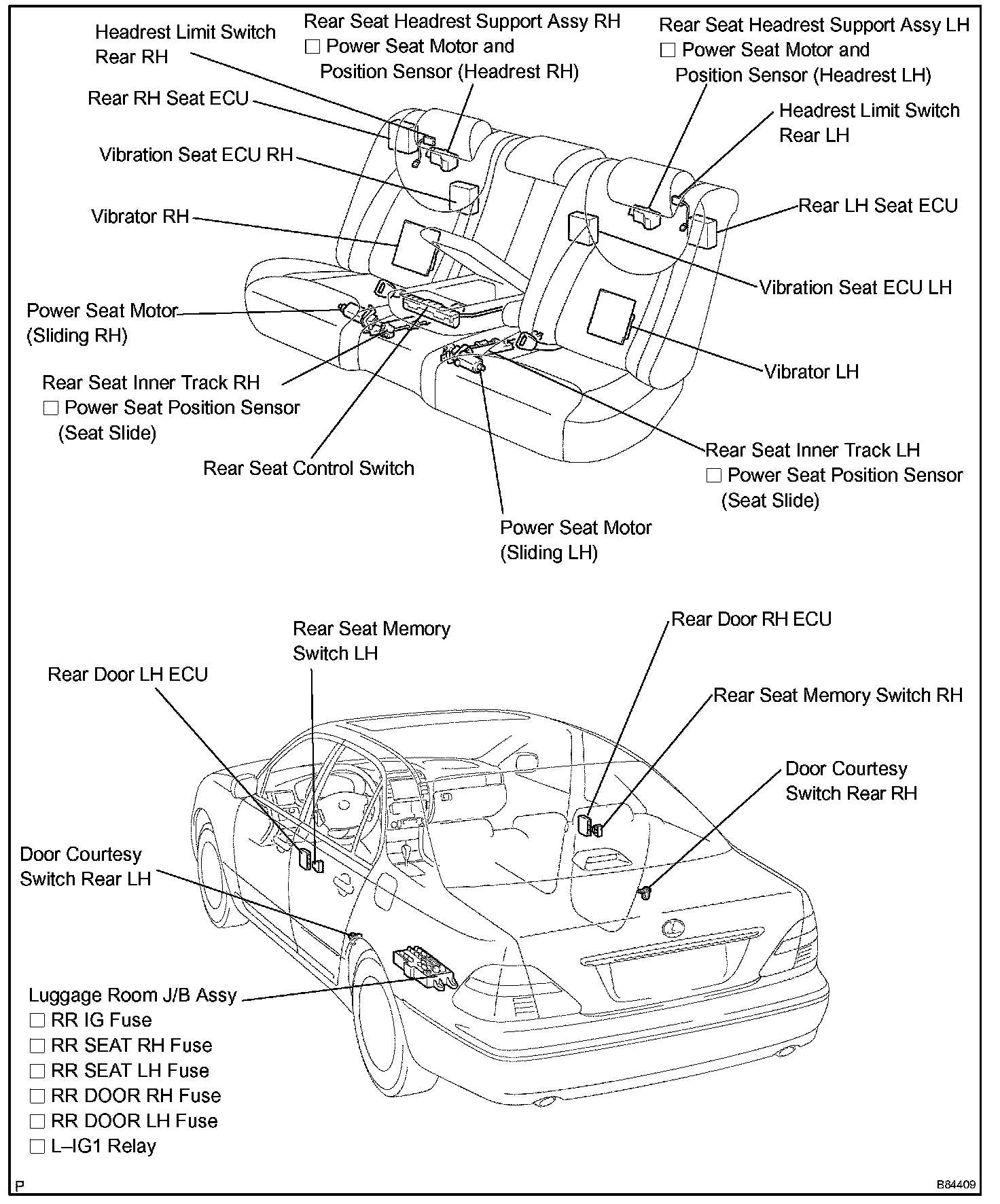

Rear Power Seat Control System:

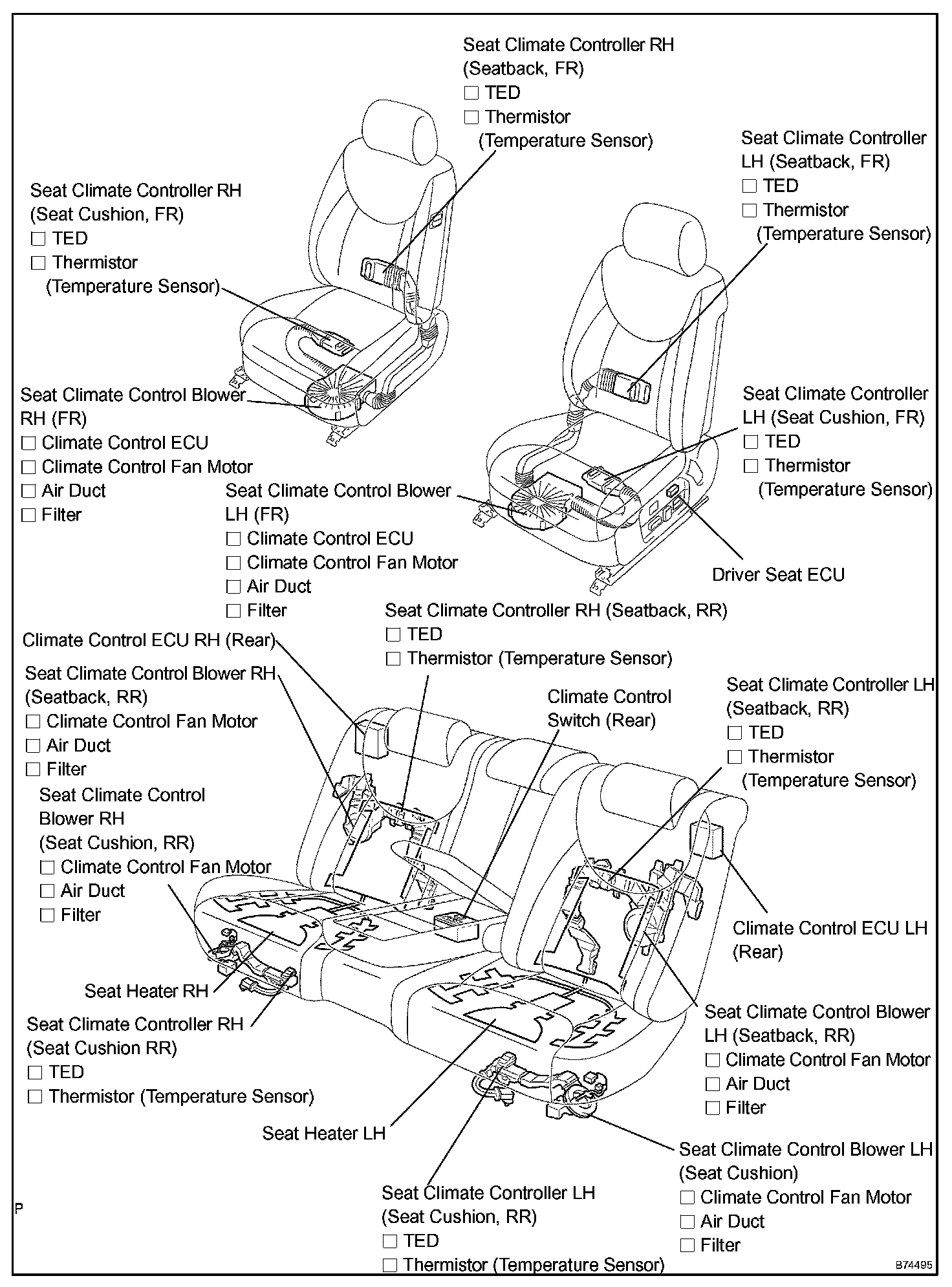

Climate Control Seat System:
