Data List

DATA LIST












HINT: Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other items to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

a. Connect the hand-held tester (with CAN VIM) to the DLC3.
b. Turn the ignition switch ON.

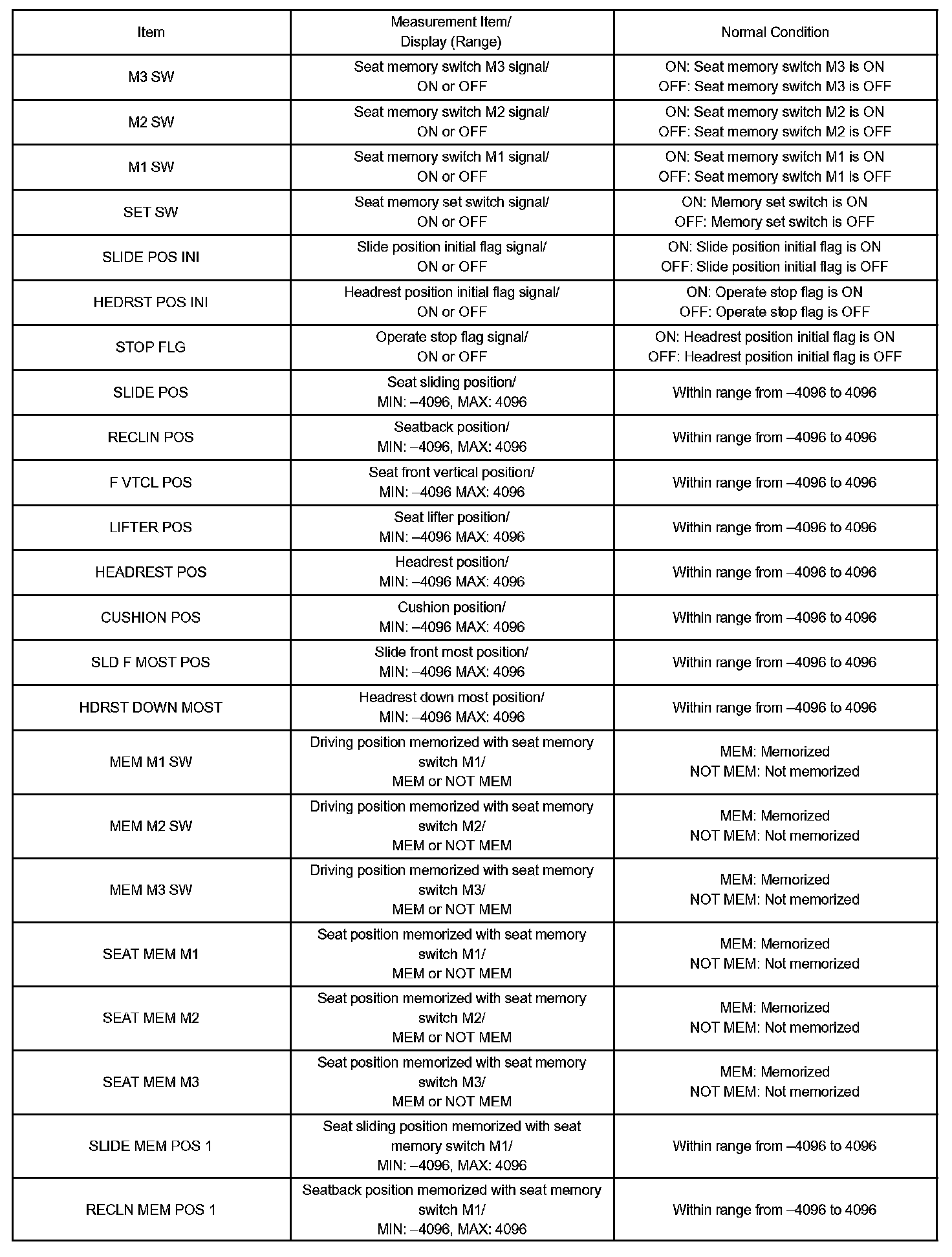

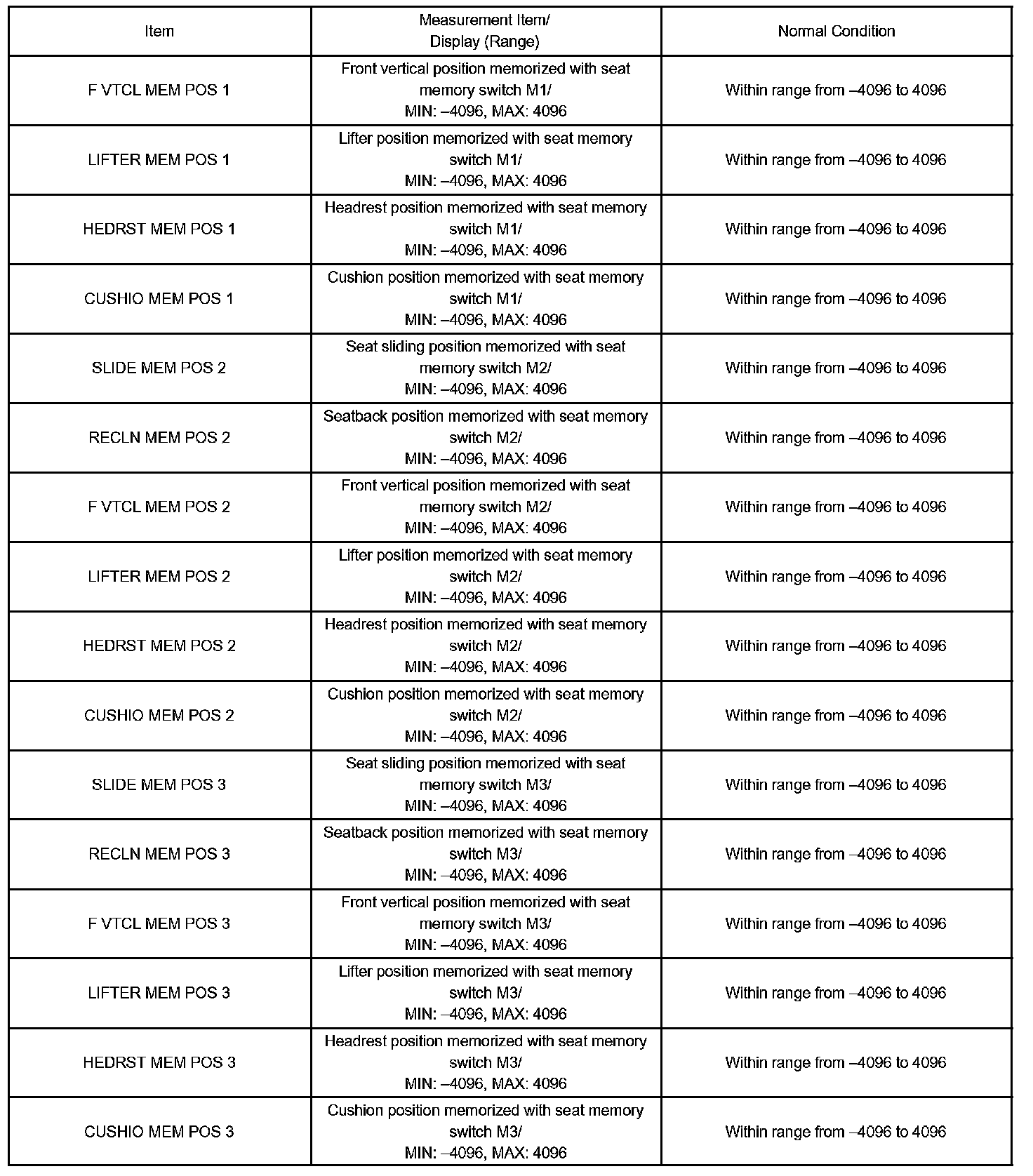

c. Read the DATA LIST.
