Laser Sensor

LASER SENSOR

REPLACEMENT

1. SEPARATE BATTERY NEGATIVE TERMINAL
2. REMOVE ENGINE UNDER COVER NO.1
3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
4. REMOVE FRONT FENDER LINER LH
5. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
6. REMOVE FRONT FENDER LINER RH
7. REMOVE FRONT BUMPER COVER
8. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSY

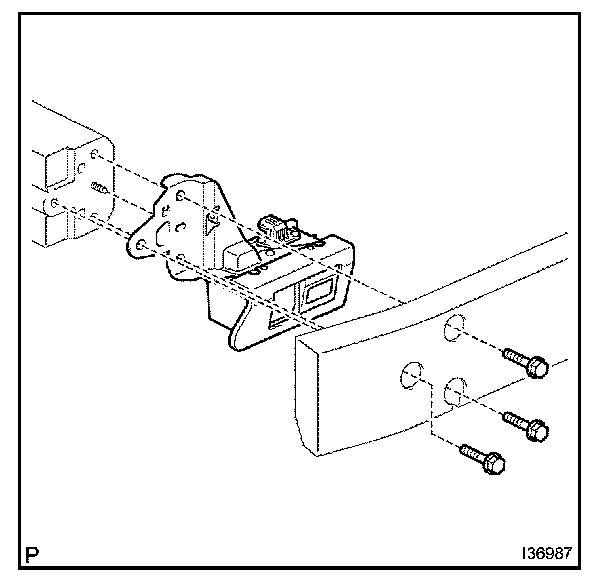

9. REMOVE LASER SENSOR
a. Disconnect the connector and remove the laser sensor.

10. INSTALL LASER SENSOR

NOTE: Do not install the laser sensor if it has been damaged or if it has received some sort of shock.

11. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSY
12. ADJUST FOG LIGHT AIM
13. CHECK FOG LIGHT AIM
14. ADJUST LASER SENSOR
