Millimeter Wave Radar Sensor Assy

MILLIMETER WAVE RADAR SENSOR ASSY

REPLACEMENT

1. SEPARATE BATTERY NEGATIVE TERMINAL




2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSY
a. Disconnect the connector.

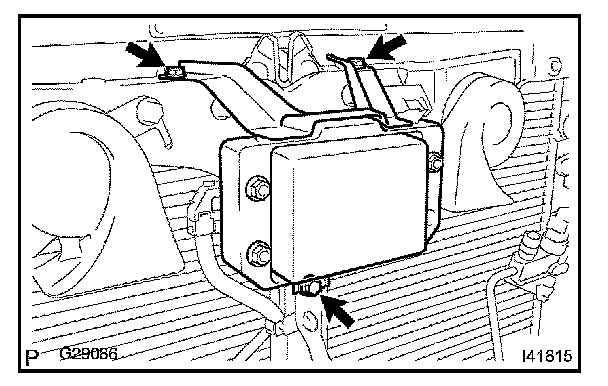

b. Remove the 3 bolts and millimeter wave radar sensor.

3. INSTALL MILLIMETER WAVE RADAR SENSOR ASSY
a. Install the millimeter wave radar sensor with the 3 bolts.

Torque: 5.5 Nm (56 kgf.cm, 49 in.lbf)

b. Connect the connector.

4. ADJUST MILLIMETER WAVE RADAR SENSOR ASSY
