Compressor Speed Sensor: Locations

Ke - Pr:

Ra - Ya:

Power Tilt And Power Telescopic Steering Column:

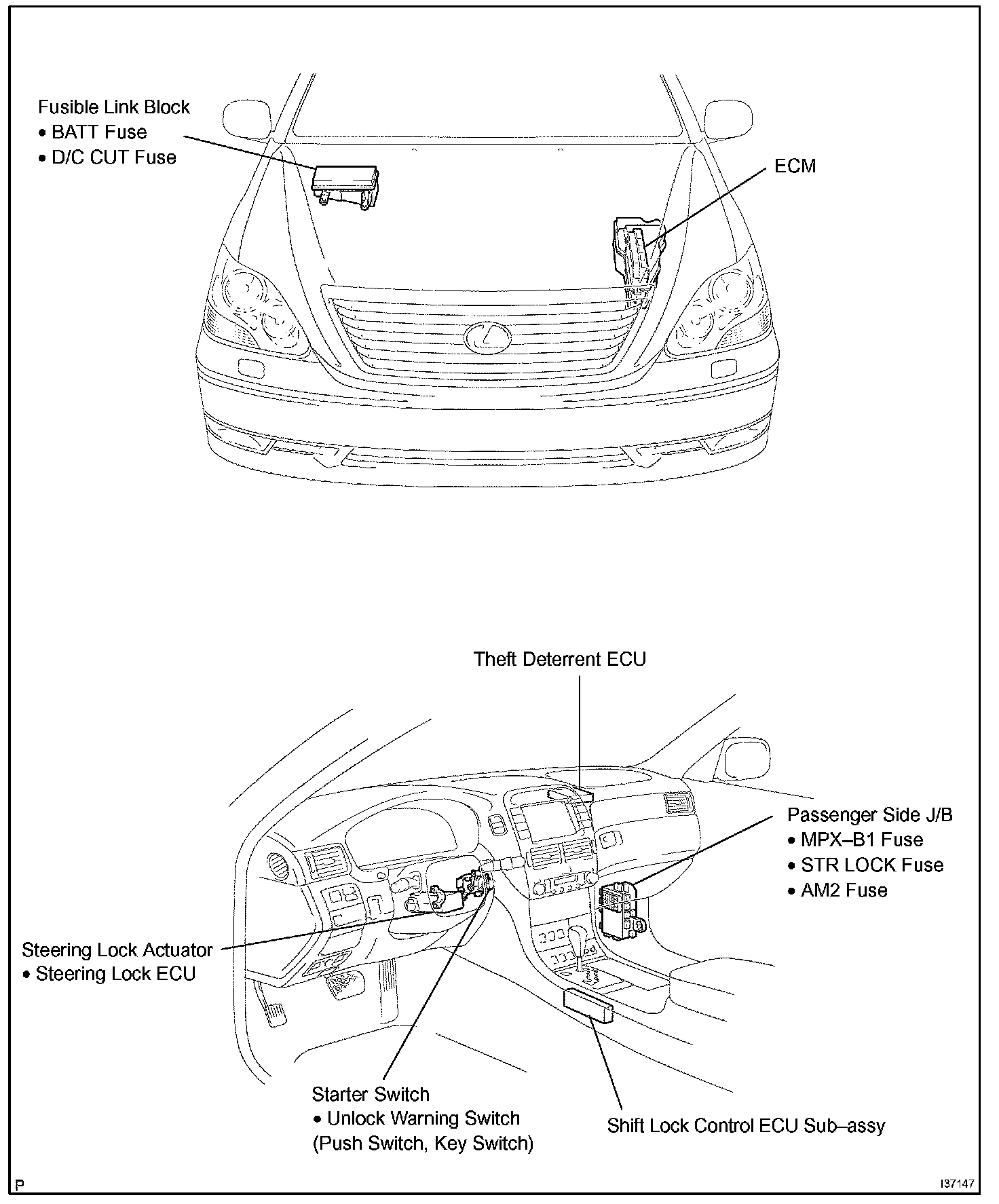

Steering Lock System:

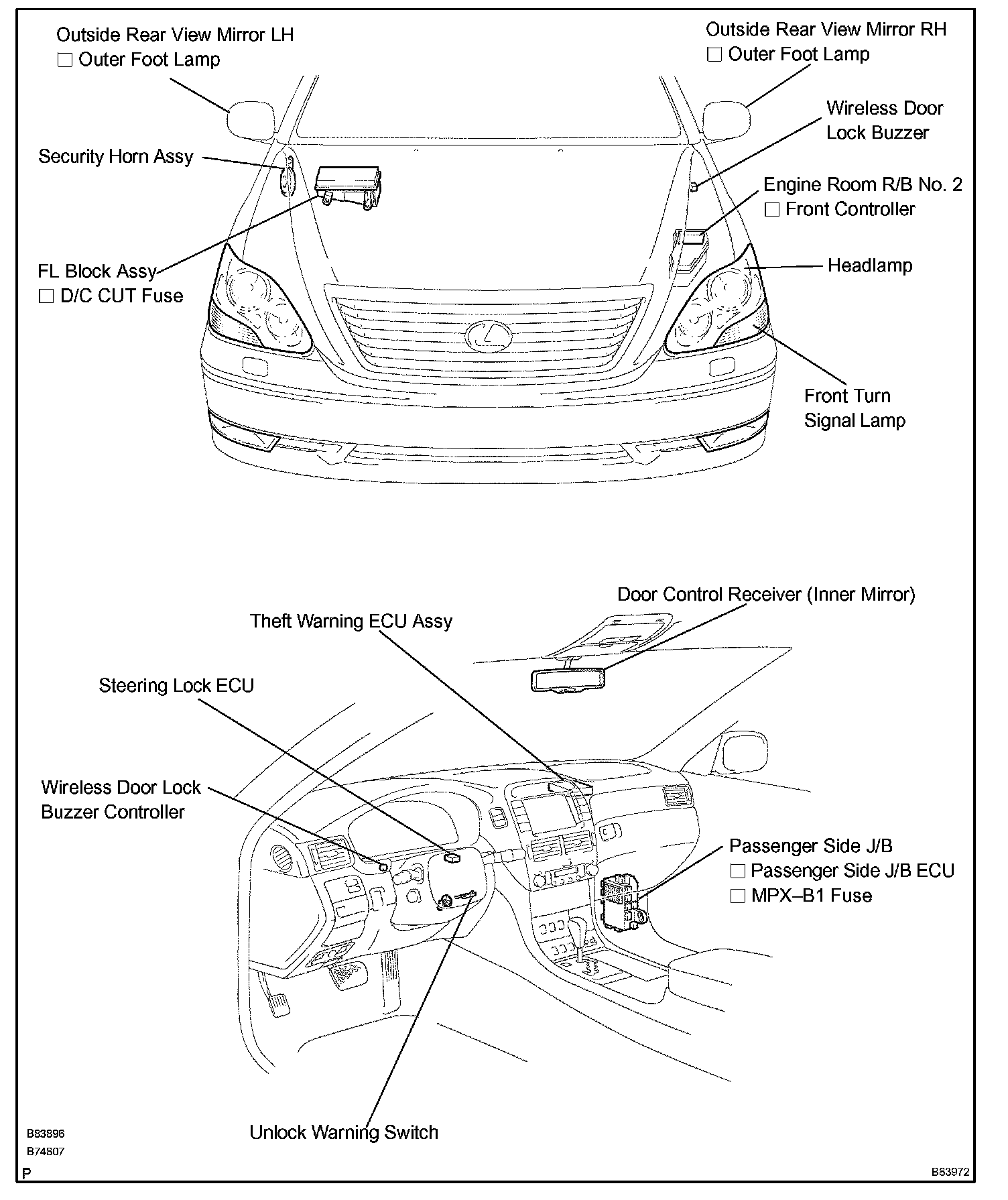

Wireless Door Lock Control System (W/ Smart Key System):

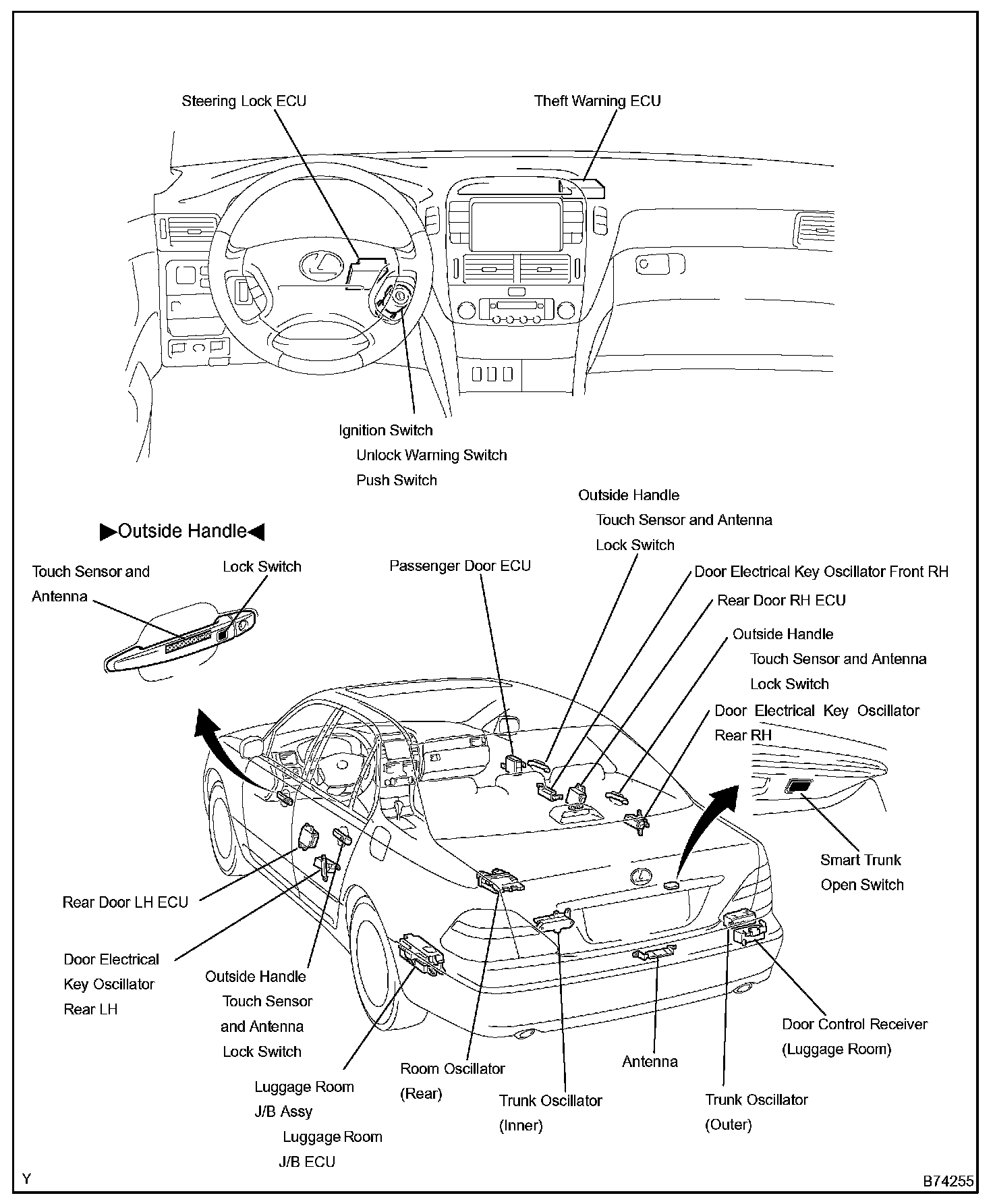

Smart Key System:
