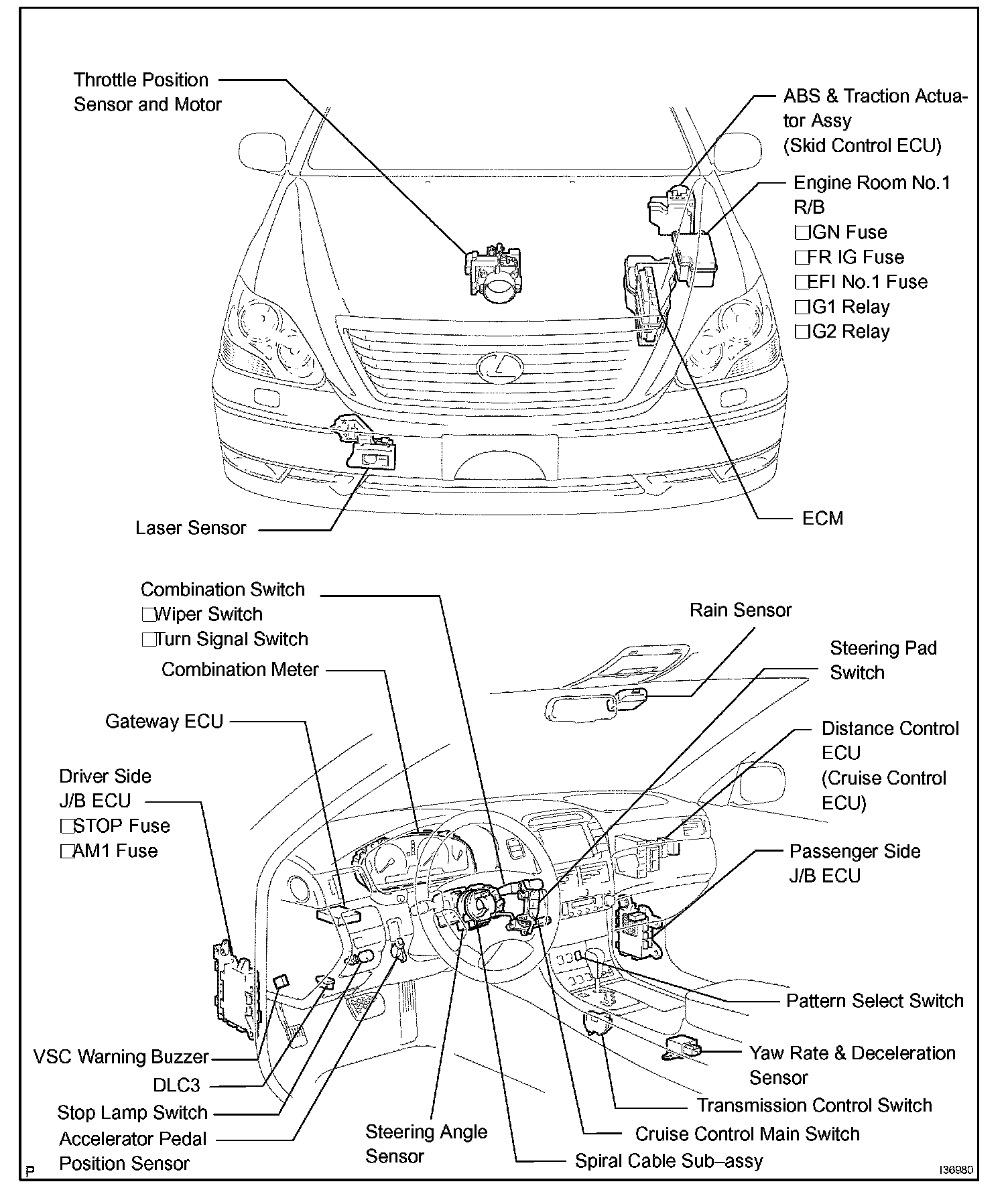

Instrument Panel Control Module: Locations

Pre-Collision Safety System:



Dynamic Laser Cruise Control System:
