Torque Sequence

Intake Manifold
Tighten the bolts alternately in a star pattern.

Exhaust Manifold
Tighten the bolts alternately in a star pattern.






Cylinder head bolts





Camshaft bearing cap

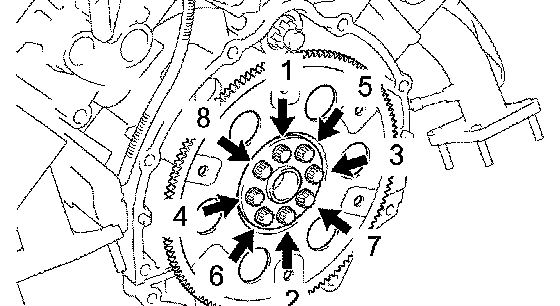

Install the front spacer, drive plate and rear spacer on the crankshaft.
Install and uniformly tighten the 8 mounting bolts in several passes in the sequence shown in the illustration
