Replacement

IGNITION OR STARTER SWITCH ASSY

REPLACEMENT

HINT: The installation procedures are the removal procedures in reverse order.

1. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
2. REMOVE SWITCH BASE HOLE COVER
3. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1




4. REMOVE IGNITION OR STARTER SWITCH ASSY
a. Disconnect the ignition switch connector and unlock warning switch connector.
b. Remove the clamp.

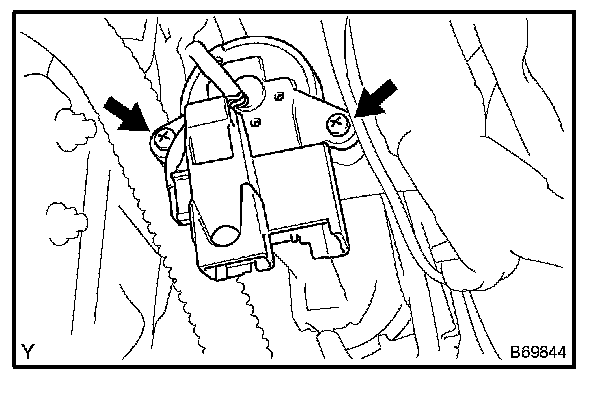

c. Remove the 2 screws and ignition switch.
