Wiper Control Module: Testing and Inspection

TERMINALS OF ECU

Terminals Of ECU / Pinouts - Engine Room No.2 Relay Block:

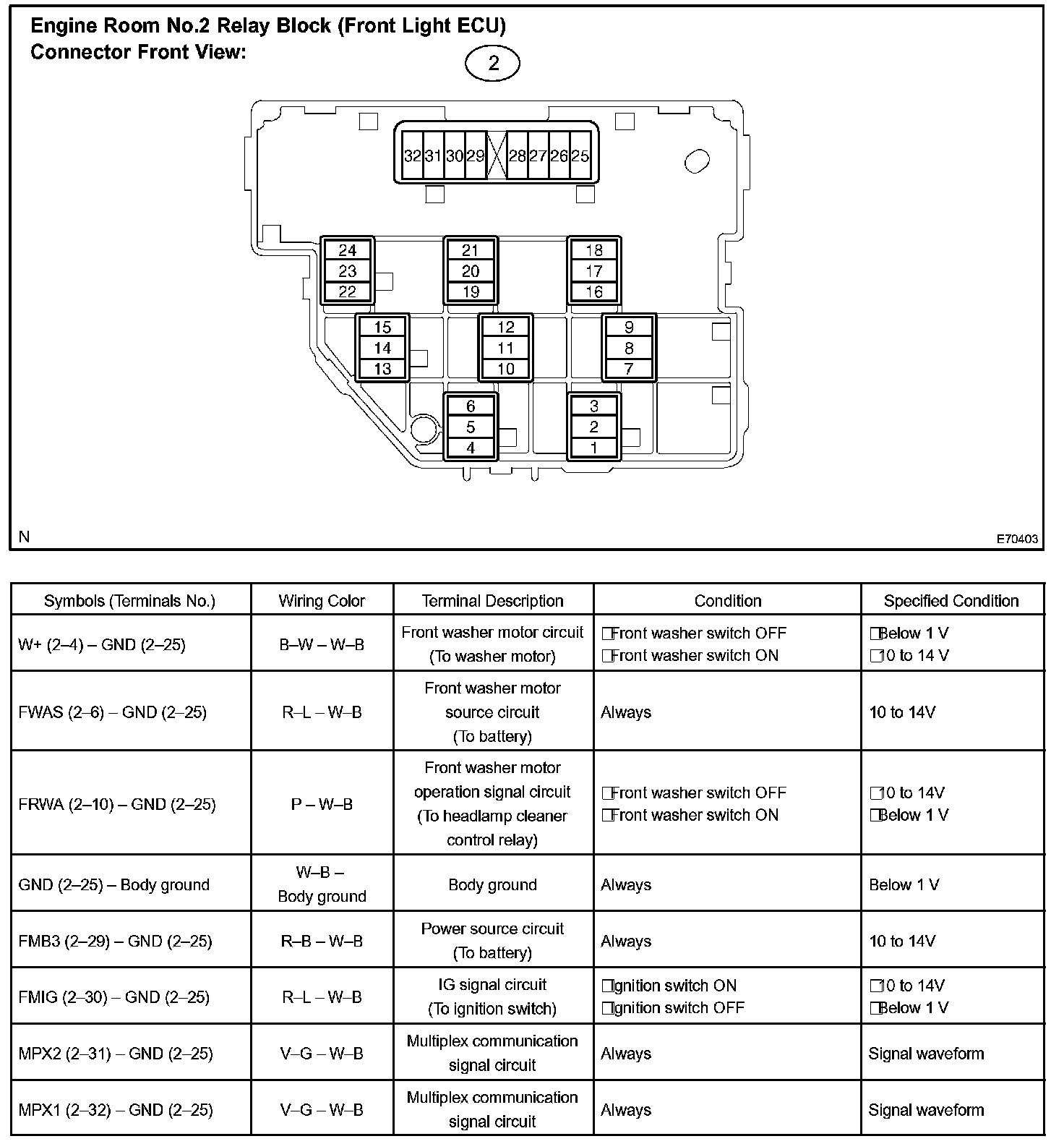

1. ENGINE ROOM NO.2 RELAY BLOCK

Terminals Of ECU / Pinouts - Driver Side Junction Block Part 1:

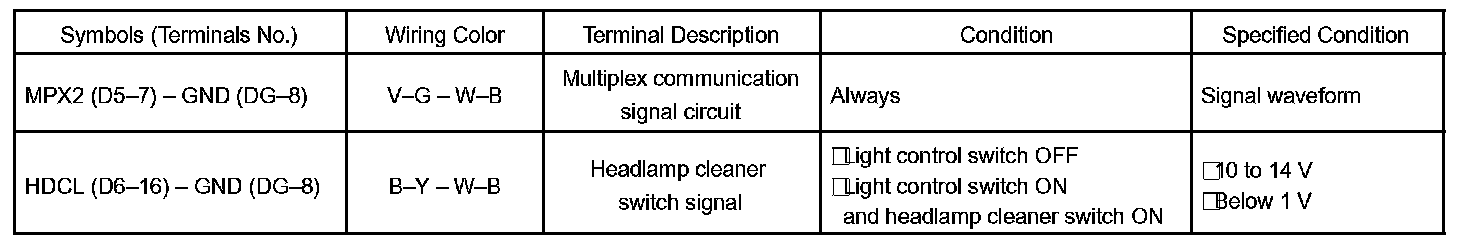

Terminals Of ECU / Pinouts - Driver Side Junction Block Part 2:

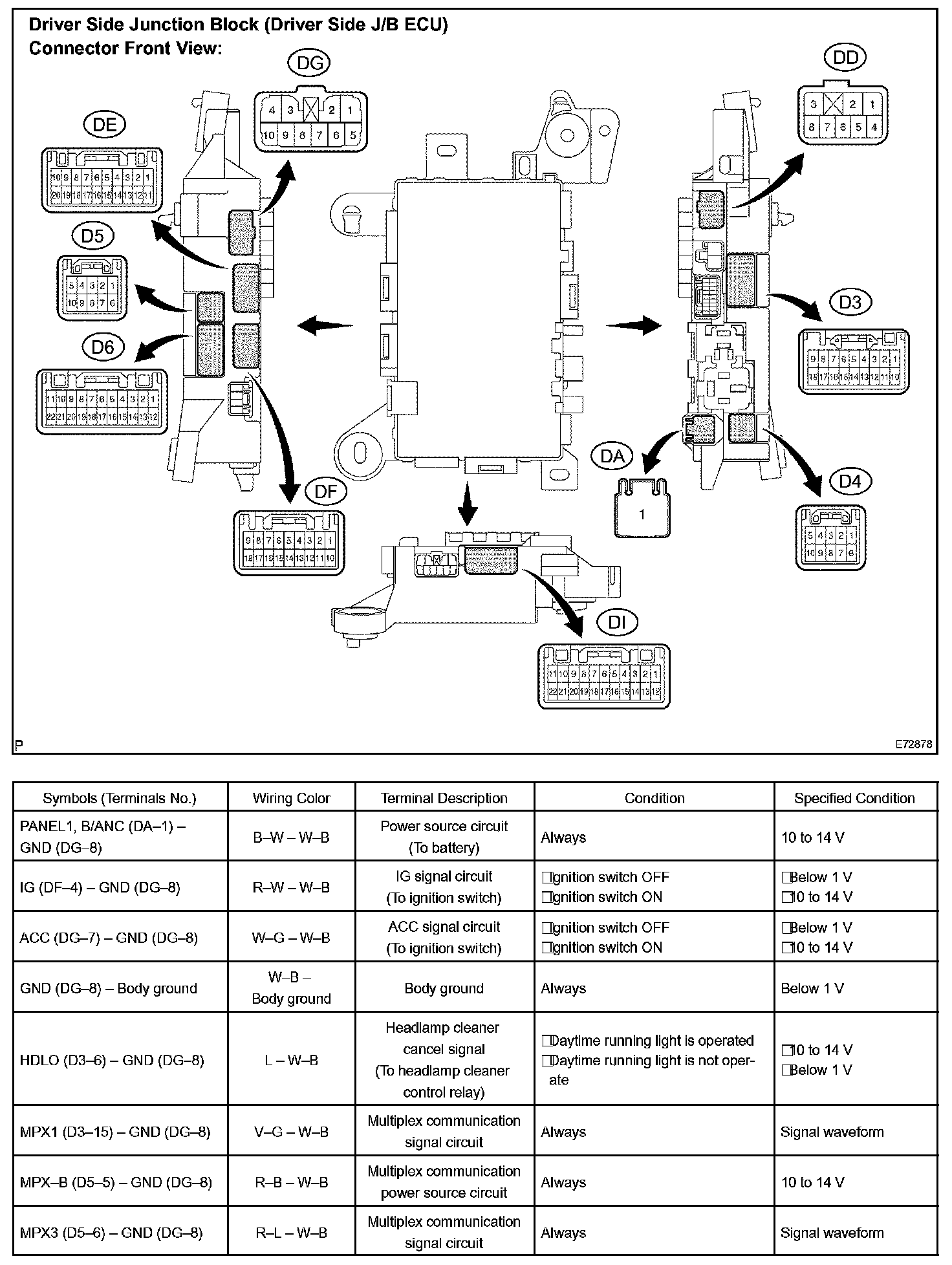

2. DRIVER SIDE JUNCTION BLOCK

Terminals Of ECU / Pinouts - Passenger Side Junction Block Part 1:

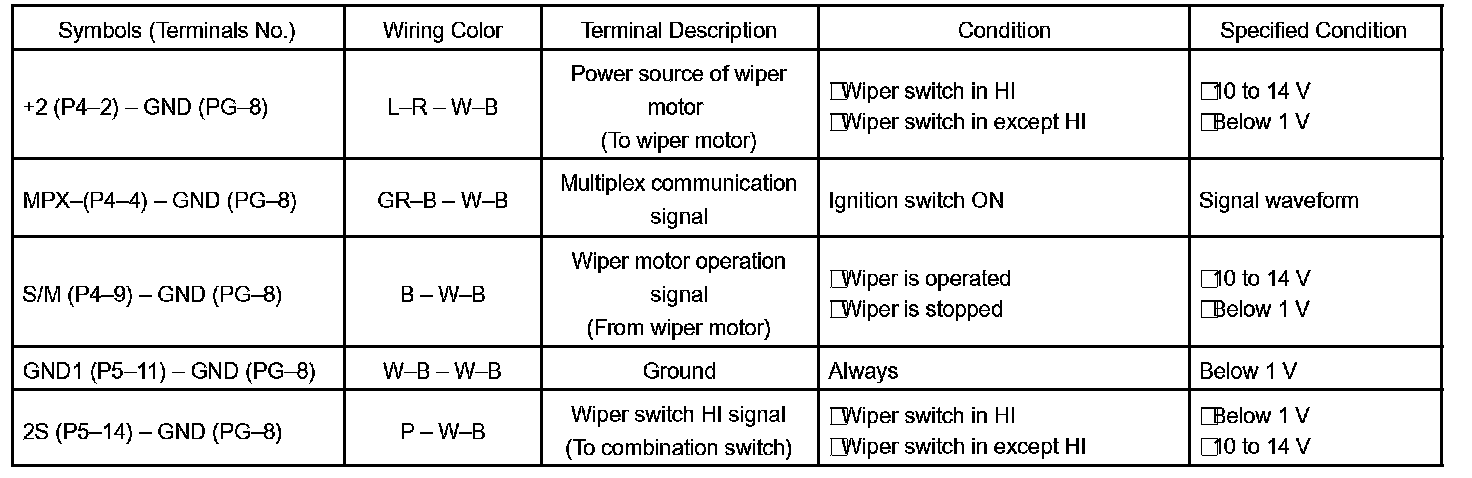

Terminals Of ECU / Pinouts - Passenger Side Junction Block Part 2:

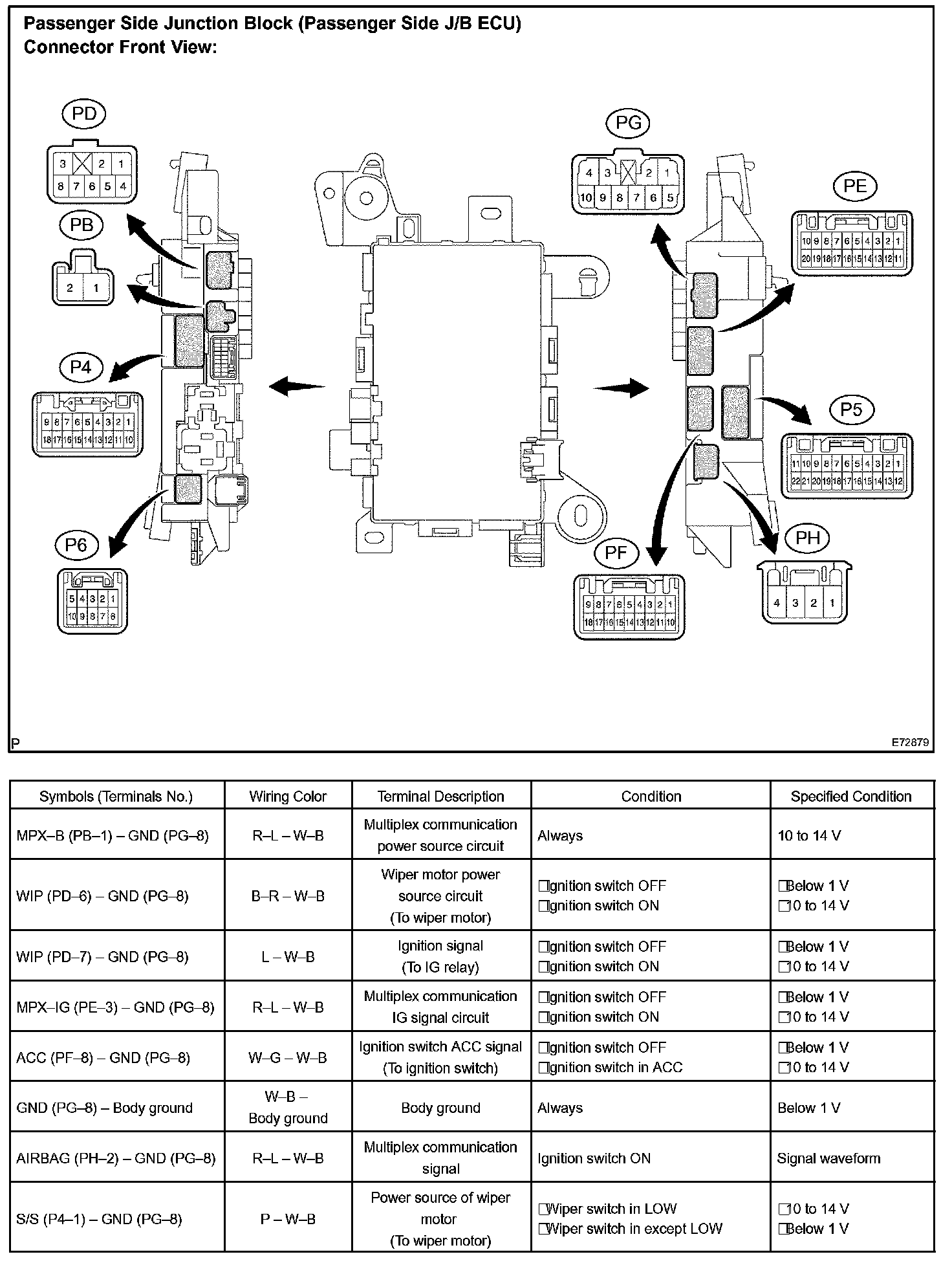

3. PASSENGER SIDE JUNCTION BLOCK

Terminals Of ECU / Pinouts - Combination Switch:

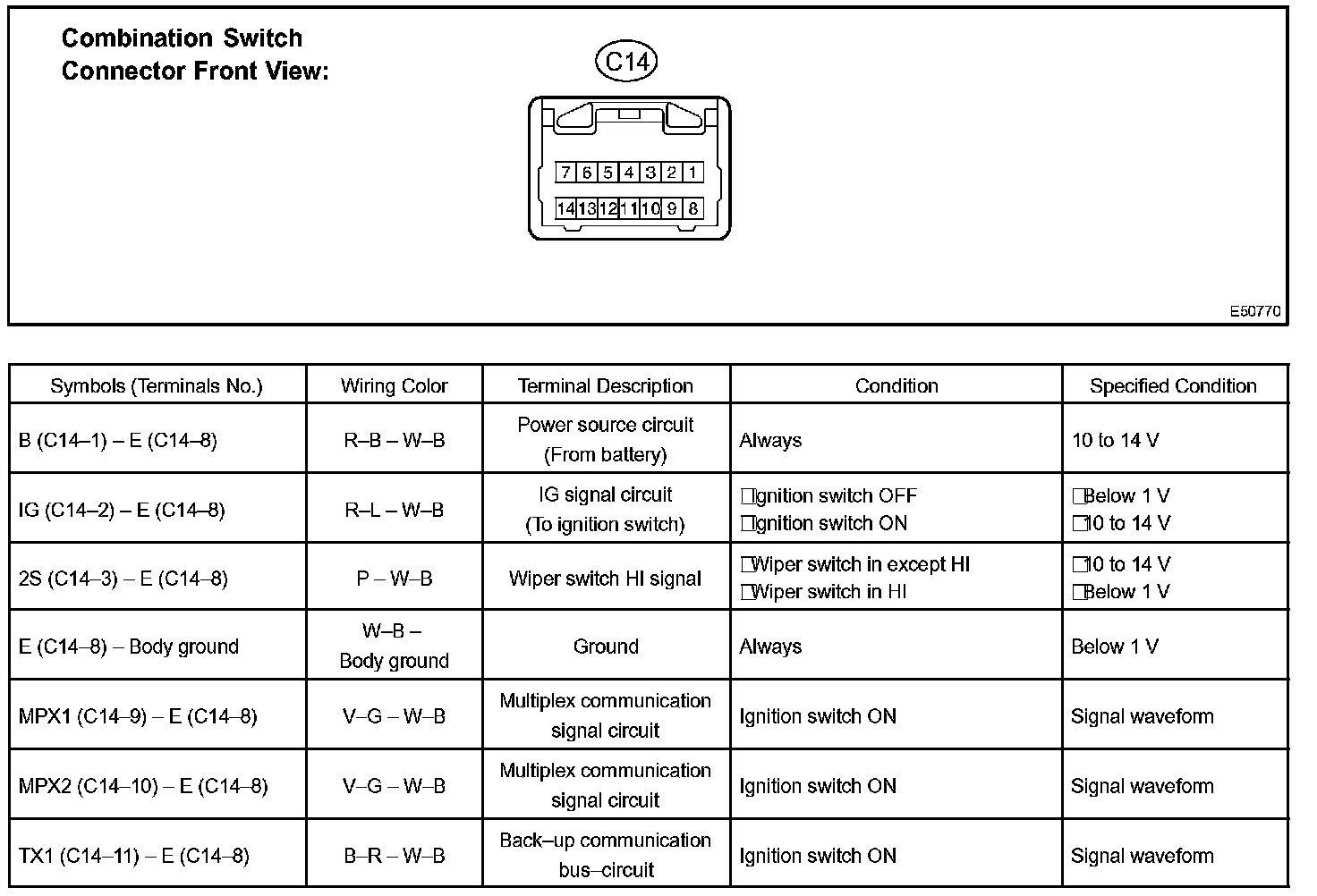

4. COMBINATION SWITCH

Terminals Of ECU / Pinouts - Headlamp Cleaner Control Relay:

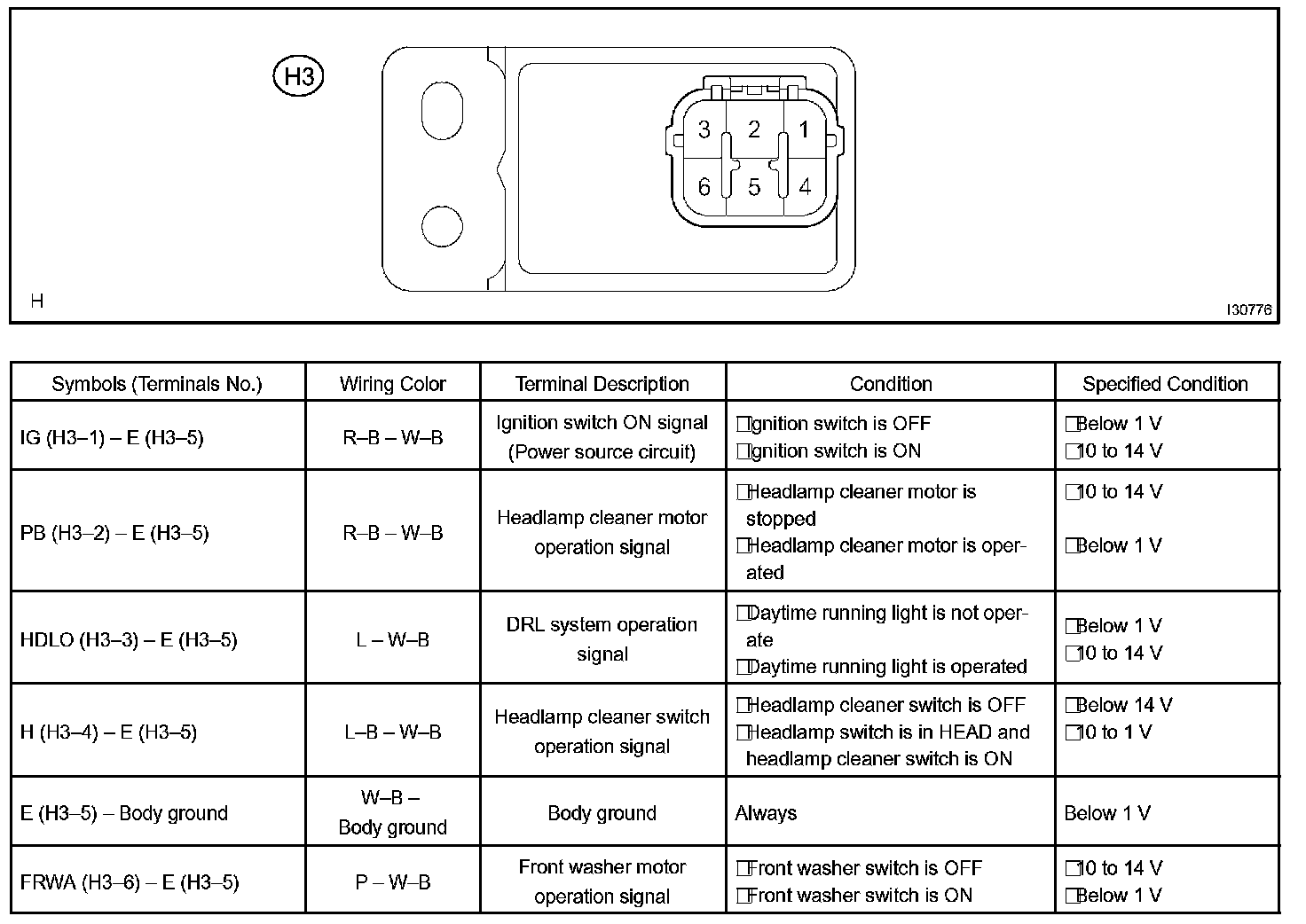

5. HEADLAMP CLEANER CONTROL RELAY
